Diamond Brite LEDs
6W DOT 2.5 Recessed Inground Series
6W DOT 2.5 Recessed Inground Series
Couldn't load pickup availability
The 6W DOT 2.5 Recessed Inground LED Series combines architectural styling with durable construction for indoor and outdoor recessed lighting applications. Delivering 600 lumens with CRI 90+, this compact inground fixture is designed for illuminating pathways, walls, landscaping, stone surfaces, and architectural features.
Constructed from die-cast aluminum with a matte black powder-coated finish, the Inground DOT 2.5 features an IP68 rating for demanding outdoor environments. Multiple precision optical options from 15° to 59° provide flexibility for narrow accent lighting, uplighting, and wider architectural illumination, with select configurations capable of projecting light up to 20 feet.
Features
- 6W AC LED module
- Delivers 600 lumens
- CRI 90+ for excellent color rendering
- Standard 2700K color temperature
- 2700K–5000K options available upon request
- Multiple beam angles: 15°, 19°, 23°, 34° & 59°
- Premium spot optical lens options
- Light projection up to 20 feet with select optics
- ELV dimmable from 100%–10%
- Durable die-cast aluminum construction
- Matte black powder-coated finish
- IP68 rated for demanding outdoor environments
- Recessed inground installation
- Suitable for indoor & outdoor applications
- ADA compliant
- CEC Title 24 JA8-2022 certified
- Approximately 50,000-hour rated life
Beam Angle Options
| Beam Angle | Light Distribution |
|---|---|
| 15° | Narrow Spot |
| 19° | Spot |
| 23° | Medium Spot |
| 34° | Flood |
| 59° | Wide Flood |
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Standard |
| 2700K–5000K | Optional Upon Request |
Specifications
| Product Type | Recessed Inground LED Luminaire |
|---|---|
| Series | Inground DOT 2.5 Series |
| Power | 6W |
| Light Output | 600 lm |
| LED Source | AC LED Module |
| Color Temperature | 2700K Standard / 2700K–5000K Optional |
| CRI | 90+ |
| Beam Angles | 15° / 19° / 23° / 34° / 59° |
| Dimming | ELV, 100%–10% |
| Material | Die-Cast Aluminum |
| Finish | Matte Black Powder Coat |
| Mounting | Recessed Inground |
| IP Rating | IP68 |
| Rated Life | Approximately 50,000 Hours |
| Compliance | ADA Compliant / CEC Title 24 JA8-2022 Certified |

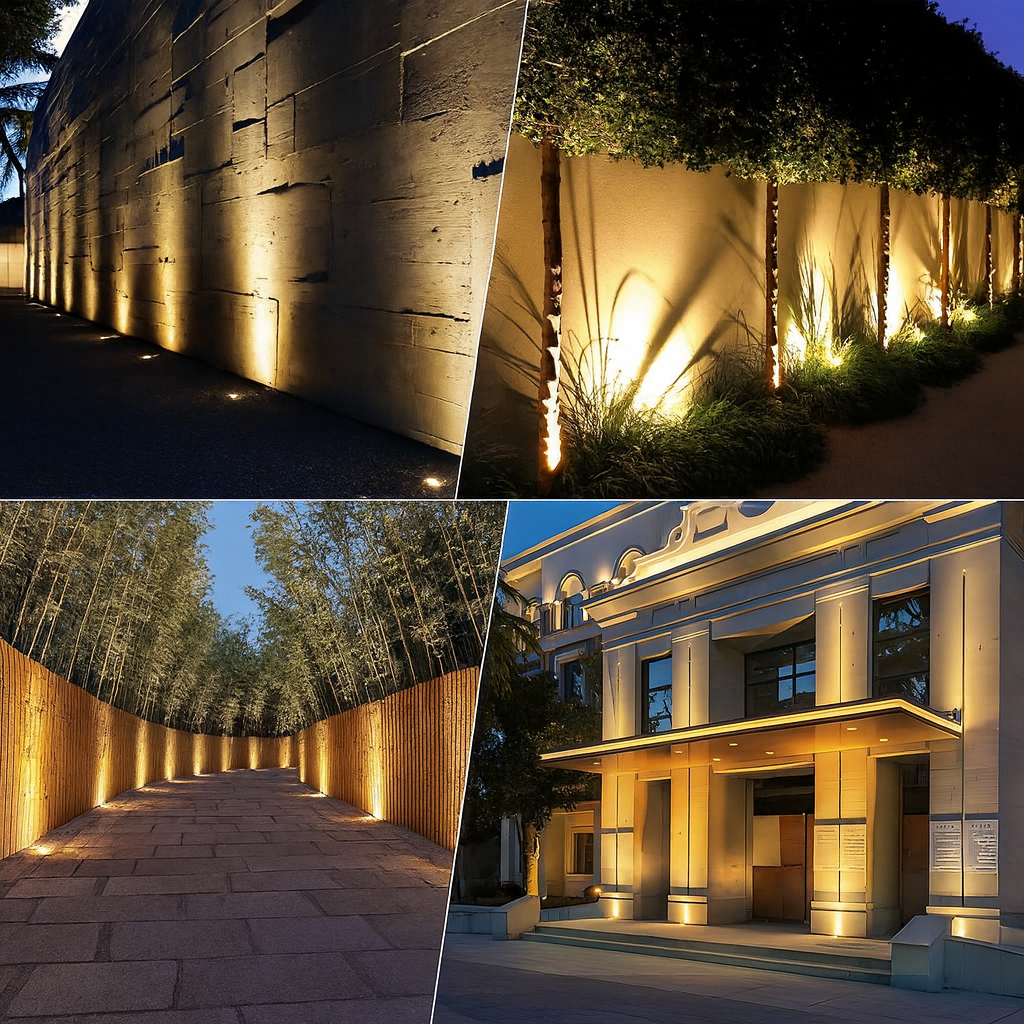

Applications
- Architectural Uplighting
- Pathways & Walkways
- Garden & Landscape Lighting
- Wall Washing
- Building Facades
- Stone & Masonry Features
- Residential Exteriors
- Commercial Properties
- Indoor Architectural Accent Lighting
Why Choose the Inground DOT 2.5 Series?
The 6W Inground DOT 2.5 Series delivers 600 lumens with CRI 90+ and five precision beam options, providing the flexibility to create everything from narrow architectural accents to wider wall-washing effects. Select optical configurations can project illumination up to 20 feet for dramatic vertical and landscape lighting.
With durable die-cast aluminum construction, a matte black powder-coated finish, IP68 protection, ELV dimming, and an approximately 50,000-hour rated life, the Inground DOT 2.5 Series provides a versatile solution for residential, commercial, architectural, and landscape lighting applications.
