4.21W/FT Infiniline Blaze LED Strip Series
4.21W/FT Infiniline Blaze LED Strip Series
Couldn't load pickup availability
The 4.21W/FT Infiniline Blaze LED Strip Series is a durable, high-output linear LED solution designed for long continuous runs up to 164 feet. Operating directly at 120VAC, the series is ideal for large-scale architectural applications where extended runs and dependable outdoor performance are required.
Built with Epistar 5050 SMD LEDs and rated IP67 for wet locations, the Infiniline 120V Blaze Series can be used for both indoor and outdoor installations. Mounting clips and screws are included for secure installation, making it an excellent solution for building outlines, facades, signage, coves, patios, decks, and large commercial projects.
Features
- 4.21W per ft (13.8W per meter)
- Supports continuous runs up to 164 ft
- 120VAC, 50/60Hz input voltage
- Epistar 5050 SMD LED chips
- 19 LEDs per ft (60 LEDs per meter)
- White and color LED options available
- 120° wide beam distribution
- Built-in AC cord
- Mounting clips and screws included
- Not field cuttable
- Non-dimmable
- IP67 rated for outdoor and wet-location applications
- Operating temperature from 14°F to 120°F (-10°C to 49°C)
- ETL Listed
- UL 2388 Compliant
- RoHS and CE compliant
- 3-year warranty
White Light Output
| Color Temperature | Lumens per ft | CRI | Efficacy |
|---|---|---|---|
| 3000K | 189 lm/ft | 60.9 | 44.8 lm/W |
| 6000K | 274 lm/ft | 71.2 | 50.1 lm/W |
Color Light Output
| Color | Wavelength | Lumens per ft |
|---|---|---|
| Red | 630 nm | 51 lm/ft |
| Green | 535 nm | 105 lm/ft |
| Blue | 475 nm | 45 lm/ft |
| Pink | 590 nm | 51 lm/ft |
Specifications
| Product Type | 120V LED Strip |
|---|---|
| Power Consumption | 4.21W/ft (13.8W/m) |
| Input Voltage | 120VAC, 50/60Hz |
| LED Chip | Epistar 5050 SMD |
| LED Density | 19 LEDs/ft (60 LEDs/m) |
| White CCT Options | 3000K / 6000K |
| Color Options | Red / Green / Blue / Pink |
| Beam Angle | 120° |
| Maximum Continuous Run | 164 ft |
| Field Cuttable | No |
| Dimmable | No |
| Mounting | Clips & Screws Included |
| Operating Temperature | 14°F to 120°F (-10°C to 49°C) |
| Environment | Indoor / Outdoor / Wet Location |
| IP Rating | IP67 |

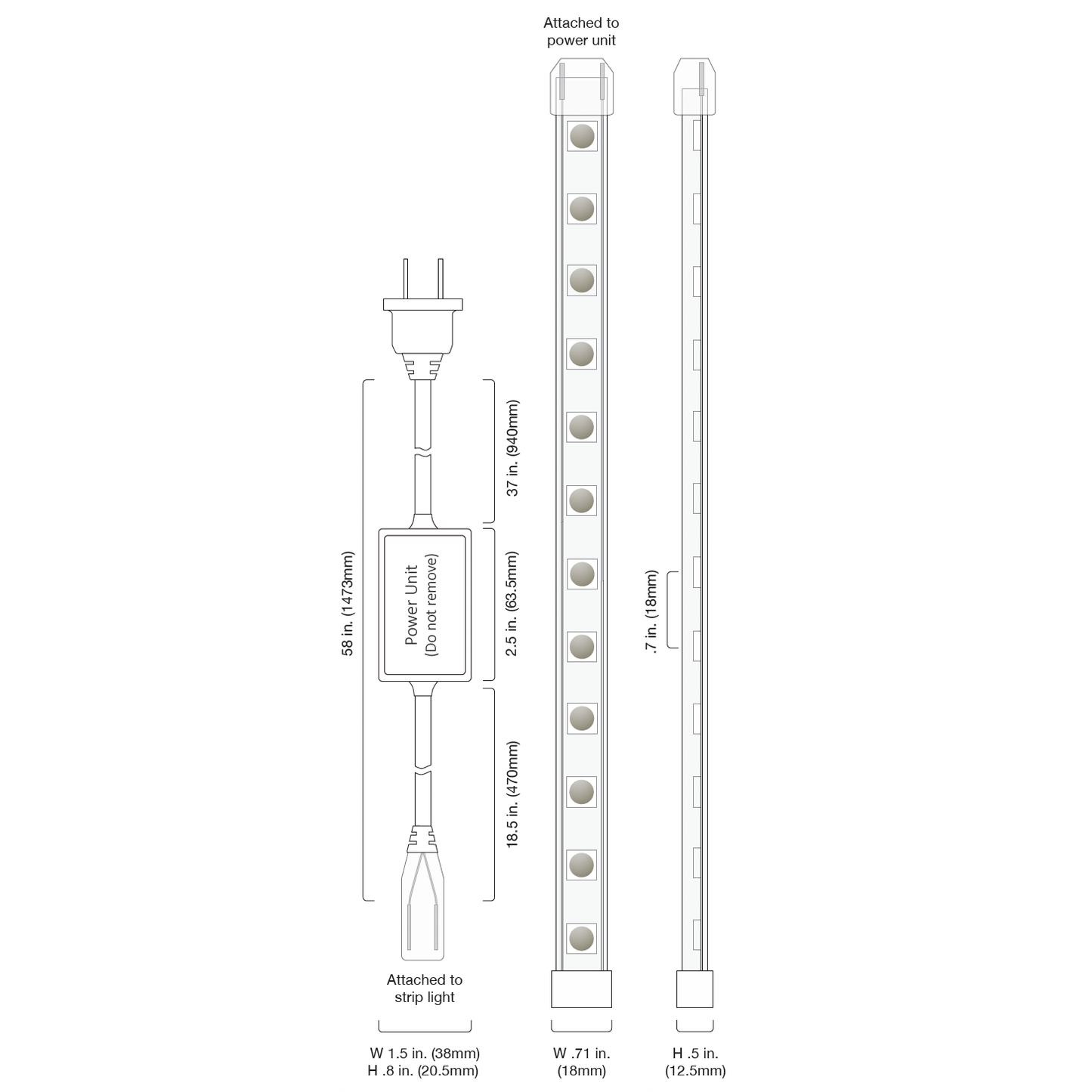

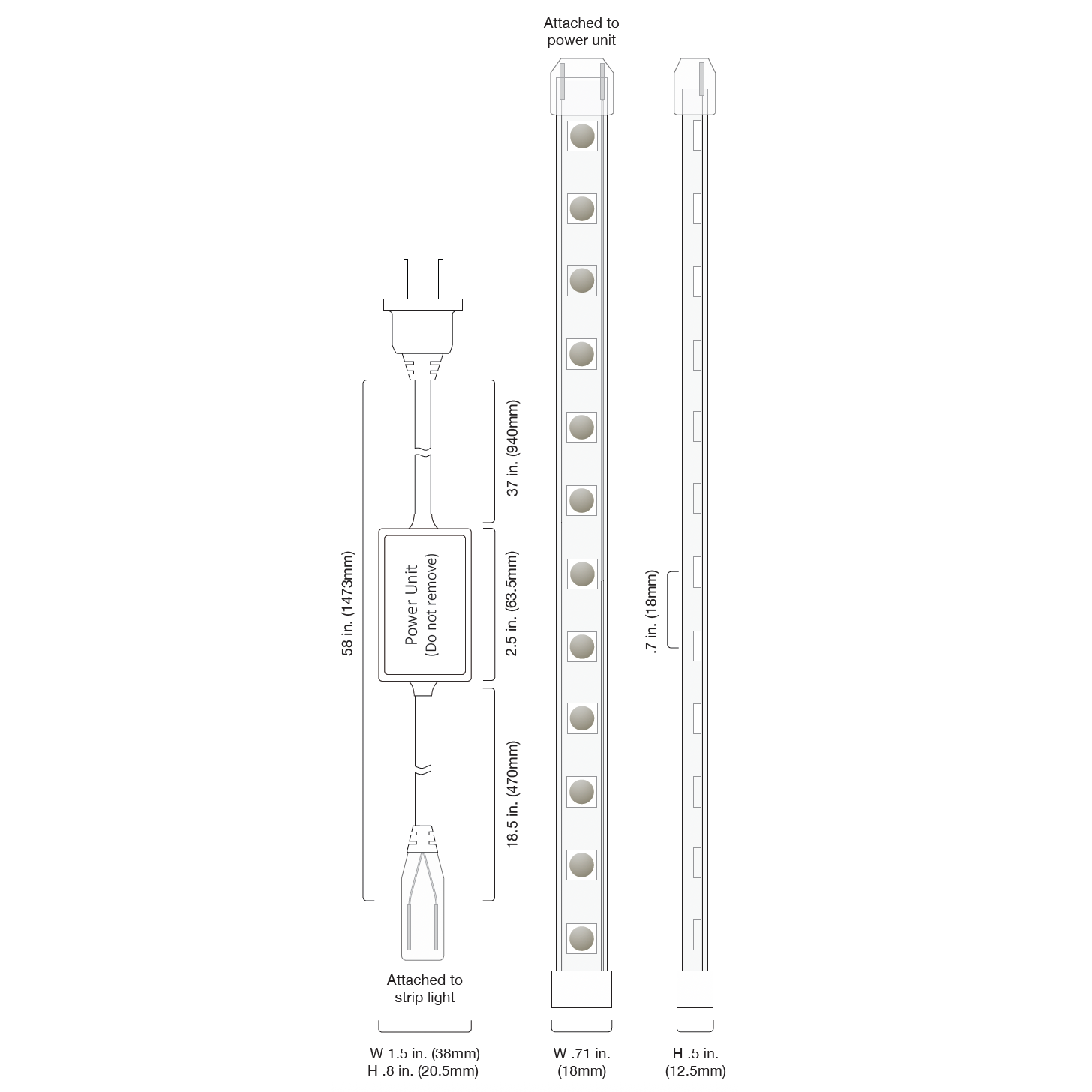

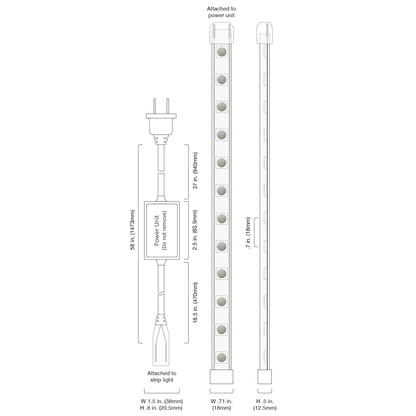

| Dimensions | 0.56" W × 0.28" H (14.2 × 7.1 mm) |
| Certifications | ETL Listed / UL 2388 Compliant / RoHS / CE |
| Warranty | 3 Years |
Applications
- Outdoor Building Facades
- Building Outlines
- Architectural Accent Lighting
- Signage
- Cove Lighting
- Patios
- Decks
- Indoor and Outdoor Commercial Spaces
- Large Continuous-Run Installations
- Wet-Location Lighting Applications
Why Choose the Infiniline 120V Blaze LED Strip Series?
The Infiniline 120V Blaze LED Strip Series is designed for projects requiring extended continuous LED runs of up to 164 feet. Its direct 120VAC operation and included AC cord simplify power requirements, while the included mounting clips and screws provide a secure installation method.
With an IP67 wet-location rating, multiple white and color options, a wide 120° beam angle, and ETL, UL 2388, RoHS, and CE compliance, the Infiniline 120V Blaze Series provides a durable solution for architectural facades, signage, building outlines, patios, decks, coves, and large commercial installations.
