Diamond Brite LEDs
3W G4 Disc Lamp Series
3W G4 Disc Lamp Series
Couldn't load pickup availability

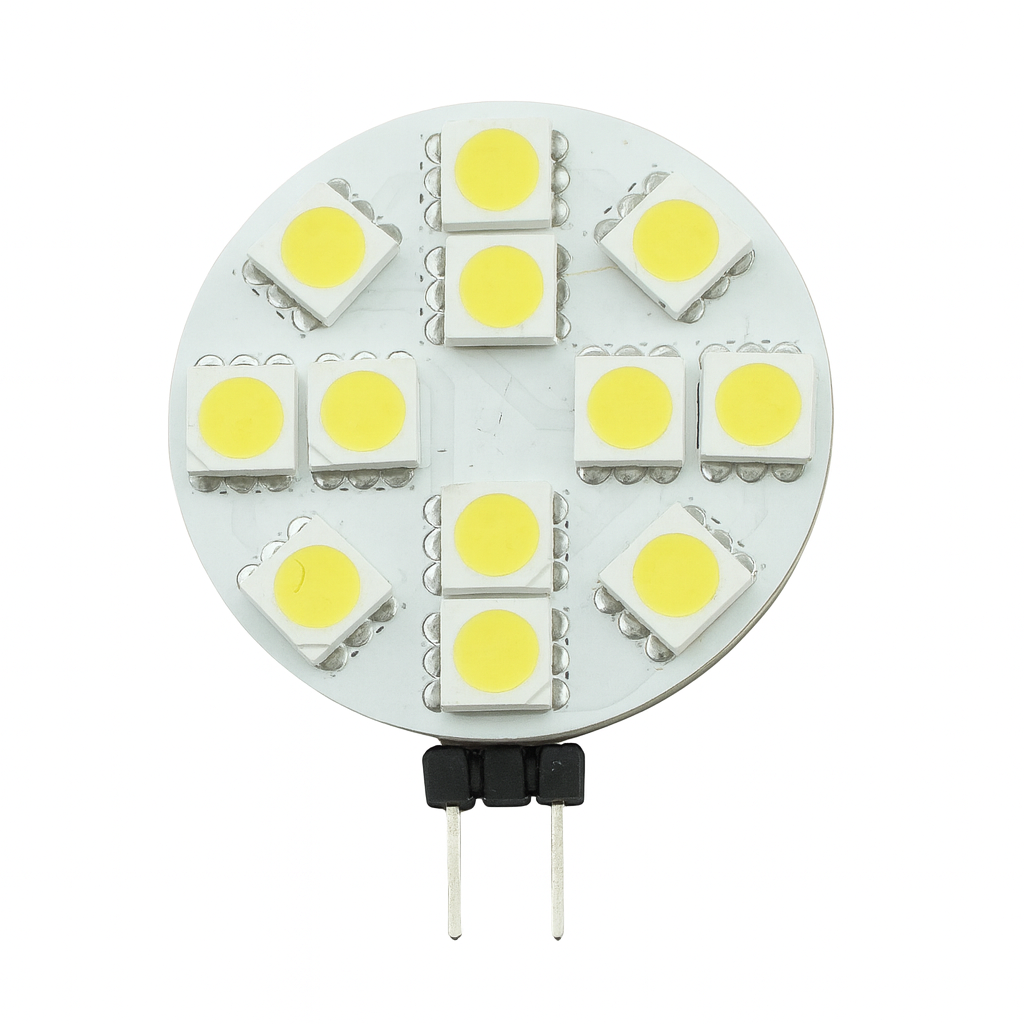

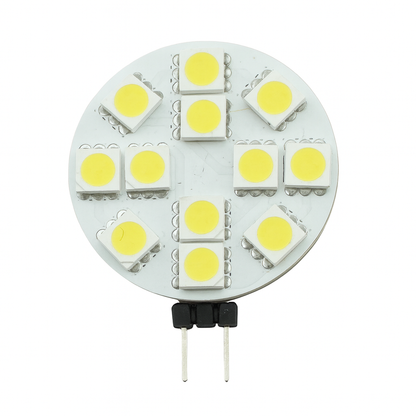

The 3W G4 Disc LED Lamp Series is a compact, energy-efficient replacement for traditional 40W incandescent, halogen, and HID bi-pin lamps. Producing 260 lumens while consuming only 3 watts, the G4 Disc provides efficient illumination for display cases, furniture lighting, marine applications, elevators, and other compact fixtures.
Powered by Epistar LED technology, the G4 Disc features a wide 120° beam angle for broad light distribution and smooth 10%–100% dimming for adjustable illumination. Its compact 1.2" (31 mm) diameter and standard G4 bi-pin connection make it a versatile solution for low-voltage accent and specialty lighting applications.
Features
- 3W LED replaces up to 40W incandescent, halogen or HID lighting
- Produces 260 lumens
- Premium Epistar LED technology
- 120° wide beam angle for broad illumination
- Available in 3000K, 4000K, 5000K, 6500K & 8000K
- Dimmable from 10%–100%
- 12V AC/DC operation
- Standard G4 bi-pin connection
- CRI >80 for accurate color rendering
- Power factor >0.90
- Low-heat LED operation compared with traditional halogen lamps
- Compact PVC construction
- Approximately 30,000-hour rated life
- CE, RoHS & FCC approved
- 2-year warranty
Color Temperature Options
| Color Temperature | Description | Light Output |
|---|---|---|
| 3000K | Warm White | 260 lm |
| 4000K | Natural White | 260 lm |
| 5000K | Daylight | 260 lm |
| 6500K | Bright White | 260 lm |
| 8000K | Blue Sky | 260 lm |
Specifications
| Product Type | G4 Bi-Pin LED Lamp |
|---|---|
| Series | G4 Disc Series |
| Power | 3W |
| Equivalent Wattage | Up to 40W Incandescent / Halogen / HID |
| Light Output | 260 lm |
| LED Source | Epistar LEDs |
| Input Voltage | 12V AC/DC |
| Base | G4 Bi-Pin |
| Color Temperatures | 3000K / 4000K / 5000K / 6500K / 8000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimming | 10%–100% |
| Power Factor | >0.90 |
| Housing Material | PVC |
| Diameter | 1.2" (31 mm) |
| Weight | 0.05 lb |
| Operating Temperature | -4°F to 68°F (-20°C to 20°C) |
| Rated Life | Approximately 30,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Display Cases
- Jewelry Showcases
- Furniture Lighting
- Elevators
- Yachts & Boats
- Small Fixtures
- Cabinet Lighting
- Accent Lighting
- Specialty Low-Voltage Lighting
Why Choose the G4 Disc Series?
The 3W G4 Disc LED Lamp delivers 260 lumens with a wide 120° beam angle while replacing traditional lamps up to 40W. Its compact design, G4 bi-pin connection, and five color temperature options make it a versatile choice for display, furniture, marine, elevator, and accent lighting applications.
With Epistar LED technology, 10%–100% dimming, low-heat operation, 12V AC/DC compatibility, and an approximately 30,000-hour rated life, the G4 Disc Series provides an efficient and long-lasting alternative to traditional halogen bi-pin lighting.
