Diamond Brite LEDs

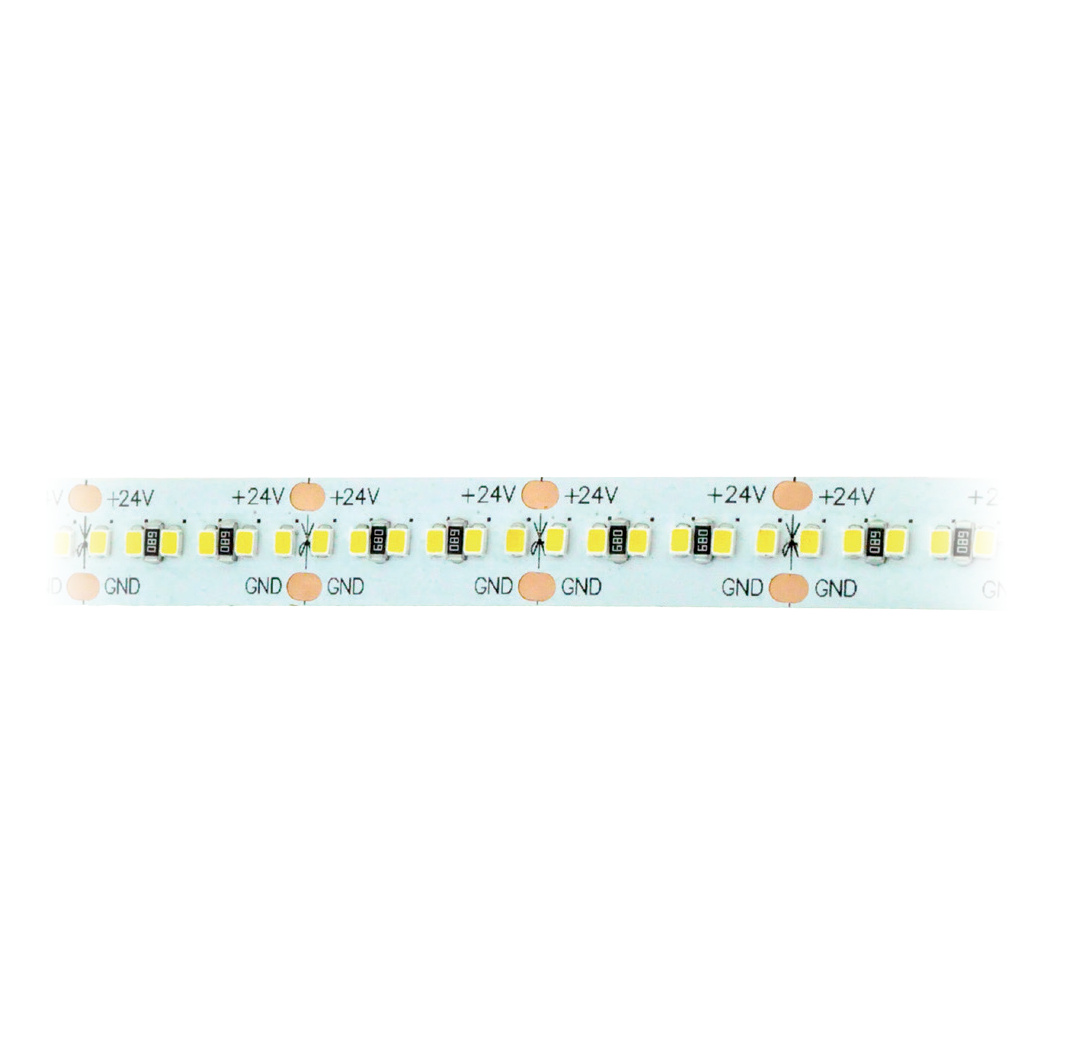

7.3W/FT Flexible LED Streamline Strip Series
7.3W/FT Flexible LED Streamline Strip Series
Couldn't load pickup availability
The Flexible LED Streamline Strip Series is a high-performance flexible LED strip engineered with premium 2216 SMD LEDs and a durable 2 oz white PCB for effective heat dissipation, consistent performance, and long service life. Delivering up to 1,840 lumens per meter, the series provides bright, high-quality illumination for architectural, retail, hospitality, residential, and commercial applications.
Featuring 91 LEDs per foot (300 LEDs per meter), CRI 90+ across all available white color temperatures, and cut intervals of just 0.8" (20 mm), the Flexible LED Streamline provides excellent flexibility for custom installations. Multiple PWM and dimming control options further expand its versatility for accent, task, and general illumination.
Features
- Premium 2216 SMD LED technology
- High density with 91 LEDs per foot (300 LEDs per meter)
- Produces up to 1,840 lumens per meter
- 24W per meter power consumption
- Approximately 7.3W per foot
- 24V DC constant-voltage operation
- Cuttable every 0.8" (20 mm)
- Wide 120° beam angle
- Standard 16.4 ft (5 m) reel length
- Custom lengths available
- 3M double-sided adhesive backing for installation
- CRI 90+ across all available white CCT options
- DMX PWM, RF PWM, 0–10V, and MLV incandescent dimming control options
- Durable 2 oz density white PCB for heat dissipation and longevity
- Approximately 50,000-hour rated life
- Operating temperature from -20°F to 120°F
- IP20 configuration for indoor applications
Color Temperature & CRI Options
| Color Temperature | CRI |
|---|---|
| 2400K | 90+ |
| 2700K | 90+ |
| 3000K | 90+ |
| 3500K | 90+ |
| 4000K | 90+ |
| 5000K | 90+ |
| 6500K | 90+ |
Accent Color Options
| Color | Availability |
|---|---|
| Green | Available |
| Blue | Available |
Dimming & Control Options
| Control Method | Availability |
|---|---|
| DMX PWM | Available |
| RF PWM | Available |
| 0–10V | Available |
| MLV Incandescent Dimming | Available |
Specifications
| Product Type | High-Density Flexible LED Strip |
|---|---|
| Series | Flexible LED Streamline Strip Series |
| LED Type | 2216 SMD |
| LED Density | 91 LEDs/ft (300 LEDs/m) |
| Maximum Light Output | Up to 1,840 lm/m |
| Power Consumption | 24W/m (Approximately 7.3W/ft) |
| Voltage | 24V DC Constant Voltage |
| Cut Interval | 0.8" (20 mm) |
| Beam Angle | 120° Wide Flood |
| Standard Reel Length | 16.4 ft (5 m) |
| Custom Lengths | Available |
| Mounting | 3M Double-Sided Adhesive Backing |
| White CCT Options | 2400K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | 90+ |
| Accent Colors | Green / Blue |
| Dimming & Control | DMX PWM / RF PWM / 0–10V / MLV Incandescent Dimmers |
| PCB | 2 oz Density White PCB |
| IP Rating | IP20 |
| Rated Life | 50,000 Hours |
| Operating Temperature | -20°F to 120°F |
Applications
- Cove Lighting
- Under-Cabinet Lighting
- Task Lighting
- Retail Showcases
- Display Cases
- Architectural Accent Lighting
- Decorative Lighting
- Office Lighting
- Hospitality Spaces
- Residential Lighting
- Commercial Interiors
Why Choose the Flexible LED Streamline Strip Series?
The Flexible LED Streamline Strip Series combines 91 LEDs per foot, premium 2216 SMD technology, and CRI 90+ light quality to provide smooth, high-quality illumination for applications where both performance and color rendering are important. Its compact 0.8" (20 mm) cut interval provides excellent flexibility for precise custom installations.
With up to 1,840 lumens per meter, 24V DC operation, multiple dimming and control options, a durable 2 oz white PCB, and a 50,000-hour rated life, the Flexible LED Streamline Strip Series provides a versatile solution for professional architectural, retail, hospitality, residential, and commercial lighting projects.
