Diamond Brite LEDs
4.4W/FT Flexible LED Dazzler Strip Series
4.4W/FT Flexible LED Dazzler Strip Series
Couldn't load pickup availability

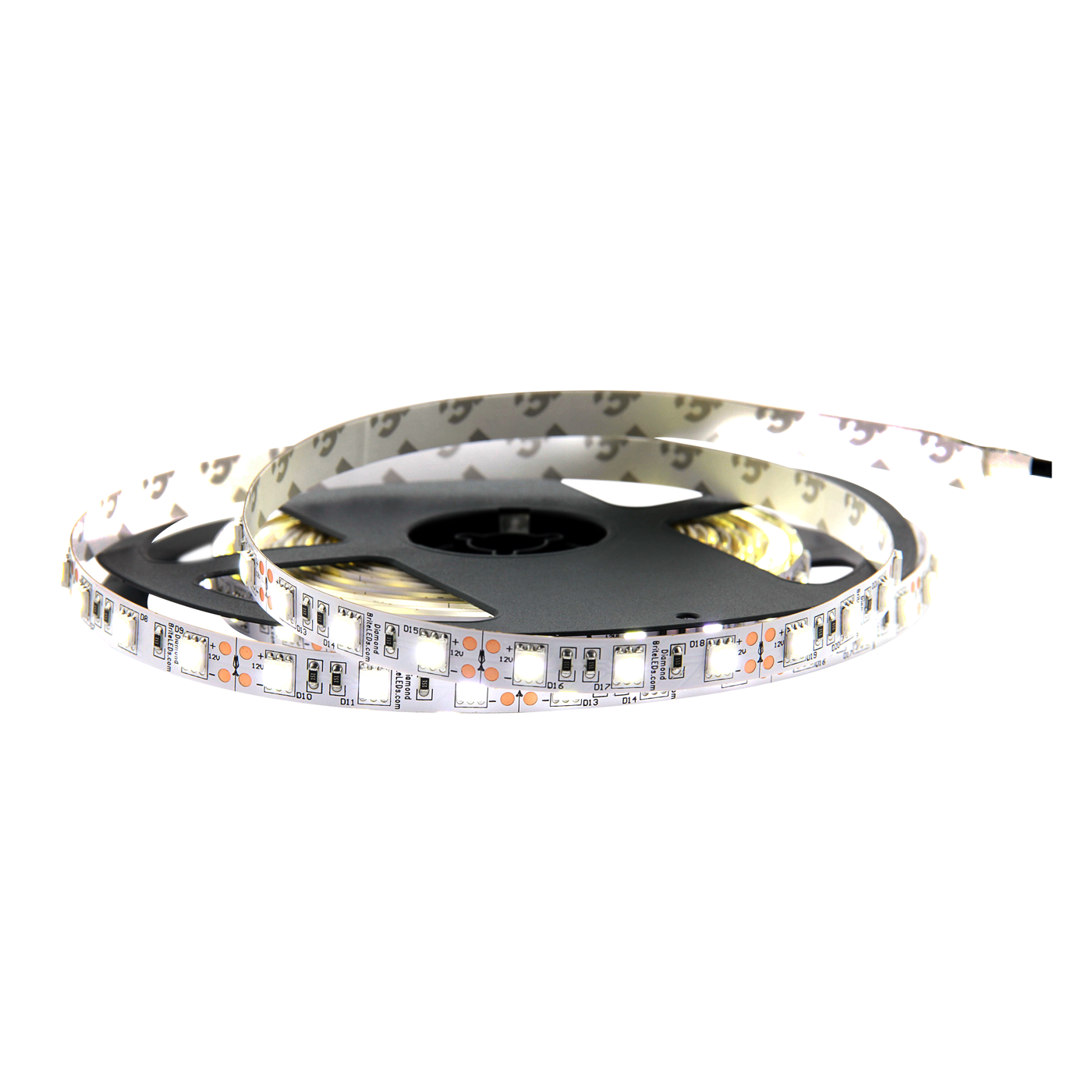

The Flexible LED Dazzler Strip Series is a versatile, high-output flexible LED strip designed for architectural, decorative, display, and commercial lighting applications. Featuring 300 LEDs per 16.4 ft reel, the series provides bright, uniform illumination with a wide 120° beam for cove lighting, under-cabinet installations, showcases, signage, pathways, and accent lighting.
Available in standard 16.4 ft (5 m) reels or custom per-foot lengths, the Flexible LED Dazzler consumes approximately 4.4W per foot and can be cut every 2" (50 mm). Multiple white CCTs, dedicated accent colors, RGB, and IP20 through IP68 configurations provide extensive flexibility for indoor, outdoor, wet-location, and submersible projects.
Features
- High-density design with 300 LEDs per 16.4 ft reel
- Approximately 4.4W per foot power consumption
- 72W total power per standard 16.4 ft reel
- Cuttable every 2" (50 mm)
- Standard 16.4 ft (5 m) reel length
- Custom per-foot lengths available
- 12V DC or 24V DC operation
- Wide 120° beam angle
- Self-adhesive 3M backing for quick installation
- White color temperatures from 2200K to 7500K
- Amber, Blue, Green, and Red accent color options
- RGB option for multi-color lighting
- IP20, IP50, IP66, and IP68 configurations available
- IP68 configuration suitable for wet-location and submersible applications
- Conforms to UL Standard 1598
White Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2200K | Available |
| 2700K | Available |
| 3000K | Available |
| 3700K | Available |
| 4200K | Available |
| 5000K | Available |
| 6500K | Available |
| 7500K | Available |
Accent & RGB Color Options
| Color | Wavelength / Type |
|---|---|
| Amber | 580–590 nm |
| Blue | 465–475 nm |
| Green | 520–530 nm |
| Red | 620–630 nm |
| RGB | Multi-Color |
Waterproof Rating Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor Applications |
| IP50 | Weatherproof Applications |
| IP66 | Outdoor Applications |
| IP68 | Wet-Location / Submersible Applications |
Specifications
| Product Type | Flexible LED Strip |
|---|---|
| Series | Flexible LED Dazzler Strip Series |
| LED Density | 300 LEDs per 16.4 ft Reel |
| Standard Reel Length | 16.4 ft (5 m) |
| Power Consumption | Approximately 4.4W per Foot |
| Total Reel Power | 72W |
| Custom Lengths | Available Per Foot |
| Cut Interval | 2" (50 mm) |
| Voltage | 12V DC / 24V DC |
| Beam Angle | 120° Wide Flood |
| Mounting | Self-Adhesive 3M Backing |
| White CCT Options | 2200K / 2700K / 3000K / 3700K / 4200K / 5000K / 6500K / 7500K |
| Accent Colors | Amber / Blue / Green / Red |
| Multi-Color Option | RGB |
| IP Rating Options | IP20 / IP50 / IP66 / IP68 |
| Standard | Conforms to UL 1598 |
Applications
- Cove Lighting
- Under-Cabinet Lighting
- Display Lighting
- Showcase Lighting
- Architectural Accent Lighting
- Decorative Lighting
- Pathway Lighting
- Light Box Illumination
- Signage Backlighting
- RGB Color-Changing Installations
- Indoor Lighting Projects
- Outdoor Lighting with IP66 Configuration
- Wet-Location & Submersible Installations with IP68 Configuration
Why Choose the Flexible LED Dazzler Strip Series?
The Flexible LED Dazzler Strip Series combines 300 LEDs per 16.4 ft reel with flexible, cut-to-length construction for architectural, decorative, display, and commercial lighting installations. Its 2" (50 mm) cut intervals and wide 120° beam provide flexibility for custom layouts while delivering broad, uniform illumination.
With 12V DC and 24V DC operation, multiple white CCTs, dedicated accent colors, RGB capability, self-adhesive 3M backing, and configurations ranging from IP20 to IP68, the Flexible LED Dazzler Strip Series provides a versatile solution for indoor, outdoor, wet-location, and submersible lighting projects.
