Flexible LED Dazzler Pro Strip Series
Flexible LED Dazzler Pro Strip Series
Couldn't load pickup availability

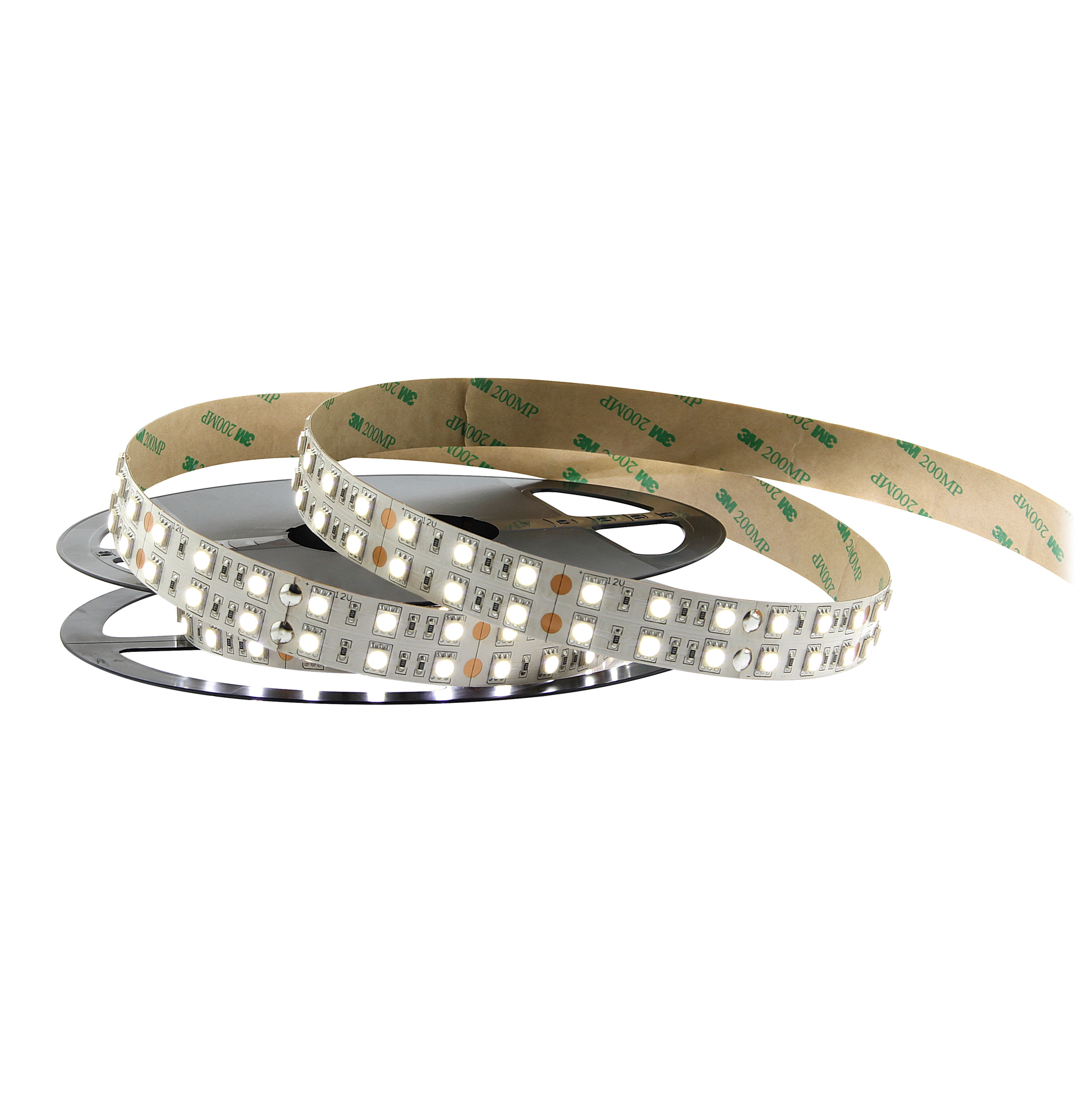

The Flexible LED Dazzler Pro Strip Series is a premium high-output flexible LED strip designed for architectural, retail, showcase, decorative, and accent lighting applications. Its flexible construction and wide 120° light distribution provide smooth, uniform illumination for a variety of residential and commercial projects.
Available in standard 16.4 ft (5 m) reels, the Flexible LED Dazzler Pro can be cut every 2" (50 mm) for project-specific installations. With 12V DC or 24V DC operation, multiple white and accent color options, and IP ratings from IP20 through IP68, the series can be configured for indoor, outdoor, wet-location, and submersible applications.
Features
- Premium high-output flexible LED strip
- Strong, uniform light distribution
- Cuttable every 2" (50 mm)
- Standard 16.4 ft (5 m) reel length
- Customizable lengths for project-specific installations
- 12V DC or 24V DC low-voltage operation
- Wide 120° beam angle
- 3M adhesive backing for quick installation
- White color temperatures from 2200K to 7500K
- Amber, Blue, Green, and Red accent color options
- IP20, IP50, IP66, and IP68 configurations available
- IP68 configuration suitable for wet-location and submersible applications
- Designed to UL Standard 1598
White Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2200K | Available |
| 2700K | Available |
| 3000K | Available |
| 3700K | Available |
| 4200K | Available |
| 5000K | Available |
| 6500K | Available |
| 7500K | Available |
Accent Color Options
| Color | Availability |
|---|---|
| Amber | Available |
| Blue | Available |
| Green | Available |
| Red | Available |
Waterproof Rating Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor Applications |
| IP50 | Weatherproof Applications |
| IP66 | Outdoor Applications |
| IP68 | Wet-Location / Submersible Applications |
Specifications
| Product Type | High-Output Flexible LED Strip |
|---|---|
| Series | Flexible LED Dazzler Pro Strip Series |
| Standard Reel Length | 16.4 ft (5 m) |
| Custom Lengths | Available |
| Cut Interval | 2" (50 mm) |
| Voltage | 12V DC / 24V DC |
| Beam Angle | 120° Wide Flood |
| Mounting | 3M Adhesive Backing |
| White CCT Options | 2200K / 2700K / 3000K / 3700K / 4200K / 5000K / 6500K / 7500K |
| Accent Colors | Amber / Blue / Green / Red |
| IP Rating Options | IP20 / IP50 / IP66 / IP68 |
| Standard | Designed to UL 1598 |
Applications
- Architectural Cove Lighting
- Wall Washing
- Showcase Lighting
- Retail Displays
- Decorative Accent Lighting
- Architectural Features
- Outdoor Façades
- Pathway Lighting
- Light Box Illumination
- Signage Backlighting
- Indoor Lighting Projects
- Outdoor Lighting with IP66 Configuration
- Wet-Location & Underwater Projects with IP68 Configuration
Why Choose the Flexible LED Dazzler Pro Strip Series?
The Flexible LED Dazzler Pro Strip Series combines high-output illumination with flexible, cut-to-length installation, making it adaptable to architectural coves, retail displays, wall washing, decorative accents, signage, and other custom linear lighting applications. Its wide 120° beam provides broad, uniform light distribution across the illuminated surface.
With 12V DC and 24V DC operation, 2" (50 mm) cut intervals, multiple white and accent color options, 3M adhesive backing, and configurations ranging from IP20 to IP68, the Flexible LED Dazzler Pro Strip Series provides a versatile solution for indoor, outdoor, wet-location, and submersible lighting projects.
