Diamond Brite LEDs
40W CHRONO Dual-Head Modular Trimless Downlight Series
40W CHRONO Dual-Head Modular Trimless Downlight Series
Couldn't load pickup availability

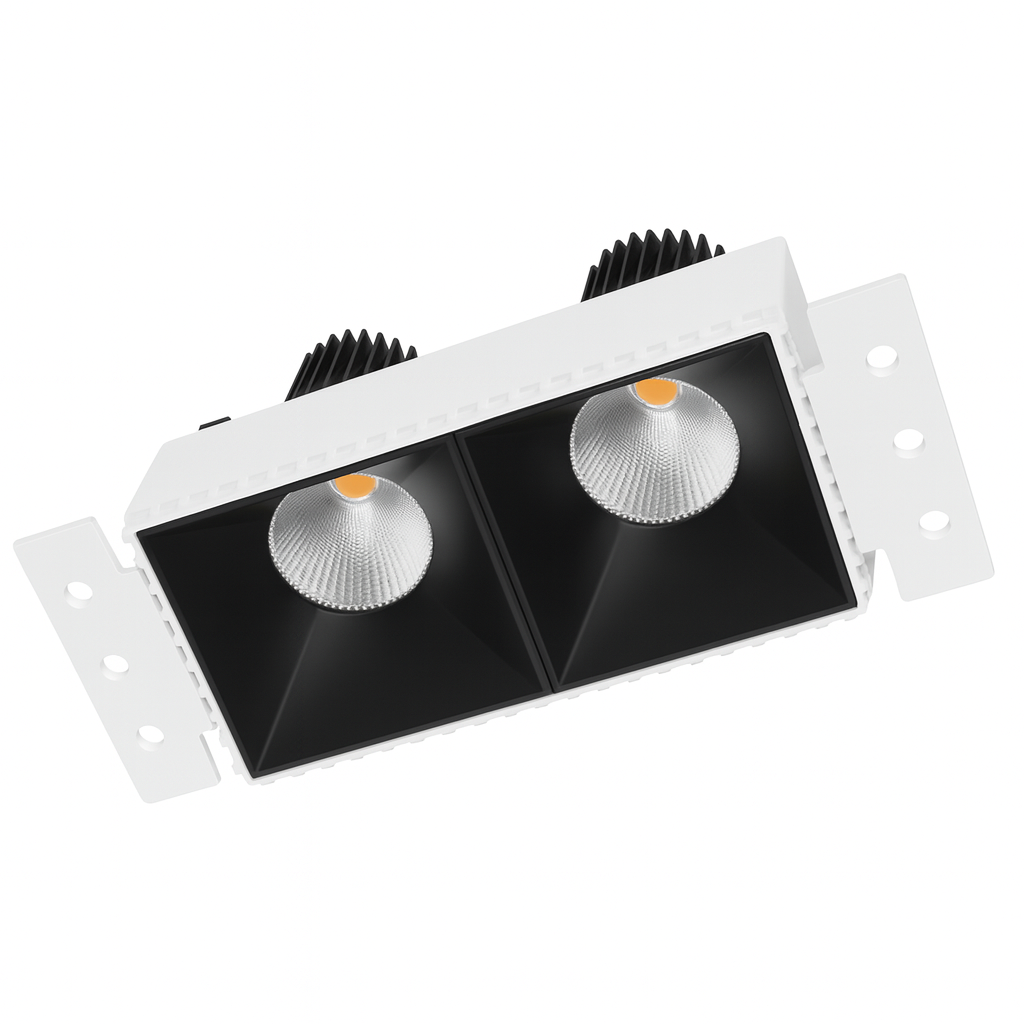

The 40W CHRONO Dual-Head Modular Trimless Downlight Series delivers 4,100 lumens of powerful illumination across two CREE CXA1512 LED modules. Designed for larger-scale architectural applications, its dual-head configuration combines high light output with a clean trimless recessed appearance for seamless integration into modern residential and commercial ceilings.
Multiple beam angles, six color temperature options, and a choice of 120V TRIAC or 0–10V dimming provide flexibility for a wide range of lighting applications. Its modular construction features replaceable LED modules, while White, Black, and Mercury finish options allow the fixture to coordinate with different architectural environments.
Features
- 40W total power consumption
- Produces 4,100 lumens across two LED modules
- Dual-head modular configuration
- CREE CXA1512 LED light source
- CRI 90 for high-quality color rendering
- Available beam angles: 15° / 24° / 38° / 60°
- Available in 2700K / 3000K / 3500K / 4000K / 5000K / 5700K
- 120V TRIAC dimming option
- 0–10V dimming option
- Modular trimless recessed design
- Replaceable LED modules
- Available in White, Black, or Mercury finishes
- Recessed mounting frame ordered separately
- ETL Listed
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 5700K | Cool Daylight |
Beam Angle Options
| Beam Angle | Distribution |
|---|---|
| 15° | Narrow Beam |
| 24° | Medium-Narrow Beam |
| 38° | Medium Beam |
| 60° | Wide Beam |
Finish Options
- White
- Black
- Mercury
Specifications
| Product Type | Modular Trimless LED Downlight |
|---|---|
| Series | CHRONO |
| Configuration | Dual Head |
| Power | 40W |
| Light Output | 4,100 lm |
| LED Source | CREE CXA1512 |
| CRI | 90 |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K |
| Beam Angles | 15° / 24° / 38° / 60° |
| Dimming Options | 120V TRIAC / 0–10V |
| Mounting | Trimless Recessed |
| Construction | Modular Design with Replaceable LED Modules |
| Mounting Frame | Recessed Mounting Frame Ordered Separately |
| Finish Options | White / Black / Mercury |
| Certification | ETL Listed |
Applications
- Commercial Lighting
- Showrooms
- Hospitality Spaces
- Retail Stores & Displays
- Galleries & Museums
- High-End Residential Interiors
- Architectural Feature Lighting
- Large Interior Spaces
Why Choose the CHRONO Dual-Head Modular Trimless Downlight?
The CHRONO Dual-Head Modular Trimless Downlight Series combines 40W of power with 4,100 lumens of total output across two CREE CXA1512 LED modules with CRI 90. Its dual-module configuration provides increased illumination while maintaining the clean, integrated appearance of a trimless architectural downlight.
With four beam angle options, six color temperatures, 120V TRIAC or 0–10V dimming, replaceable LED modules, multiple finish options, and ETL listing, the CHRONO provides a flexible high-output lighting solution for commercial spaces, showrooms, hospitality environments, retail projects, and high-end residential interiors.
