Diamond Brite LEDs

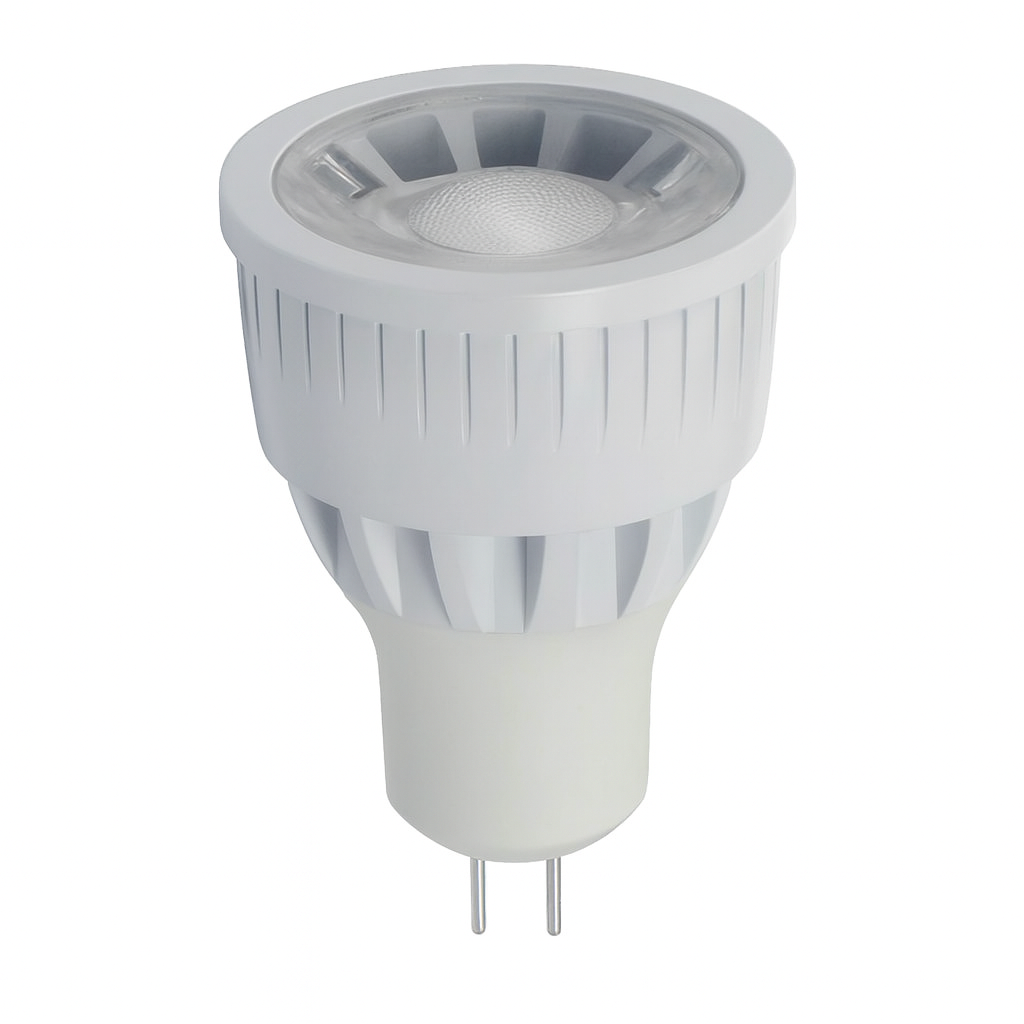

9W MR16 Concord Spotlight Series
9W MR16 Concord Spotlight Series
Couldn't load pickup availability
The 9W MR16 Concord Series LED Spotlight delivers powerful, focused illumination while consuming only 9 watts. Designed as an energy-efficient alternative to traditional 80W halogen lamps, the Concord Series produces up to 940 lumens using high-performance CREE COB LED technology.
Featuring a precision 40° beam angle, dimmable operation, and durable aluminum alloy construction, the Concord Series is ideal for applications requiring controlled directional lighting, including recessed fixtures, retail displays, galleries, and architectural accent lighting.
Features
- 9W LED replaces up to 80W halogen lamps
- Produces up to 940 lumens
- 1 high-power CREE COB LED
- 40° beam angle for focused illumination
- Available in 3000K, 4200K & 7000K
- CRI >80 for accurate color rendering
- Dimmable for adjustable light levels
- GU5.3 base for MR16 fixtures
- 12V AC/DC operation
- Power factor >0.90
- Durable aluminum alloy construction
- Designed for efficient heat dissipation
- Approximately 60,000-hour rated life
- Ideal for accent, display, and task lighting
Color Temperature & Lumen Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 850 lm |
| 4200K | Natural White | 900 lm |
| 7000K | Bright White | 940 lm |
Specifications
| Product Type | MR16 LED Spotlight |
|---|---|
| Series | Concord Series |
| Power | 9W |
| Equivalent Wattage | Up to 80W Halogen |
| Light Output | 850–940 lm |
| Input Voltage | 12V AC/DC |
| Lamp Base | GU5.3 |
| LED Source | 1 × High-Power CREE COB LED |
| Color Temperatures | 3000K / 4200K / 7000K |
| CRI | >80 |
| Beam Angle | 40° |
| Power Factor | >0.90 |
| Dimming | Dimmable |
| Material | Aluminum Alloy |
| Diameter | 2" (51 mm) |
| Height | 2.8" (70 mm) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | Approximately 60,000 Hours |
Applications
- Recessed Fixtures
- Track Lighting
- Accent Lighting
- Retail Displays
- Jewelry & Product Displays
- Galleries & Exhibitions
- Task Lighting
- Residential Interiors
- Commercial Interiors
- Hospitality Spaces
Why Choose the Concord Series?
The Concord Series combines high-output CREE COB LED technology with a focused 40° beam angle to provide controlled, directional illumination. Producing up to 940 lumens from only 9W, it is well suited for highlighting merchandise, artwork, architectural details, and other focal points.
With three color temperature options, dimmable operation, 12V AC/DC compatibility, durable aluminum alloy construction, and an approximately 60,000-hour rated life, the Concord Series provides a versatile and energy-efficient alternative to traditional MR16 halogen lighting.
