Diamond Brite LEDs
9W Micro Magnetic Matrix Light Series
9W Micro Magnetic Matrix Light Series
Couldn't load pickup availability

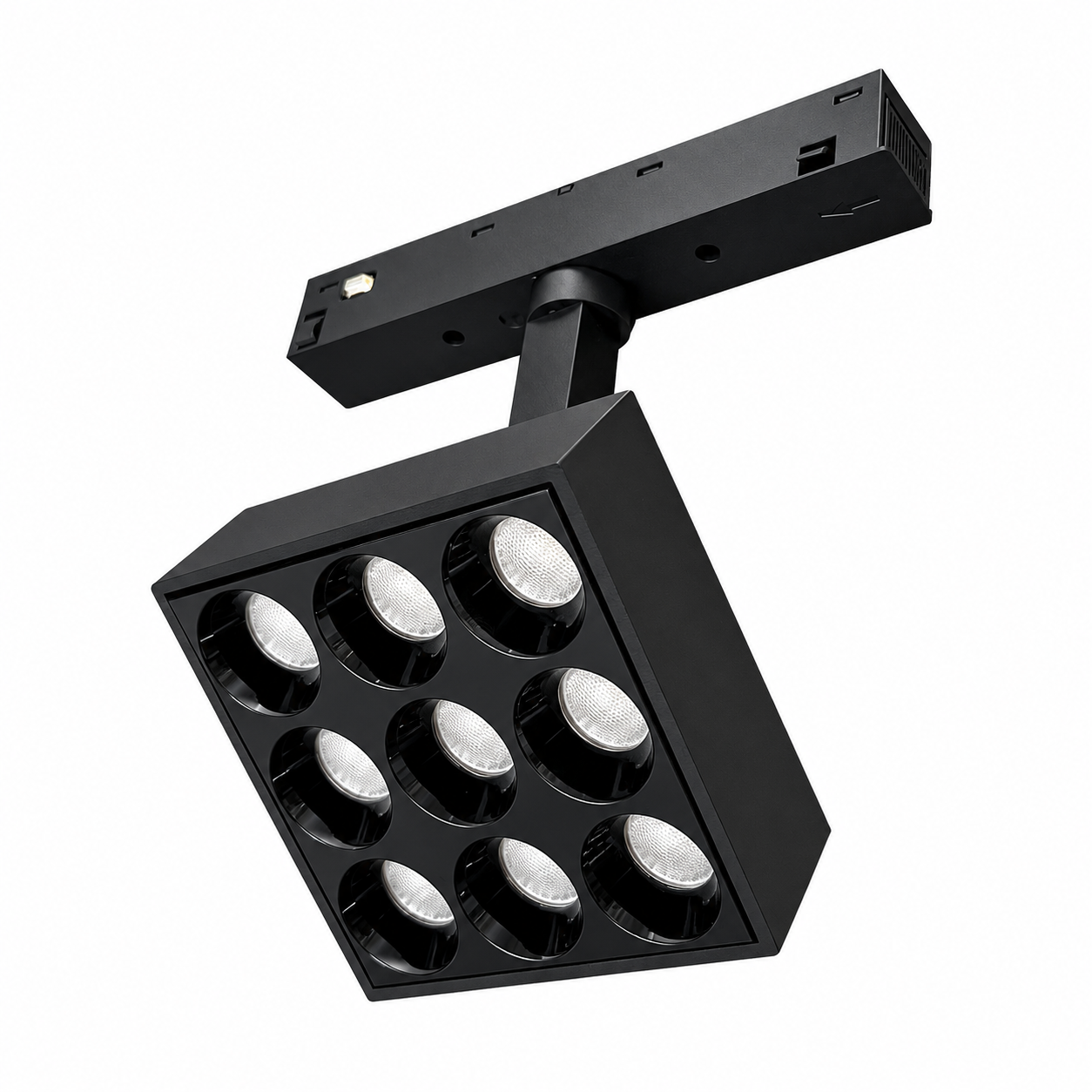

The 9W Micro Magnetic Matrix Light delivers precise, low-glare illumination through a compact multi-cell optical design. The Single Head configuration provides focused accent lighting while maintaining a clean, minimalist architectural appearance, making it ideal for retail displays, artwork, residential interiors, and commercial applications.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick, tool-free repositioning and effortless lighting customization.
Features
- 9W Integrated LED
- Single Head matrix configuration
- 1,062 Lumens
- High efficiency: 118 lm/W
- Modern multi-cell LED optics
- Available in 3000K Warm White and 6500K Daylight
- Smooth dimmable operation
- Precision accent illumination
- Low-glare optical design
- Compatible with all 48V Micro Magnetic Track Systems
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Dimensions | Color Temp | Lumens |
|---|---|---|---|---|
| Matte Black | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 3000K | 1,062 lm |
| Matte Black | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 6500K | 1,062 lm |
| Matte White | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 3000K | 1,062 lm |
| Matte White | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 6500K | 1,062 lm |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Matrix Light |
| Configuration | Single Head |
| Power | 9W |
| Lumen Output | 1,062 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperatures | 3000K Warm White, 6500K Daylight |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Dimensions | 3" × 1" × 4" (65 × 25 × 110 mm) |
| Optical Design | Multi-Cell Matrix LED |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:
- Retail Stores
- Luxury Boutiques
- Jewelry Showrooms
- Museums
- Art Galleries
- Luxury Homes
- Hospitality
- Hotels
- Restaurants
- Office Spaces
- Product Displays
- Architectural Accent Lighting
What's Included
- 1 × 9W Single Head Micro Magnetic Matrix Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose the Matrix Light?
The Single Head Matrix Light combines precision multi-cell optics with a compact architectural design, delivering focused illumination with excellent glare control. Its magnetic mounting system makes it easy to reposition the fixture as lighting requirements change.
