9W A19 Quantum Lamp Series
9W A19 Quantum Lamp Series
Couldn't load pickup availability

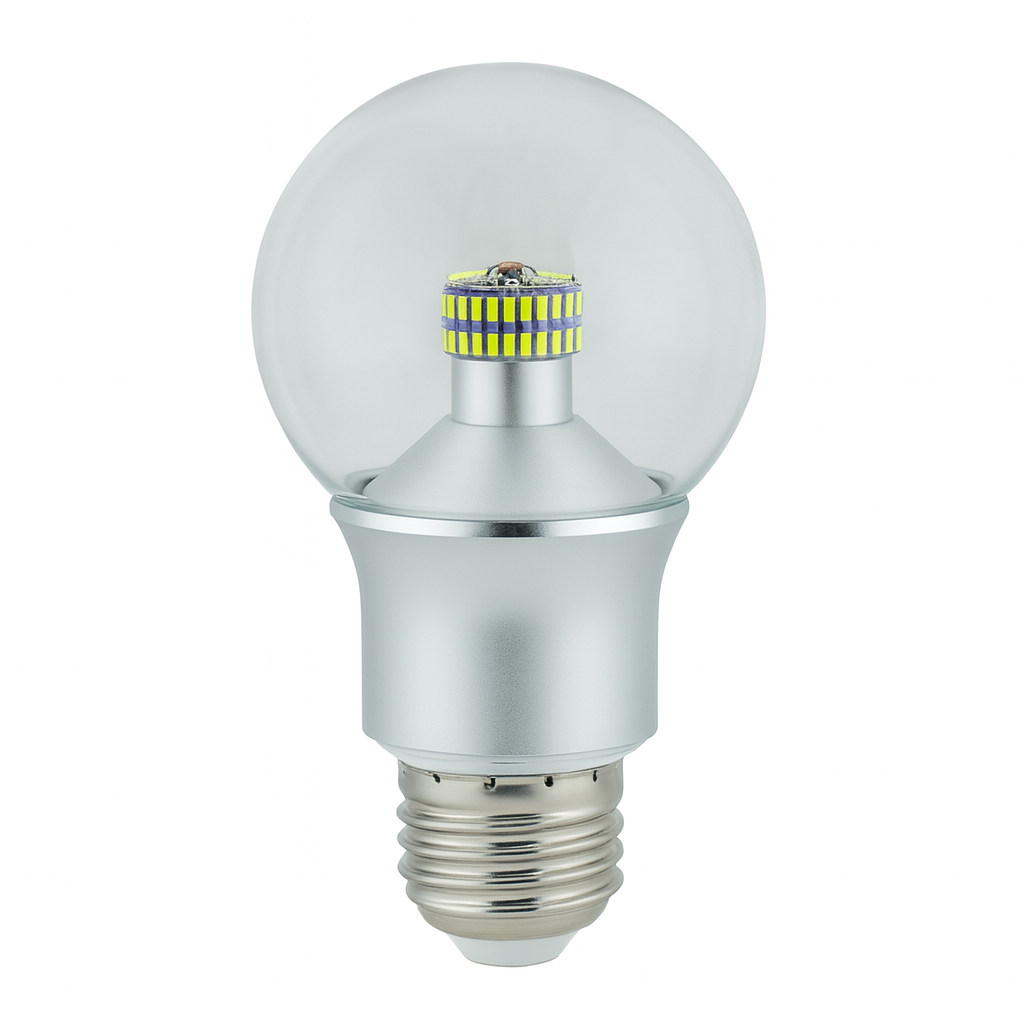

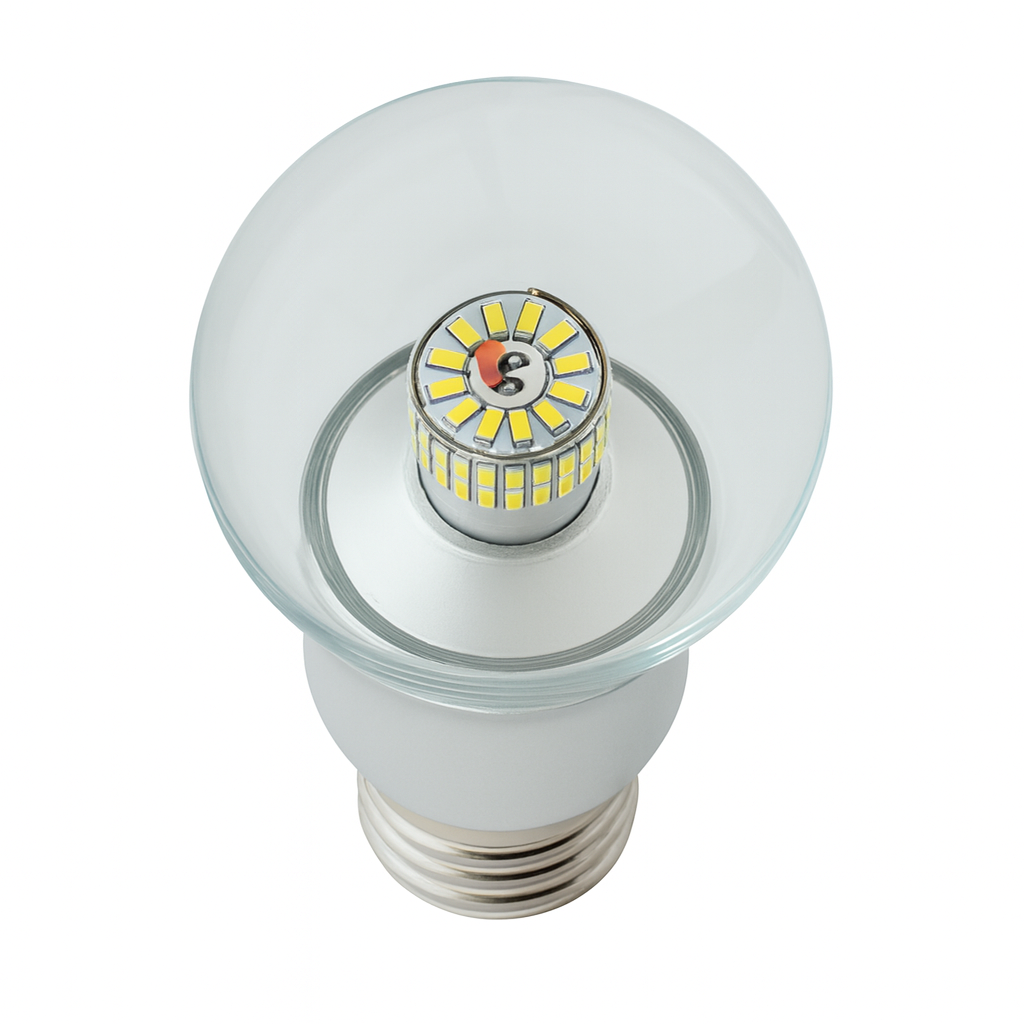

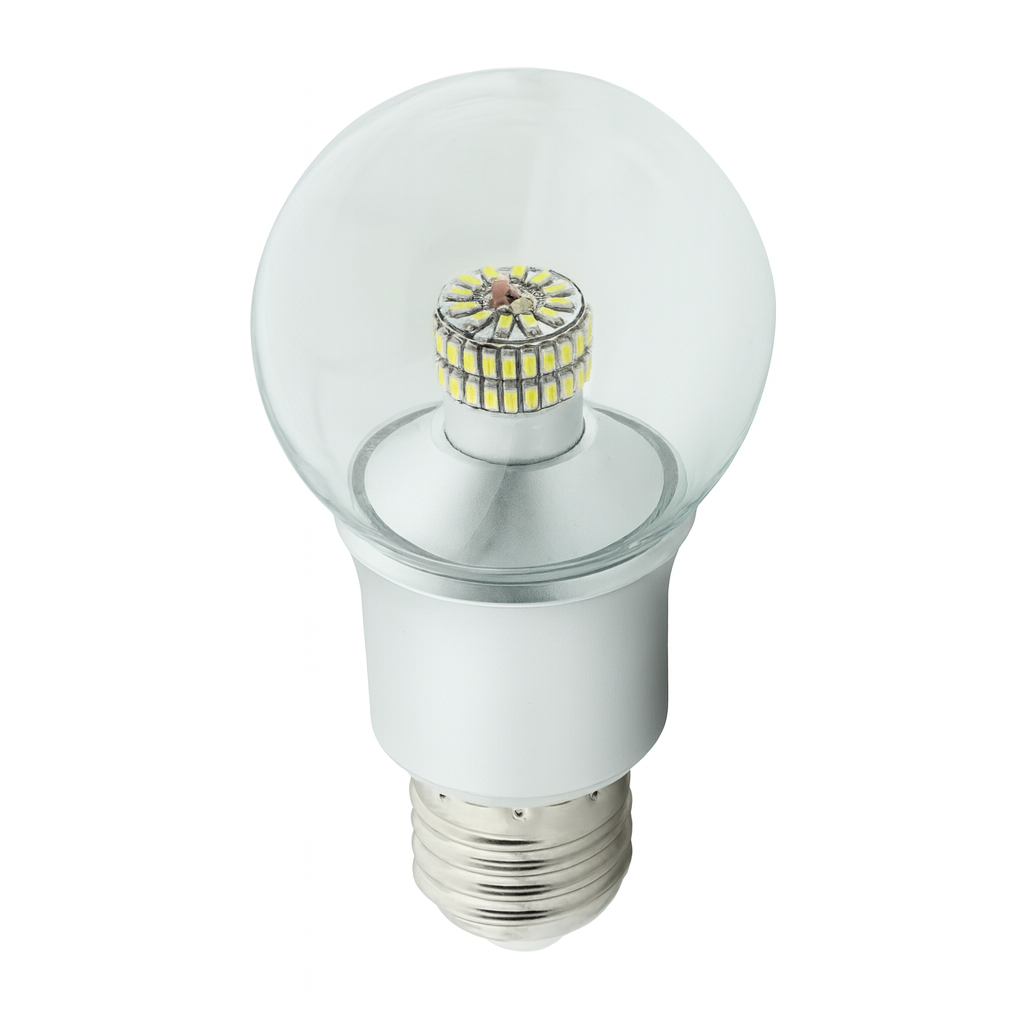

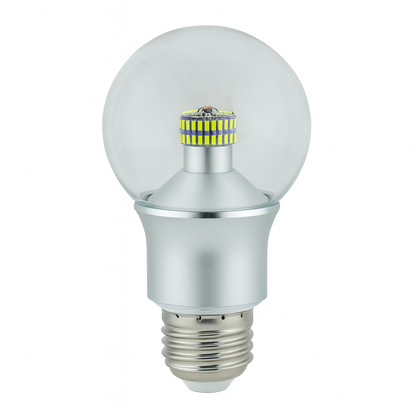

The 9W A19 Quantum LED Lamp Series delivers bright, energy-efficient illumination in a versatile, all-purpose design. Producing 850 lumens with full 360° light distribution while consuming only 9 watts, the Quantum provides an efficient replacement for traditional 80W incandescent, halogen, or CFL lamps.
Engineered with BridgeLux LED technology, a built-in isolated driver, and durable aluminum and glass construction, the Quantum is designed for reliable performance across a wide range of residential and commercial lighting applications.
Features
- 9W LED replaces up to 80W incandescent, halogen, or CFL lamps
- Produces 850 lumens
- 360° light distribution for broad, uniform illumination
- BridgeLux LED technology
- Built-in isolated LED driver
- Wide-range 100–277V AC, 50/60Hz operation
- E26/E27 medium screw-in base
- Available in 2800K, 4000K & 5500K
- CRI >80 for accurate color rendering
- Power factor >0.90
- Optional 10%–100% dimming
- Durable aluminum and glass construction
- Brushed Aluminum finish
- Approximately 40,000-hour rated life
- UL, CE, RoHS, FCC & ENERGY STAR® certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 2800K | Warm White | 850 lm |
| 4000K | Natural White | 850 lm |
| 5500K | Daylight | 850 lm |
Specifications
| Product Type | A19 LED Lamp |
|---|---|
| Series | Quantum Series |
| Power | 9W |
| Equivalent Wattage | Up to 80W Incandescent / Halogen / CFL |
| Light Output | 850 lm |
| Input Voltage | 100–277V AC, 50/60Hz |
| Lamp Base | E26 / E27 Medium Screw-In Base |
| LED Source | BridgeLux LED |
| Driver | Built-In Isolated Driver |
| Color Temperatures | 2800K / 4000K / 5500K |
| CRI | >80 |
| Light Distribution | 360° |
| Power Factor | >0.90 |
| Dimming | Optional 10%–100% |
| Housing Material | Aluminum + Glass |
| Finish | Brushed Aluminum |
| Diameter | 2.4" (60 mm) |
| Height | 4.6" (118 mm) |
| Weight | 0.20 lbs |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Rated Life | Approximately 40,000 Hours |
| Certifications | UL / CE / RoHS / FCC / ENERGY STAR® |
| Warranty | 2 Years |
Applications
- Recessed Can Lighting
- Pendant Fixtures
- Ceiling Lights
- Wall Sconces
- Residential Interiors
- Commercial Interiors
- Retail & Hospitality Lighting
- General-Purpose Lighting
- Compatible Enclosed Outdoor Fixtures
For outdoor applications, use only in a suitable enclosed fixture and do not expose the lamp directly to water.
Why Choose the A19 Quantum Series?
The A19 Quantum Series produces 850 lumens using only 9W, providing an energy-efficient alternative to traditional 80W lamps. Its 360° light distribution provides broad illumination for general-purpose lighting throughout residential and commercial spaces.
With BridgeLux LED technology, three color temperature options, wide-range voltage compatibility, optional dimming, and an approximately 40,000-hour rated life, the Quantum Series provides a versatile and efficient solution for everyday lighting applications.
