Diamond Brite LEDs
80W RetroFit Falcon 180 Lamp Series
80W RetroFit Falcon 180 Lamp Series
Couldn't load pickup availability
The 80W RetroFit Falcon 180 Lamp Series delivers high-output LED illumination for commercial, industrial, parking, and exterior fixture retrofit applications. Producing approximately 10,400 lumens while consuming only 80 watts, the Falcon provides an efficient replacement for traditional 250W HPS and HQL lamps.
Powered by 120 LG 3030 LEDs, the RetroFit Falcon delivers approximately 130 lm/W with broad 180° light distribution. Its fold-out lamp body is designed to extend after installation, allowing the LED panels to provide wide-area illumination from compatible fixtures.
Features
- 80W LED power consumption
- Produces 10,400 ±100 lumens
- Replaces traditional 250W HPS / HQL lamps
- 120 LG 3030 LEDs
- Approximately 130 lm/W
- 180° beam angle
- Available in 3000K, 4000K, 5000K & 6000K
- CRI ≥80
- Power factor ≥0.9
- 100–277V AC, 50–60Hz
- E39 mogul base
- IP64 rated
- Flame-retardant construction
- Suitable for totally enclosed fixtures
- Non-dimmable
- Operating temperature from -40°F to 140°F (-40°C to 60°C)
- CE, RoHS, UL, DLC 4.0, cUL, LM79 & TM21 listed/certified
- 5-year warranty
Color Temperature Options
| Color Temperature | Description |
| 3000K | Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
| 6000K | Bright White |
Specifications
| Product Type | LED Retrofit Lamp |
| Series | RetroFit Falcon 180 Lamp Series |
| Model Number | RF180F-80W |
| Power | 80W |
| Light Output | 10,400 ±100 lm |
| Efficacy | Approximately 130 lm/W |
| LED Source | LG 3030 |
| LED Quantity | 120 LEDs |
| Input Voltage | 100–277V AC, 50–60Hz |
| Base Type | E39 |
| Color Temperatures | 3000K / 4000K / 5000K / 6000K |
| CRI | ≥80 |
| Power Factor | ≥0.9 |
| Beam Angle | 180° |
| Dimming | Non-Dimmable |
| IP Rating | IP64 |

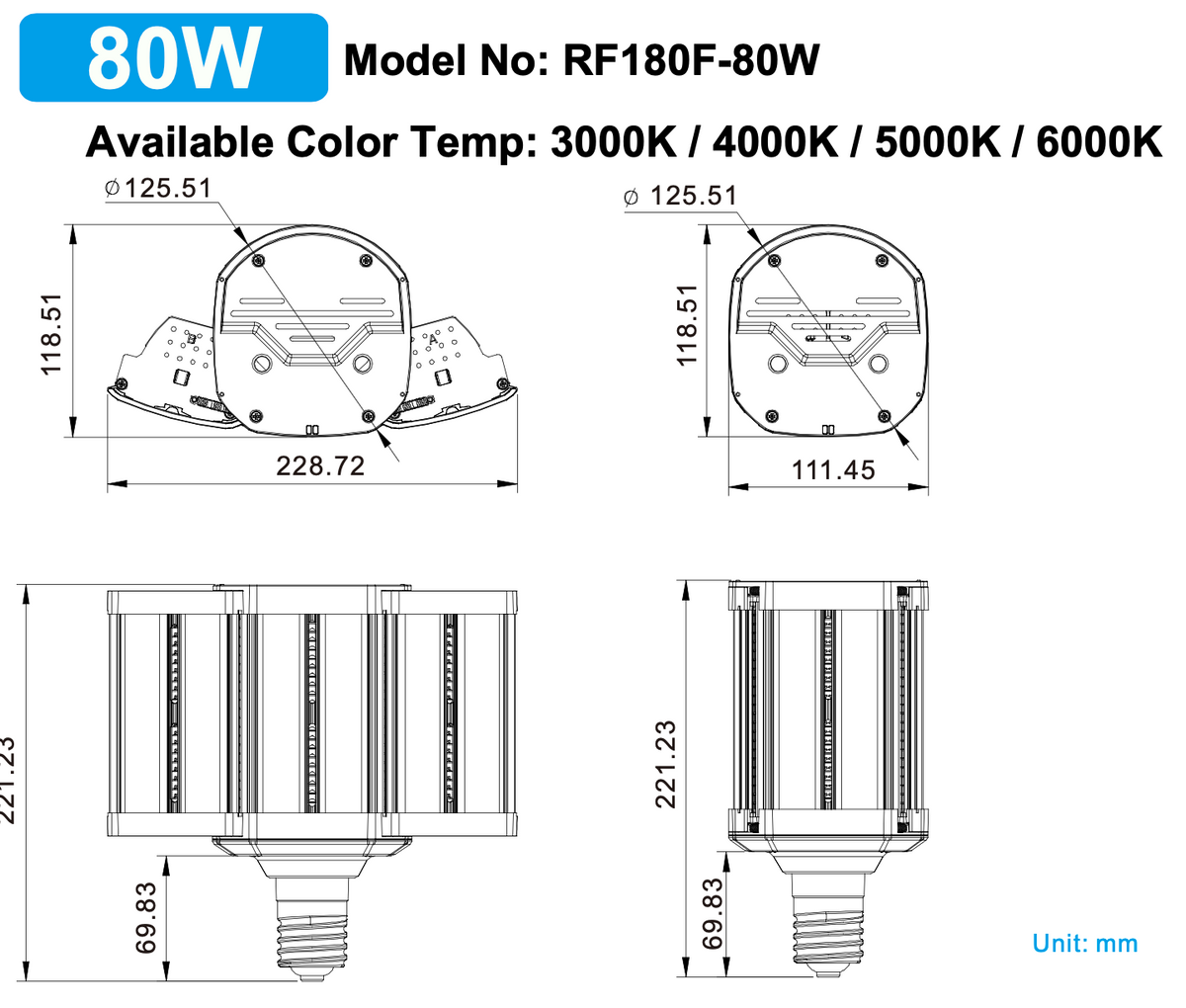

| Dimensions | Ø4.4" × 8.7" (Ø111 × 221 mm) |
| Net Weight | 2.69 lbs (1.22 kg) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Traditional Replacement | 250W HPS / HQL |
| Warranty | 5 Years |
Applications
- Parking Lot Fixtures
- Area Lighting
- Commercial Exterior Lighting
- Industrial Lighting
- Enclosed Retrofit Fixtures
- HPS / HQL Retrofit Applications
Installation Notes
- The lamp body must be fully extended with both sides opened before operation.
- Remove or bypass the existing ballast before installation.
- Do not use with dimmers.
- Do not install where the lamp will be directly exposed to water.
Why Choose the 80W RetroFit Falcon 180?
The 80W RetroFit Falcon 180 delivers approximately 10,400 lumens while replacing traditional 250W HPS/HQL lamps. Its LG 3030 LEDs, wide 180° distribution, fold-out design, IP64 construction, and multiple color temperature options make it a powerful retrofit solution for parking and commercial area-lighting fixtures.
