20W PaneLite Square Retrofit Panel Series
20W PaneLite Square Retrofit Panel Series
Couldn't load pickup availability

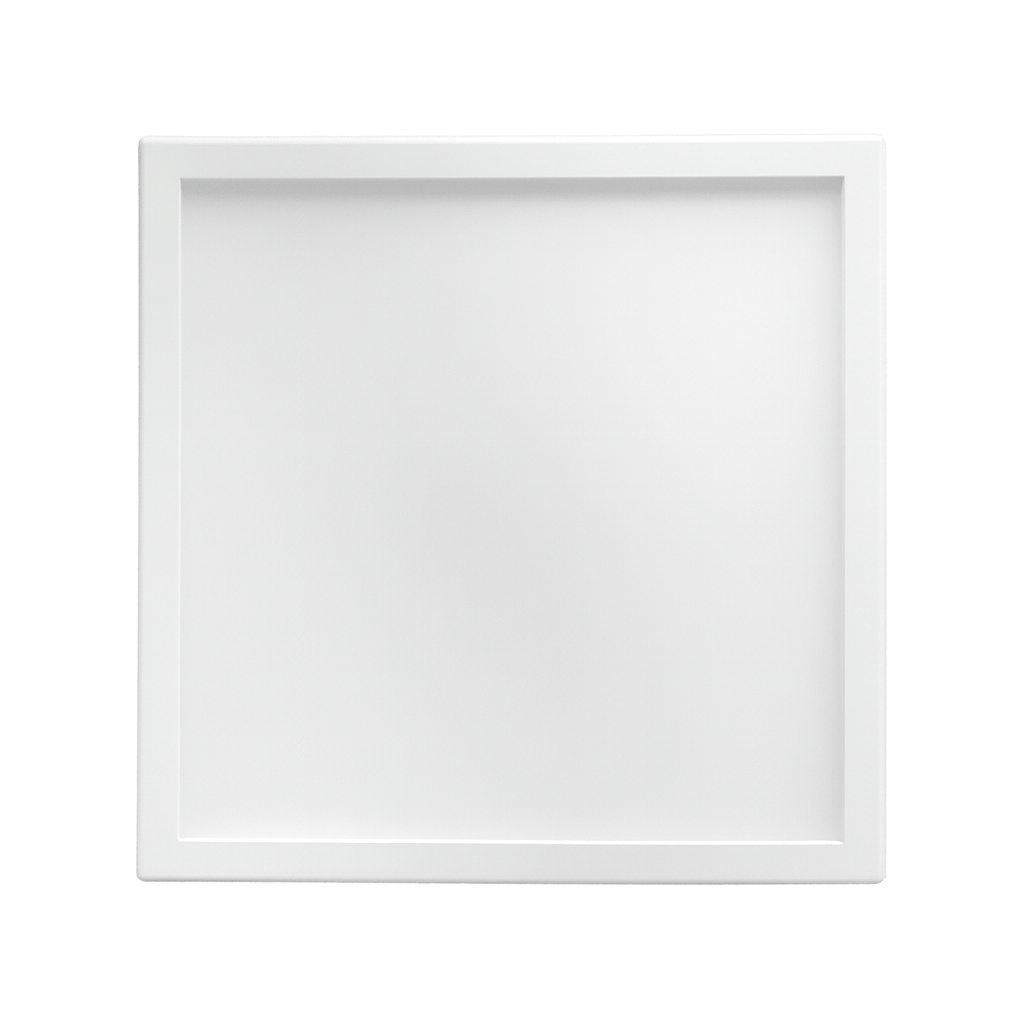

The 20W PaneLite 8" Square LED Retrofit Panel delivers powerful, uniform illumination in a sleek, ultra-thin architectural design. Producing 2,600 lumens at an efficacy of 130 lm/W, the PaneLite provides high-output illumination while maintaining a clean, modern ceiling appearance.
Engineered with edge-lit LED technology, the large 49 sq. in. illuminated surface produces soft, evenly distributed light with excellent white uniformity. Designed to retrofit most standard 5" and 6" recessed housings, including shallow cans, the PaneLite provides a simple way to upgrade existing recessed lighting.
Features
- 20W LED producing 2,600 lumens
- 130 lm/W luminous efficacy
- Ultra-thin 0.55" edge profile
- Edge-lit LED technology for smooth, uniform illumination
- Large 49 sq. in. illuminated surface
- Approximately 4× larger illuminated surface than typical round retrofit designs
- CRI 90 for excellent color rendering
- 3000K Warm White color temperature
- Approximately 104° wide beam angle
- Dimmable with compatible dimmers
- Designed to retrofit most standard 5" and 6" recessed housings
- Compatible with shallow recessed can designs
- E26 adapter included
- Spring clips and friction clips included for installation flexibility
- Suitable for dry, damp & wet locations
- RoHS compliant
- Approximately 50,000-hour rated life
- 5-year limited warranty
Lighting Performance
| Power | 20W |
|---|---|
| Light Output | 2,600 lm |
| Efficacy | 130 lm/W |
| Color Temperature | 3000K Warm White |
| CRI | 90 |
| Beam Angle | Approximately 104° |
| Dimming | Dimmable |
Specifications
| Product Type | Square LED Retrofit Panel |
|---|---|
| Series | PaneLite |
| Power | 20W |
| Input Voltage | 277V, 60Hz |
| Light Output | 2,600 lm |
| Efficacy | 130 lm/W |
| Color Temperature | 3000K Warm White |
| CRI | 90 |
| Beam Angle | Approximately 104° |
| Light Surface Area | 49 sq. in. |
| Dimming | Dimmable |
| Compatible Housing Sizes | 5" & 6" Recessed Housings |
| Adapter | E26 |

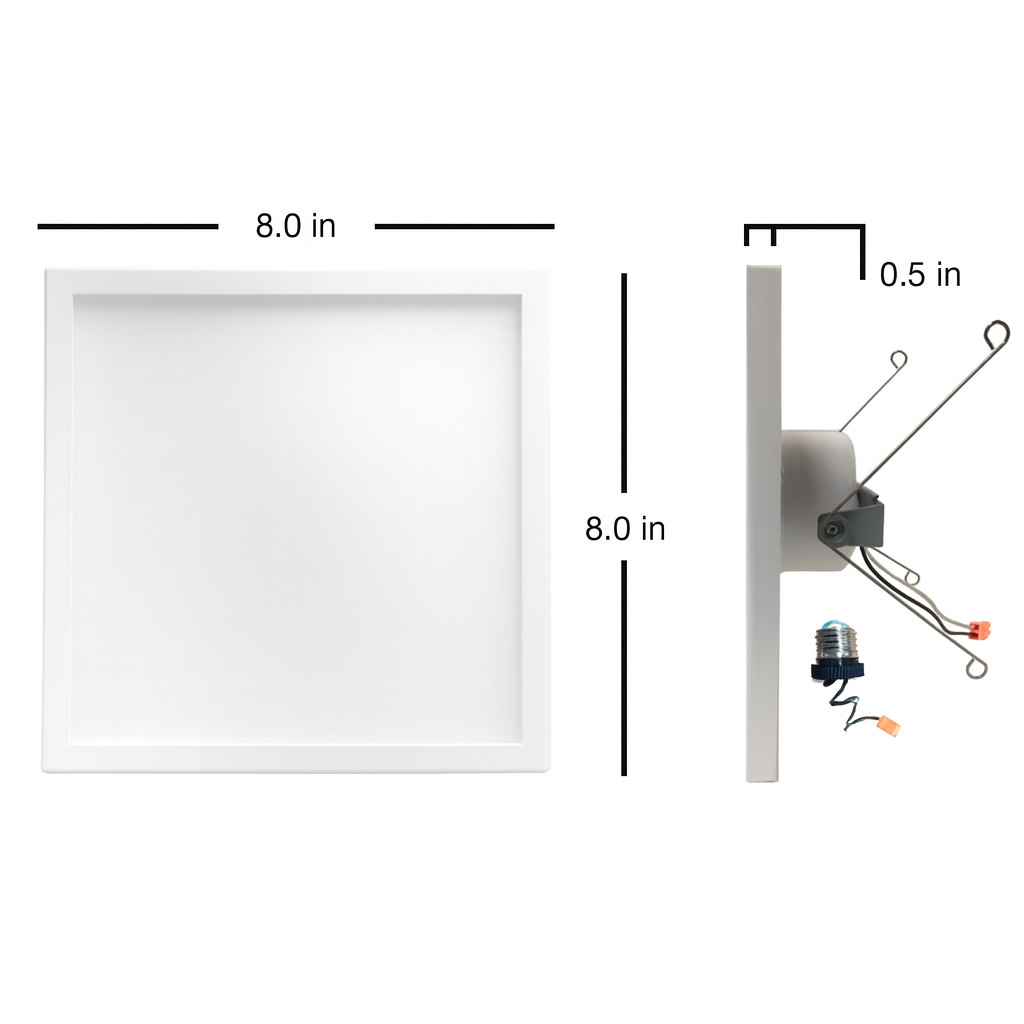

| Fixture Dimensions | 8" × 8" |
| Edge Thickness | 0.55" (14 mm) |
| Weight | 1 lb |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Location Rating | Dry / Damp / Wet Locations |
| Rated Life | Approximately 50,000 Hours |
| Compliance | RoHS |
| Warranty | 5-Year Limited Warranty |
What's Included
- 1 × PaneLite 8" Square LED Retrofit Panel
- Spring Clips
- Friction Clips
- E26 Adapter
- Installation Guide
Applications
- Residential Interiors
- Commercial Interiors
- Hotels & Hospitality
- Kitchens
- Living Areas
- Hallways & Corridors
- Office Interiors
- Retail Spaces
- Restaurants
- Recessed Lighting Retrofits
- Shallow Ceiling Applications
Why Choose the PaneLite?
The PaneLite combines a large 49 sq. in. illuminated surface with edge-lit LED technology to produce smooth, uniform illumination from an ultra-thin fixture. Delivering 2,600 lumens from only 20W, it achieves an impressive efficacy of 130 lm/W while maintaining CRI 90 color quality.
With compatibility for most standard 5" and 6" recessed housings, included installation accessories, dimmable operation, and an approximately 50,000-hour rated life, the PaneLite provides a versatile retrofit solution for residential, commercial, and hospitality lighting applications.
