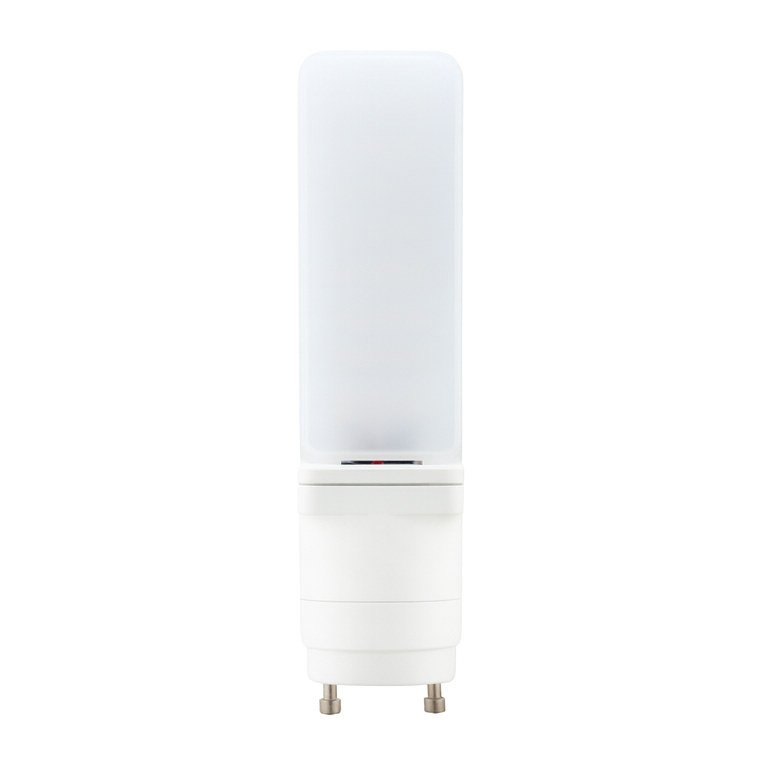

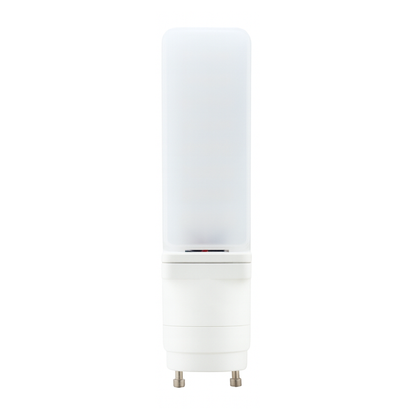

7W Hybrid Horizontal PL Retrofit Lamp - GU24 Base
7W Hybrid Horizontal PL Retrofit Lamp - GU24 Base
Couldn't load pickup availability
The 7W Hybrid Horizontal PL Retrofit Lamp with GU24 Base is an energy-efficient LED replacement for traditional 18W CFL lamps. Designed for horizontal fixture applications, it combines reliable LED performance with hybrid compatibility for both ballast-compatible and ballast-bypass installations.
Featuring a convenient GU24 twist-lock base, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp provides a versatile solution for hotels, schools, retail environments, and other commercial applications.
Features
- 7W LED replacement for 18W CFL lamps
- Approximately 61% lower power consumption compared with an 18W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- GU24 Twist-Lock Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 7W |
| CFL Replacement | 18W CFL |
| Power Reduction | Approximately 61% |
| Base | GU24 Twist-Lock |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Hotels
- Schools
- Retail Environments
- Hospitality Spaces
- Commercial Interiors
- Horizontal CFL Retrofit Applications
- GU24 Fixture Retrofits
Why Choose the 7W Hybrid Horizontal PL Retrofit Lamp with GU24 Base?
The 7W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 18W CFL lamps, reducing power consumption by approximately 61%. Its GU24 twist-lock base provides a convenient connection for compatible fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile lighting solution for hotels, schools, retail environments, and other commercial applications.
