Diamond Brite LEDs

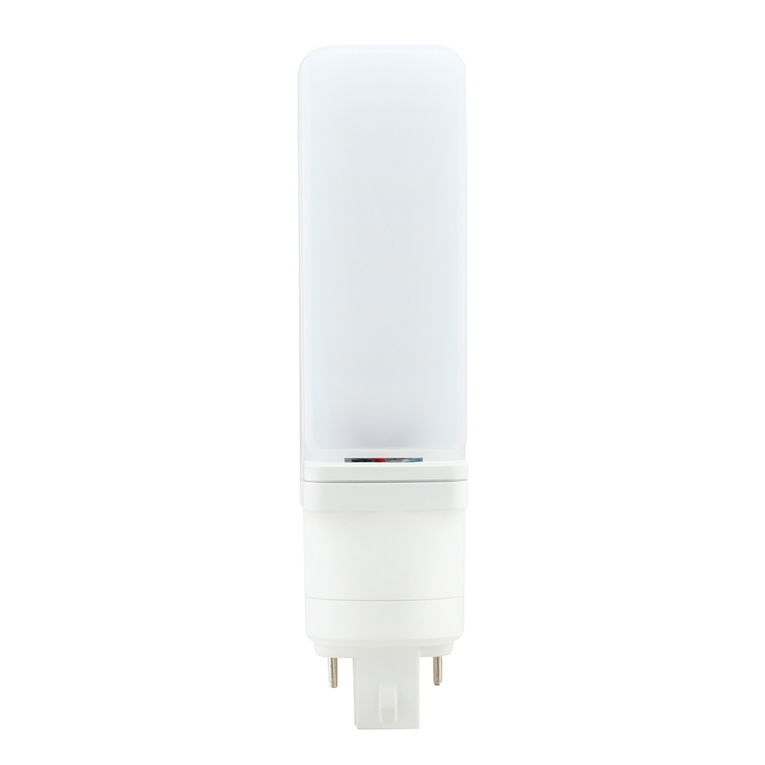

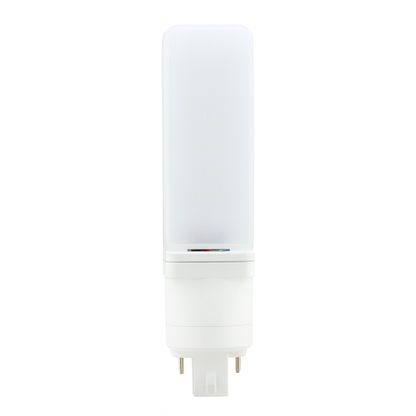

7W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
7W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
Couldn't load pickup availability
The 7W Hybrid Horizontal PL Retrofit Lamp with G24Q Base is an energy-efficient LED replacement for traditional 18W 4-pin CFL lamps. Designed for horizontal fixture applications, it reduces energy consumption by approximately 60% while providing reliable, long-lasting LED performance.
Featuring hybrid compatibility for both ballast-compatible and ballast-bypass installations, a G24Q 4-pin base, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp is a versatile solution for retail spaces, schools, and commercial retrofit projects.
Features
- 7W LED replacement for 18W CFL lamps
- Approximately 60% energy savings compared with an 18W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G24Q 4-Pin Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 7W |
| CFL Replacement | 18W CFL |
| Energy Savings | Approximately 60% |
| Base | G24Q (4-Pin) |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Retail Spaces
- Schools
- Educational Facilities
- Commercial Interiors
- Commercial Retrofit Projects
- Horizontal CFL Retrofit Applications
- G24Q 4-Pin Fixture Retrofits
Why Choose the 7W Hybrid Horizontal PL Retrofit Lamp with G24Q Base?
The 7W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 18W CFL lamps, delivering approximately 60% energy savings. Its G24Q 4-pin base is designed for compatible fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for retail spaces, schools, educational facilities, and commercial retrofit applications.
