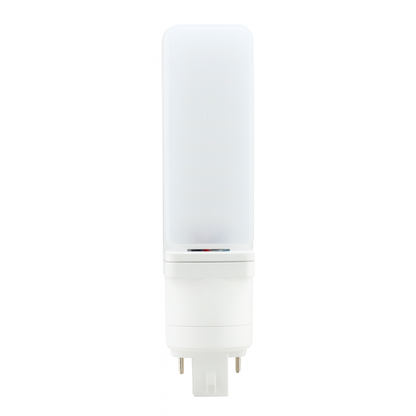

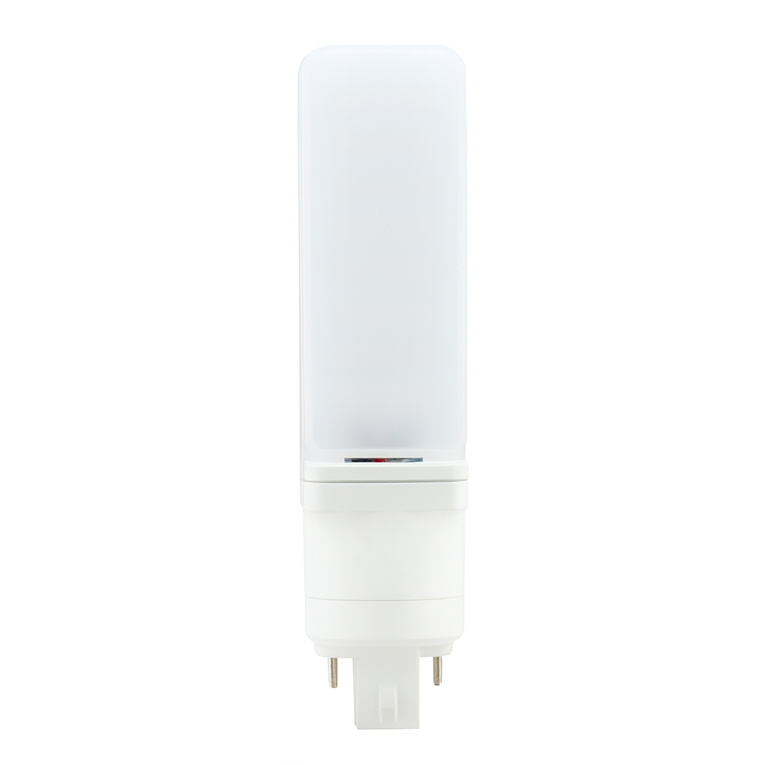

7W Hybrid Horizontal PL Retrofit Lamp - G24D Base
7W Hybrid Horizontal PL Retrofit Lamp - G24D Base
Couldn't load pickup availability
The 7W Hybrid Horizontal PL Retrofit Lamp with G24D Base is an energy-efficient LED replacement for traditional 18W 2-pin CFL lamps. Designed for horizontal fixture applications, it provides reliable LED performance while significantly reducing power consumption compared with conventional CFL lighting.
Featuring a G24D 2-pin base, hybrid compatibility for both ballast-compatible and ballast-bypass installations, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp is well suited for offices, schools, retail spaces, and other compatible retrofit applications.
Features
- 7W LED replacement for 18W CFL lamps
- Approximately 61% lower power consumption compared with an 18W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G24D 2-Pin Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 7W |
| CFL Replacement | 18W CFL |
| Power Reduction | Approximately 61% |
| Base | G24D (2-Pin) |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Offices
- Schools
- Retail Spaces
- Educational Facilities
- Commercial Interiors
- Horizontal CFL Retrofit Applications
- G24D 2-Pin Fixture Retrofits
Why Choose the 7W Hybrid Horizontal PL Retrofit Lamp with G24D Base?
The 7W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 18W CFL lamps, reducing power consumption by approximately 61%. Its G24D 2-pin base is designed for compatible horizontal fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for offices, schools, retail spaces, and commercial retrofit applications.
