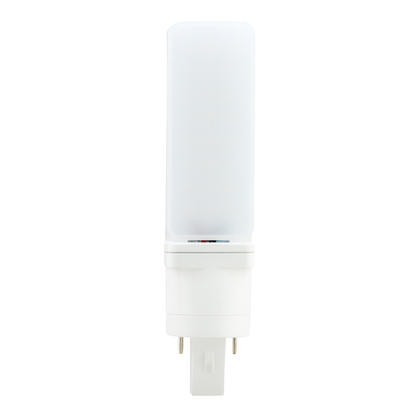

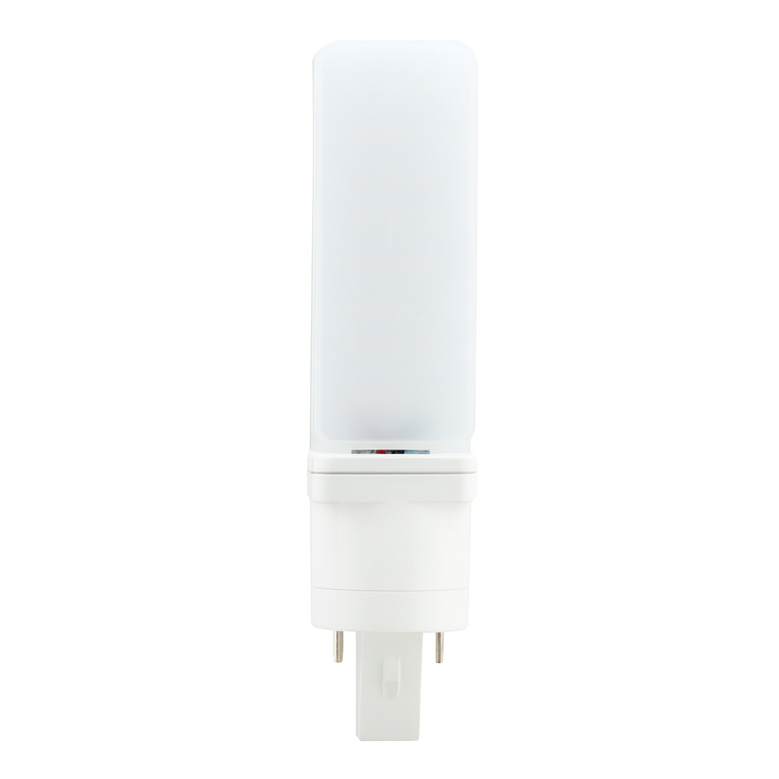

7W Hybrid Horizontal PL Retrofit Lamp - G23 Base
7W Hybrid Horizontal PL Retrofit Lamp - G23 Base
Couldn't load pickup availability
The 7W Hybrid Horizontal PL Retrofit Lamp with G23 Base is an energy-efficient LED replacement for traditional 18W CFL lamps. Designed for horizontal fixture applications, it provides reliable LED performance with hybrid operation for flexible retrofit installations.
Featuring a G23 base, hybrid compatibility for both ballast-compatible and ballast-bypass installations, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp is a versatile solution for offices, hotels, retail shops, and other compatible lighting applications.
Features
- 7W LED replacement for 18W CFL lamps
- Approximately 61% lower power consumption compared with an 18W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G23 Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 7W |
| CFL Replacement | 18W CFL |
| Power Reduction | Approximately 61% |
| Base | G23 |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Offices
- Hotels
- Retail Shops
- Hospitality Environments
- Commercial Interiors
- Horizontal CFL Retrofit Applications
- G23 Fixture Retrofits
Why Choose the 7W Hybrid Horizontal PL Retrofit Lamp with G23 Base?
The 7W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 18W CFL lamps, reducing power consumption by approximately 61%. Its G23 base is designed for compatible horizontal fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for offices, hotels, retail shops, and commercial retrofit applications.
