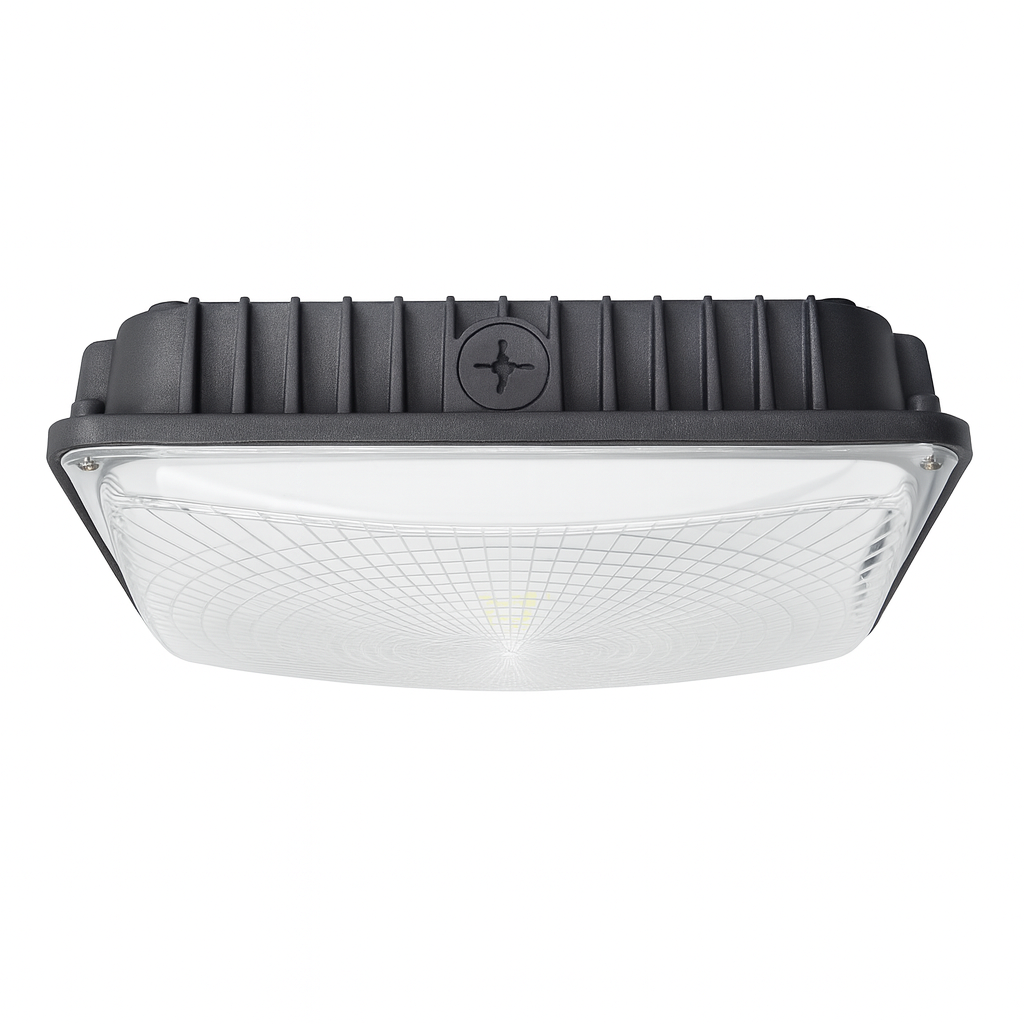

75W CH Low Profile Canopy Light Series
75W CH Low Profile Canopy Light Series
Couldn't load pickup availability
The 75W CH Low Profile LED Canopy Light Series delivers powerful, energy-efficient illumination for commercial and industrial canopy applications. Producing 9,375 lumens while consuming only 75 watts, the CH Series provides an efficient replacement for traditional metal halide fixtures up to 250W.
Built with a durable die-cast aluminum housing, UV-resistant powder coat finish, and high-impact polycarbonate diffuser, this fixture is designed for dependable performance in demanding environments. Surface and pendant mounting options provide installation flexibility for gas stations, parking garages, walkways, and other commercial canopy applications.
Features
- 75W LED replaces up to 250W metal halide lighting
- Produces 9,375 lumens
- Available in 4000K, 5000K & 6000K
- Wide-range 120–277V operation
- 0–10V dimming capability
- CRI >70
- Durable die-cast aluminum housing
- UV-resistant powder coat finish
- High-impact polycarbonate diffuser
- Surface or pendant mounting options
- Rated for wet locations
- RoHS compliant
- Approximately 60,000-hour L70 rated life
- 3-year warranty
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 4000K | Neutral White |
| 5000K | Cool White |
| 6000K | Bright White |
Mounting Options
- Surface Mount
- Pendant Mount
Specifications
| Product Type | Low Profile LED Canopy Light |
|---|---|
| Series | CH Series |
| Power | 75W |
| Equivalent Wattage | Up to 250W Metal Halide |
| Light Output | 9,375 lm |
| Input Voltage | 120–277V |
| Color Temperatures | 4000K / 5000K / 6000K |
| CRI | >70 |
| Dimming | 0–10V |
| Housing | Die-Cast Aluminum |
| Finish | UV-Resistant Powder Coat |
| Diffuser | High-Impact Polycarbonate |
| Mounting | Surface / Pendant |
| Location Rating | Wet Location Rated |
| Rated Life | Approximately 60,000 Hours (L70) |
| Compliance | RoHS |
| Warranty | 3 Years |
Applications
- Gas Station Canopies
- Parking Garages
- Parking Structures
- Covered Walkways
- Building Entrances
- Commercial Canopies
- Industrial Facilities
- Loading & Service Areas
- Wet Location Applications
- Metal Halide Retrofit Applications
Why Choose the CH Series?
The 75W CH Series Low Profile LED Canopy Light produces 9,375 lumens while replacing traditional metal halide fixtures up to 250W. Its low-profile design, three color temperature options, and 0–10V dimming provide a versatile solution for commercial and industrial canopy lighting.
With durable die-cast aluminum construction, a UV-resistant powder coat finish, high-impact polycarbonate diffuser, wet-location rating, and an approximately 60,000-hour L70 rated life, the CH Series is engineered for reliable, efficient, and low-maintenance illumination in demanding environments.
