6W Micro Magnetic Pivot Linear Dot Light Series
6W Micro Magnetic Pivot Linear Dot Light Series
Couldn't load pickup availability

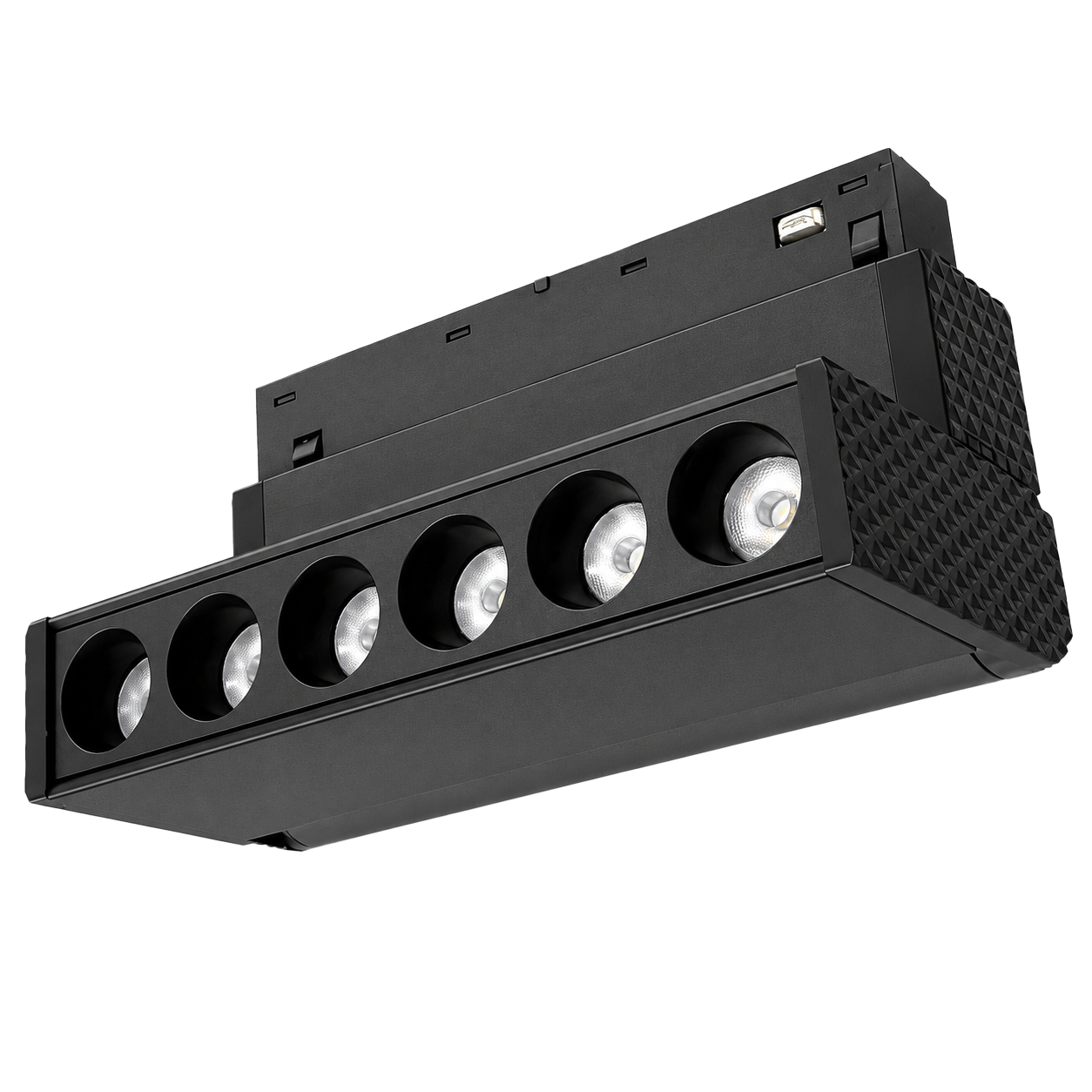

The 6W Micro Magnetic Pivot Linear Dot Light combines precision accent lighting with an adjustable pivoting design for maximum flexibility. Featuring 6 individually recessed LED optics, the DOT5 Pivot delivers controlled, low-glare illumination while allowing the light to be directed exactly where it's needed.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick, tool-free installation and effortless repositioning.
Features
- 6W Integrated LED
- DOT5 configuration with 6 recessed optics
- Adjustable pivoting light head
- 708 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Precision directional lighting
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 6W | 5" (116 mm) | 708 lm | MCR-DOT5-PVT-6W-CCT-48V-MB |
| Matte White | 6W | 5" (116 mm) | 708 lm | MCR-DOT5-PVT-6W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Pivot Linear Dot Light |
| Configuration | DOT5 Pivot |
| LED Optics | 6 |
| Power | 6W |
| Lumen Output | 708 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 5" (116 mm) |
| Width | 1" (22 mm) |
| Height | 4" (105 mm) |
| Adjustable Head | Pivoting Directional Lighting |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for retail displays, jewelry stores, art galleries, museums, luxury homes, kitchen islands, display cabinets, hospitality spaces, restaurants, hotels, offices, and architectural accent lighting.
What's Included
- 1 × 6W DOT5 Micro Magnetic Pivot Linear Dot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
