Diamond Brite LEDs
6W, 12W & 18W Micro Magnetic Rotating Linear Dot Light Series
6W, 12W & 18W Micro Magnetic Rotating Linear Dot Light Series
Couldn't load pickup availability
The Micro Magnetic Rotating Linear Dot Light combines precision multi-cell optics with a fully rotatable design, allowing you to direct light exactly where it's needed. Featuring recessed anti-glare optics, tunable white technology, and smooth dimming, this fixture is ideal for retail displays, galleries, museums, hospitality spaces, and modern residential interiors.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick repositioning while the rotating body allows you to fine-tune beam direction after installation.
Features

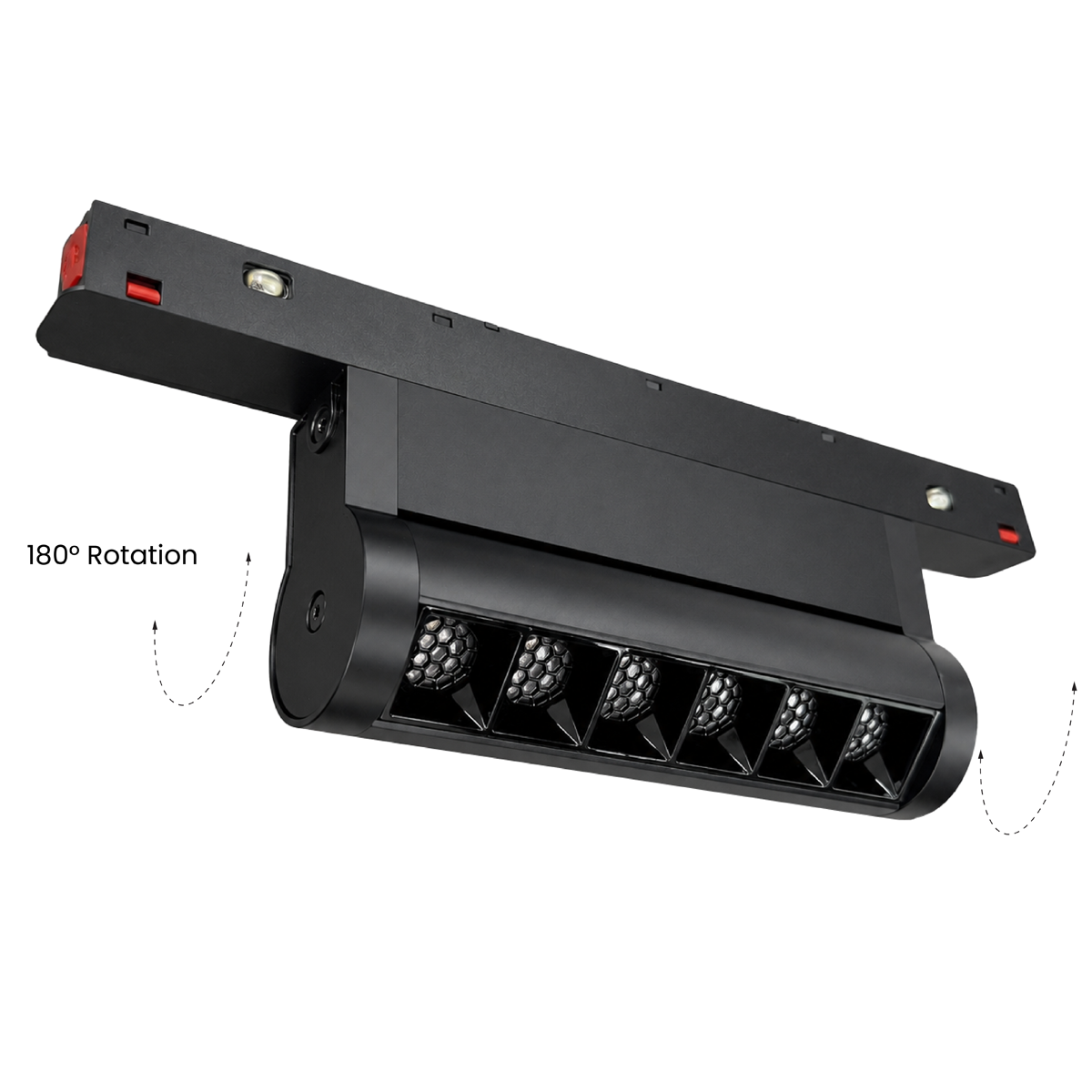

- Rotating linear light for adjustable beam direction
- Precision recessed anti-glare optics
- Compatible with all 48V Micro Magnetic Track Systems
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- High-efficiency LED technology
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium extruded aluminum construction
- Modern architectural design
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Configuration | Power | Length | Model No. | SKU |
|---|---|---|---|---|

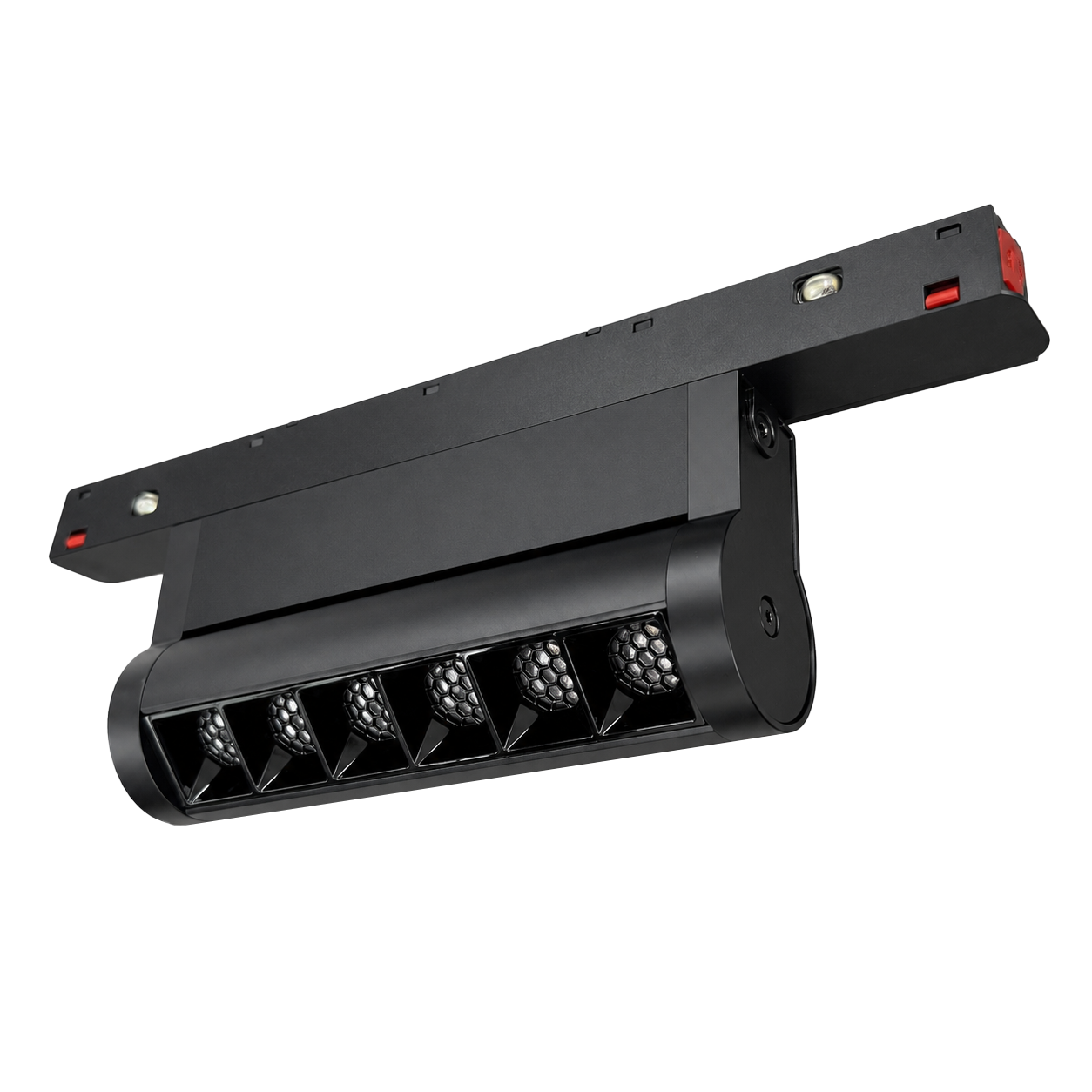

| DOT5 Rotate | 6W | 124 mm | MCR-DOT5-RTA-6W-CCT-48V-MB | MCR-DOT5-RTA-6W-CCT-48V-MB |

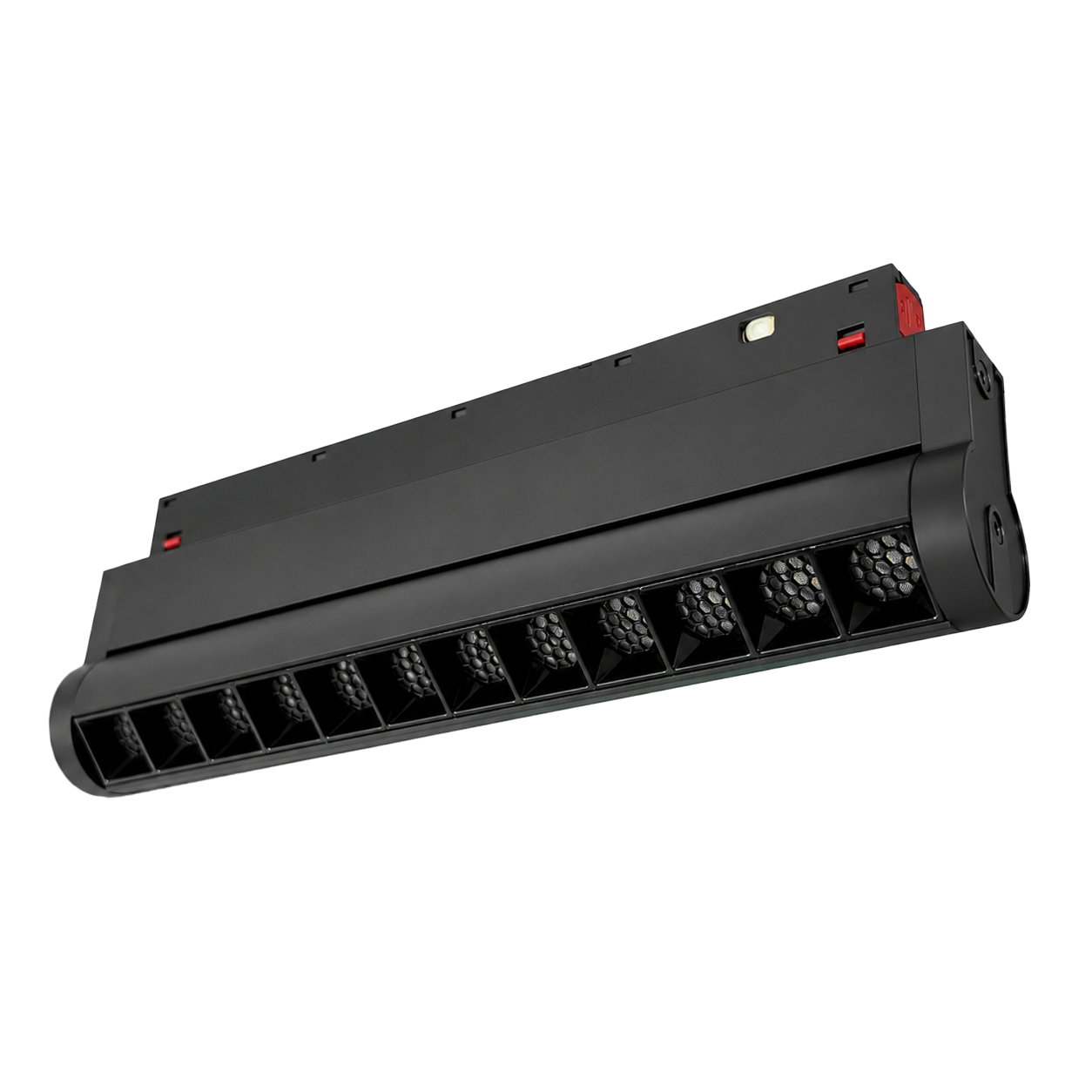

| DOT9 Rotate | 12W | 232 mm | MCR-DOT9-RTA-12W-CCT-48V-MB | MCR-DOT9-RTA-12W-CCT-48V-MB |

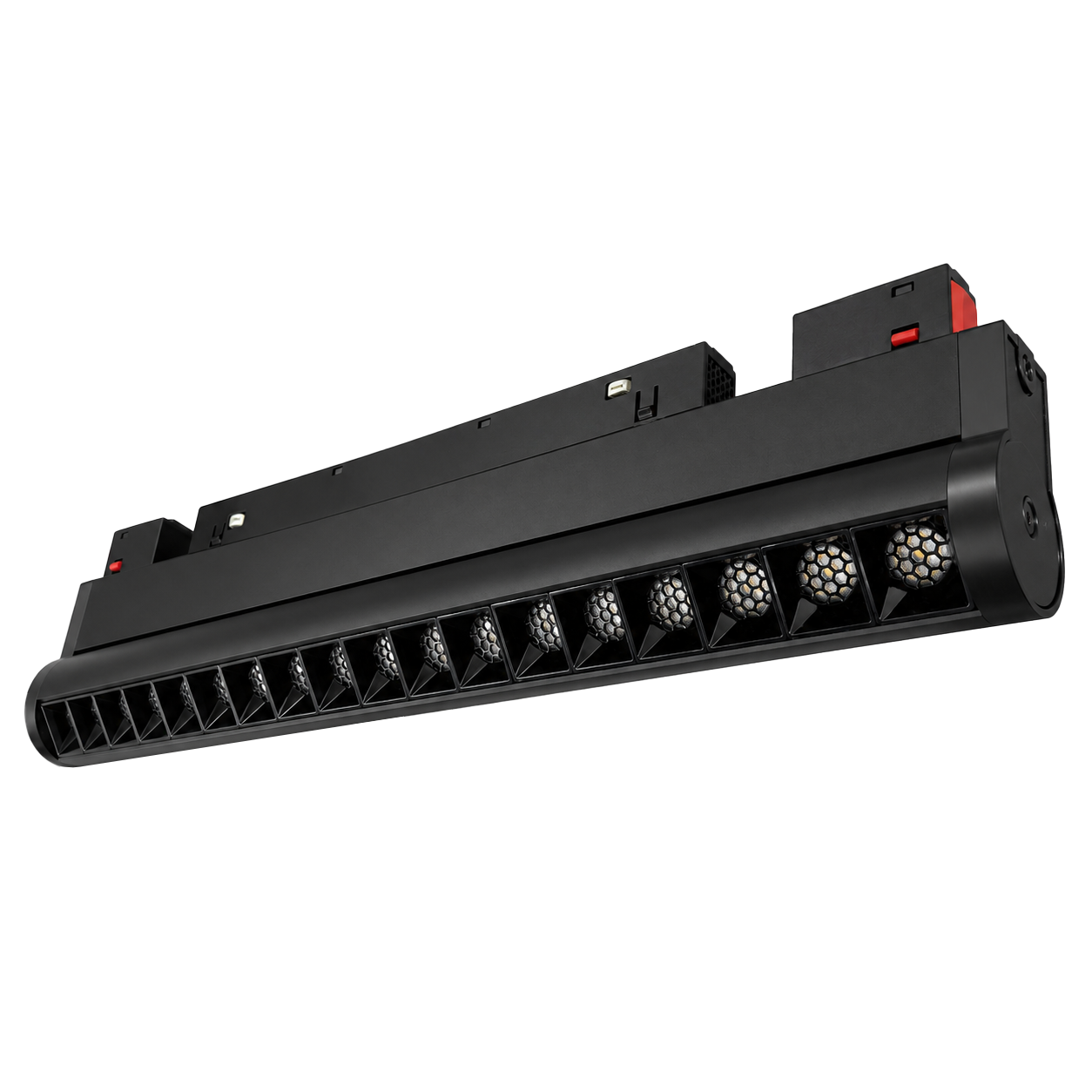

| DOT13 Rotate | 18W | 336 mm | MCR-DOT13-RTA-18W-CCT-48V-MB | MCR-DOT13-RTA-18W-CCT-48V-MB |
Matte White
| Configuration | Power | Length | Model No. | SKU |
|---|---|---|---|---|
| DOT5 Rotate | 6W | 124 mm | MCR-DOT5-RTA-6W-CCT-48V-MW | MCR-DOT5-RTA-6W-CCT-48V-MW |
| DOT9 Rotate | 12W | 232 mm | MCR-DOT9-RTA-12W-CCT-48V-MW | MCR-DOT9-RTA-12W-CCT-48V-MW |
| DOT13 Rotate | 18W | 336 mm | MCR-DOT13-RTA-18W-CCT-48V-MW | MCR-DOT13-RTA-18W-CCT-48V-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | Micro Magnetic Rotating Linear Dot Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| Power Options | 6W, 12W, 18W |
| Configurations | DOT5 Rotate, DOT9 Rotate, DOT13 Rotate |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Aluminum & Plastic |
| Width | 34 mm |
| Height | 75 mm |
| Length Options | 124 mm, 232 mm, 336 mm |
| Optical Design | Recessed Anti-Glare Multi-Cell Optics |
| Adjustment | Rotating Light Body |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Perfect for:
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Museums

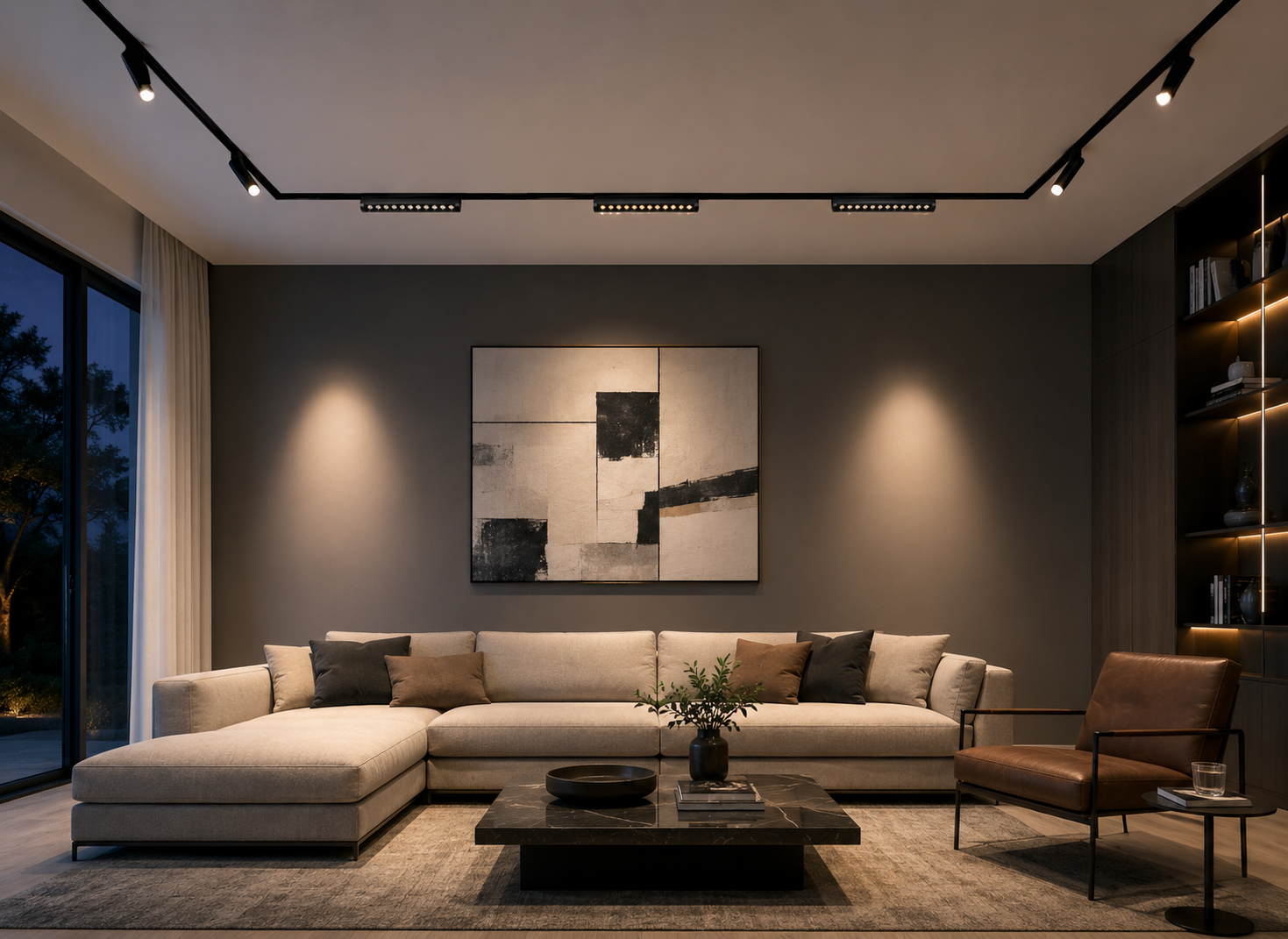

- Luxury Homes
- Kitchen Islands
- Display Shelving
- Hotels
- Restaurants
- Office Spaces
- Accent Lighting
- Architectural Lighting
What's Included
- 1 × Micro Magnetic Rotating Linear Dot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Rotating Linear Dot Light?
The Rotating Linear Dot Light combines the visual comfort of recessed anti-glare optics with the flexibility of a rotating fixture body. Once installed, the light can be rotated to precisely illuminate artwork, displays, shelving, or architectural details without moving the fixture itself, making it an excellent solution for dynamic residential and commercial spaces.
