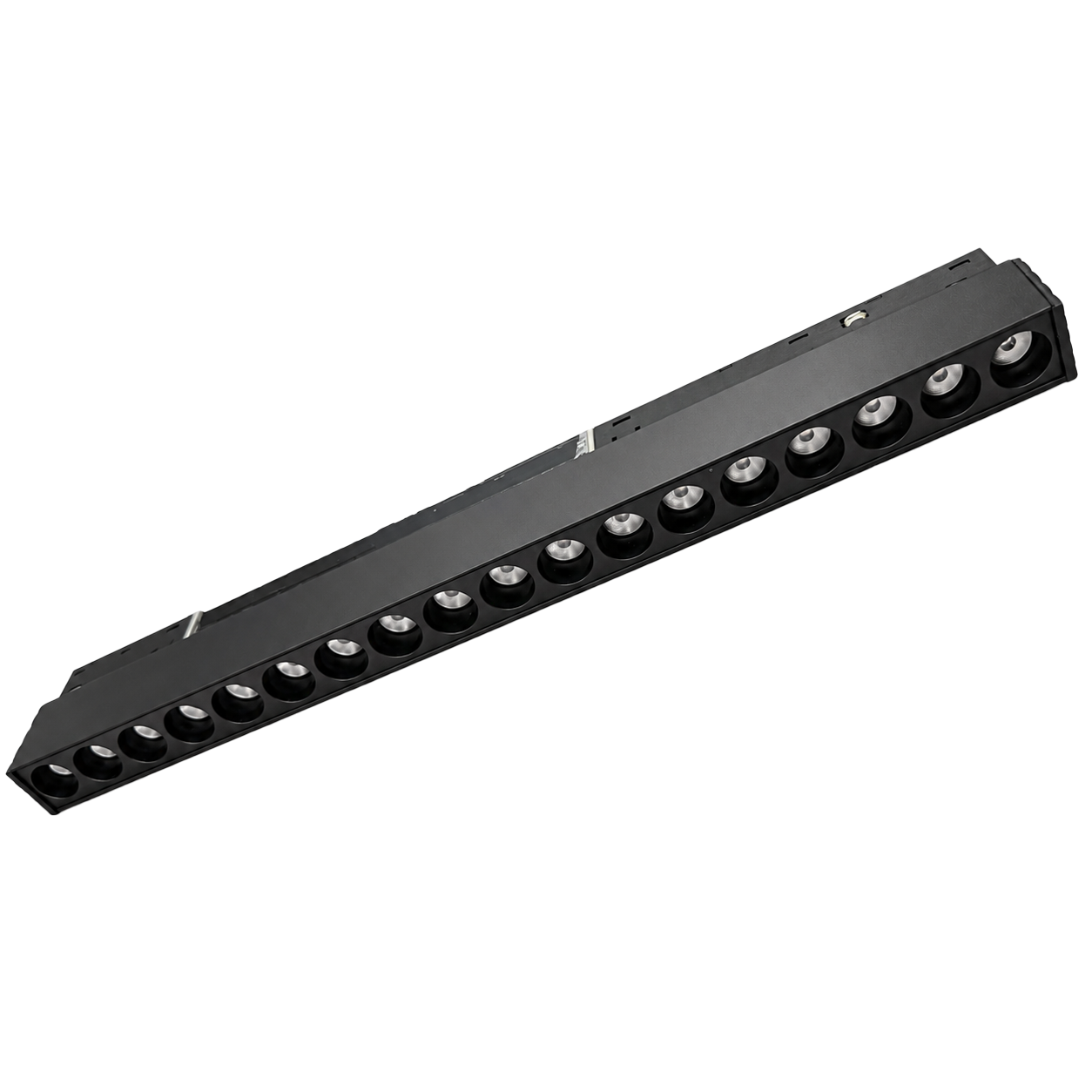

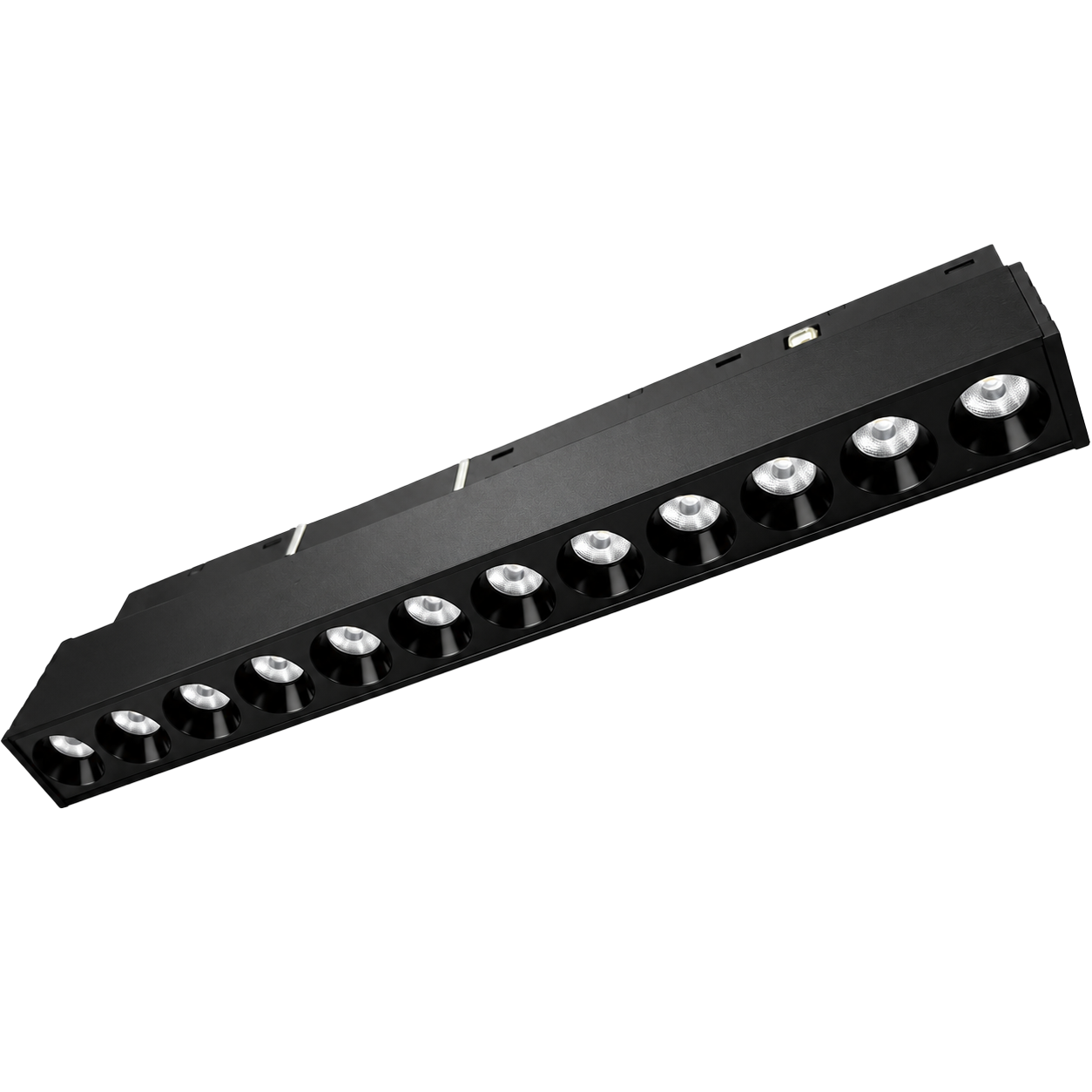

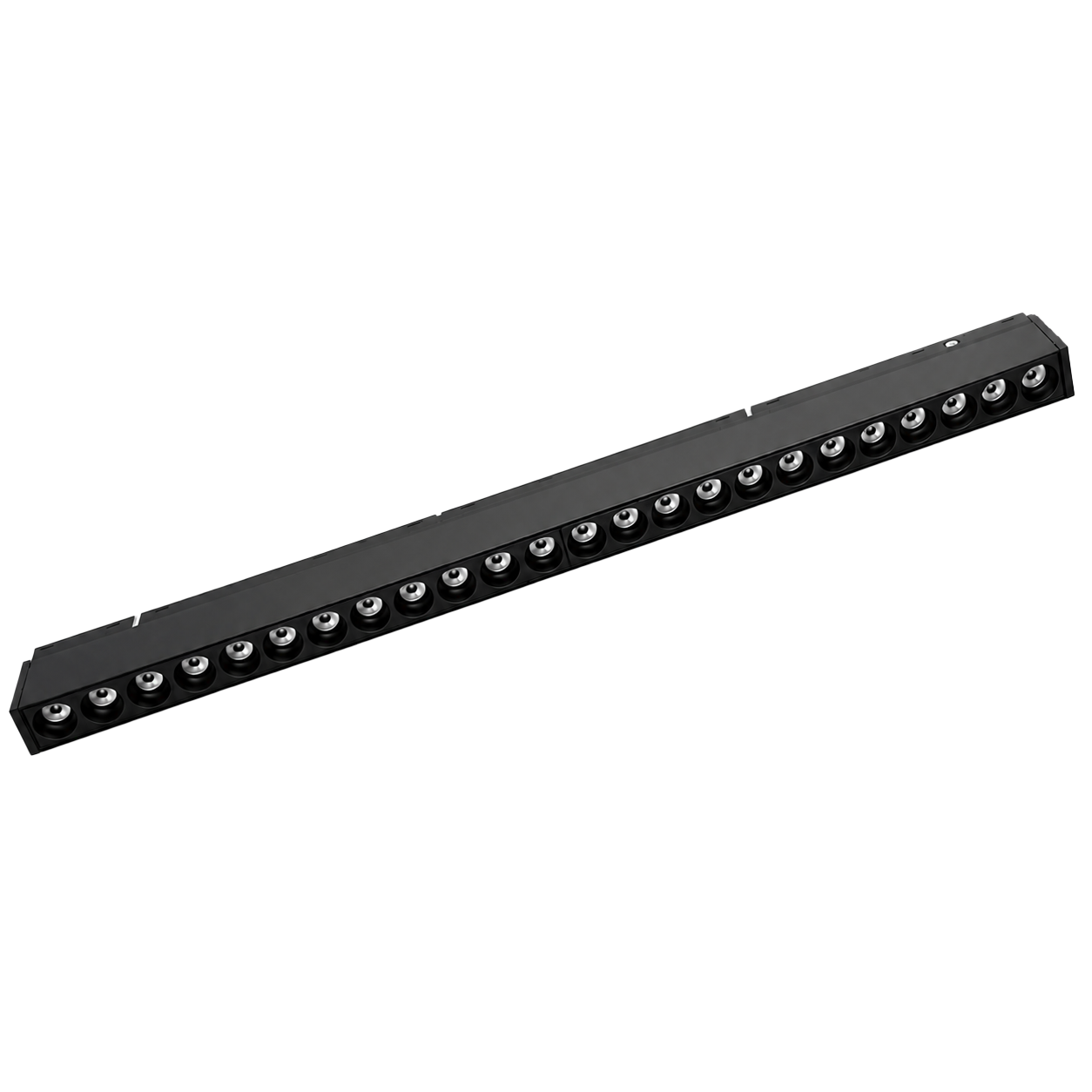

Micro Magnetic Linear Dot Light Series
Micro Magnetic Linear Dot Light Series
Couldn't load pickup availability
The Micro Magnetic Linear Dot Light combines the precision of spot lighting with the sleek appearance of a linear fixture. Featuring multiple recessed optics for reduced glare and excellent beam control, this fixture is ideal for accent lighting, retail displays, artwork, shelving, and architectural applications.
Designed for 48V Micro Magnetic Track Systems, each fixture magnetically installs into the track for quick repositioning and flexible lighting layouts.
Features
- Compatible with all 48V Micro Magnetic Track Systems
- Multiple precision recessed LED optics
- Low-glare architectural design
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- High-efficiency LED technology
- 118 lumens per watt
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium extruded aluminum construction
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant

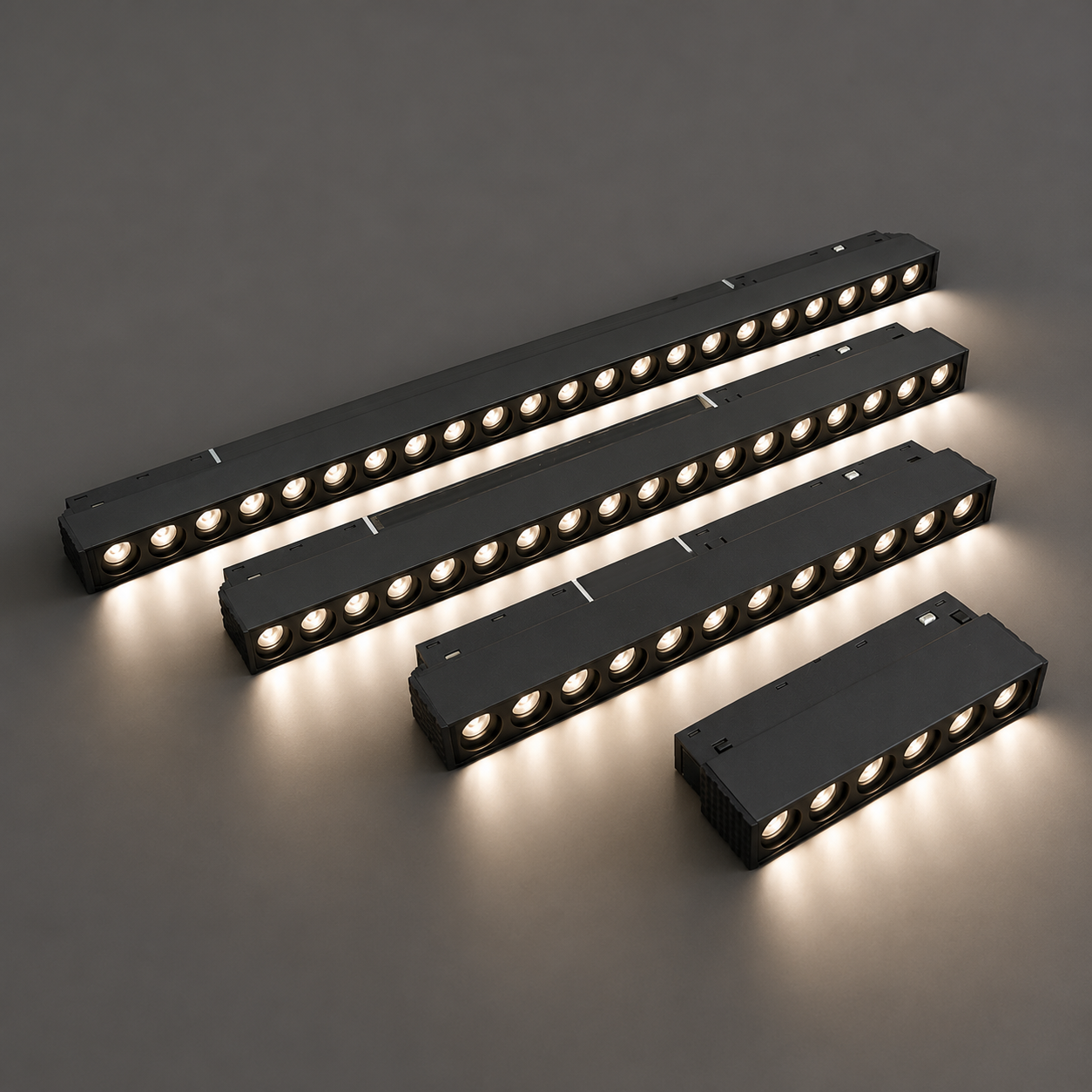

Available Models
Matte Black
| Configuration | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| DOT5 | 6W | 4" (112 mm) | 708 lm | MCR-DOT5-6W-CCT-48V-MB |
| DOT9 | 12W | 9" (222 mm) | 1,416 lm | MCR-DOT9-12W-CCT-48V-MB |
| DOT13 | 18W | 13" (330 mm) | 2,124 lm | MCR-DOT13-18W-CCT-48V-MB |
| DOT17 | 24W | 17" (435 mm) | 2,832 lm | MCR-DOT17-24W-CCT-48V-MB |
Matte White
| Configuration | Power | Length | Lumens | Model No. |
| DOT5 | 6W | 4" (112 mm) | 708 lm | MCR-DOT5-6W-CCT-48V-MW |
| DOT9 | 12W | 9" (222 mm) | 1,416 lm | MCR-DOT9-12W-CCT-48V-MW |
| DOT13 | 18W | 13" (330 mm) | 2,124 lm | MCR-DOT13-18W-CCT-48V-MW |
| DOT17 | 24W | 17" (435 mm) | 2,832 lm | MCR-DOT17-24W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Dot Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| LED Power Options | 6W, 12W, 18W, 24W |
| Luminous Efficacy | 118 lm/W |
| Lumen Output | 708 lm, 1,416 lm, 2,124 lm, 2,832 lm |
| LED Configuration | DOT5, DOT9, DOT13, DOT17 |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Aluminum |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Available Lengths | 4" (112 mm), 9" (222 mm), 13" (330 mm), 17" (435 mm) |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:
- Retail Displays
- Jewelry Stores
- Museums
- Art Galleries
- Luxury Homes
- Kitchen Islands
- Shelving & Cabinet Lighting
- Hospitality
- Restaurants
- Hotels
- Offices
- Accent Lighting
What's Included
- 1 × Micro Magnetic Linear Dot Light
Magnetic track, power supply, and accessories are sold separately.
Compatible With

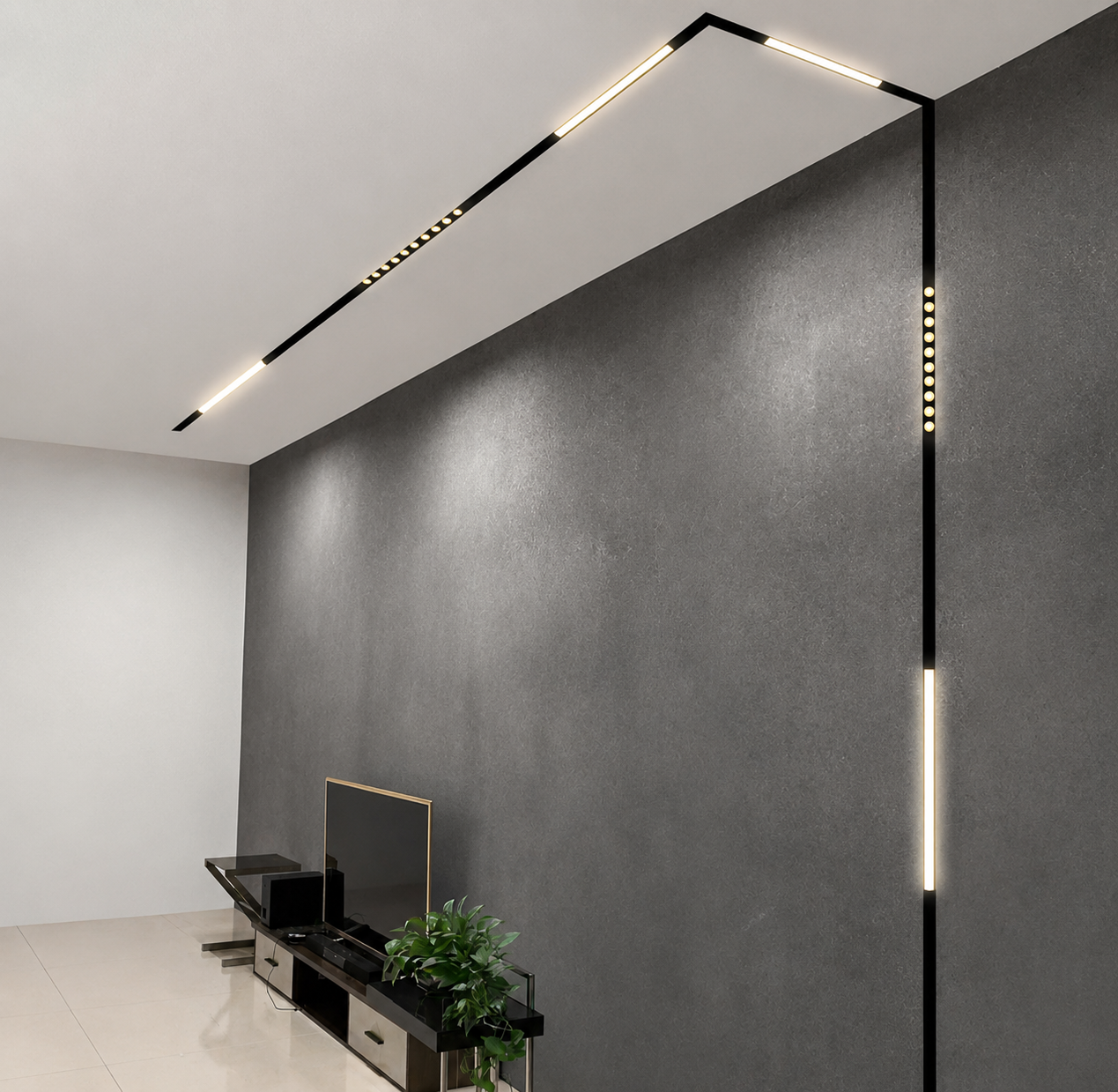

Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Linear Dot Light?
Unlike continuous linear fixtures, the Linear Dot Light features individually recessed optics that provide greater beam control, reduced glare, and enhanced visual comfort. It's an excellent choice for highlighting products, artwork, architectural features, and task areas while maintaining the clean, minimalist aesthetic of a magnetic track lighting system.
