Diamond Brite LEDs

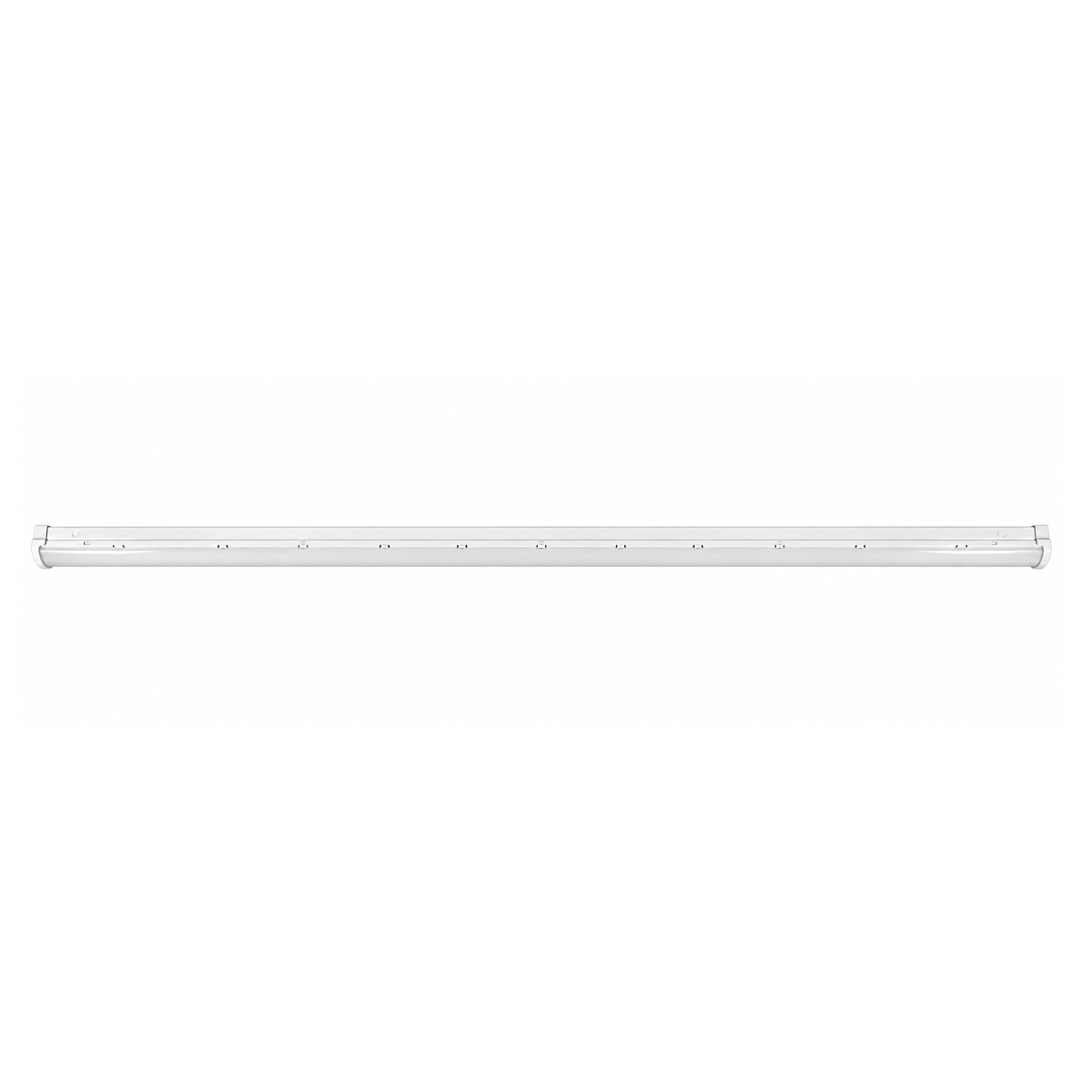

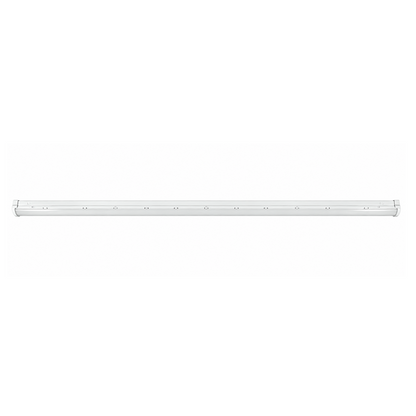

68W Luxrite Linear Slim Luminaire Series
68W Luxrite Linear Slim Luminaire Series
Couldn't load pickup availability
The 34W Linear Slim Luminaire Series - 48 Inch delivers bright and efficient linear illumination from a slim architectural fixture. Producing 3,600 lumens while consuming 34 watts, the fixture provides approximately 105.9 lm/W for efficient residential and commercial lighting.
The 48-inch Linear Slim Luminaire combines a steel housing with an acrylic lens, universal 120–277V input, and a removable designer cover. Its narrow 2.6-inch width provides a streamlined appearance for surface-mounted linear lighting applications.
Features
- 34W LED linear luminaire
-
48-inch fixture class
- Produces 3,600 lumens
- 105.9 lm/W efficacy
- Available in 3000K, 4000K & 5000K
- CRI 80
- Universal 120–277V input
- Steel housing + acrylic lens
- Removable designer cover
- White finish
- Mercury free
- Damp location rated
- ETL Approved
- DLC Listed
- 50,000-hour average rated life
- 5-year module & driver manufacturer warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
| 3000K | Soft White | 3,600 lm |
| 4000K | Cool White | 3,600 lm |
| 5000K | Bright White | 3,600 lm |
Specifications
| Product Type | LED Linear Luminaire |
| Series | Linear Slim Luminaire Series |
| Nominal Size | 48 Inch |
| Power | 34W |
| Light Output | 3,600 lm |
| Efficacy | 105.9 lm/W |
| Input Voltage | 120–277V |
| Color Temperatures | 3000K / 4000K / 5000K |
| CRI | 80 |
| Housing | Steel |
| Lens | Acrylic |
| Finish | White |
| Dimensions | 46.5"L × 2.6"W × 2.5"H |
| Location Rating | Damp Location |
| Mercury Free | Yes |
| Average Lifetime | 50,000 Hours |
| Listings | ETL / DLC |
| Warranty | 5 Years – Module & Driver |
Available Models
| Model | Color Temperature |
| LR25146 | 3000K Soft White |
| LR25147 | 4000K Cool White |
| LR25148 | 5000K Bright White |
Applications
- Commercial Buildings
- Offices
- Retail Spaces
- Residential Interiors
- Hallways & Corridors
- Work Areas
- General Interior Lighting
Why Choose the 34W Linear Slim Luminaire?
The 34W Linear Slim Luminaire produces 3,600 lumens from a narrow 48-inch fixture, combining efficient illumination with a streamlined architectural profile. Its universal voltage operation and multiple color temperatures make it suitable for a broad range of interior applications.
