Diamond Brite LEDs

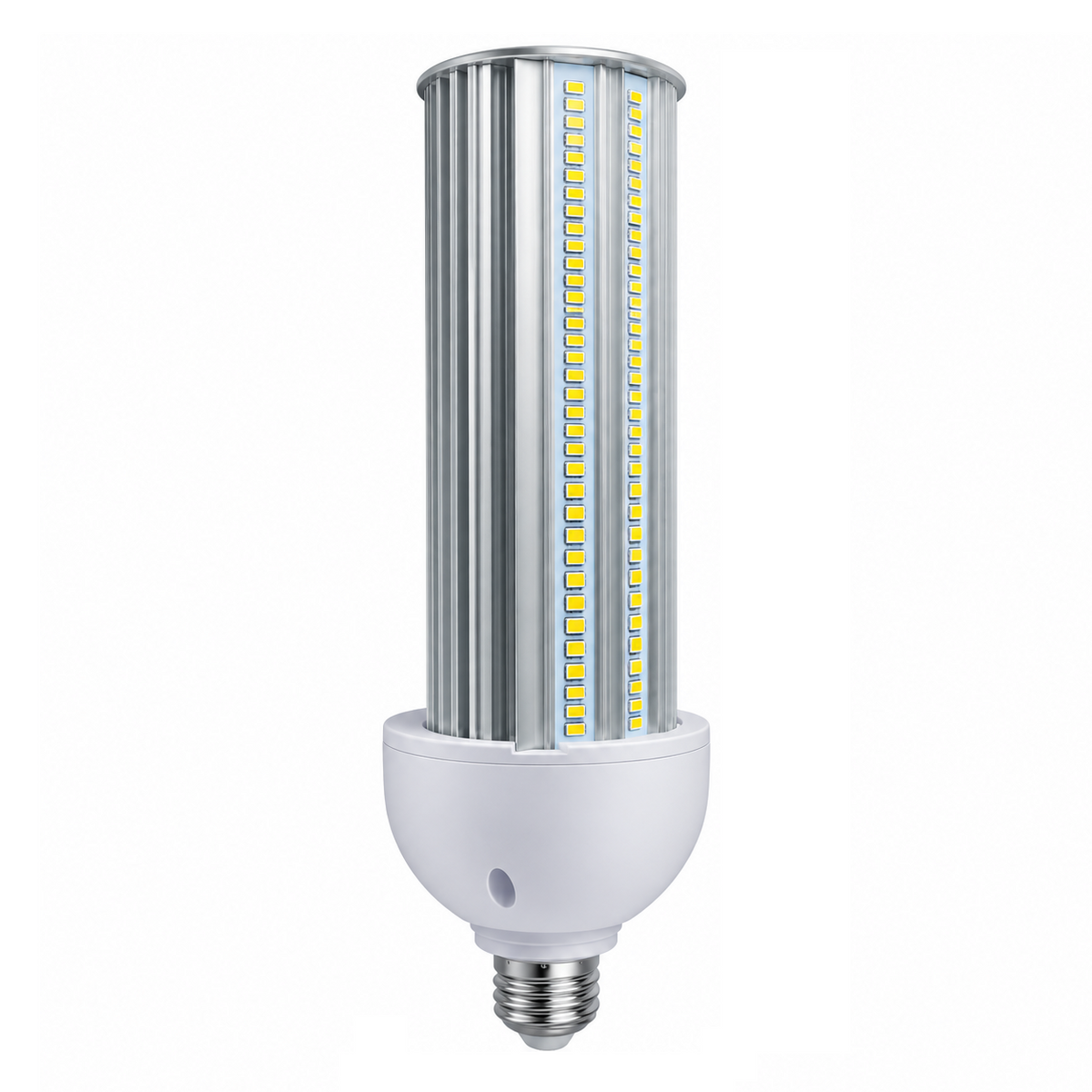

60W QuadLamp C Series
60W QuadLamp C Series
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
The 60W QuadLamp C Series is the highest-output configuration in the series, delivering 7,000 lumens for demanding commercial, industrial, roadway, and retrofit lighting applications.
Powered by 210 Samsung 2835 SMD LEDs, the 60W QuadLamp provides broad 180° light distribution. Its aluminum thermal structure, internal driver, multiple base options, and IP64 construction provide a durable alternative to traditional high-wattage lamps.
Features
- 60W LED power consumption
- Produces 7,000 lumens
- 210 Samsung 2835 SMD LEDs
- 180° beam angle
- CRI >83
- Power factor >0.95
- 85–305V AC operation
- E26 / E27 / E39 / E40 base options
- Clear or frosted lampshade options
- IP64 ingress protection
- 50,000-hour rated lifespan
- UL/cUL, CE & RoHS certified
- 2-year warranty
Color Temperature Options
- Amber 585nm
- 2700K
- 3000K
- 4000K
- 5000K
- 5700K
- 6500K
Specifications
| Product Type | LED Retrofit Lamp |
| Series | QuadLamp C Series |
| Power | 60W |
| Light Output | 7,000 lm |
| LED Source | Samsung 2835 SMD |
| LED Quantity | 210 LEDs |
| Input Voltage | 85–305V AC |
| Base Options | E26 / E27 / E39 / E40 |
| Lampshade | Clear or Frosted |
| CRI | >83 |
| Power Factor | >0.95 |
| Beam Angle | 180° |
| IP Rating | IP64 |

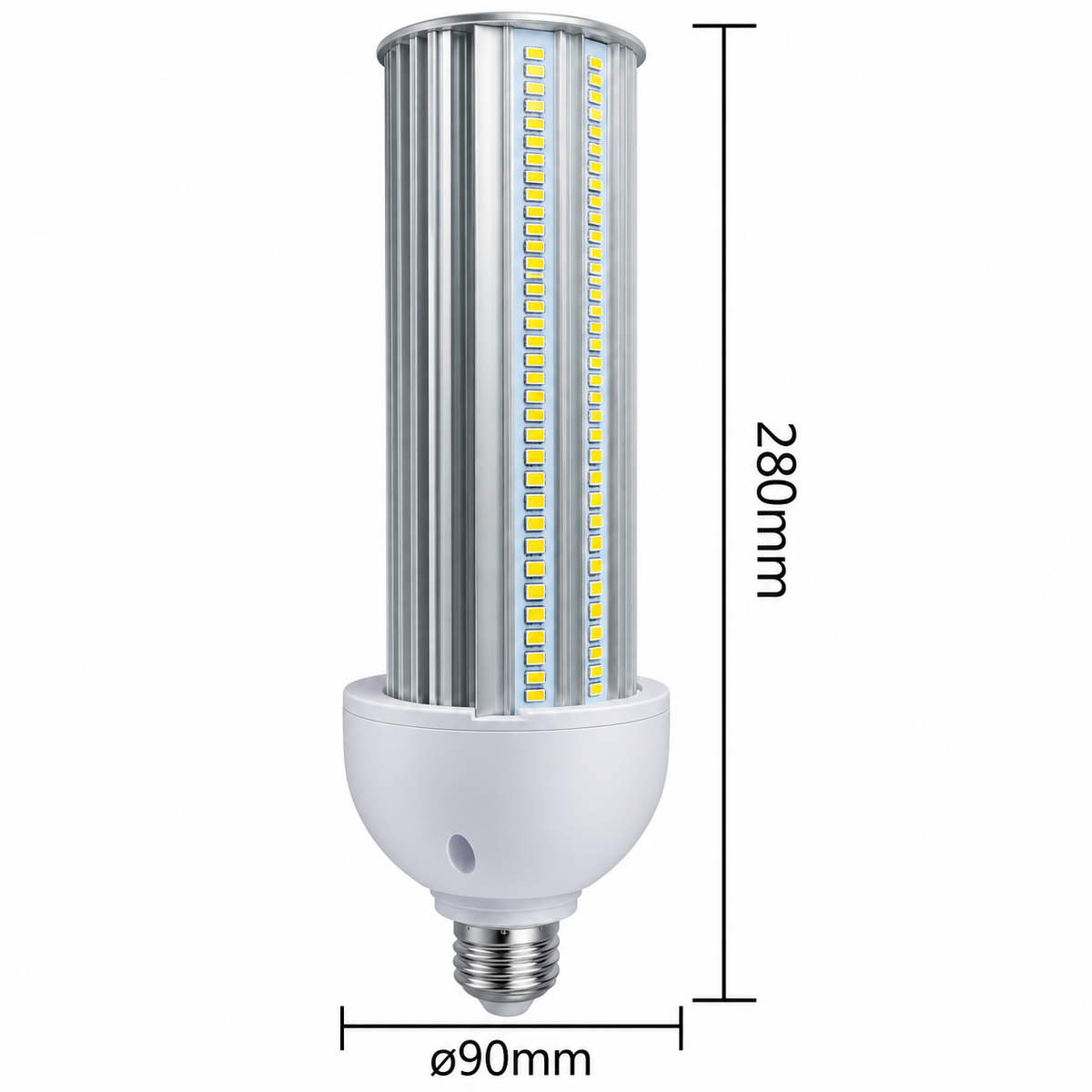

| E27 Dimensions | Ø3.5" × 11.0" (Ø90 × 280 mm) |
| E40 Dimensions | Ø3.5" × 11.7" (Ø90 × 298 mm) |
| Net Weight | 2.87 lbs (1.3 kg) |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rated Life | 50,000 Hours |
| Warranty | 2 Years |
Traditional Lamp Replacement
- 130W CFL
- 200W Metal Halide / HPS / HID
- 550W Incandescent
Applications
- Street & Roadway Lighting
- Post-Top Fixtures
- Commercial Lighting
- Industrial Lighting
- Area Lighting
- High-Output Retrofit Applications
Why Choose the 60W QuadLamp C?
The 60W QuadLamp C Series delivers 7,000 lumens with broad 180° illumination. Its 210 Samsung LEDs, IP64 construction, multiple base options, and 50,000-hour rated lifespan provide a powerful retrofit solution for traditional high-wattage lamps.
