Diamond Brite LEDs

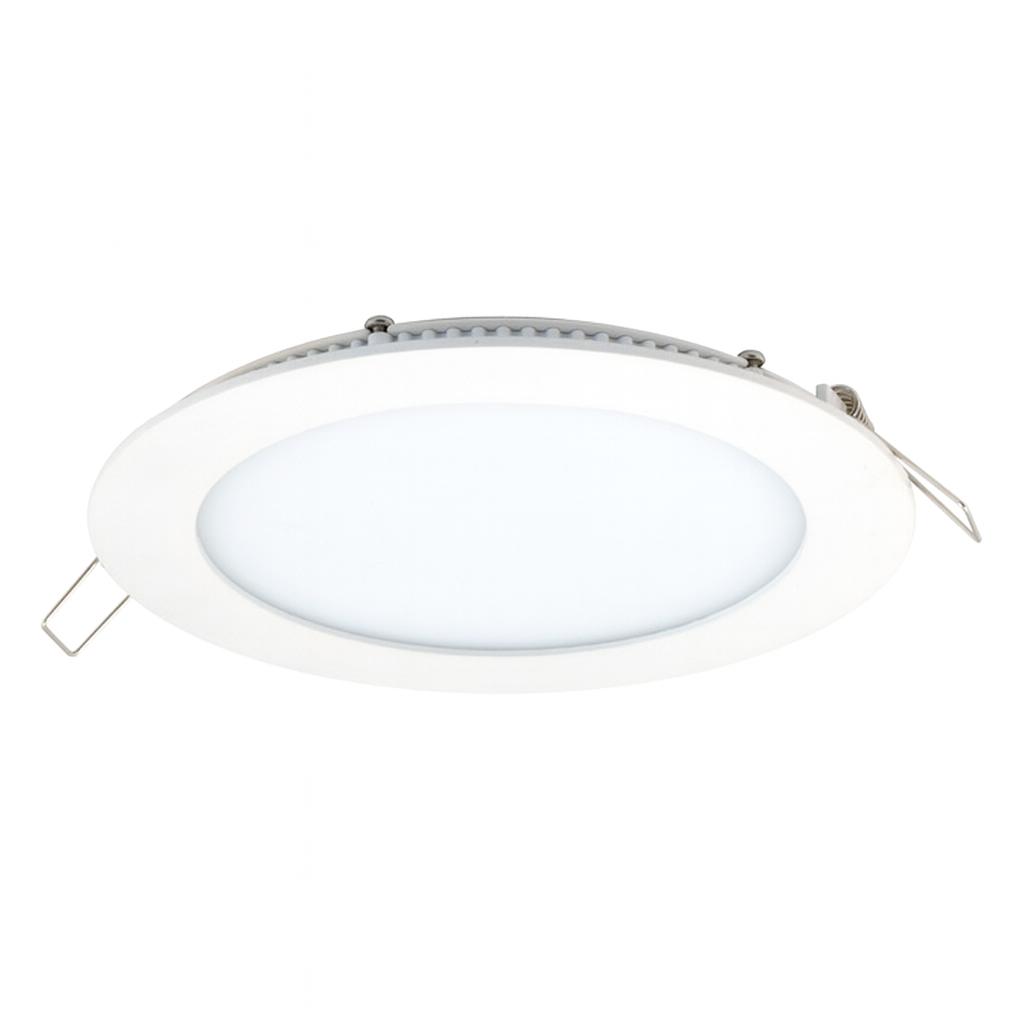

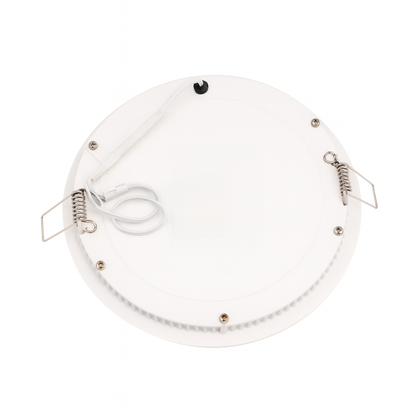

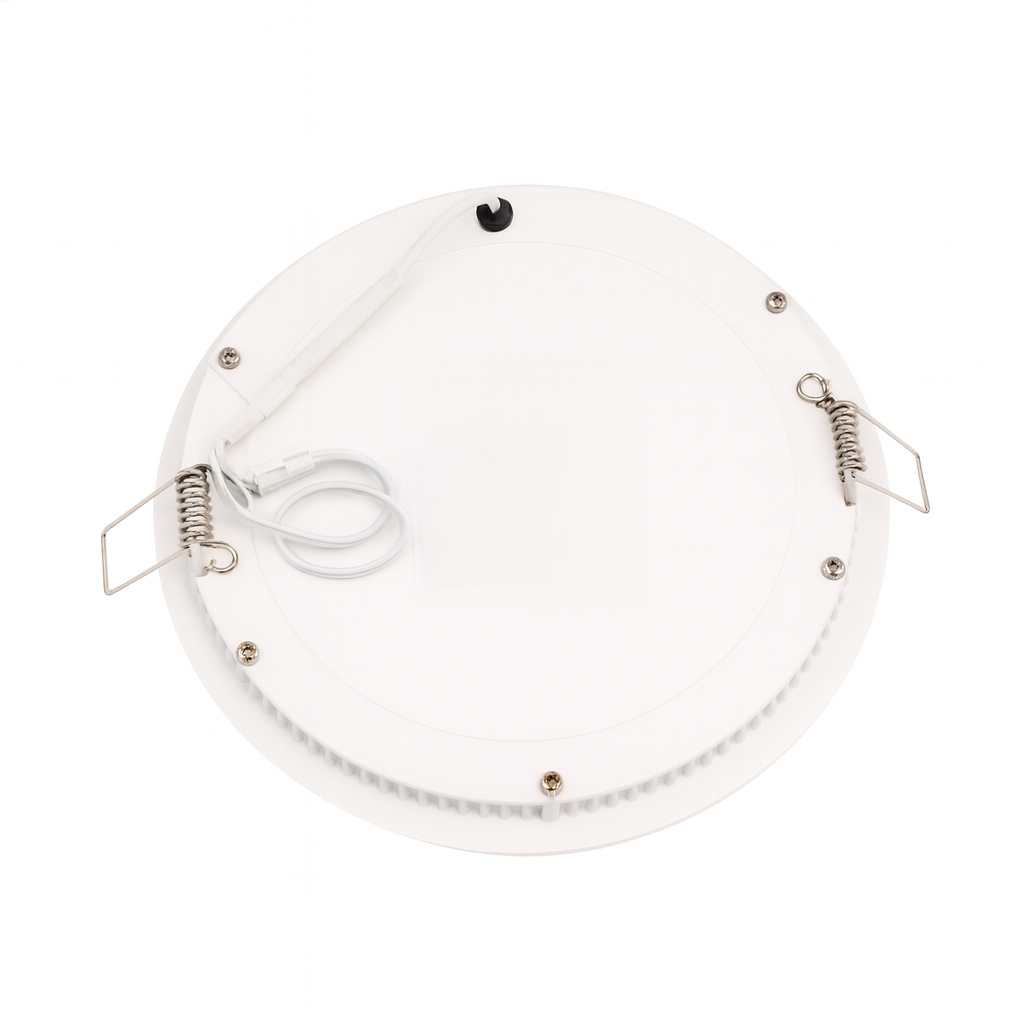

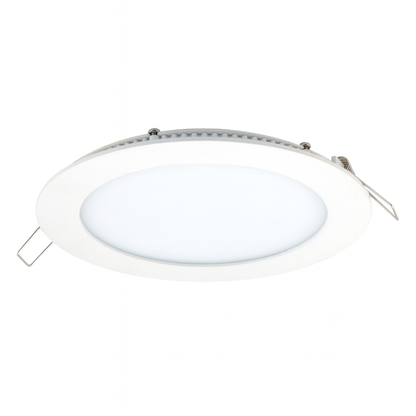

14W PR15 Ultra-Thin Round Recessed Downlight
14W PR15 Ultra-Thin Round Recessed Downlight
Couldn't load pickup availability
The 14W PR15 Ultra-Thin 6" Round LED Recessed Downlight delivers high-performance illumination in a sleek, low-profile design. Producing up to 1,180 lumens while consuming only 14 watts, the PR15 provides an energy-efficient alternative to traditional 100W lighting for residential and commercial applications.
With a fixture height of only 0.79" (20 mm), the PR15 is designed for installations where ceiling space is limited. Its wide 110° beam angle, dimmable LED driver, and diffused light output provide broad, uniform illumination with a clean architectural appearance.
Features
- 14W ultra-thin LED recessed panel
- Designed as an energy-efficient alternative to traditional 100W lighting
- Produces up to 1,180 lumens
- Ultra-thin 0.79" (20 mm) profile
- 110° wide beam angle for broad, even illumination
- Available in 3000K, 4000K & 6000K
- CRI >80 for accurate color rendering
- Dimmable LED driver included
- Compatible with incandescent/TRIAC dimmers
- Aluminum housing
- PMML plastic diffuser for soft, uniform illumination
- IC Rated
- Suitable for damp locations
- Approximately 50,000-hour rated life
- ETL Listed
- Compliant with UL and CSA safety standards
- Junction box and installation components included
Color Temperature & Lumen Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 998 lm |
| 4000K | Neutral White | 1,055 lm |
| 6000K | Bright White | 1,180 lm |
Specifications
| Product Type | Ultra-Thin Round LED Recessed Panel Downlight |
|---|---|
| Model | PR15 |
| Fixture Size | 6" |
| Power | 14W |
| Equivalent Wattage | Up to 100W Traditional Lighting |
| Light Output | 998–1,180 lm |
| Color Temperatures | 3000K / 4000K / 6000K |
| CRI | >80 |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Dimming Compatibility | Incandescent / TRIAC Dimmers |
| Dimmable Driver Input | 100–277V AC |
| Non-Dimmable Driver Input | 100–240V AC |
| Housing Material | Aluminum |
| Diffuser | PMML Plastic |

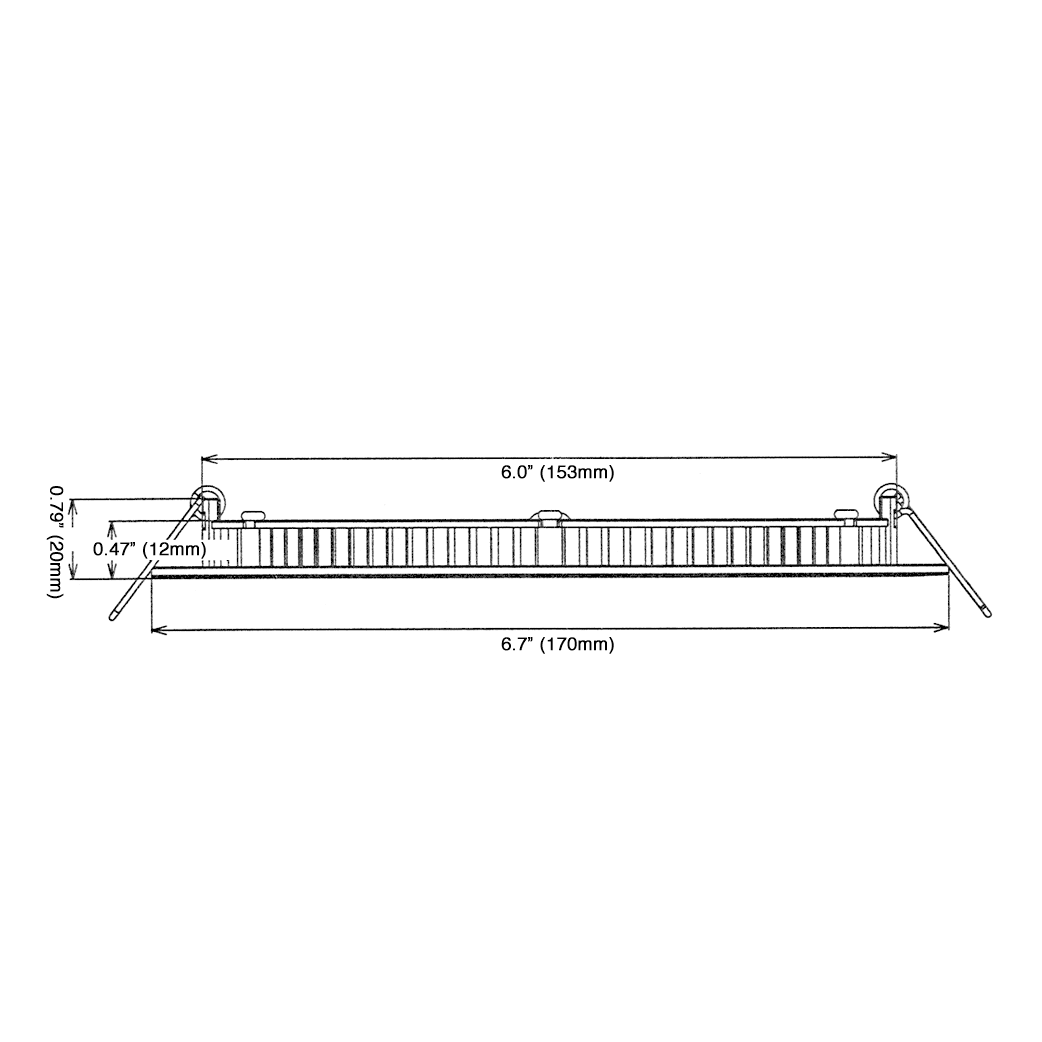

| Outer Diameter | 6.7" (170 mm) |
| Cutout Diameter | 6" (152 mm) |
| Fixture Height | 0.79" (20 mm) |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| IC Rating | IC Rated |
| Location Rating | Damp Location |
| Rated Life | Approximately 50,000 Hours |
| Listing | ETL Listed |
| Safety Compliance | UL / CSA Standards |

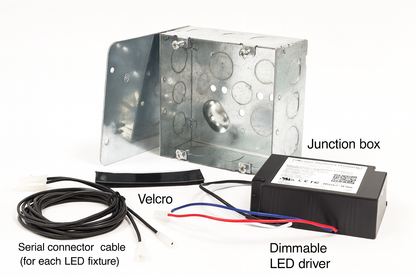

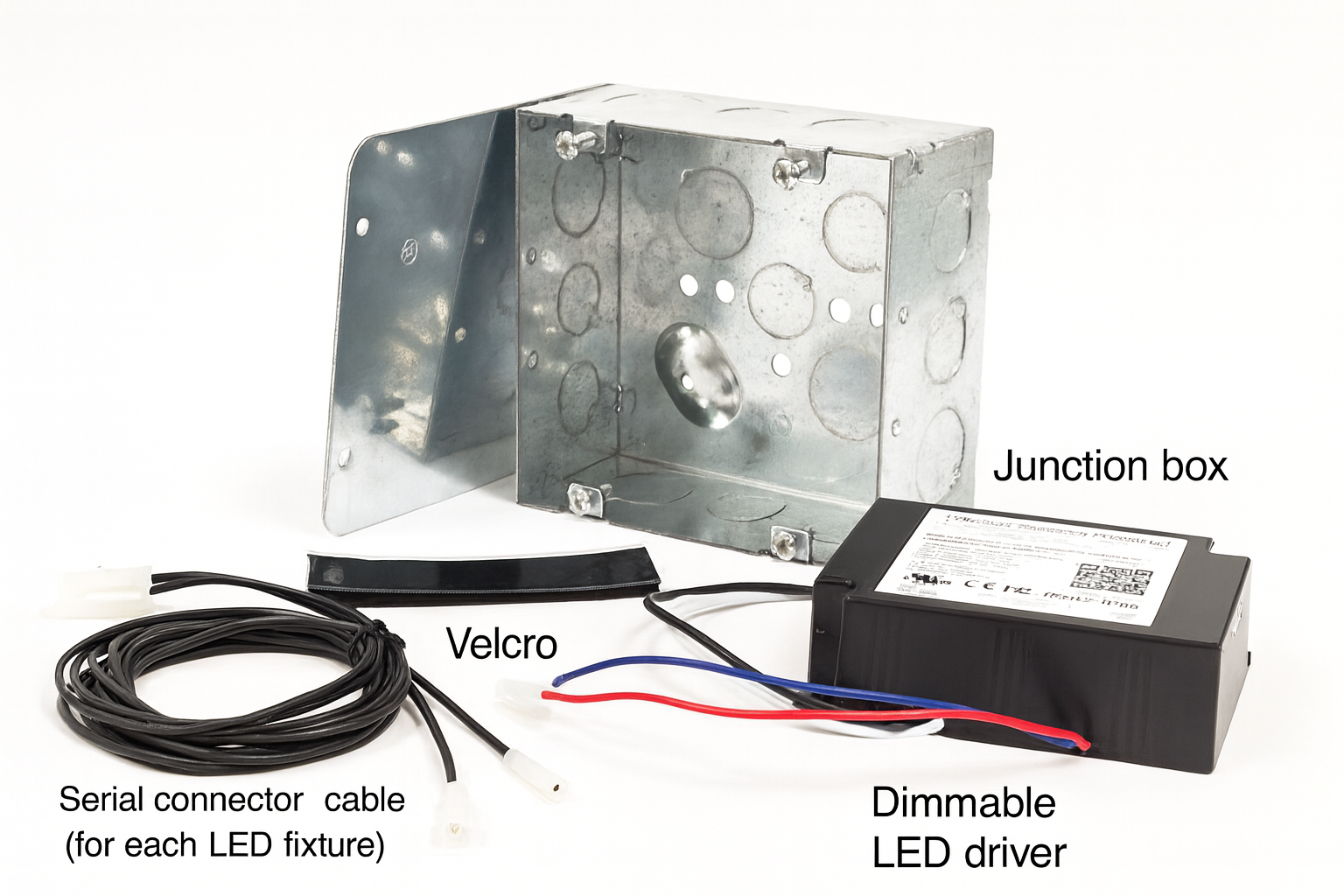

What's Included
- 1 × PR15 6" LED Recessed Panel Downlight
- Serial Connector Cables
- 1 × Dimmable LED Driver
- 1 × Junction Box with Cover & Screws
Dimmer switch is not included.
Applications
- Kitchens
- Living Rooms
- Bedrooms
- Hallways & Corridors
- Office Interiors
- Retail Spaces
- Hotels & Hospitality
- Commercial Interiors
- Residential Lighting
- Low-Clearance Ceiling Applications
Why Choose the PR15?
The PR15 combines an ultra-thin 0.79" profile with up to 1,180 lumens of output, making it an excellent solution for installations where ceiling clearance is limited. Its wide 110° beam distributes light evenly across the space while the included dimmable driver provides additional control over light levels.
With three color temperature options, IC Rated construction, damp-location suitability, aluminum housing, and an approximately 50,000-hour rated life, the PR15 provides a complete recessed LED lighting solution for residential and commercial projects.
