Diamond Brite LEDs
40W-64W Oracle Dual Head Recessed Downlight Series
40W-64W Oracle Dual Head Recessed Downlight Series
Couldn't load pickup availability
The 6" Oracle Dual Head Recessed Downlight Series delivers powerful, professional-grade illumination in a sleek architectural design. Built with CREE CXB1830 LEDs and available in 40W and 64W configurations, the fixture provides up to 7,890 lumens for demanding commercial and architectural lighting applications.
Its dual-head configuration provides greater lighting flexibility, while 15°, 30°, and 50° beam angle options allow precise control over light distribution. With color temperatures from 2700K to 5700K, Trimmed or Trimless configurations, and multiple finish options, the Oracle Dual Head is designed for high-output installations requiring both performance and contemporary styling.
Features
- High-output 6" dual-head recessed LED downlight
- Powered by CREE CXB1830 LEDs
- 40W – 4,930 lumens
- 64W – 7,890 lumens
- Beam angle options: 15° / 30° / 50°
- Color temperature options from 2700K–5700K
- TRIAC 120V dimming
- Optional 0–10V dimming

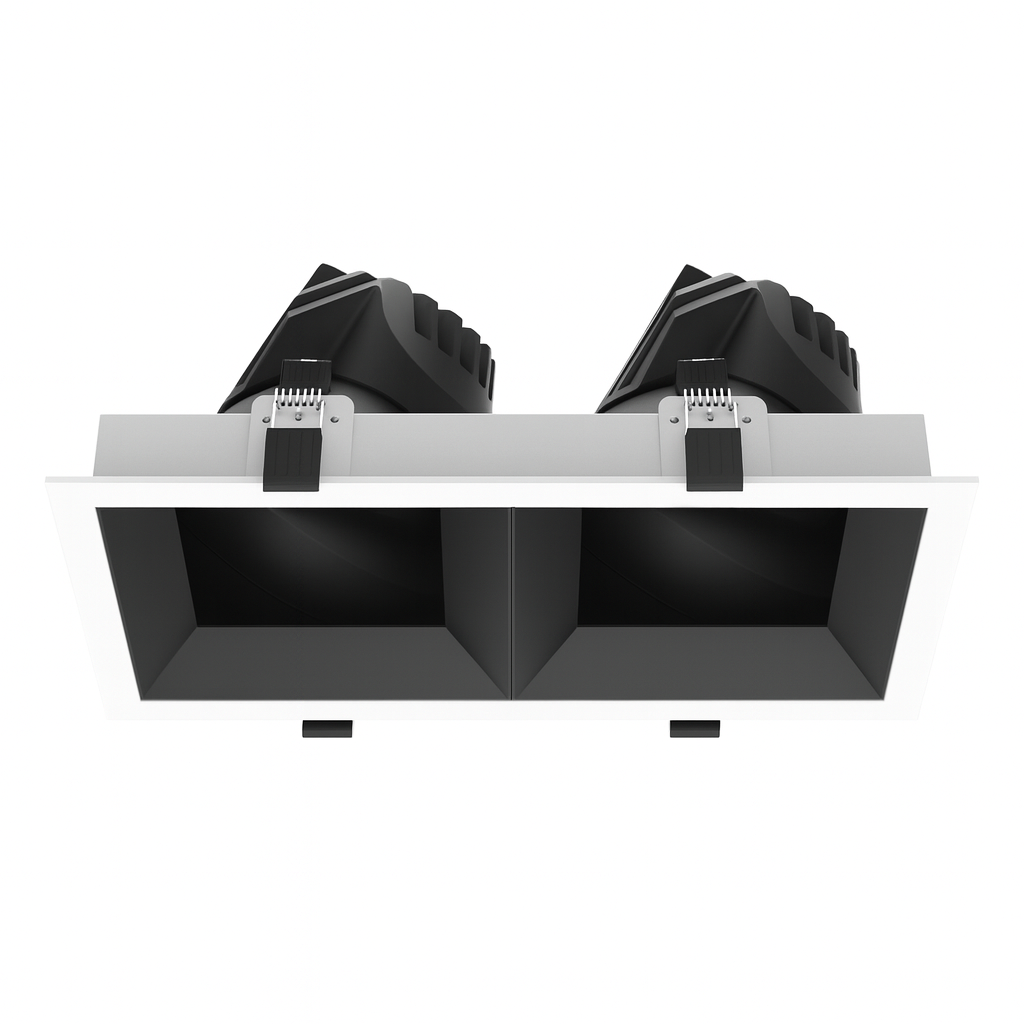

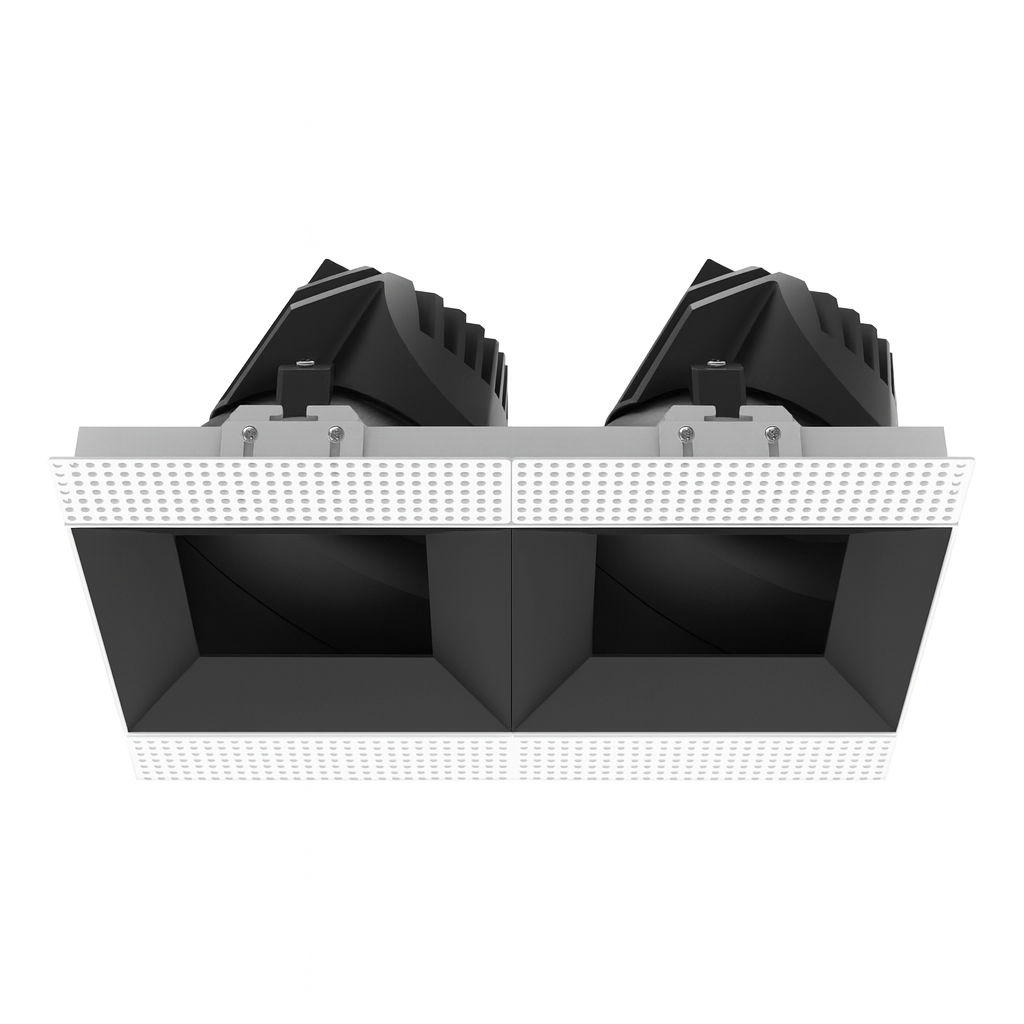

- Available in Trimmed or Trimless configurations
- White, Black, or Mercury finish options
- ETL Listed
- IP40 Rated
Wattage & Light Output
| Wattage | Light Output | Efficacy |
|---|---|---|
| 40W | 4,930 Lumens | Approximately 123 lm/W |
| 64W | 7,890 Lumens | Approximately 123 lm/W |
Beam Angle Options
| Beam Angle | Lighting Distribution |
|---|---|
| 15° | Narrow Beam |
| 30° | Medium Beam |
| 50° | Wide Beam |
Design Options
| Option | Available Choices |
|---|---|
| Trim Style | Trimmed / Trimless |
| Finish | White / Black / Mercury |
| Color Temperature | 2700K–5700K |
| Beam Angle | 15° / 30° / 50° |
| Dimming | TRIAC 120V / Optional 0–10V |
Specifications
| Product Type | Dual Head Recessed LED Downlight |
|---|---|
| Series | Oracle |
| Size | 6" (152 mm) |
| Head Configuration | Dual Head |
| LED Source | CREE CXB1830 |
| Wattage Options | 40W / 64W |
| Light Output | 4,930 / 7,890 Lumens |
| Beam Angles | 15° / 30° / 50° |
| Color Temperature | 2700K–5700K |
| Dimming | TRIAC 120V / Optional 0–10V |
| Trim Options | Trimmed / Trimless |
| Finishes | White / Black / Mercury |
| Certifications | ETL Listed |
| IP Rating | IP40 |
Applications
- Large Commercial Projects
- Galleries and Exhibition Spaces
- Auditoriums
- Modern Architectural Interiors
- Retail and Showroom Lighting
- Hospitality Environments
- High-Ceiling Spaces
- High-Output Accent and General Lighting
Why Choose the 6" Oracle Dual Head Recessed Downlight?
The 6" Oracle Dual Head combines CREE CXB1830 LED technology with up to 7,890 lumens of light output, providing the high performance required for demanding commercial and architectural environments. Its dual-head configuration and multiple beam angle options provide flexibility for directing powerful illumination exactly where it is needed.
With 40W and 64W configurations, Trimmed and Trimless options, White, Black, and Mercury finishes, color temperatures from 2700K to 5700K, TRIAC dimming with optional 0–10V control, ETL listing, and an IP40 rating, the Oracle Dual Head provides a versatile solution for galleries, auditoriums, commercial projects, and modern architectural spaces.
