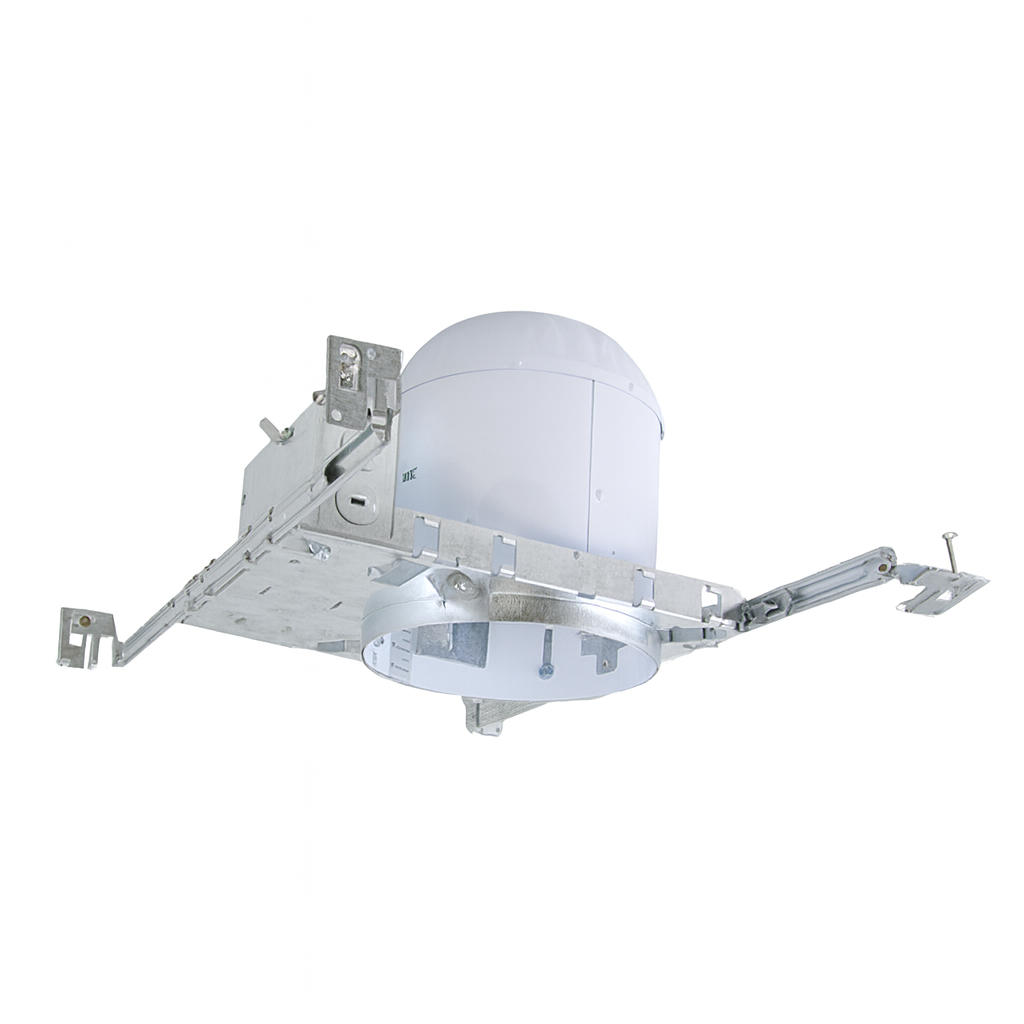

6.0-Inch New Construction Recessed Can Housing – IC/AT Rated with Trim Options

The NCR-6 New Construction Recessed Can Housing is a specification-grade, IC/AT-rated fixture designed for long-lasting performance and versatility. Ideal for residential or commercial lighting projects, it supports a variety of trim options to suit different applications and aesthetics.

Key Features:

IC/AT Rated: Thermally protected for safe direct contact with insulation and designed to meet national airflow requirements.

Multiple Lamp Compatibility: Supports up to 75W PAR38/R38, 60W A19, and 65W BR40 lamps (lamp not included).

Durable Construction: Die-formed aluminum housing for optimal heat dissipation and rust resistance.

Adjustable Ceiling Fit: Accommodates ceiling thickness from 1/2" to 1-3/8".

Preinstalled Bar Hangers: Adjustable 12"–24" with locking screws; compatible with joist and T-bar installations.

Secure Socket Design: Medium base porcelain socket snaps into trim for consistent lamp positioning.

Wide Trim Selection: Available in baffles, reflectors, shower trims, gimbals, lenses, and decorative finishes to match any space.

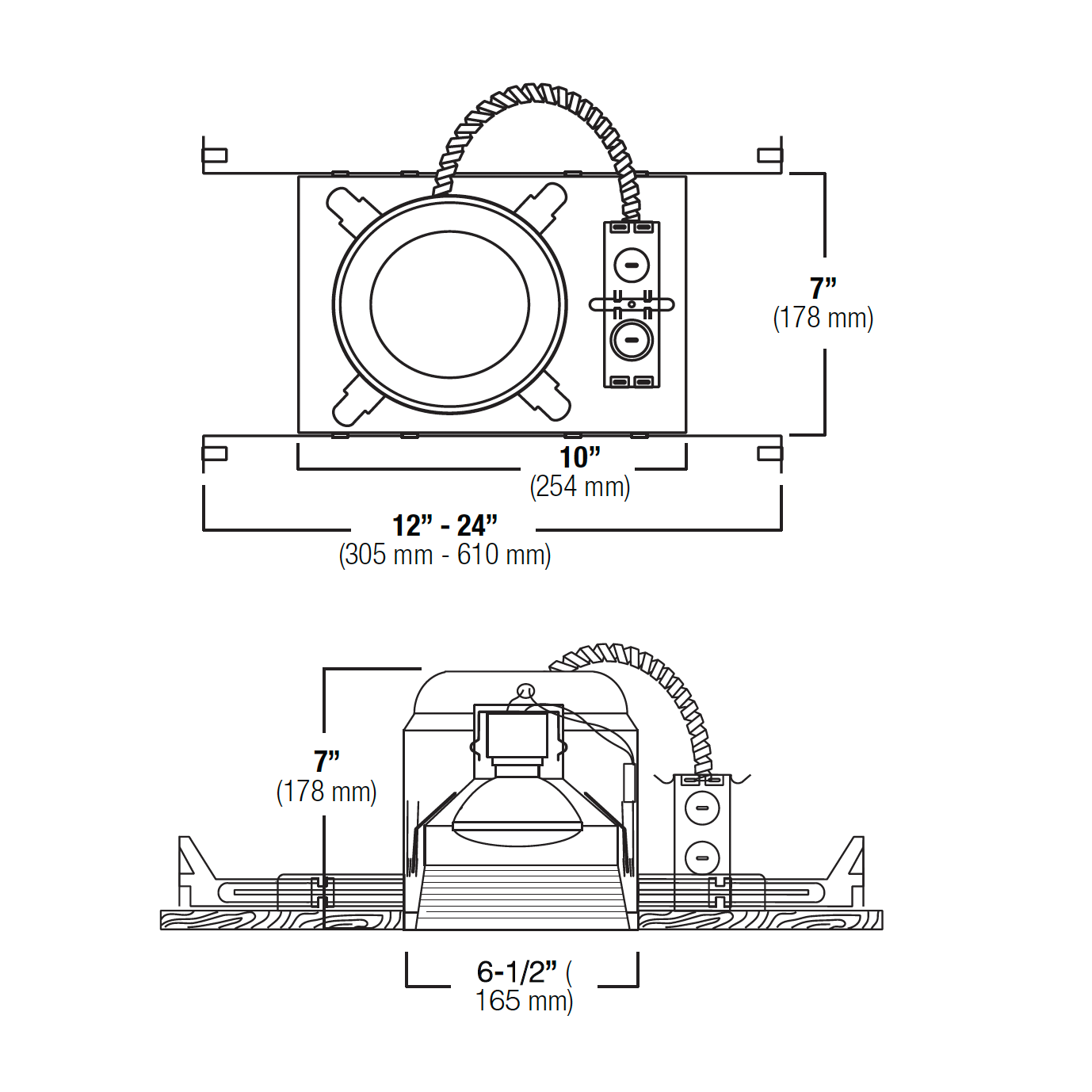

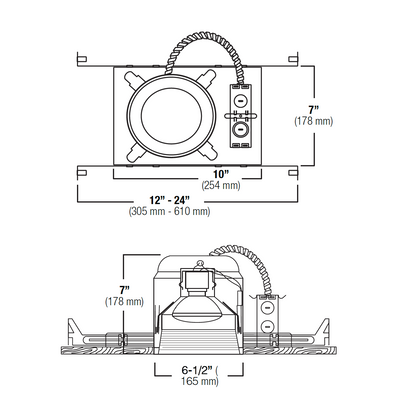

Specifications:

Cutout Size: 6-1/2"

Height: 7" (fits 2" × 8" joist construction)

Voltage: 120V

Junction Box: UL and ETL listed, through-branch circuit wiring with multiple knockouts

Thermal Protection: Prevents damage from improper installation or overlamping

Whether for general, accent, or task lighting, the NCR-6 Recessed Can Housing offers the flexibility, performance, and professional quality needed for a flawless lighting installation.
