Diamond Brite LEDs

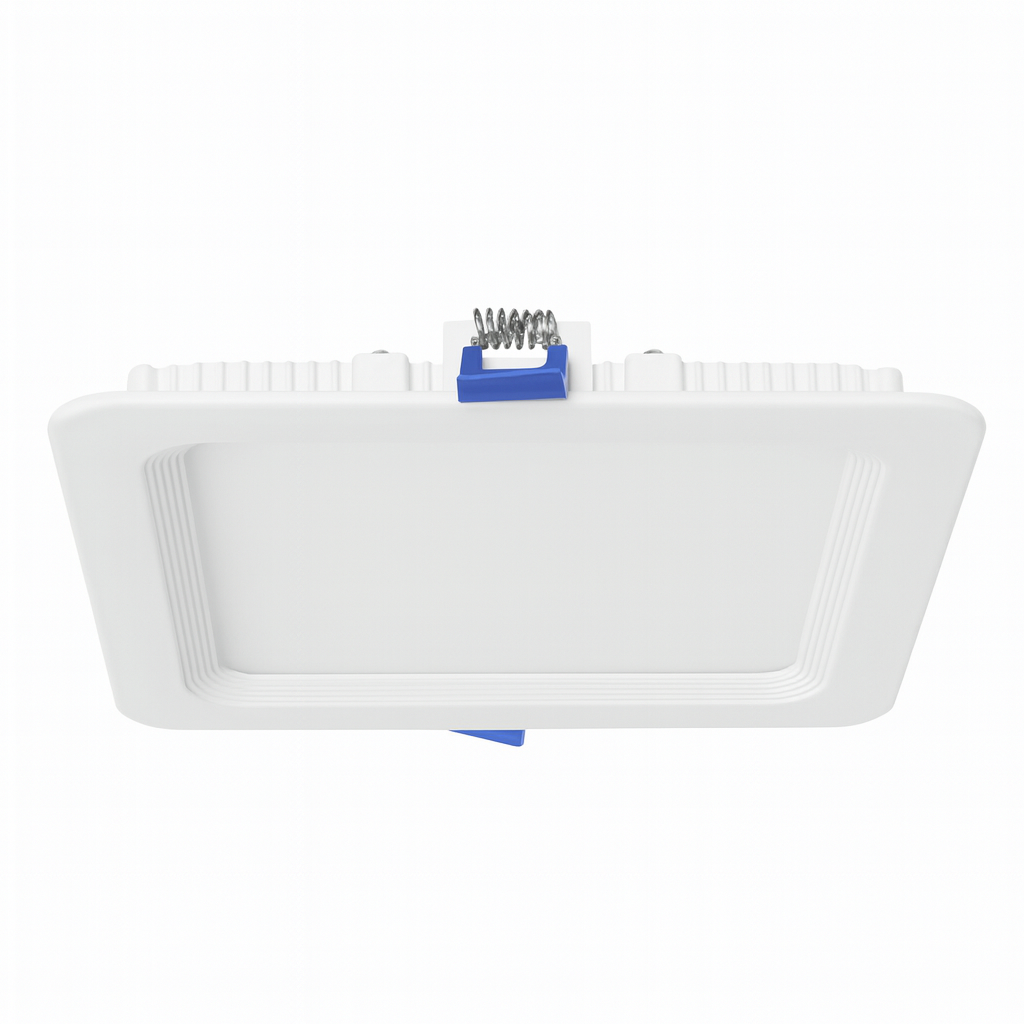

15W Panelite Square Recessed Baffle Downlight Series - 6 Inch
15W Panelite Square Recessed Baffle Downlight Series - 6 Inch
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
The 15W Panelite Square Recessed Baffle Downlight Series - 6 Inch provides broad, efficient illumination in a modern square recessed format. The 3000K, 4000K, and 5000K configurations operate at 15W, while the 2700K configuration is rated at 12W. All versions produce 850 lumens.
Features
- 15W LED in 3000K / 4000K / 5000K
- 12W LED in 2700K
- 6-inch square design
- Produces 850 lumens
- Available in 2700K, 3000K, 4000K & 5000K
- 110° flood beam
- CRI 82
- 120V AC, 50–60Hz
- Dimmable
- Damp location rated
- White finish
- 50,000-hour rated life
- 5-year warranty
Color Temperature Options
| Color Temperature | Power | Lumens |
| 2700K Warm White | 12W | 850 lm |
| 3000K Soft White | 15W | 850 lm |
| 4000K Cool White | 15W | 850 lm |
| 5000K Bright White | 15W | 850 lm |
Specifications
| Product Type | Recessed Baffle LED Downlight |
| Series | Panelite |
| Shape | Square |
| Size | 6 Inch |
| Power | 15W (12W at 2700K) |
| Light Output | 850 lm |
| Input Voltage | 120V AC |
| Frequency | 50–60Hz |
| Color Temperatures | 2700K / 3000K / 4000K / 5000K |
| CRI | 82 |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Location Rating | Damp Location |
| Finish | White |

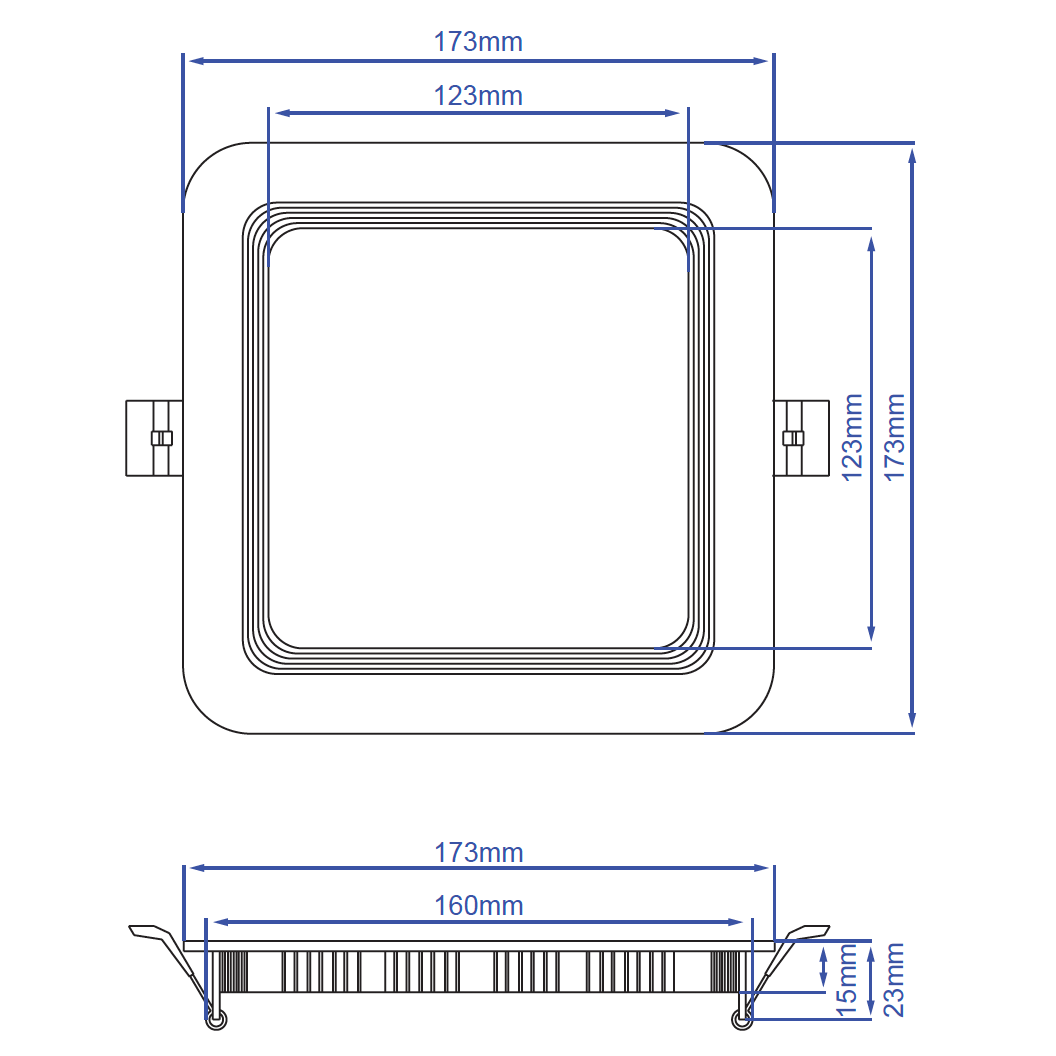

| Cutout | 6.25" × 6.25" (160 × 160 mm) |
| Rated Life | 50,000 Hours |
| Warranty | 5 Years |
Applications
- Residential Interiors
- Commercial Interiors
- Retail Stores
- Offices
- Hotels
- Restaurants
- Architectural Lighting
- General Interior Lighting
Why Choose the 6" Square Panelite?
The 6-inch Square Panelite provides 850 lumens of broad illumination with a contemporary architectural appearance, four available color temperatures, and dimmable operation.
