Diamond Brite LEDs
5W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
5W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
Couldn't load pickup availability

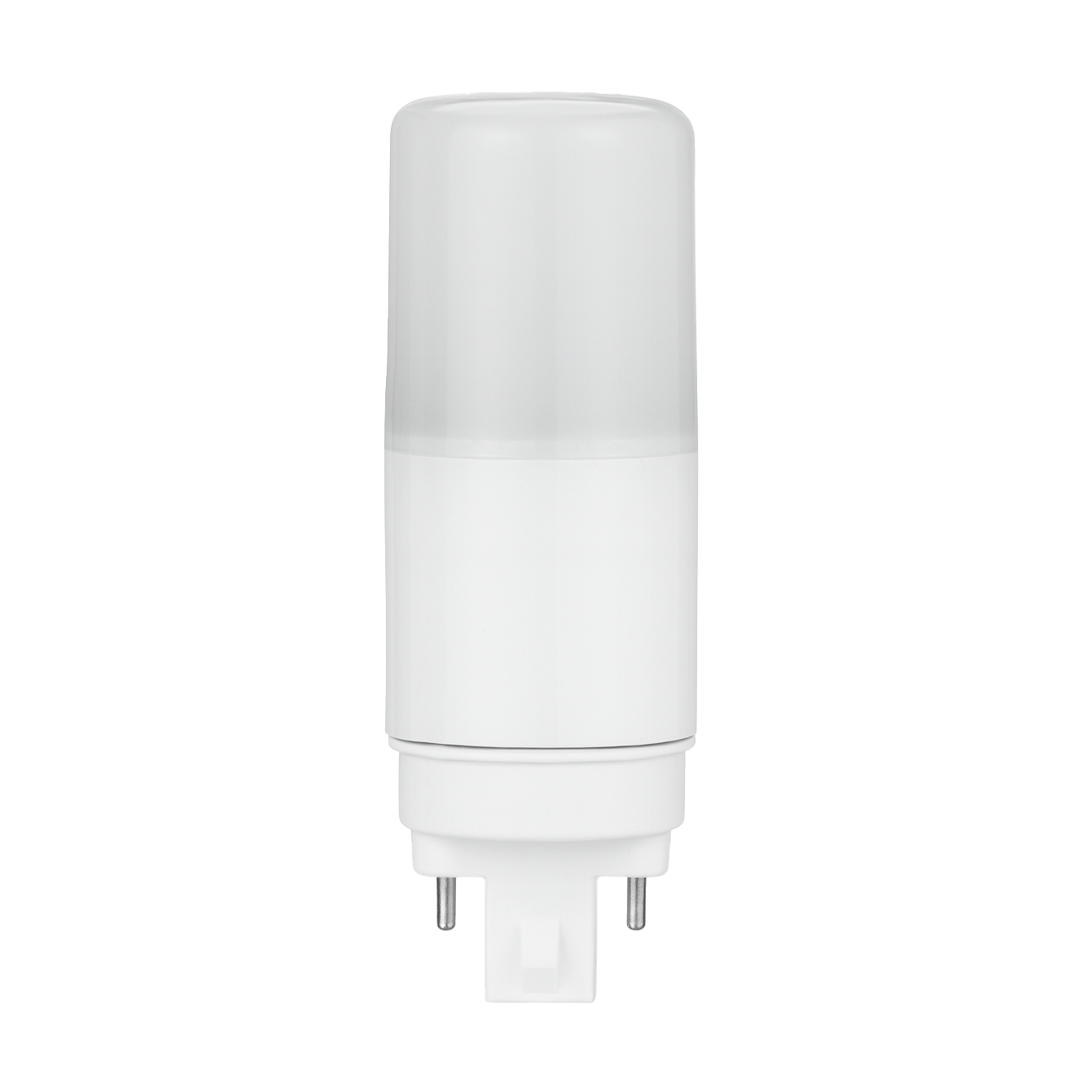

The 5W Hybrid Horizontal PL Retrofit Lamp with G24Q Base is an energy-efficient LED replacement for traditional 13W 4-pin CFL lamps. Designed for horizontal fixture applications, it combines reliable LED performance with hybrid compatibility for both ballast-compatible and ballast-bypass installations.
Featuring a G24Q 4-pin base, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp provides a versatile solution for offices, retail spaces, multi-family housing, and other compatible retrofit applications.
Features
- 5W LED replacement for 13W 4-pin CFL lamps
- Approximately 62% lower power consumption compared with a 13W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G24Q 4-Pin Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 5W |
| CFL Replacement | 13W 4-Pin CFL |
| Power Reduction | Approximately 62% |
| Base | G24Q (4-Pin) |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Offices
- Retail Spaces
- Multi-Family Housing
- Commercial Interiors
- Residential Common Areas
- Horizontal CFL Retrofit Applications
- G24Q 4-Pin Fixture Retrofits
Why Choose the 5W Hybrid Horizontal PL Retrofit Lamp with G24Q Base?
The 5W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 13W 4-pin CFL lamps, reducing power consumption by approximately 62%. Its G24Q 4-pin base is designed for compatible fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for offices, retail environments, multi-family housing, and other retrofit applications.
