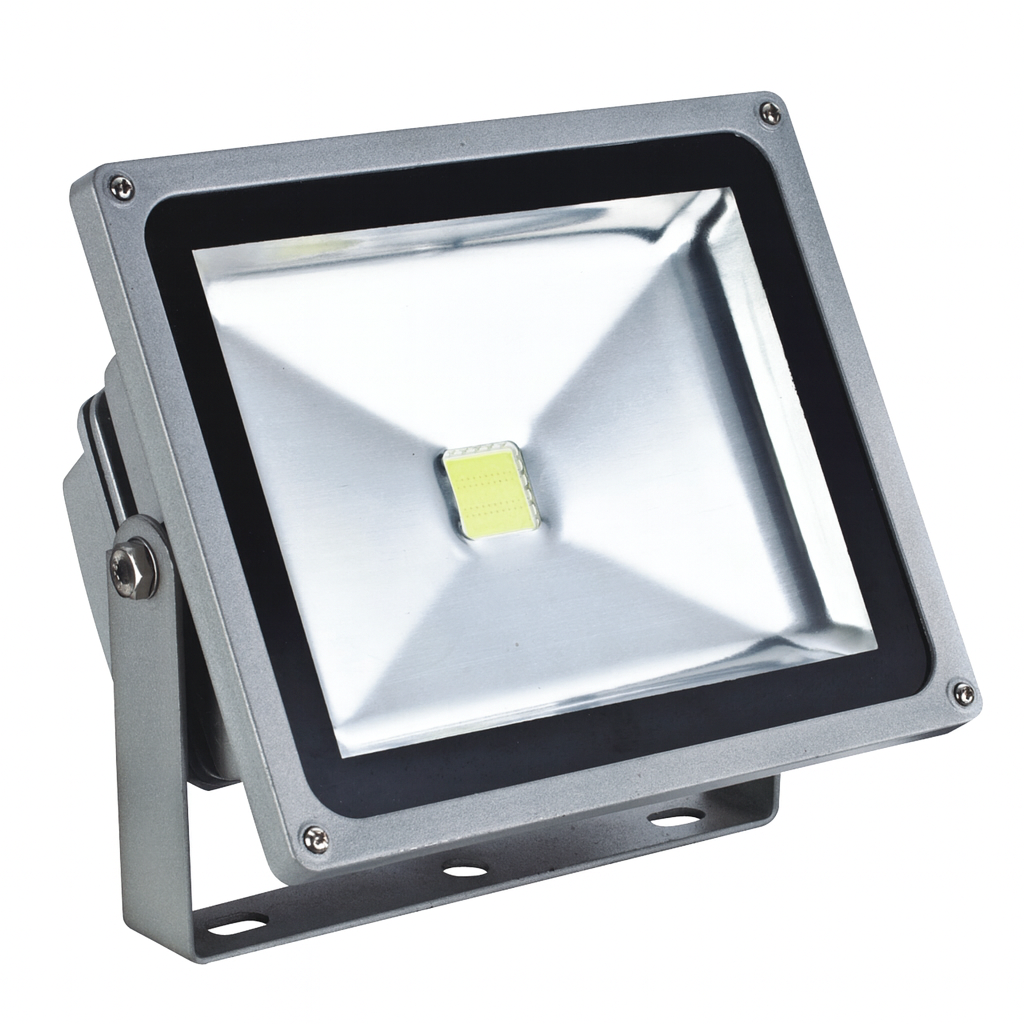

50W Revealer Flood Light Series
50W Revealer Flood Light Series
Couldn't load pickup availability
The 50W Revealer LED Flood Light Series delivers powerful, energy-efficient illumination for residential, commercial, and security lighting applications. Producing up to 5,250 lumens while consuming only 50 watts, the Revealer provides an efficient alternative to traditional 200W outdoor lighting.
Powered by an Epistar 45 Mil COB LED, the Revealer features a wide 120° beam angle, CRI >90, and durable die-cast aluminum construction. With an IP65 waterproof rating and a wide operating temperature range, it is engineered for dependable performance in demanding outdoor environments.
Features
- 50W LED replaces up to 200W traditional lighting
- Produces up to 5,250 lumens
- Epistar 45 Mil COB LED technology
- 120° wide beam angle for broad area illumination
- Available in 3000K, 4500K & 6500K
- CRI >90 for excellent color rendering
- Power factor >0.90
- Wide-range 85–265V AC, 50/60Hz operation
- Durable die-cast aluminum construction
- Brushed Aluminum finish
- Designed for efficient heat dissipation
- IP65 waterproof rating
- Operating temperature from -13°F to 140°F (-25°C to 60°C)
- Approximately 40,000-hour rated life
Color Temperature Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | Up to 5,250 lm |
| 4500K | Soft White | Up to 5,250 lm |
| 6500K | Bright White | Up to 5,250 lm |
Specifications
| Product Type | LED Flood Light |
|---|---|
| Series | Revealer Series |
| Power | 50W |
| Equivalent Wattage | Up to 200W Traditional Lighting |
| Light Output | Up to 5,250 lm |
| Input Voltage | 85–265V AC, 50/60Hz |
| LED Source | Epistar 45 Mil COB |
| Color Temperatures | 3000K / 4500K / 6500K |
| CRI | >90 |
| Beam Angle | 120° |
| Power Factor | >0.90 |
| Material | Die-Cast Aluminum |
| Finish | Brushed Aluminum |
| IP Rating | IP65 |
| Fixture Size | 11" × 9.2" (280 × 234 mm) |
| Fixture Depth | 5" (127 mm) |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Rated Life | Approximately 40,000 Hours |
Applications
- Parking Lots & Parking Areas
- Yards & Landscapes
- Building Facades
- Building Exteriors
- Security Lighting
- Commercial Properties
- Residential Exteriors
- Architectural Features
- Outdoor Area Lighting
Why Choose the Revealer Series?
The 50W Revealer Series produces up to 5,250 lumens with a wide 120° beam angle, providing broad illumination for parking areas, yards, building exteriors, security applications, and other large outdoor spaces. Its CRI >90 provides accurate, vibrant color reproduction for enhanced visibility.
With Epistar COB LED technology, durable die-cast aluminum construction, an IP65 waterproof rating, three color temperature options, and an approximately 40,000-hour rated life, the Revealer Series provides a reliable and energy-efficient outdoor lighting solution for residential and commercial applications.
