IC Rated Remodel Recessed Can Housing
IC Rated Remodel Recessed Can Housing
Couldn't load pickup availability

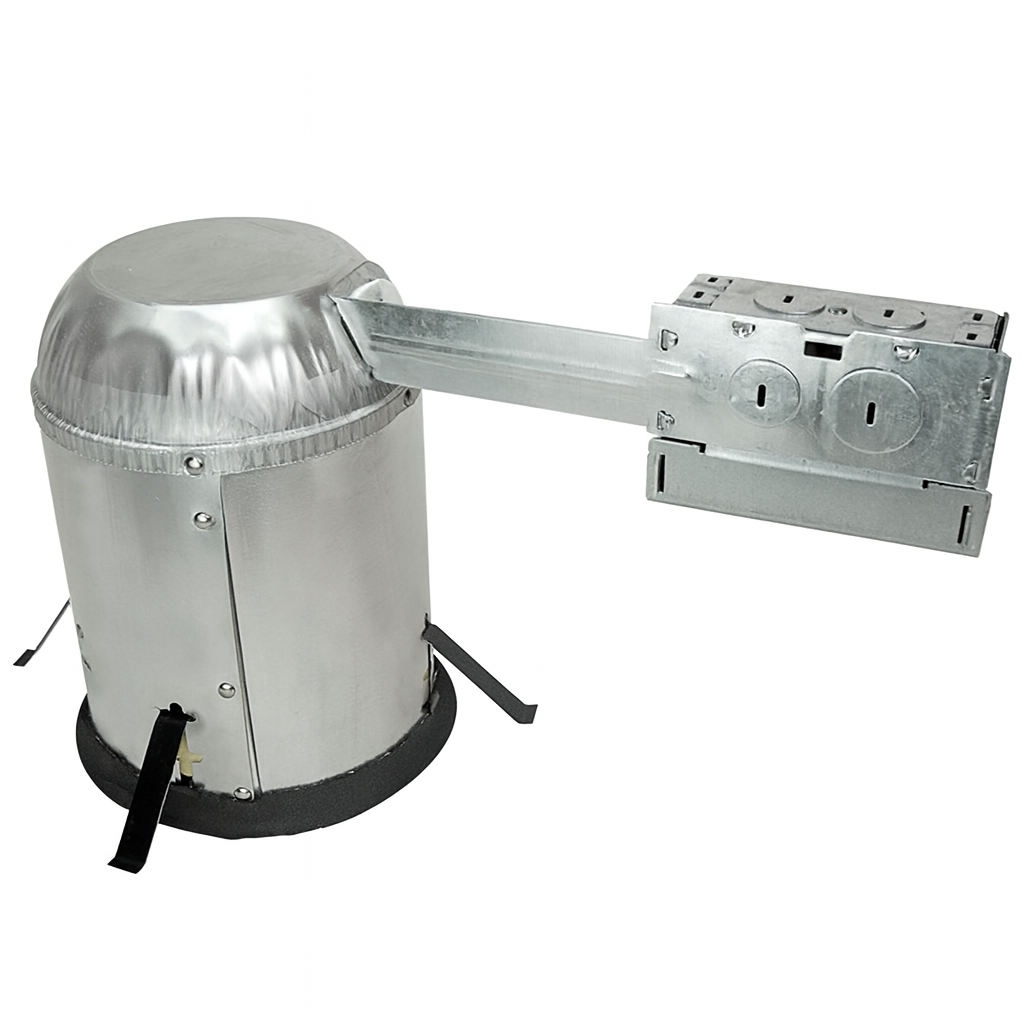

The 5" IC Rated Remodel Housing is designed for recessed lighting installations in existing ceilings where access above the ceiling is limited. Its IC Rated construction allows direct contact with ceiling insulation, making it a versatile solution for residential and commercial retrofit projects.
Designed to accommodate multiple lamp types and a wide selection of recessed trims, the NHRIC-504QAT features a durable steel housing, medium-base porcelain socket, high-tension mounting springs, and UL-approved quick connectors for fast, professional installation.
Features
- 5" IC Rated remodel housing
- Safe for direct contact with ceiling insulation
- Designed for installation in existing sheetrock ceilings
- No attic or plenum access required for installation
- Compatible with R, PAR, and A-type lamps
- Supports 75PAR/R30, 50R/PAR20, and 40A19 lamps
- Medium-base porcelain socket with nickel-plated screw shell
- 120V operation
- High-tension springs provide secure remodel mounting
- UL-approved quick connectors for fast, tool-free wiring
- Durable 0.040" steel construction
- Accommodates ceilings up to 1-1/2" thick
- Compatible with a wide selection of recessed trims
- Thermal protection rated to 194°F (90°C)
- UL Listed for through-branch circuit wiring
- UL Listed for damp locations
- NYC Approved – Calendar #43895
Lamp Compatibility
| Lamp Type | Compatible Lamp |
|---|---|
| PAR / R30 | 75PAR / R30 |
| PAR20 / R20 | 50R / PAR20 |
| A-Type | 40A19 |
Lamp is not included. Lamp compatibility may depend on the selected trim.
Compatible Trim Types
- Decorative Trims
- Reflector Trims
- Baffle Trims
- Shower Lens Trims
- Eyeball Trims
- Gimbal Trims
Specifications
| Product Type | IC Rated Remodel Recessed Housing |
|---|---|
| Model | NHRIC-504QAT |
| Housing Size | 5" |
| Installation Type | Remodel / Retrofit |
| IC Rating | IC Rated – Direct Insulation Contact |
| Input Voltage | 120V |
| Socket | Medium-Base Porcelain |
| Socket Shell | Nickel-Plated Screw Shell |
| Compatible Lamp Types | R / PAR / A-Type |
| Cutout Diameter | 5.5" (140 mm) |

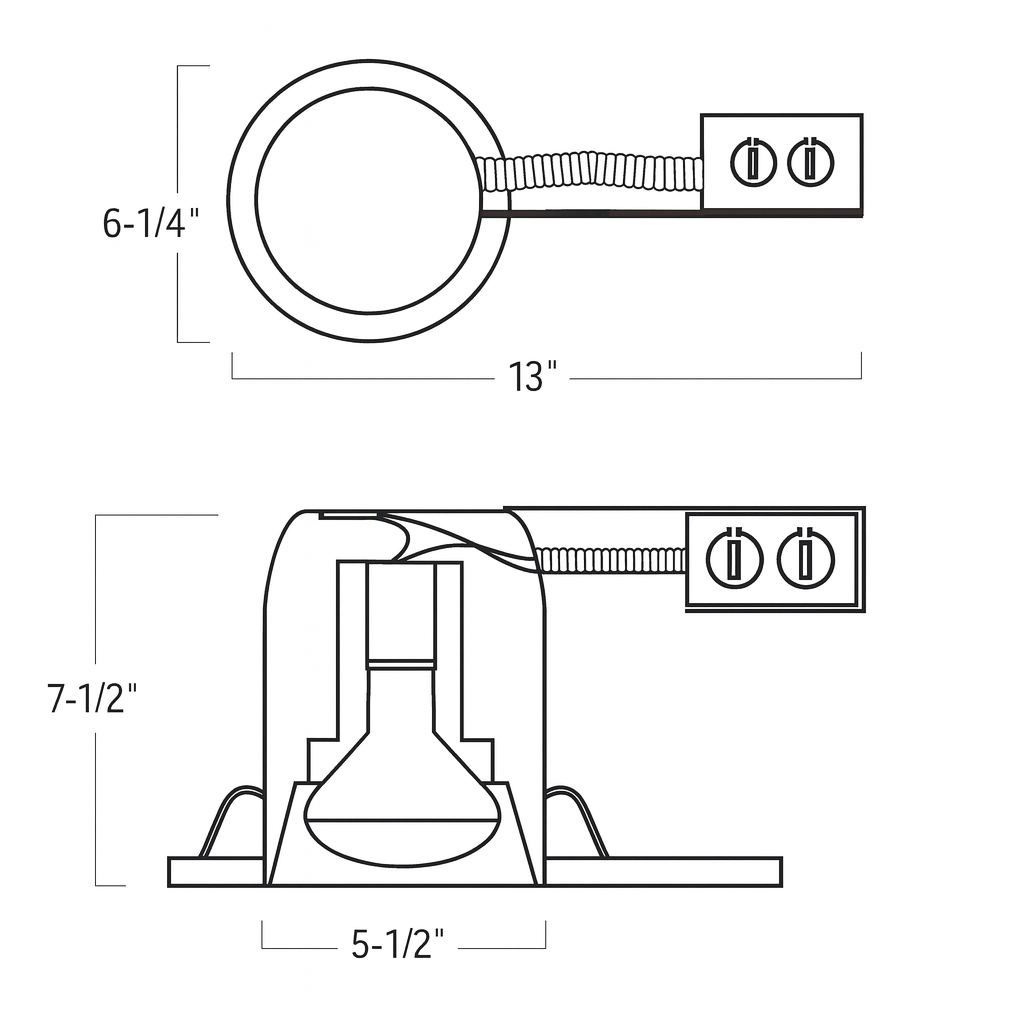

| Overall Dimensions | 13" L × 6.25" W × 7.5" D |
| Maximum Ceiling Thickness | 1.5" |
| Housing Material | 0.040" Steel |
| Mounting | High-Tension Remodel Springs |
| Wiring | UL-Approved Quick Connectors |
| Thermal Protector | 194°F (90°C) |
| Location Rating | Damp Location |
| Listing | UL Listed |
| NYC Approval | Calendar #43895 |
Installation
- Designed for existing sheetrock ceilings
- Installs without requiring attic or plenum access
- High-tension springs secure the housing from below the ceiling
- Accommodates ceiling materials up to 1.5" thick
- Quick connectors simplify electrical connections
- IC Rated construction permits direct contact with ceiling insulation
Applications
- Residential Remodels
- Commercial Renovations
- Kitchens
- Living Areas
- Hallways & Corridors
- Retail Spaces
- Office Interiors
- Hotels & Hospitality
- Retrofit Recessed Lighting Projects
Why Choose the 5" IC Rated Remodel Housing?
It provides a flexible solution for adding 5" recessed lighting to existing insulated ceilings. Its IC Rated design, high-tension remodel springs, and UL-approved quick connectors simplify retrofit installations where access above the ceiling is limited.
With compatibility for multiple lamp types and a wide selection of decorative and functional trims, the NHRIC-504QAT offers the versatility needed for professional residential and commercial recessed lighting projects.
