Diamond Brite LEDs
PAR Lamp Recessed Housing Series
PAR Lamp Recessed Housing Series
Couldn't load pickup availability

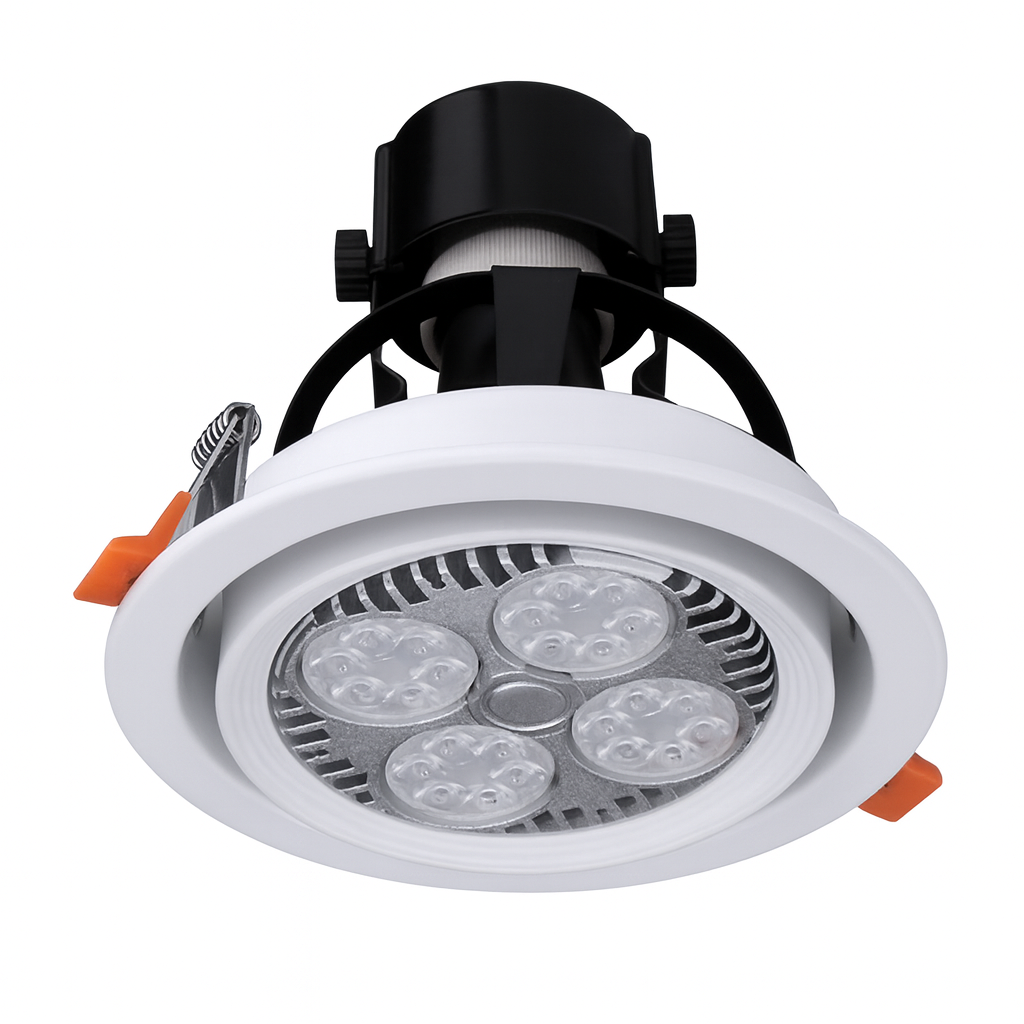

The 5"/6" PAR Lamp Recessed Housing Series provides a clean, versatile solution for professional recessed lighting installations. Available in 5-inch and 6-inch configurations, the series is designed to accommodate PAR30 and PAR38 lamps for residential, retail, hospitality, and commercial applications.
Featuring an adjustable 38° gimbal, E26/E27 medium-base socket, and wide-range 85–285V AC compatibility, these recessed housings provide flexible lamp positioning and precise directional illumination. A Matte White powder-coated finish creates a clean architectural appearance.
Features
- Available in 5" and 6" recessed housing sizes
- Designed for PAR30 and PAR38 lamps
- 38° adjustable gimbal for directional illumination
- E26/E27 medium-base socket
- Wide-range 85–285V AC compatibility
- Matte White powder-coated finish
- Clean architectural recessed design
- Spring clips for secure ceiling installation
- Suitable for residential and commercial applications
Available Models
| Model | Size | Compatible Lamp | Cutout | Outer Size |
|---|---|---|---|---|
| RH5-E26-WH | 5" | PAR30 | 5.1" (130 mm) | 6.25" W × 6" H |
| RH6-E26-WH | 6" | PAR38 | 5.9" (150 mm) | 7" W × 7" H |
Specifications
| Product Type | PAR Lamp Recessed Housing |
|---|---|
| Available Sizes | 5" / 6" |
| Models | RH5-E26-WH / RH6-E26-WH |
| Input Voltage | 85–285V AC |
| Lamp Base | E26 / E27 Medium Base |
| Compatible Lamps | PAR30 / PAR38 |
| Gimbal Adjustment | 38° |
| 5" Cutout | 5.1" (130 mm) |
| 6" Cutout | 5.9" (150 mm) |
| 5" Outer Size | 6.25" W × 6" H |
| 6" Outer Size | 7" W × 7" H |
| Finish | Matte White |
| Mounting | Recessed Spring Clips |
Lamp Compatibility
- 5" RH5-E26-WH: Designed for PAR30 lamps
- 6" RH6-E26-WH: Designed for PAR38 lamps
- E26/E27 medium-base socket
- Lamps sold separately
Applications
- Residential Interiors
- Retail Stores
- Jewelry Stores & Showrooms
- Commercial Interiors
- Hotels & Hospitality
- Galleries & Museums
- Restaurants
- Display Lighting
- Accent Lighting
- Directional Ceiling Lighting
Why Choose the PAR Lamp Recessed Housing Series?
The 5"/6" PAR Lamp Recessed Housing Series combines a clean architectural appearance with 38° directional adjustment, allowing light to be precisely aimed toward displays, merchandise, artwork, architectural features, or general areas.
With dedicated PAR30 and PAR38 configurations, E26/E27 lamp compatibility, wide-range voltage operation, and a Matte White finish, this series provides a flexible recessed lighting solution for residential and commercial projects.
