4W MR16 Desoto Spot Lamp Series
4W MR16 Desoto Spot Lamp Series
Couldn't load pickup availability

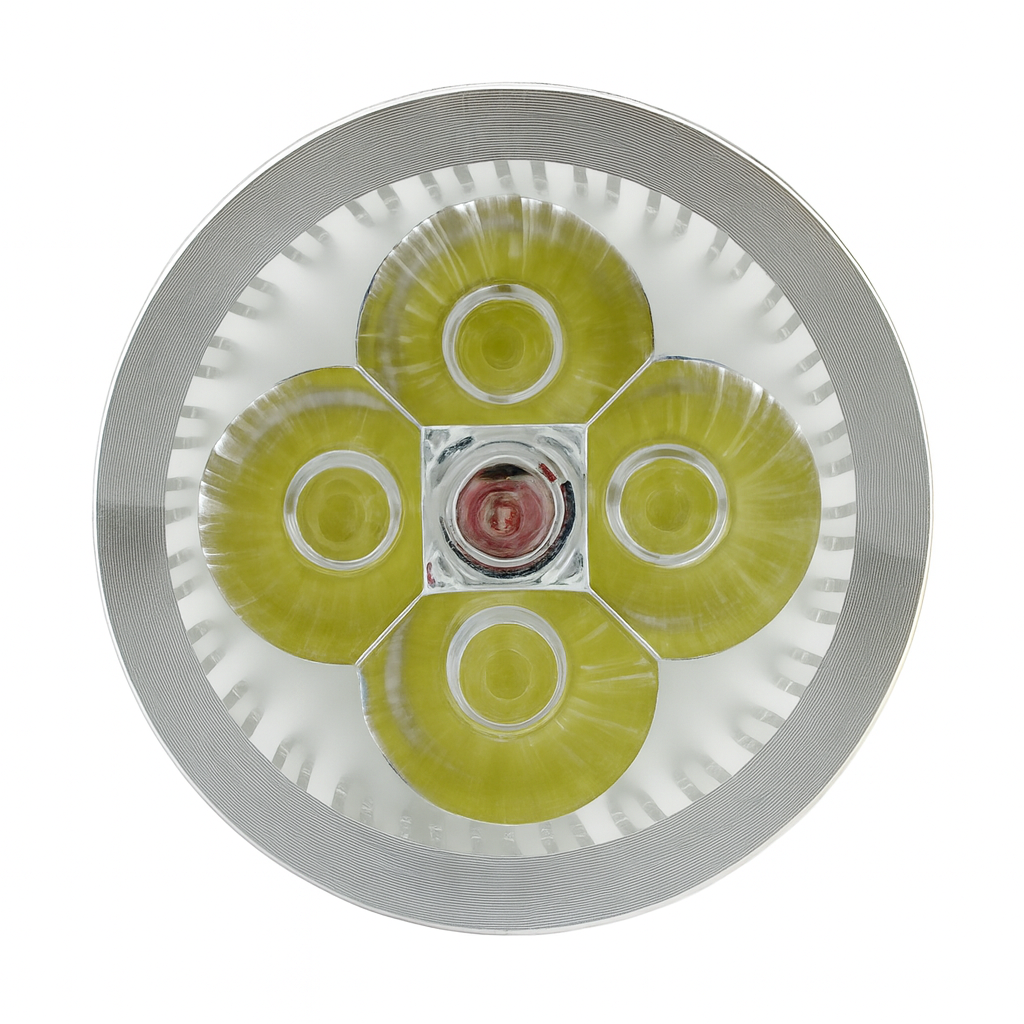

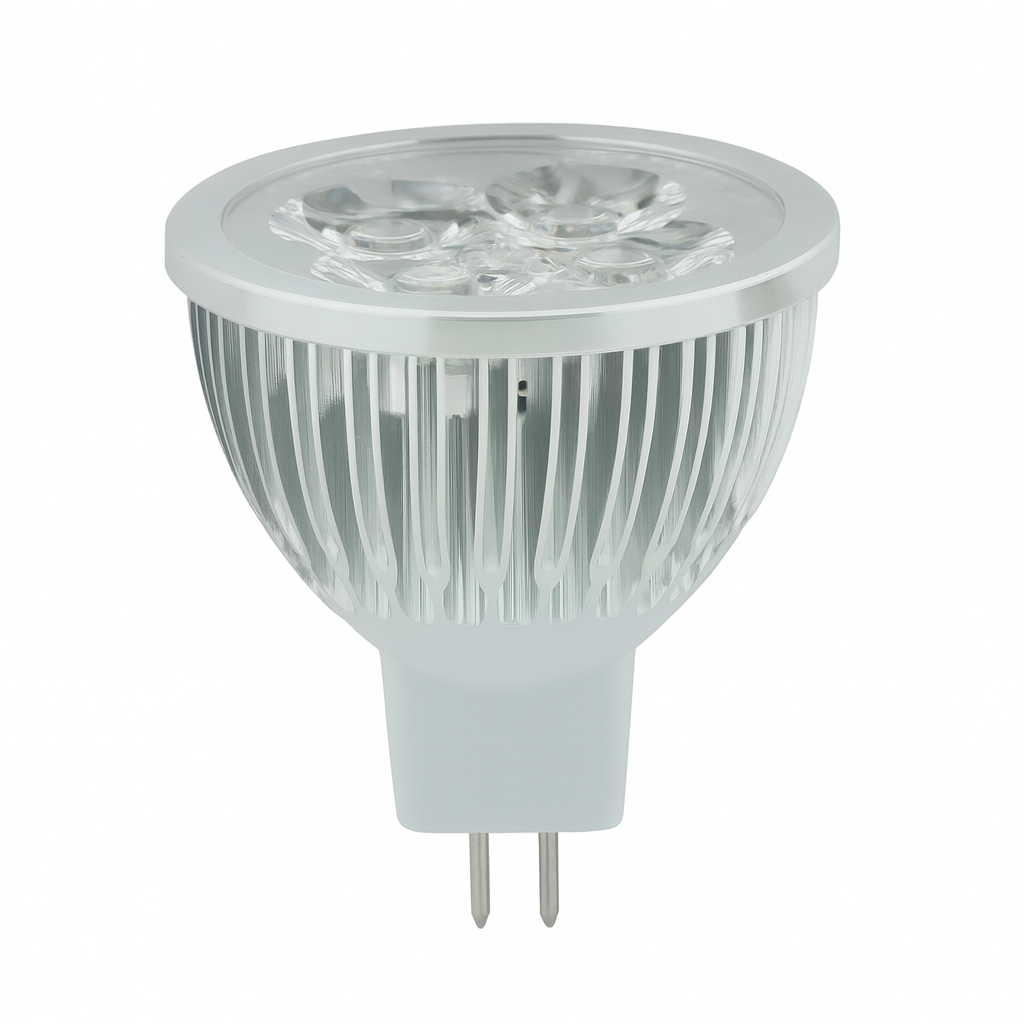

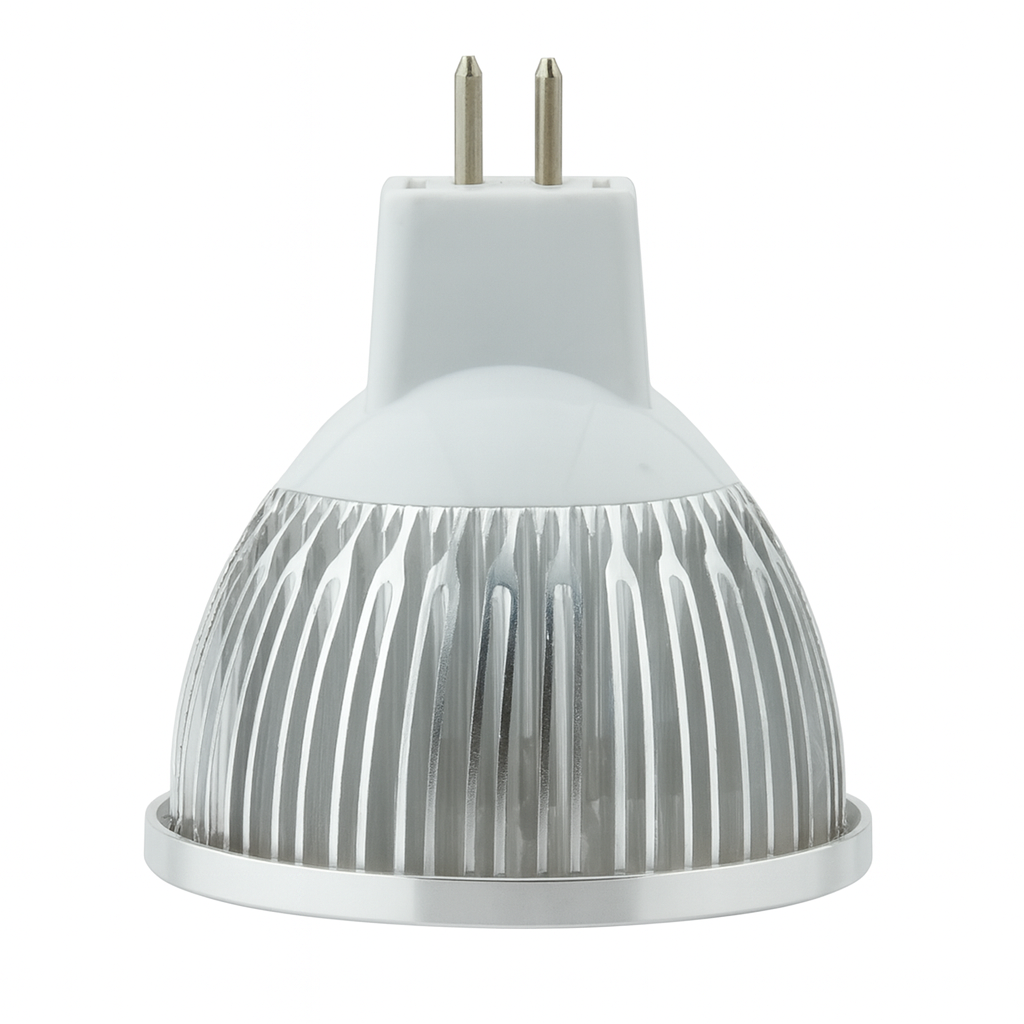

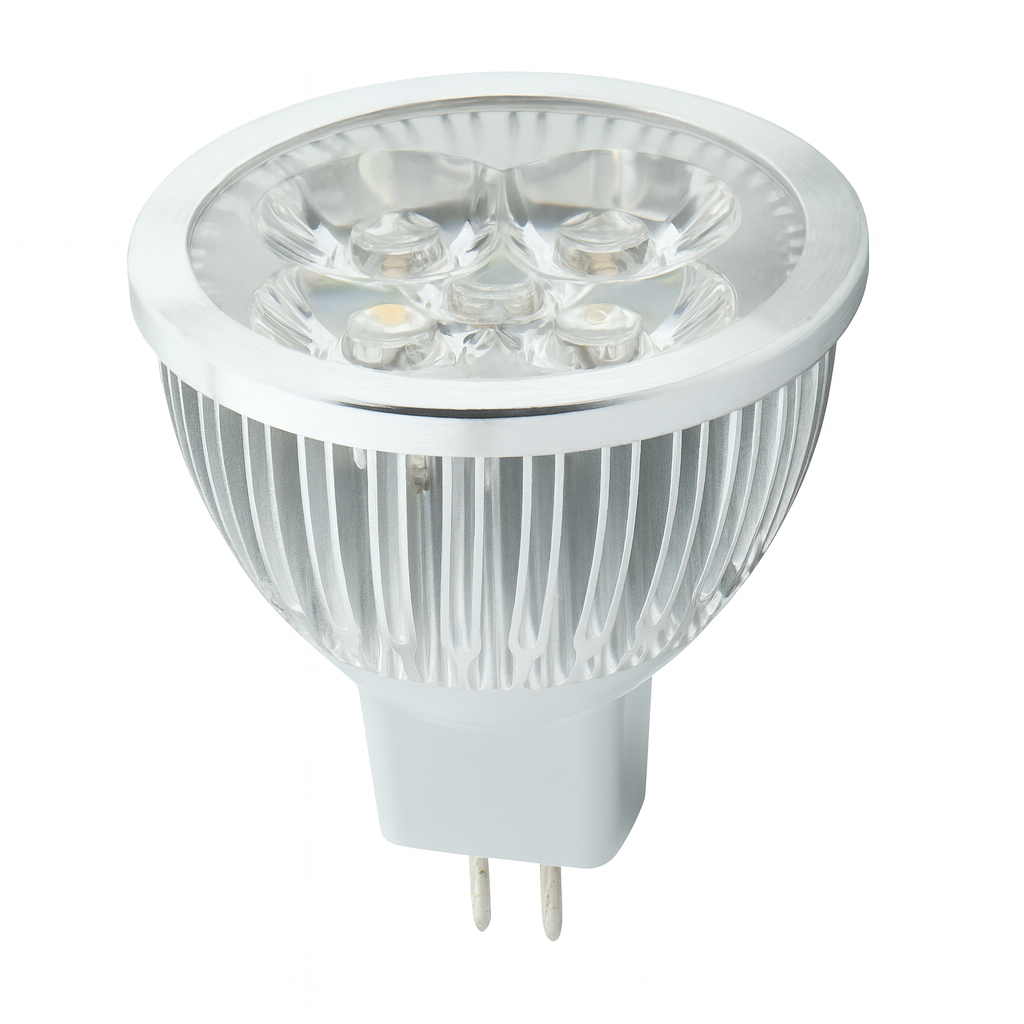

The 4W MR16 Desoto LED Spot Lamp Series delivers powerful, focused illumination in a compact architectural design. Powered by 4 BridgeLux high-power LEDs, the Desoto produces 330 lumens while consuming only 4 watts, providing an energy-efficient alternative to traditional 40W halogen, incandescent, or CFL lamps.
Featuring a brushed aluminum housing, advanced heat dissipation, and an anti-glare optical lens, the MR16 Desoto provides crisp, controlled illumination for accent, display, retail, hospitality, and residential lighting. Optional 10%–100% dimming provides additional lighting flexibility when required.
Features
- 4W LED replaces up to 40W halogen, incandescent, or CFL lamps
- Produces 330 lumens
- 4 × BridgeLux high-power LEDs
- 40° beam angle for focused illumination
- GU5.3 bi-pin base
- 12V AC/DC operation
- CRI >80 for accurate color rendering
- Power factor >0.90
- Anti-glare optical lens
- Advanced heat dissipation design
- Aluminum alloy and PVC construction
- Brushed Aluminum finish
- Five color temperature options
- Optional 10%–100% dimming
- Approximately 60,000-hour rated life
- CE, RoHS & FCC certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 2800K | Warm White | 330 lm |
| 4000K | Soft White | 330 lm |
| 5000K | Pure White | 330 lm |
| 6500K | Bright White | 330 lm |
| 10000K | Blue Sky | 330 lm |
Specifications
| Product Type | MR16 LED Spot Lamp |
|---|---|
| Series | Desoto Series |
| Power | 4W |
| Equivalent Wattage | Up to 40W Halogen / Incandescent / CFL |
| Light Output | 330 lm |
| Input Voltage | 12V AC/DC |
| Lamp Base | GU5.3 Bi-Pin |
| LED Source | 4 × BridgeLux High-Power LEDs |
| Color Temperatures | 2800K / 4000K / 5000K / 6500K / 10000K |
| CRI | >80 |
| Beam Angle | 40° |
| Power Factor | >0.90 |
| Dimming | Optional 10%–100% |
| Housing Material | Aluminum Alloy + PVC |
| Finish | Brushed Aluminum |
| Lens | Anti-Glare Optical Lens |
| Diameter | 2" (50 mm) |
| Height | 2.2" (57 mm) |
| Weight | 0.1 lbs |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | Approximately 60,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Jewelry Stores & Showcases
- Retail Boutiques
- Art Galleries
- Museums
- Trade Show Displays
- Optical Showrooms
- Clothing Stores
- Beauty Salons
- Theaters
- Hotels & Hospitality
- Residential Interiors
- Yachts & Marine Interiors
- Government Facilities
- Premium Display & Accent Lighting
Why Choose the MR16 Desoto Series?
The MR16 Desoto Series produces 330 lumens using only 4W, providing an efficient alternative to traditional 40W lamps. Its 40° focused beam and anti-glare optical lens make it particularly well suited for accent lighting, jewelry showcases, merchandise displays, artwork, and other applications requiring controlled illumination.
With BridgeLux LED technology, five color temperature options, 12V AC/DC compatibility, optional dimming, durable aluminum construction, and an approximately 60,000-hour rated life, the MR16 Desoto Series provides a versatile solution for residential and commercial lighting applications.
