Diamond Brite LEDs
4W G9 Barrel Lamp Series
4W G9 Barrel Lamp Series
Couldn't load pickup availability

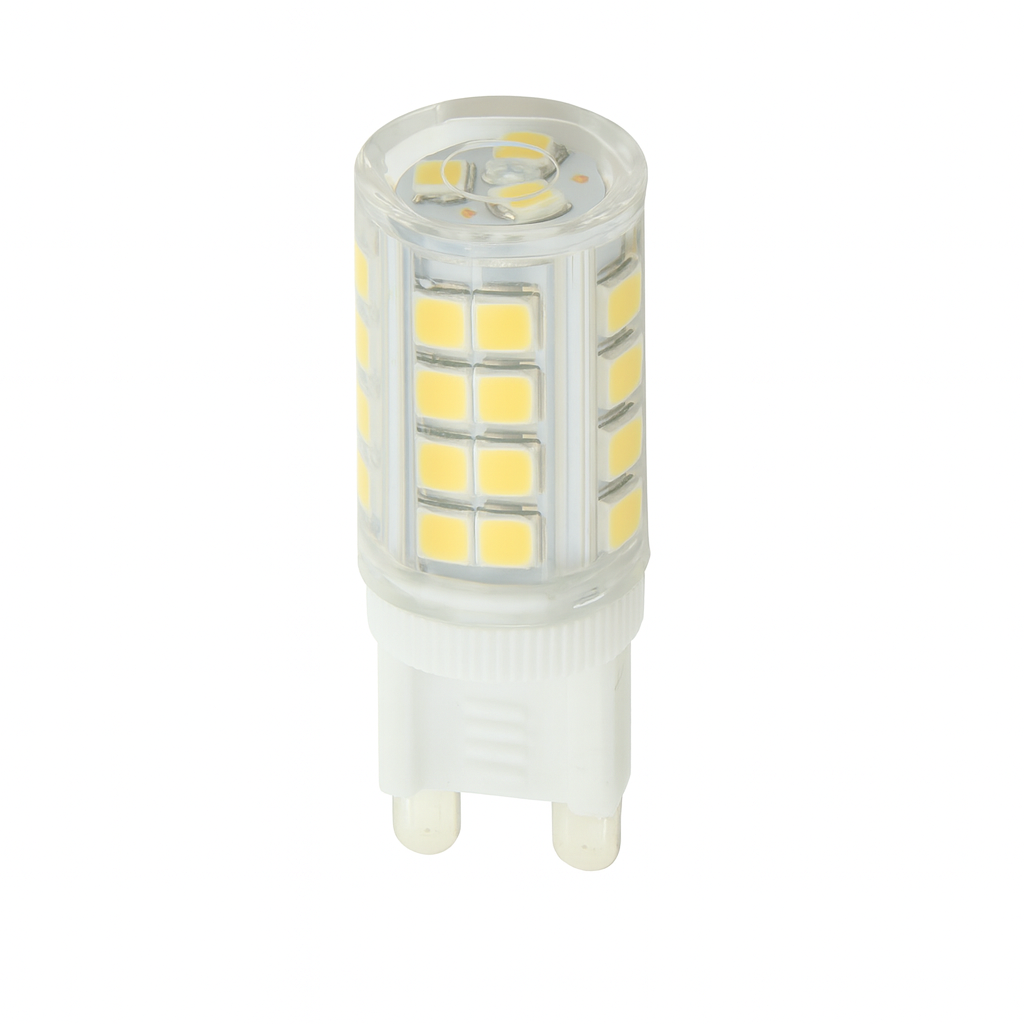

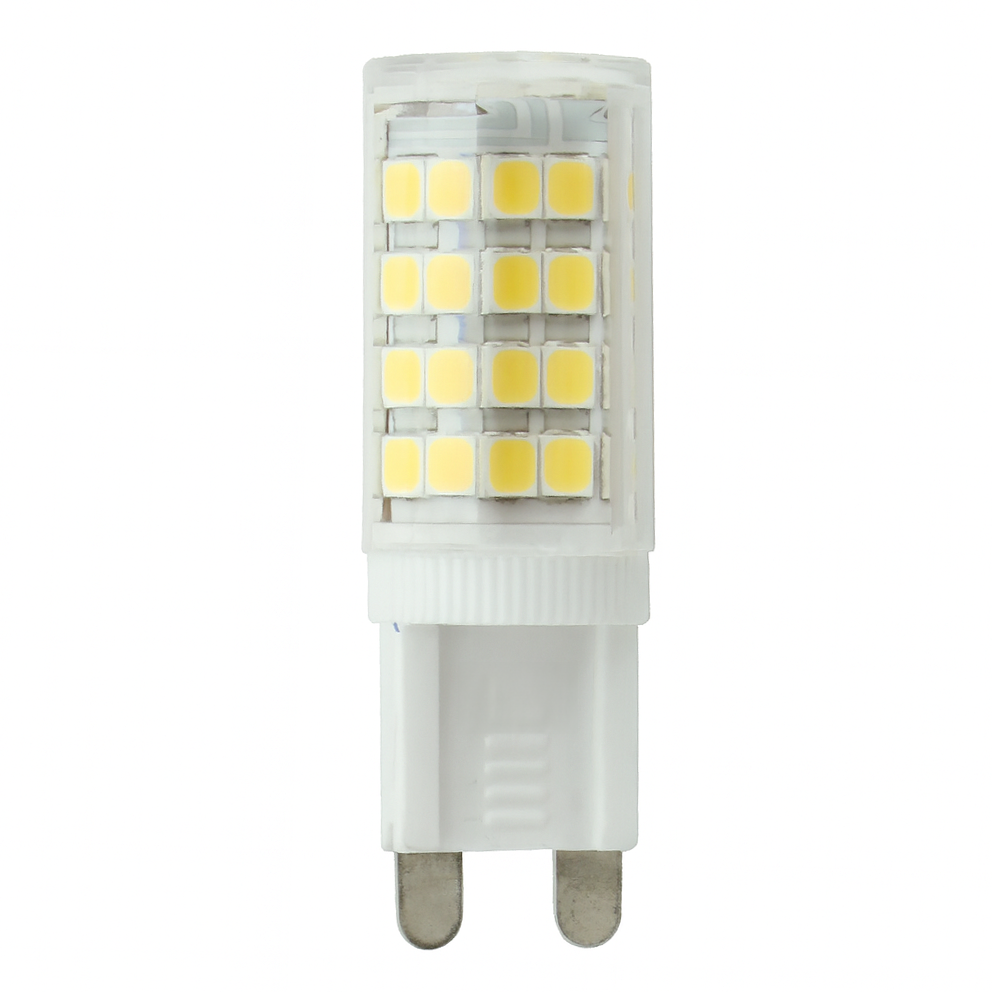

The 4W G9 Barrel LED Lamp Series is a compact, energy-efficient replacement for traditional 40W halogen and HID lamps. Powered by premium Philips Lumileds LED chips, it produces 370 lumens while consuming only 4 watts, providing efficient illumination for compact and specialty lighting applications.
Featuring 360° light distribution and a compact G9 bi-pin design, the G9 Barrel provides uniform illumination in fixtures where space is limited. Multiple color temperature options make it suitable for decorative, display, furniture, hospitality, and specialty lighting installations.
Features
- 4W LED replaces up to 40W halogen or HID lamps
- Produces 370 lumens
- 360° light distribution
- Premium Philips Lumileds LED chips
- Available in 2800K, 4200K & 6500K
- CRI >80 for consistent color rendering
- G9 bi-pin base
- 120V AC operation
- Power factor >0.90
- Compact PVC construction
- Approximately 25,000-hour rated life
- Non-dimmable
- CE, RoHS & FCC certified
- 2-year warranty
Color Temperature & Light Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 2800K | Warm White | 370 lm |
| 4200K | Natural White | 370 lm |
| 6500K | Bright White | 370 lm |
Specifications
| Product Type | G9 LED Barrel Lamp |
|---|---|
| Series | G9 Barrel Series |
| Power | 4W |
| Traditional Equivalent | Up to 40W Halogen / HID |
| Light Output | 370 lm |
| LED Source | Philips Lumileds |
| Color Temperatures | 2800K / 4200K / 6500K |
| CRI | >80 |
| Light Distribution | 360° |
| Base Type | G9 Bi-Pin |
| Input Voltage | 120V AC |
| Dimming | Non-Dimmable |
| Power Factor | >0.90 |
| Housing | PVC |
| Dimensions | 0.5" (12 mm) Diameter × 1.4" (36 mm) Height |
| Weight | 0.05 lb |
| Operating Temperature | -4°F to 68°F (-20°C to +20°C) |
| Rated Lifespan | Approximately 25,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Display Lighting
- Furniture Lighting
- Cabinet Lighting
- Elevator Lighting
- Yacht & Marine Interiors
- Chandeliers
- Decorative Fixtures
- Retail Displays
- Hospitality Lighting
- Compact Specialty Fixtures
Why Choose the G9 Barrel LED Lamp Series?
The 4W G9 Barrel LED Lamp Series delivers 370 lumens while consuming only 4 watts, providing an efficient alternative to traditional 40W halogen and HID lamps. Its compact G9 bi-pin design and 360° light distribution make it well suited for applications where both fixture size and uniform illumination are important.
With premium Philips Lumileds LED technology, three color temperature options, an approximately 25,000-hour rated life, and a 2-year warranty, the G9 Barrel Series provides reliable illumination for decorative, display, furniture, hospitality, and specialty lighting applications.
