Diamond Brite LEDs

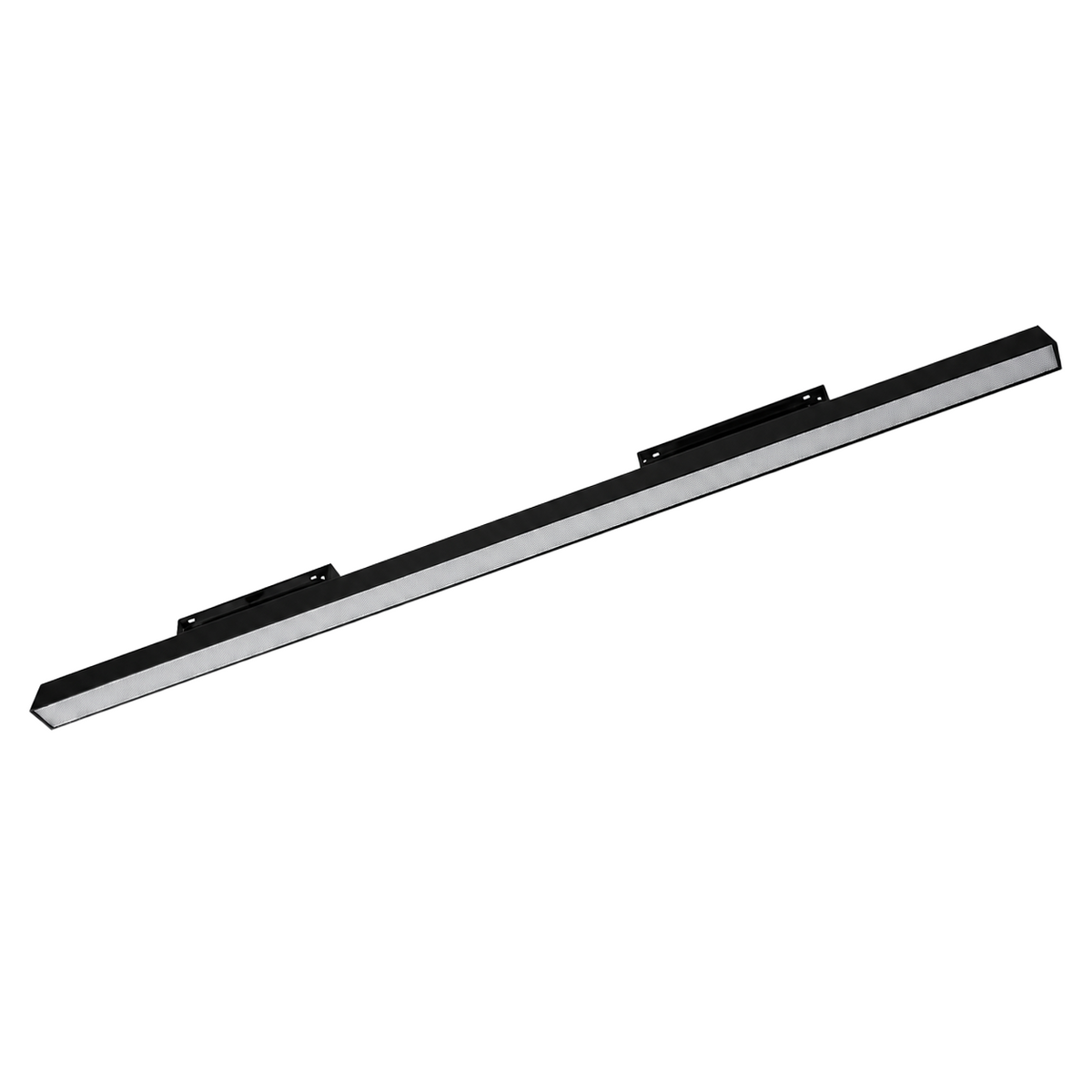

48W Micro Magnetic Linear Light Series
48W Micro Magnetic Linear Light Series
Couldn't load pickup availability
The 48W Micro Magnetic Linear Light delivers high-output, continuous illumination for larger architectural spaces. Producing 5,664 lumens, this fixture combines powerful ambient lighting with the flexibility and minimalist appearance of a 48V Micro Magnetic Track System.
The extended 48" profile provides uniform diffused illumination, while adjustable color temperature from 2700K to 6500K allows the lighting environment to adapt from warm to cool white.
Features
- 48W Integrated LED
- 5,664 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum housing
- Linear diffused illumination
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 48W | 48" (1205 mm) | 5,664 lm | MCR-LNR48-48W-CCT-48V-MB |
| Matte White | 48W | 48" (1205 mm) | 5,664 lm | MCR-LNR48-48W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Light |
| Power | 48W |
| Lumen Output | 5,664 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 48" (1205 mm) |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Beam Type | Linear Diffused Light |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for large residential spaces, retail stores, jewelry showrooms, hotels, restaurants, offices, galleries, hospitality environments, and commercial interiors.
What's Included
- 1 × 48W Micro Magnetic Linear Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
