45W QuadLamp C Series
45W QuadLamp C Series
Couldn't load pickup availability

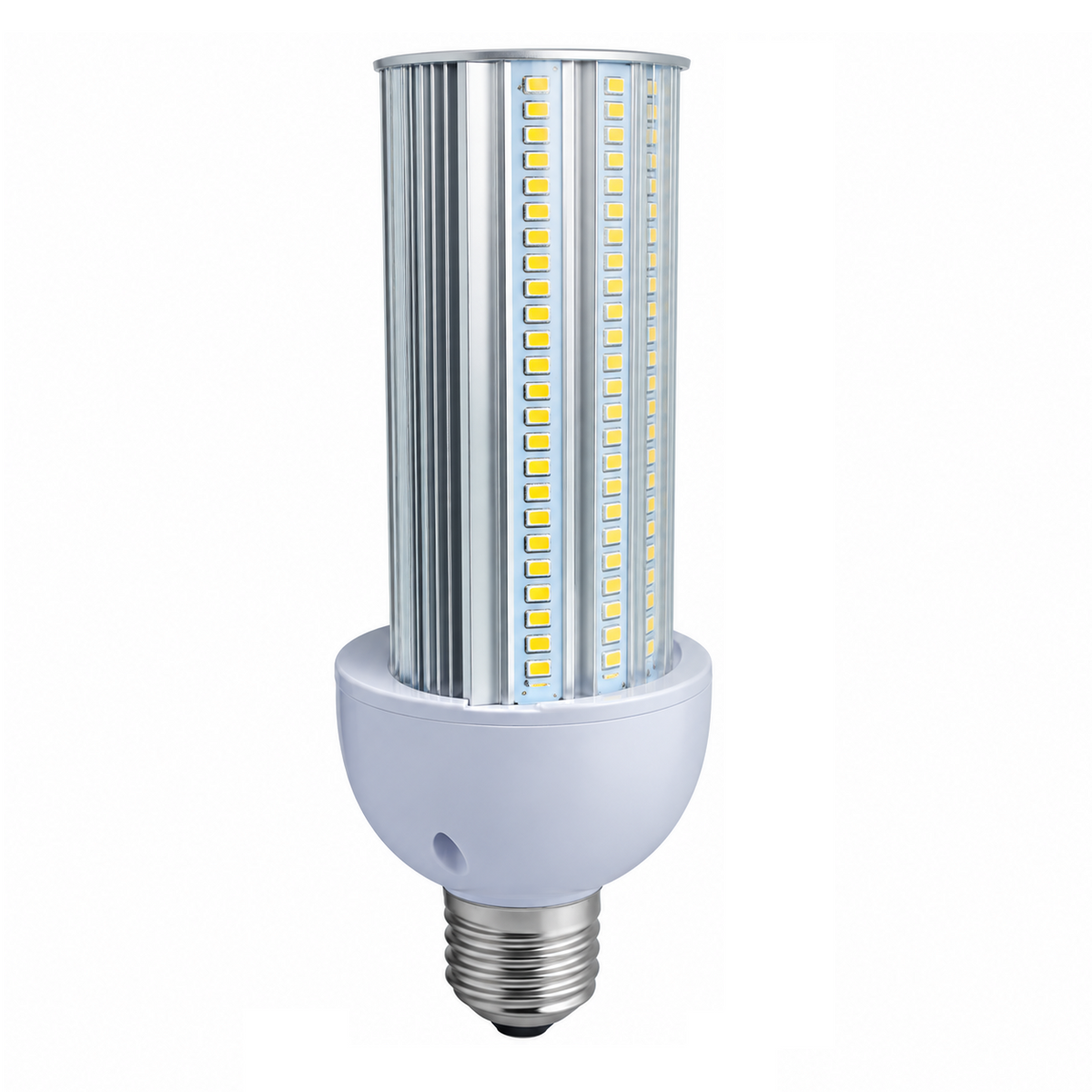

The 45W QuadLamp C Series delivers high-output LED illumination for commercial, industrial, roadway, and retrofit applications. Producing 5,400 lumens, the 45W QuadLamp provides an efficient replacement for traditional CFL, metal halide, HPS, HID, and incandescent lamps.
Powered by 150 Samsung 2835 SMD LEDs, the fixture provides broad 180° illumination and incorporates a durable aluminum thermal structure and IP64 ingress protection.
Features
- 45W LED power consumption
- Produces 5,400 lumens
- 150 Samsung 2835 SMD LEDs
- Up to 120 lm/W efficacy
- 180° beam angle
- CRI >83
- Power factor >0.95
- 85–305V AC operation
- E26 / E27 / E39 / E40 base options
- Clear or frosted lampshade options
- IP64 ingress protection
- 50,000-hour rated lifespan
- UL/cUL, CE & RoHS certified
- 2-year warranty
Color Temperature Options
- Amber 585nm
- 2700K
- 3000K
- 4000K
- 5000K
- 5700K
- 6500K
Specifications
| Product Type | LED Retrofit Lamp |
| Series | QuadLamp C Series |
| Power | 45W |
| Light Output | 5,400 lm |
| LED Source | Samsung 2835 SMD |
| LED Quantity | 150 LEDs |
| Input Voltage | 85–305V AC |
| Base Options | E26 / E27 / E39 / E40 |
| Lampshade | Clear or Frosted |
| CRI | >83 |
| Power Factor | >0.95 |
| Beam Angle | 180° |
| IP Rating | IP64 |

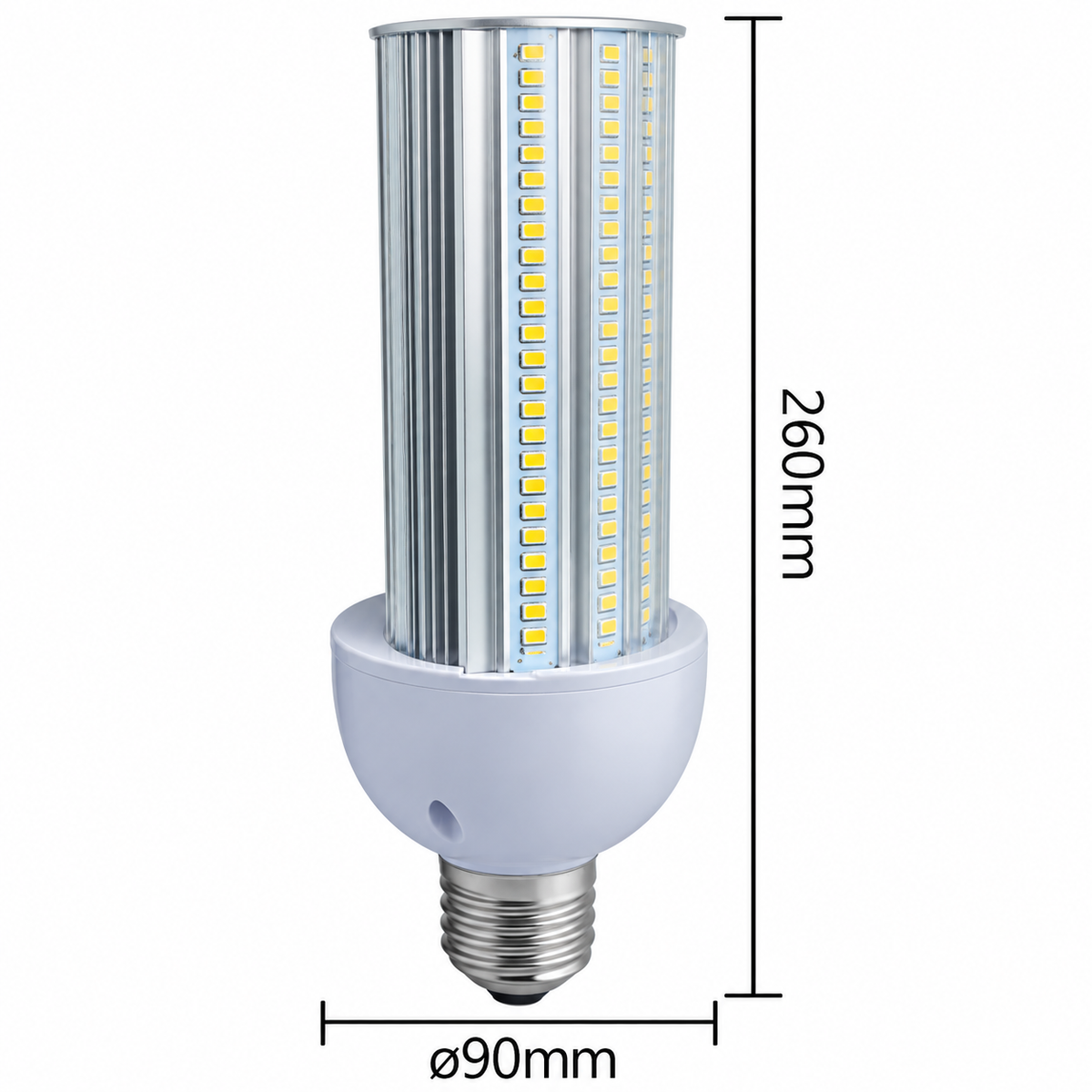

| E27 Dimensions | Ø3.5" × 9.4" (Ø90 × 240 mm) |
| E40 Dimensions | Ø3.5" × 10.2" (Ø90 × 260 mm) |
| Net Weight | 2.09 lbs (950 g) |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rated Life | 50,000 Hours |
| Warranty | 2 Years |
Traditional Lamp Replacement
- 90W CFL
- 150W Metal Halide / HPS / HID
- 380W Incandescent
Applications
- Street & Roadway Lighting
- Post-Top Fixtures
- Commercial Lighting
- Industrial Lighting
- Area Lighting
- Retrofit Applications
Why Choose the 45W QuadLamp C?
The 45W QuadLamp C Series produces 5,400 lumens with broad 180° illumination. Its Samsung LED technology, IP64 construction, multiple base options, and 50,000-hour rated lifespan provide an efficient solution for replacing traditional commercial and industrial lamps.
