Diamond Brite LEDs
40W Matrix Recessed Trimless Downlight Series – Double Head
40W Matrix Recessed Trimless Downlight Series – Double Head
Couldn't load pickup availability

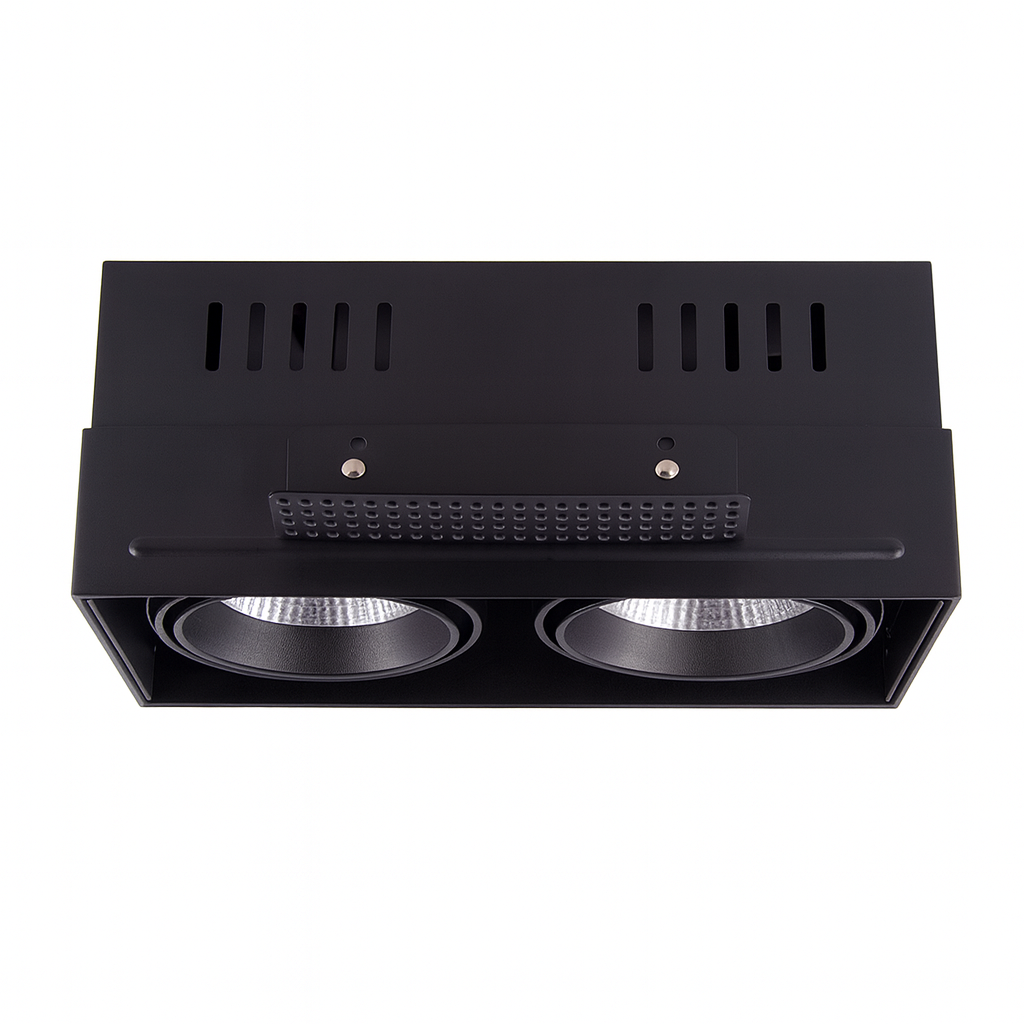

The 40W Matrix Recessed Trimless LED Downlight Series – Double Head is a high-output architectural fixture designed for clean, minimalist recessed lighting applications. Its two independently adjustable heads provide flexible directional illumination while the trimless construction integrates seamlessly into the ceiling.
Powered by a 40W Cree CXA-1512 LED engine configuration, the Matrix delivers more than 4,100 lumens with deep recessed reflectors for controlled illumination. Multiple beam angles, four color temperature options, and optional CRI 90 make the double-head Matrix ideal for demanding residential, hospitality, retail, and commercial environments.
Features
- 40W Cree CXA-1512 LED engine configuration

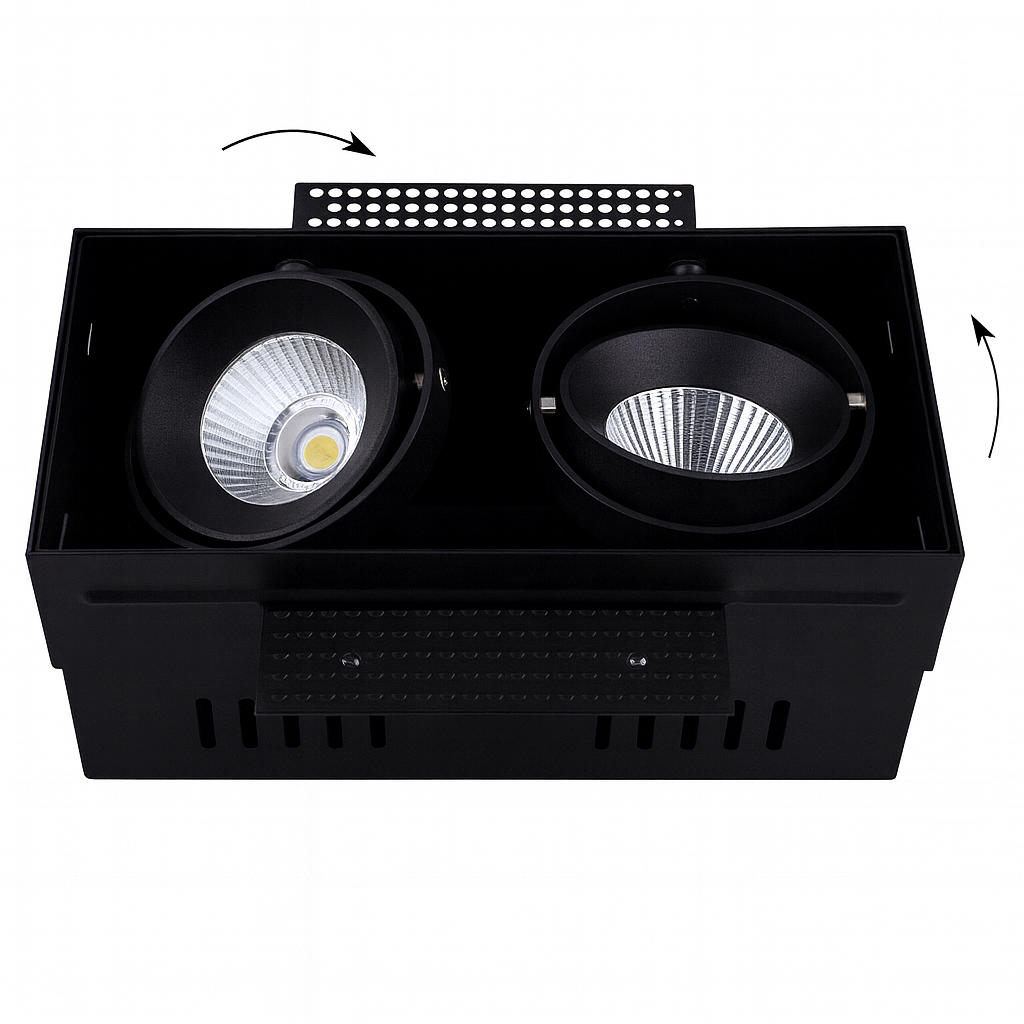

- Double adjustable head design
- Trimless recessed architectural design
- Deep recessed reflector design
- Produces more than 4,100 lumens
- Available in 15°, 24° & 38° beam angles
- Available in 2700K, 3000K, 4000K & 5000K
- CRI >80
- CRI 90 optional
- Prewired with black/red cable & connector
- Durable aluminum construction
- Available in Texture White and Texture Black
- Supports ceiling thickness from 3/16"–1" (5–25 mm)
- Minimum ceiling void of 5.9" (150 mm)
Color Temperature Options
| Color Temperature | Description |
| 2700K | Warm White |
| 3000K | Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
Beam Angle Options
- 15° – Narrow Spot
- 24° – Spot
- 38° – Flood
Finish Options
- Texture White
- Texture Black
Specifications
| Product Type | Recessed Trimless Adjustable LED Downlight |
| Series | Matrix Series |
| Head Configuration | Double Head |
| Power | 40W |
| LED Engine | Cree CXA-1512 |
| Light Output | >4,100 lm |
| Input | 450mA / 36V |
| Color Temperatures | 2700K / 3000K / 4000K / 5000K |
| CRI | >80 (90 Optional) |
| Beam Angles | 15° / 24° / 38° |
| Body Material | Aluminum |
| Fixture Size | 9.6" × 4.5" × 3.9" H (245 × 115 × 100 mm) |
| Cutout | 9.8" × 4.6" (248 × 118 mm) |
| Ceiling Thickness | 3/16"–1" (5–25 mm) |
| Minimum Ceiling Void | 5.9" (150 mm) |
| Finish | Texture White / Texture Black |
| Wiring | Prewired with Black/Red Cable & Connector |
| Compliance | EN60598-1:2008+A11:2009 / EN60598-2-5:1998 |
Applications
- Luxury Residential Interiors
- Retail Stores
- Jewelry Showrooms
- Hotels
- Restaurants
- Hospitality Spaces
- Offices
- Commercial Interiors
- Architectural Lighting
- Accent Lighting
- Artwork & Display Lighting
Why Choose the 40W Double Head Matrix Series?
The 40W Recessed Trimless Matrix LED Downlight delivers more than 4,100 lumens through a compact double-head architectural design. Its two adjustable heads provide greater flexibility for directing illumination toward separate focal points while maintaining a clean, trimless ceiling appearance.
With Cree CXA-1512 LED technology, 15°, 24°, and 38° beam options, four available color temperatures, optional CRI 90, and Texture White or Texture Black finishes, the 40W Double Head Matrix provides a high-output solution for sophisticated residential and commercial lighting installations.
