Diamond Brite LEDs
40W Quattro Recessed Light Series
40W Quattro Recessed Light Series
Couldn't load pickup availability

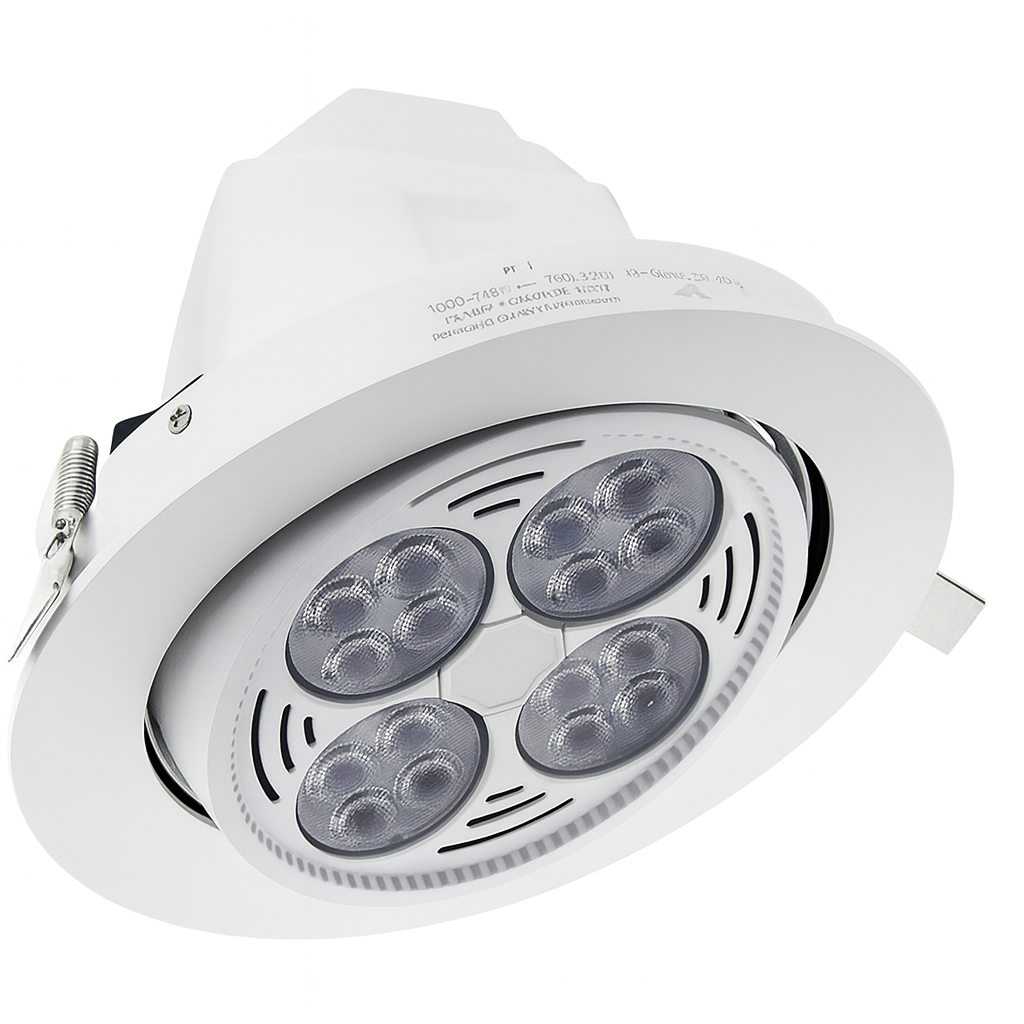

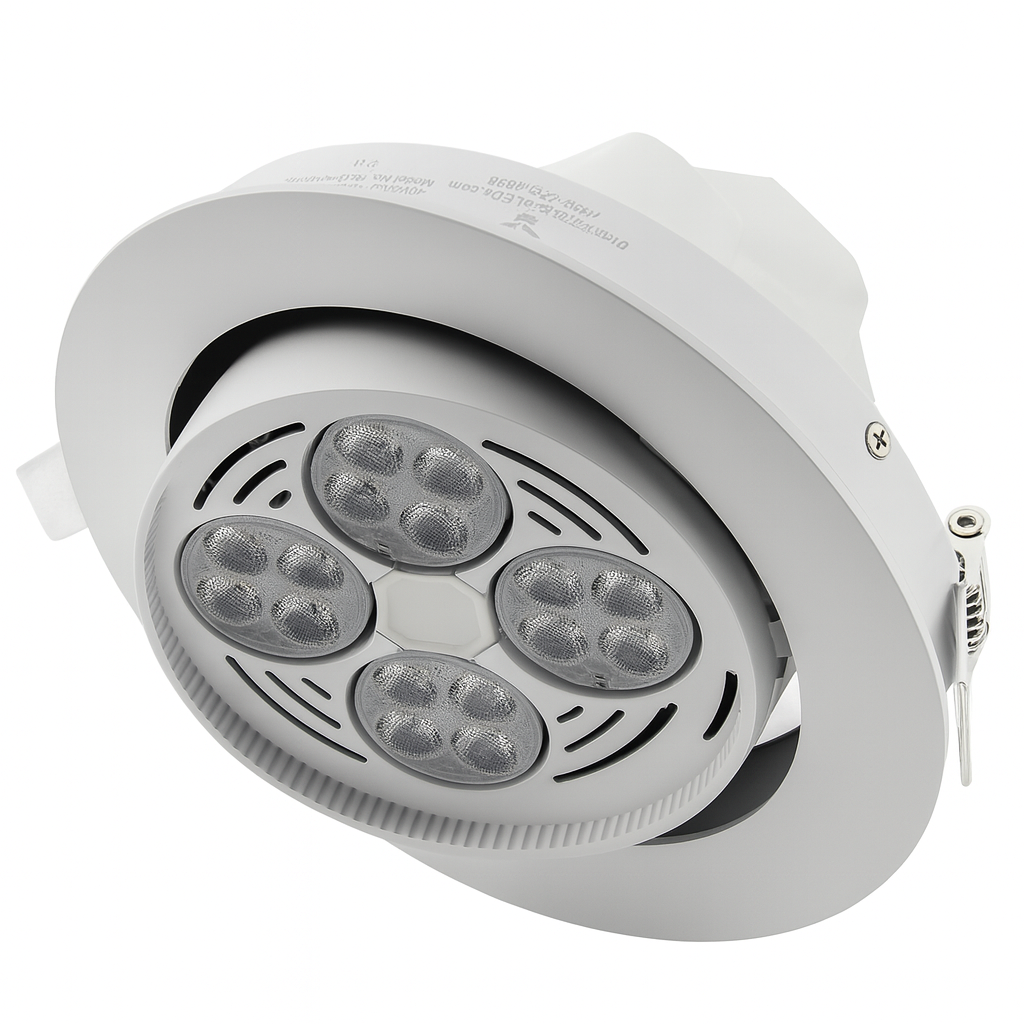

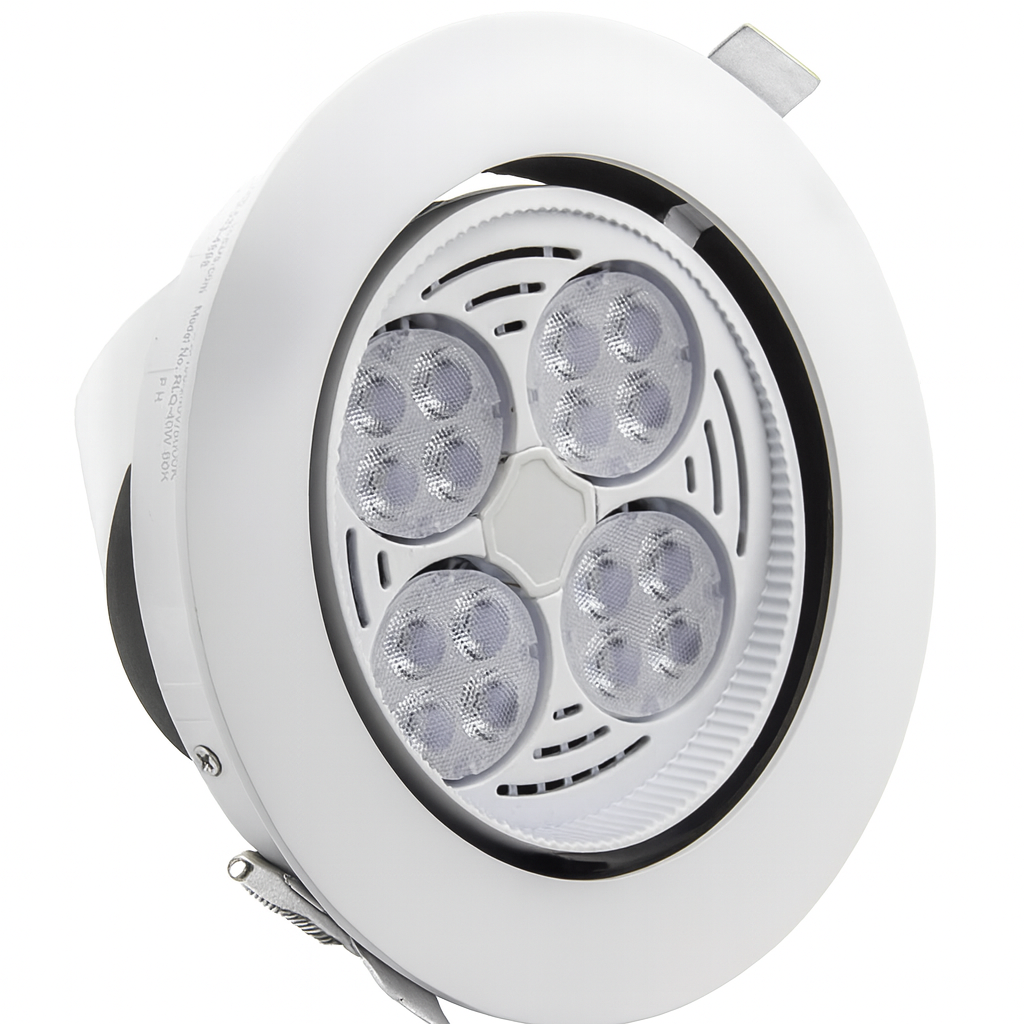

The 40W Quattro Recessed LED Light Series delivers powerful, directional illumination in a professional recessed design. Powered by 24 high-power Osram LEDs, the Quattro produces up to 2,800 lumens while consuming only 40 watts, providing an efficient alternative to traditional 150W incandescent, halogen, or CFL lighting.
Featuring 180° tilt and pivot adjustability with a focused 45° beam angle, the Quattro allows precise light placement for displays, merchandise, artwork, architectural features, and general illumination. Its durable aluminum alloy housing and multiple color temperature options make it ideal for residential, retail, hospitality, gallery, and commercial interiors.
Features
- 40W LED replaces up to 150W incandescent, halogen, or CFL lighting
- Produces up to 2,800 lumens
- 24 × Osram high-power LEDs

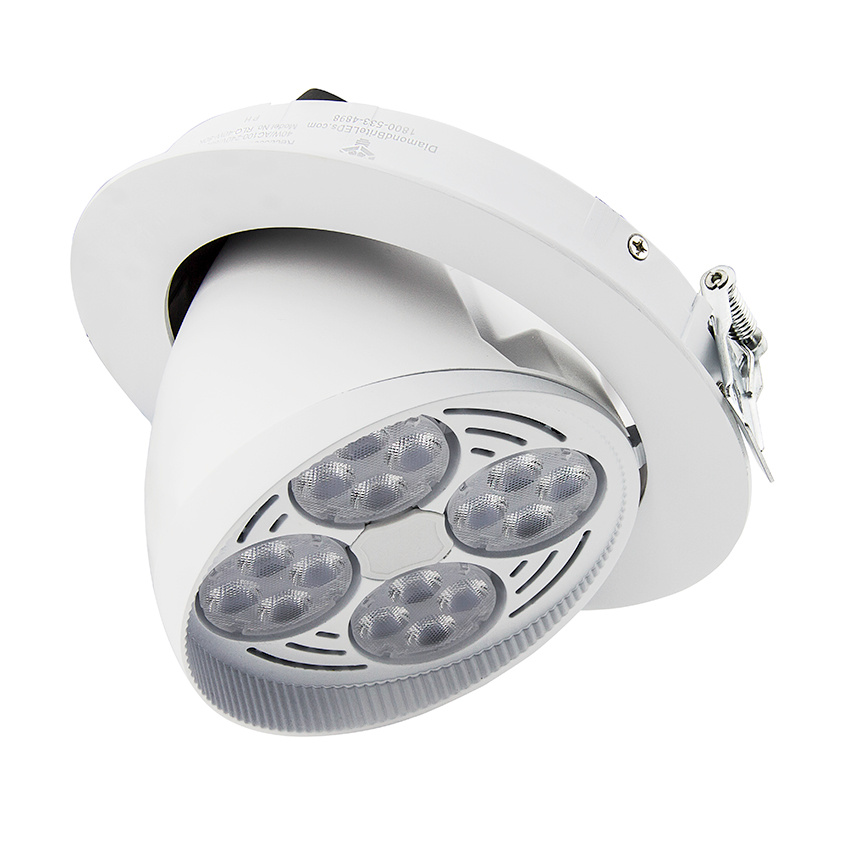

- 180° tilt & pivot adjustment for flexible light direction
- 45° beam angle for focused illumination
- Available in 2900K, 4000K, 5000K & 7000K
- CRI >80 for accurate color rendering
- Power factor >0.90
- Durable aluminum alloy construction

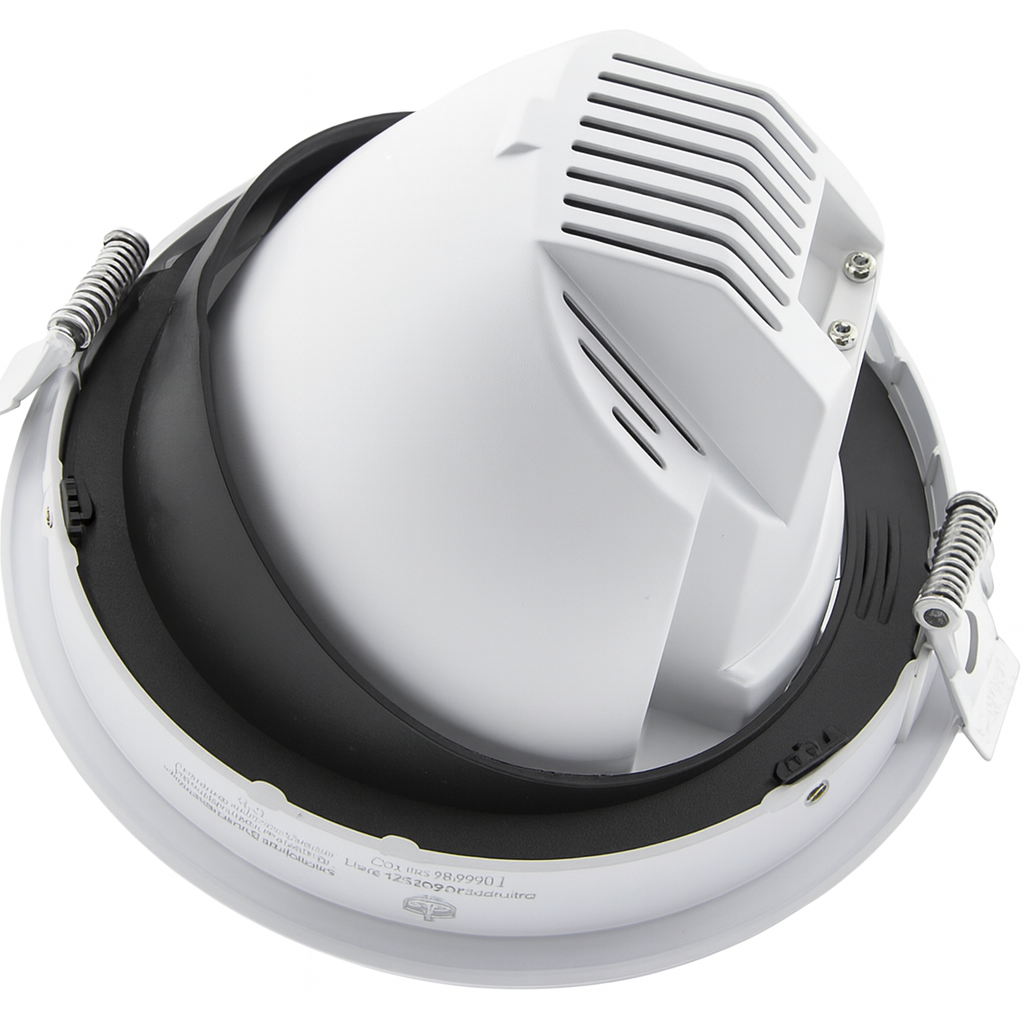

- Designed for efficient heat dissipation
- Approximately 50,000-hour rated life
- Non-dimmable standard configuration
- Optional dimmable version available
- CE, RoHS & ETL certified
- 2-year warranty
Color Temperature & Lumen Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 2900K | Warm White | 2,650 lm |
| 4000K | Soft White | 2,700 lm |
| 5000K | Pure White | 2,800 lm |
| 7000K | Ultra Bright | 2,800 lm |
Specifications
| Product Type | Adjustable Recessed LED Light |
|---|---|
| Series | Quattro Series |
| Power | 40W |
| Equivalent Wattage | Up to 150W Incandescent / Halogen / CFL |
| Light Output | 2,650–2,800 lm |
| LED Source | 24 × Osram High-Power LEDs |
| Color Temperatures | 2900K / 4000K / 5000K / 7000K |
| CRI | >80 |
| Beam Angle | 45° |
| Adjustability | 180° Tilt & Pivot |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable Standard / Dimmable Version Available |
| Material | Aluminum Alloy |
| Cutout Diameter | 5.7" (145 mm) |
| Fixture Diameter | 6.1" (155 mm) |
| Fixture Height | 4.1" (105 mm) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | Approximately 50,000 Hours |
| Certifications | CE / RoHS / ETL |
| Warranty | 2 Years |
Applications
- Retail Shops & Showrooms
- Jewelry Stores & Boutiques
- Art Galleries & Museums
- Hotels & Hospitality
- Offices & Conference Rooms
- Residential Living Areas
- Commercial Interiors
- Display Lighting
- Accent Lighting
- Architectural Feature Lighting
Why Choose the Quattro Series?
The 40W Quattro Series combines up to 2,800 lumens with 180° tilt and pivot adjustability and a focused 45° beam angle, allowing precise illumination of merchandise, artwork, displays, architectural features, and other focal points.
With 24 Osram high-power LEDs, four color temperature options, durable aluminum alloy construction, an approximately 50,000-hour rated life, and optional dimming, the Quattro Series provides a versatile recessed lighting solution for residential, retail, commercial, gallery, and hospitality environments.
