Diamond Brite LEDs
Square Baffle Trim
Square Baffle Trim
Couldn't load pickup availability

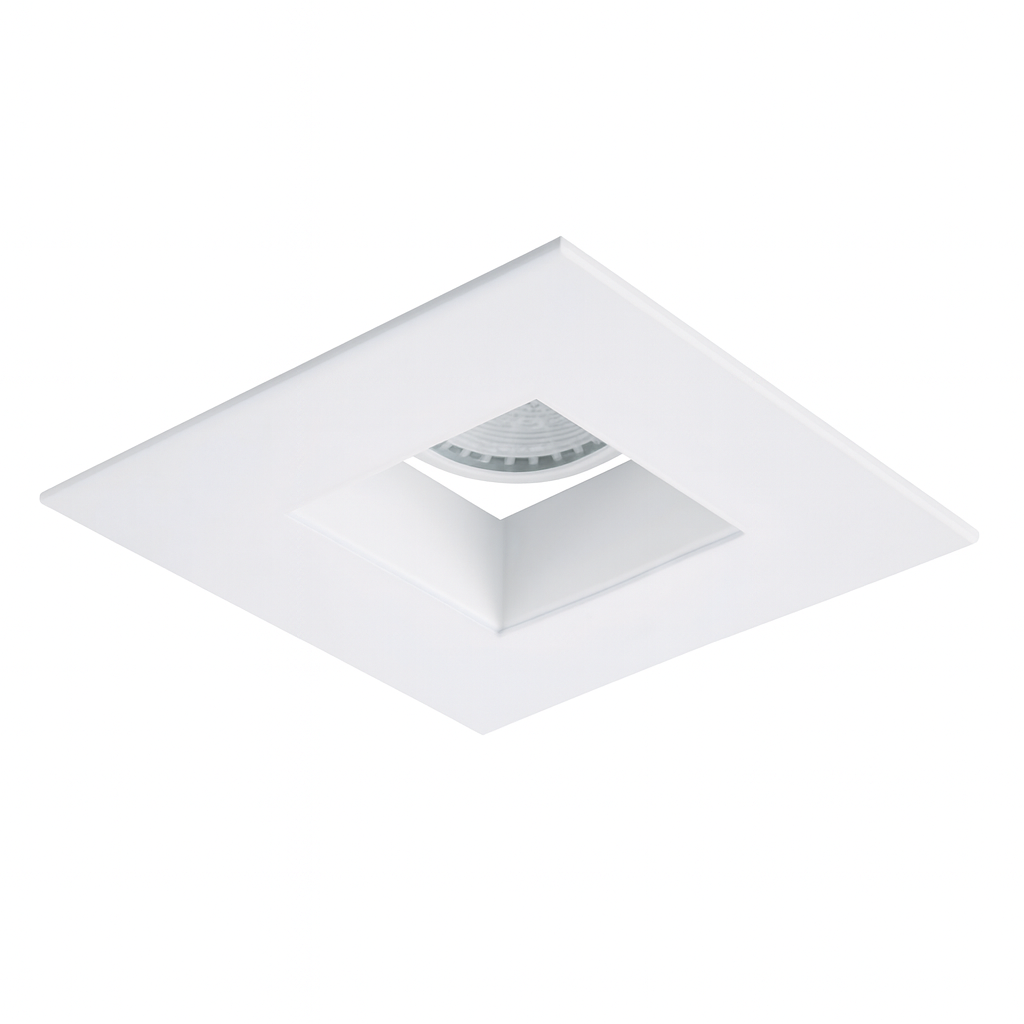

The 4" Square Baffle Trim is a clean, modern recessed lighting trim designed for both low-voltage and line-voltage applications. Its adjustable design allows the light source to tilt up to 35° from the vertical position, providing precise directional illumination for accent, task, and general lighting.
Constructed from durable steel with an abrasion-resistant Matte White powder-coated finish, the TH490-MW provides a minimalist architectural appearance while offering compatibility with a variety of IC, Non-IC, new construction, and remodel housings.
Features
- 4" square baffle trim
- 35° adjustable tilt for directional lighting
- Compatible with MR-16 and GU-10 lamps
- Suitable for low-voltage and line-voltage applications
- Durable steel construction
- Powder-coated finish for abrasion resistance
- Matte White finish
- Clear lens included
- Steel mounting clips for secure attachment to housing
- Compatible with IC and Non-IC airtight housings
- Suitable for new construction and remodel applications
Compatible Housings
- Low-Voltage Housings
- Line-Voltage Housings
- IC Rated Housings
- Non-IC Housings
- Airtight Housings
- New Construction Housings
- Remodel Housings
- LED-Compatible Housings
- MR-16 Compatible Housings
- GU-10 Compatible Housings
Maximum lamp wattage is determined by the selected housing. Refer to the housing specifications before selecting a lamp.
Specifications
| Product Type | Square Baffle Trim |
|---|---|
| Model | TH490-MW |
| Fixture Size | 4" |
| Shape | Square |
| Trim Type | Baffle |
| Adjustability | Up to 35° Tilt |
| Lamp Compatibility | MR-16 / GU-10 |
| Voltage Applications | Low Voltage / Line Voltage |
| Material | Steel |
| Finish | Matte White (MW) |
| Finish Type | Powder-Coated |
| Lens | Clear Lens Included |
| Mounting | Steel Metal Clips |

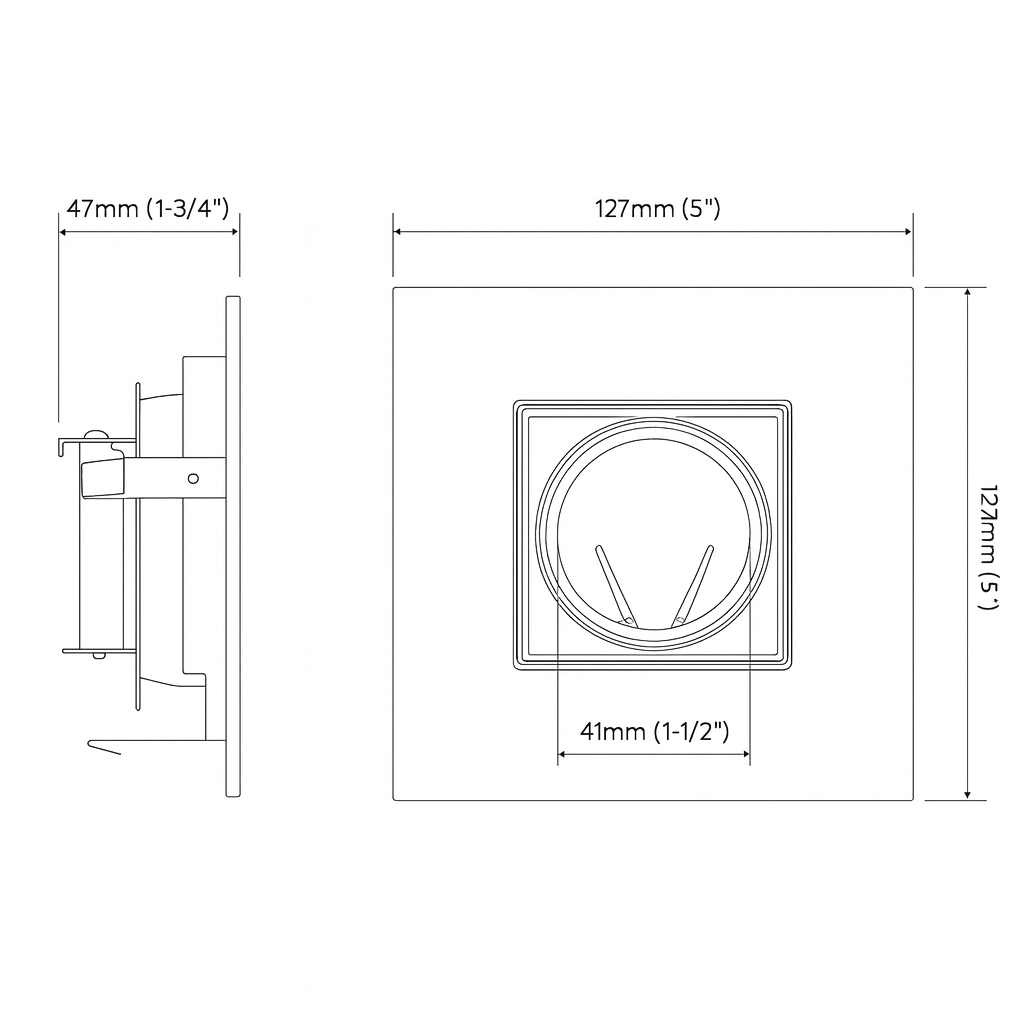

| Dimensions | 4" (127 mm) |
| Depth | 1.75" (45 mm) |
Applications
- Residential Lighting
- Commercial Interiors
- Accent Lighting
- Task Lighting
- Artwork & Display Lighting
- Retail Lighting
- Hospitality Environments
- General Illumination
Why Choose the TH490-MW?
The TH490-MW combines a clean 4" square baffle design with up to 35° of adjustable tilt, allowing precise control over the direction of illumination. Its compatibility with MR-16 and GU-10 lamps provides flexibility for a variety of residential and commercial lighting applications.
With durable steel construction, an abrasion-resistant Matte White powder-coated finish, clear lens, and compatibility with multiple recessed housing configurations, the TH490-MW provides a versatile architectural solution for accent, task, and general lighting.
