Diamond Brite LEDs
8W-13W-18W Oracle Single Head Recessed Downlight Series
8W-13W-18W Oracle Single Head Recessed Downlight Series
Couldn't load pickup availability
The 4" Oracle Single Head Recessed Downlight Series delivers high-performance illumination in a compact architectural form. Powered by CREE CXB1830 LEDs, the fixture is available in multiple wattages and light outputs to accommodate a variety of residential, retail, and hospitality lighting applications.
With a choice of 15°, 30°, or 50° beam angles, color temperatures from 2700K to 5700K, and both Trimmed and Trimless configurations, the Oracle Single Head provides flexibility for accent, general, and focused illumination. White, Black, and Mercury finishes allow the fixture to integrate seamlessly into modern interiors.
Features
- Compact 4" recessed LED downlight
- Powered by CREE CXB1830 LEDs
- Three wattage and light output options
- 8W – 703 lumens
- 13W – 1,665 lumens
- 18W – 2,244 lumens
- Beam angle options: 15° / 30° / 50°
- Color temperature options from 2700K–5700K
- TRIAC 120V dimming
- Optional 0–10V dimming

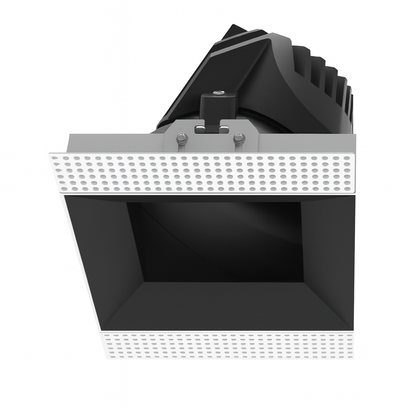

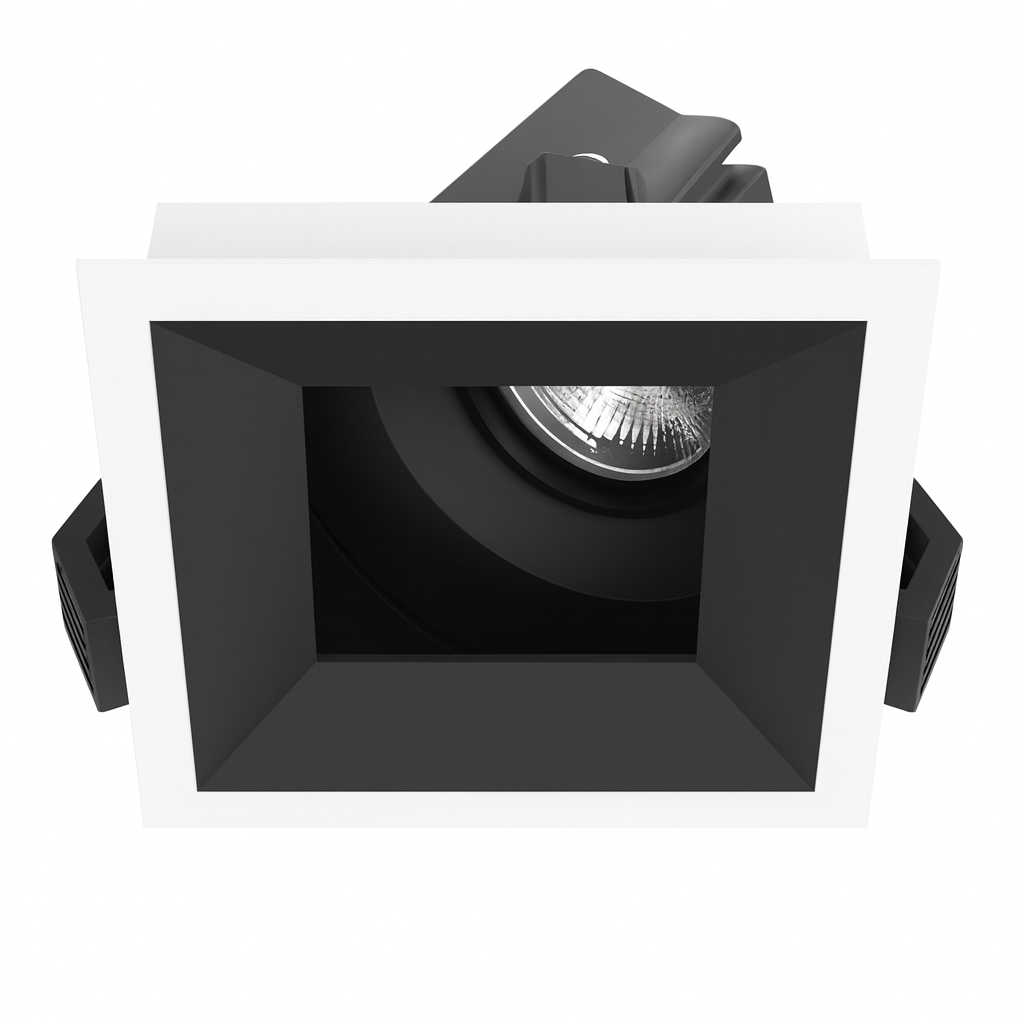

- Available in Trimmed or Trimless configurations
- White, Black, or Mercury finish options
- ETL Listed
- IP40 Rated
Wattage & Light Output
| Wattage | Light Output | Efficacy |
|---|---|---|
| 8W | 703 Lumens | Approximately 88 lm/W |
| 13W | 1,665 Lumens | Approximately 128 lm/W |
| 18W | 2,244 Lumens | Approximately 125 lm/W |
Beam Angle Options
| Beam Angle | Lighting Distribution |
|---|---|
| 15° | Narrow Beam |
| 30° | Medium Beam |
| 50° | Wide Beam |
Design Options
| Option | Available Choices |
|---|---|
| Trim Style | Trimmed / Trimless |
| Finish | White / Black / Mercury |
| Color Temperature | 2700K–5700K |
| Beam Angle | 15° / 30° / 50° |
| Dimming | TRIAC 120V / Optional 0–10V |
Specifications
| Product Type | Single Head Recessed LED Downlight |
|---|---|
| Series | Oracle |

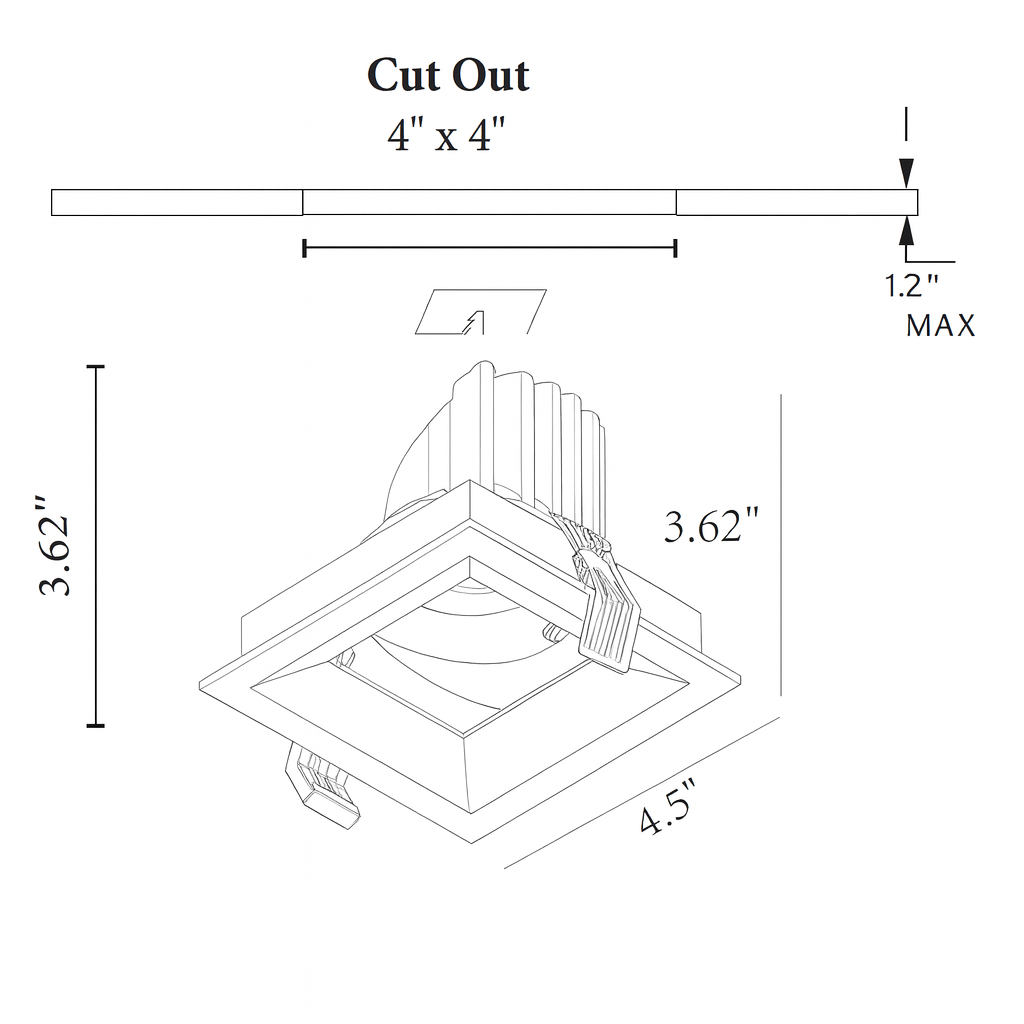

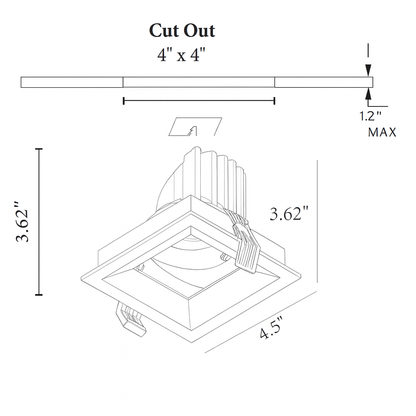

| Size | 4" (102 mm) |
| LED Source | CREE CXB1830 |
| Wattage Options | 8W / 13W / 18W |
| Light Output | 703 / 1,665 / 2,244 Lumens |
| Beam Angles | 15° / 30° / 50° |
| Color Temperature | 2700K–5700K |
| Dimming | TRIAC 120V / Optional 0–10V |
| Trim Options | Trimmed / Trimless |
| Finishes | White / Black / Mercury |
| Certifications | ETL Listed |
| IP Rating | IP40 |
Applications
- Residential Interiors
- Retail Stores and Displays
- Hospitality Spaces
- Architectural Lighting
- Accent Lighting
- General Illumination
- Modern Interior Designs
Why Choose the 4" Oracle Single Head Recessed Downlight?
The Oracle Single Head combines a compact 4" architectural profile with CREE CXB1830 LED technology and three performance options ranging from 8W to 18W. Multiple beam angles provide flexibility for everything from focused accent lighting to wider general illumination.
With Trimmed and Trimless configurations, three finish options, color temperatures from 2700K to 5700K, TRIAC dimming with optional 0–10V control, ETL listing, and an IP40 rating, the Oracle Single Head provides a versatile recessed lighting solution for residential, retail, hospitality, and architectural applications.
