Diamond Brite LEDs
16W-26W-36W Oracle Dual Head Recessed Downlight Series
16W-26W-36W Oracle Dual Head Recessed Downlight Series
Couldn't load pickup availability
The 4" Oracle Dual Head Recessed Downlight Series provides powerful, multi-directional illumination in a clean architectural design. Featuring a dual-head configuration with wattage options from 16W to 36W, it is designed for applications requiring stronger light output and greater flexibility than a single-head fixture.
Available with 15°, 30°, or 50° beam angles, color temperatures from 2700K to 5700K, and both Trimmed and Trimless configurations, the Oracle Dual Head is well suited for display lighting, retail environments, and multi-directional residential applications. White, Black, and Mercury finish options provide additional flexibility for modern interiors.
Features
- Dual-head recessed LED downlight
- 16W – 1,406 lumens
- 26W – 3,330 lumens
- 36W – 4,448 lumens
- Beam angle options: 15° / 30° / 50°
- Color temperature options from 2700K–5700K
- TRIAC 120V dimming
- Optional 0–10V dimming
- Available in Trimmed or Trimless configurations
- White, Black, or Mercury finish options
- ETL Listed
- IP40 Rated
Wattage & Light Output
| Wattage | Light Output | Efficacy |
|---|---|---|
| 16W | 1,406 Lumens | Approximately 88 lm/W |
| 26W | 3,330 Lumens | Approximately 128 lm/W |
| 36W | 4,448 Lumens | Approximately 124 lm/W |
Beam Angle Options
| Beam Angle | Lighting Distribution |
|---|---|
| 15° | Narrow Beam |
| 30° | Medium Beam |
| 50° | Wide Beam |
Design Options
| Option | Available Choices |
|---|---|
| Trim Style | Trimmed / Trimless |
| Finish | White / Black / Mercury |
| Color Temperature | 2700K–5700K |
| Beam Angle | 15° / 30° / 50° |
| Dimming | TRIAC 120V / Optional 0–10V |
Specifications
| Product Type | Dual Head Recessed LED Downlight |
|---|---|
| Series | Oracle |

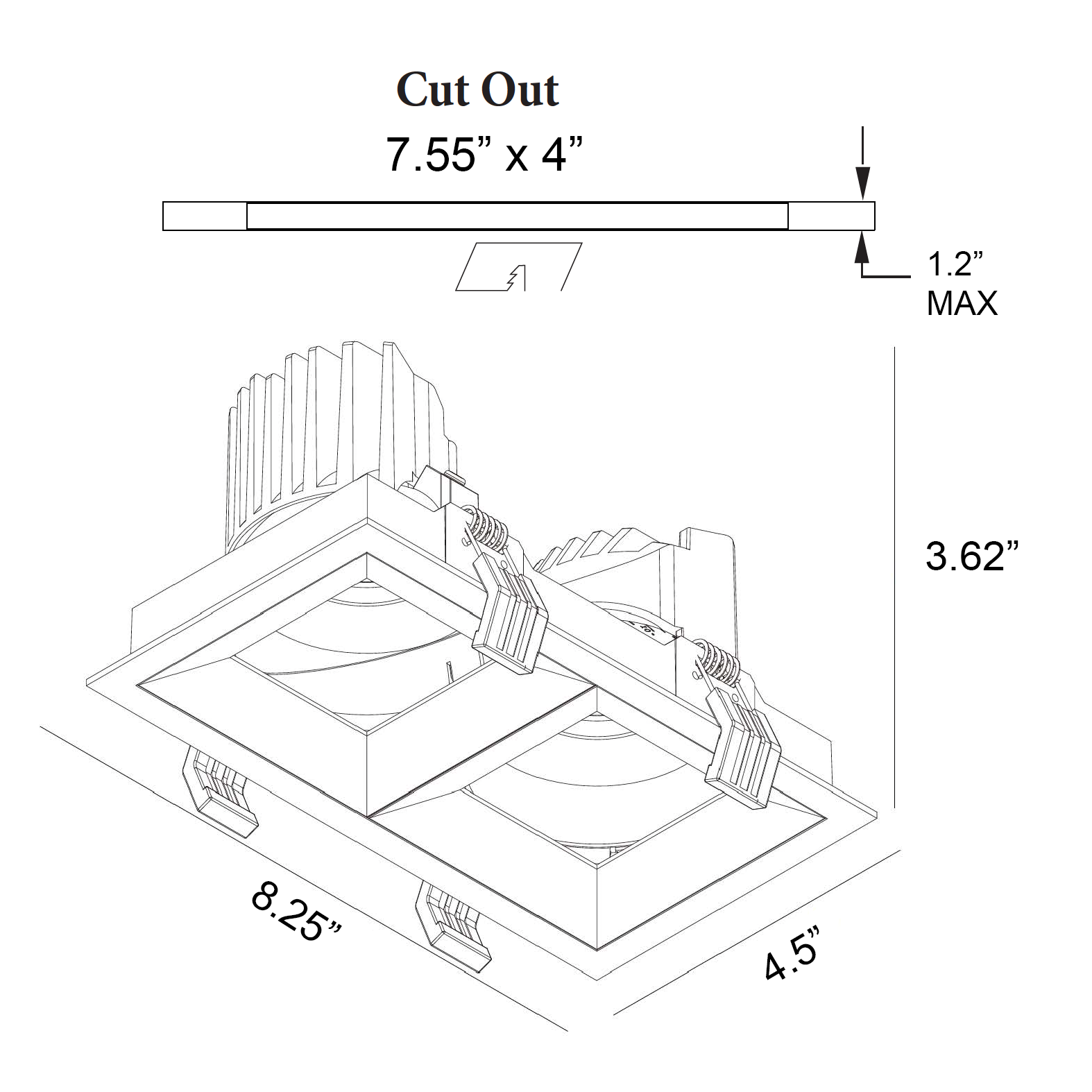

| Size | 4" (102 mm) |
| Head Configuration | Dual Head |
| Wattage Options | 16W / 26W / 36W |
| Light Output | 1,406 / 3,330 / 4,448 Lumens |
| Beam Angles | 15° / 30° / 50° |
| Color Temperature | 2700K–5700K |
| Dimming | TRIAC 120V / Optional 0–10V |

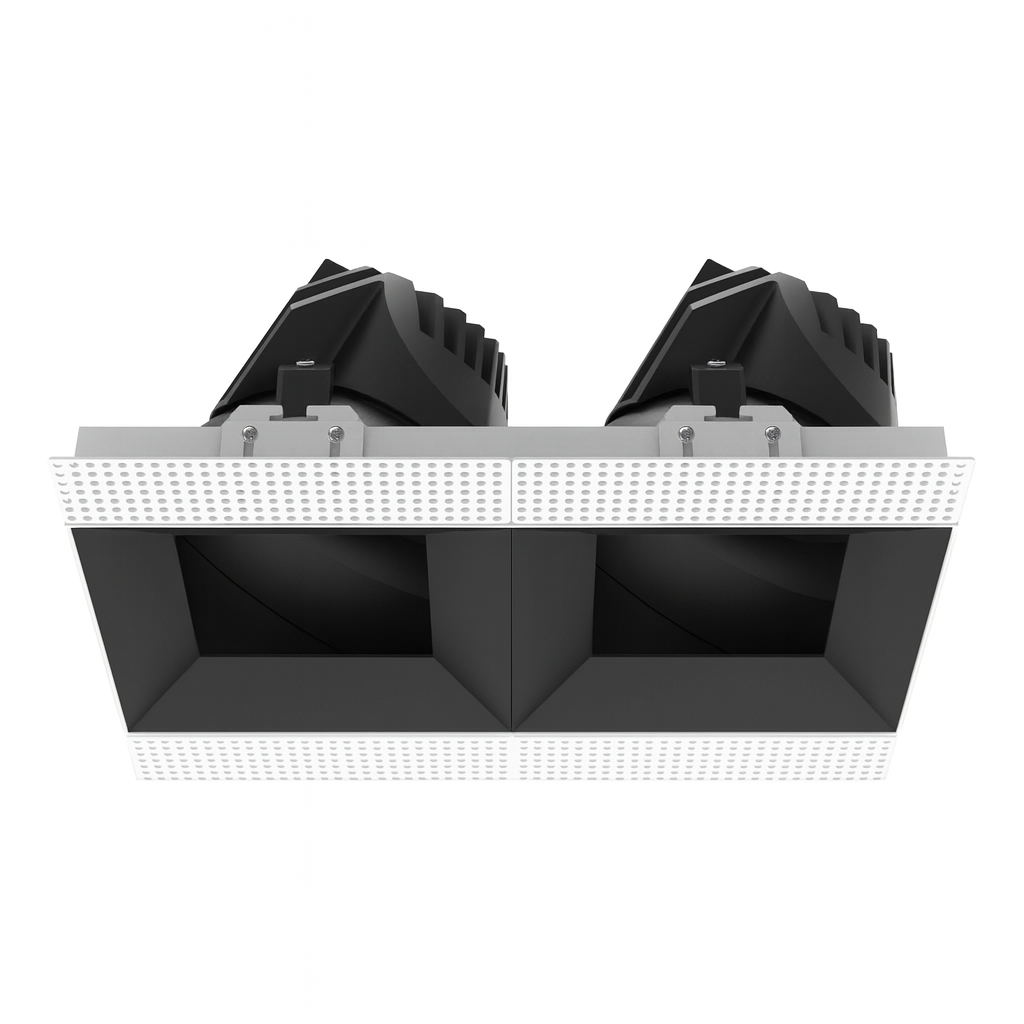

| Trim Options | Trimmed / Trimless |
| Finishes | White / Black / Mercury |
| Certifications | ETL Listed |
| IP Rating | IP40 |
Applications
- Display Lighting
- Retail Stores and Showrooms
- Multi-Directional Residential Lighting
- Architectural Lighting
- Accent Lighting
- Hospitality Interiors
- Commercial Interiors
Why Choose the 4-Inch Oracle Series Dual Head Recessed Downlight?
The Oracle Dual Head combines a compact architectural format with up to 4,448 lumens of light output, making it a versatile choice for applications requiring stronger illumination and multiple lighting directions. Three wattage options and multiple beam angles provide flexibility for focused accent lighting, displays, and broader illumination.
With Trimmed and Trimless configurations, White, Black, and Mercury finishes, color temperatures from 2700K to 5700K, TRIAC dimming with optional 0–10V control, ETL listing, and an IP40 rating, the Oracle Dual Head provides a flexible recessed lighting solution for retail, residential, hospitality, and commercial environments.
