10W Square TruFit Recessed Downlight Series
10W Square TruFit Recessed Downlight Series
Couldn't load pickup availability
The 10W Square TruFit Recessed Downlight Series - 4 Inch delivers efficient, modern recessed illumination in a compact square format. Designed for residential and commercial interiors, this fixture is available in both Smooth and Baffled trim designs and operates on a wide 85–277V AC input range.
Depending on the selected color temperature and trim style, the 4-inch TruFit produces up to 700 lumens. Its clean square profile, multiple CCT options, Energy Star qualification, and UL listing make it a versatile choice for general recessed lighting applications.
Features
- 10W LED recessed downlight
- 4-inch square fixture
- Available in Smooth and Baffled trim designs
- Produces up to 700 lumens
- Available in 2700K, 3000K, 4000K & 5000K depending on trim style
- Wide-range 85–277V AC operation
- Sleek square design
- Energy Star qualified
- UL Listed
- Long-life LED design
- 3-year warranty
Trim & Color Temperature Options
| Trim Style | Color Temperature | Lumens |
| Smooth | 3000K Soft White | 650 lm |
| Smooth | 4000K Cool White | 670 lm |
| Smooth | 5000K Bright White | 680 lm |
| Baffled | 2700K Warm White | 620 lm |
| Baffled | 3000K Soft White | 650 lm |
| Baffled | 4000K Cool White | 670 lm |
| Baffled | 5000K Bright White | 700 lm |
Specifications
| Product Type | Square Recessed LED Downlight |
| Series | Square TruFit Recessed Downlight Series |
| Size | 4 Inch |
| Power | 10W |
| Maximum Light Output | Up to 700 lm |
| Input Voltage | 85–277V AC |
| Trim Options | Smooth / Baffled |
| Color Temperatures | 2700K / 3000K / 4000K / 5000K |

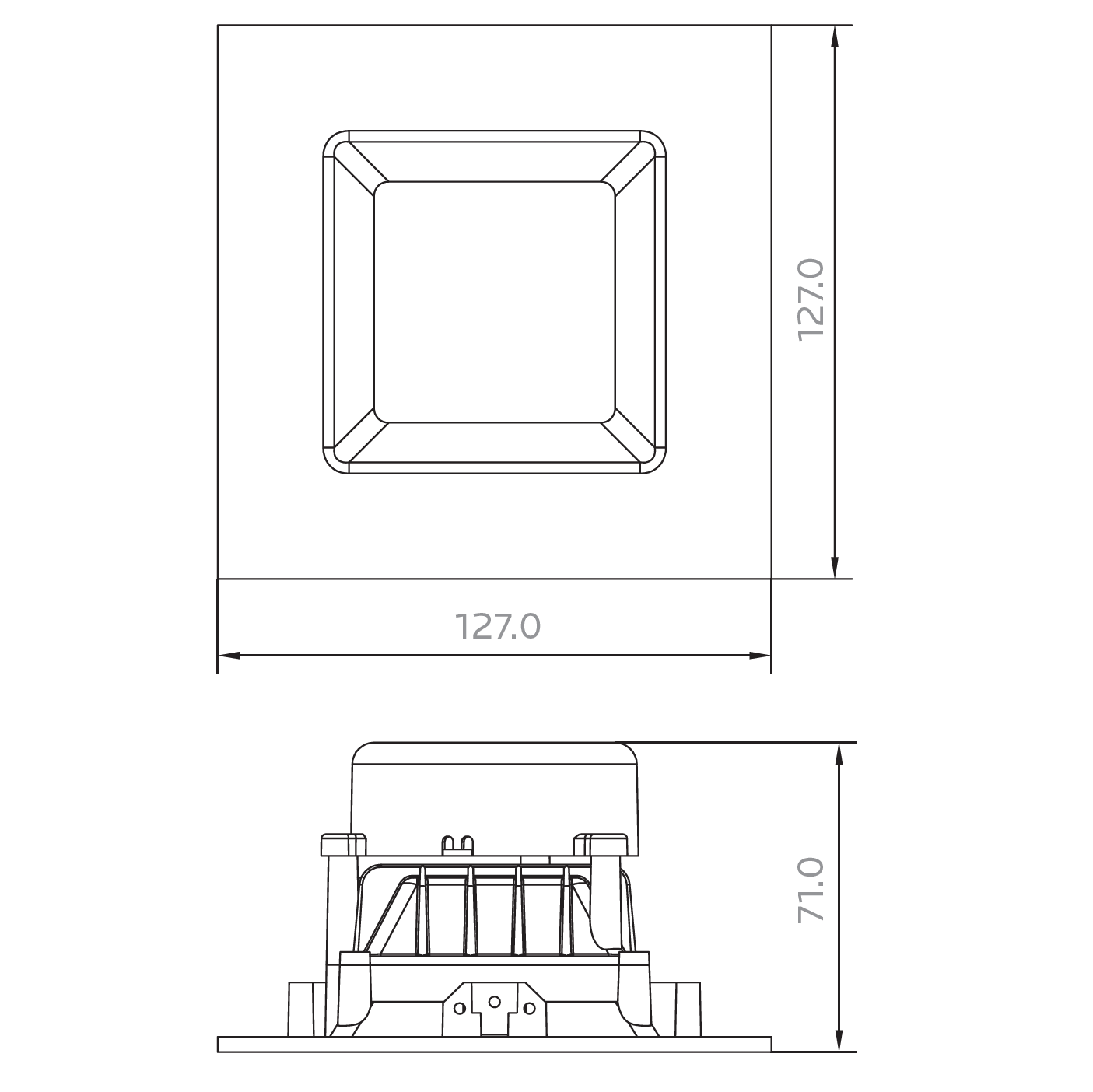

| Dimensions | 127 × 127 mm |
| Height | 71 mm |
| Energy Star | Qualified |
| Listing | UL Listed |
| Warranty | 3 Years |
Available Models
| Model | Trim | CCT | Lumens |
| LR23007 | Smooth | 3000K | 650 lm |
| LR23001 | Smooth | 4000K | 670 lm |
| LR23009 | Smooth | 5000K | 680 lm |
| LR24825 | Baffled | 2700K | 620 lm |
| LR24826 | Baffled | 3000K | 650 lm |
| LR24828 | Baffled | 4000K | 670 lm |
| LR24829 | Baffled | 5000K | 700 lm |
Applications
- Residential Lighting
- Kitchens
- Living Rooms
- Hallways
- Offices
- Retail Spaces
- Hospitality
- General Interior Lighting
Why Choose the 10W Square TruFit?
The 10W Square TruFit Recessed Downlight combines a compact 4-inch footprint with flexible trim and color temperature options. With outputs ranging from 620 to 700 lumens, wide-voltage operation, and Energy Star qualification, it provides an efficient and clean-looking recessed lighting solution.
