Diamond Brite LEDs
27W MR9L Micro Nugget Recessed Downlight Series
27W MR9L Micro Nugget Recessed Downlight Series
Couldn't load pickup availability
The 27W MR9L Micro Nugget Recessed Downlight Series is designed for demanding residential and commercial lighting applications. With a 4.64" aperture and 27W power rating, it provides powerful illumination while maintaining a clean, modern architectural appearance.
Designed for 120V applications, the MR9L Micro Nugget is available in multiple color temperatures from 2700K to 6500K and offers customizable trim and reflector combinations. An included junction box with integrated dimmable remote driver provides a convenient solution for recessed lighting installations.
Features
- 4.64" recessed aperture
- 27W LED power
- 120V operation
- Color temperature options from 2700K–6500K
- Designed for high-output residential and commercial lighting applications

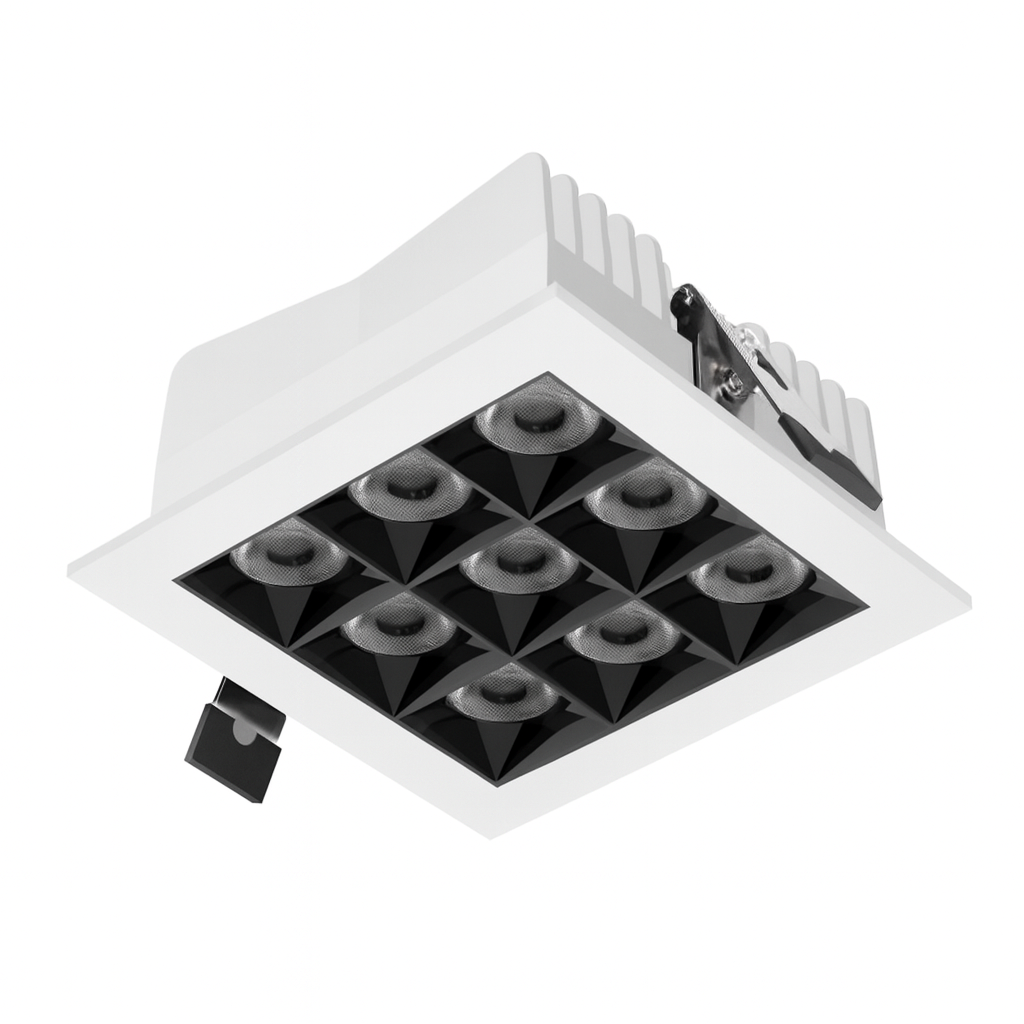

- Black or White fixture trim options

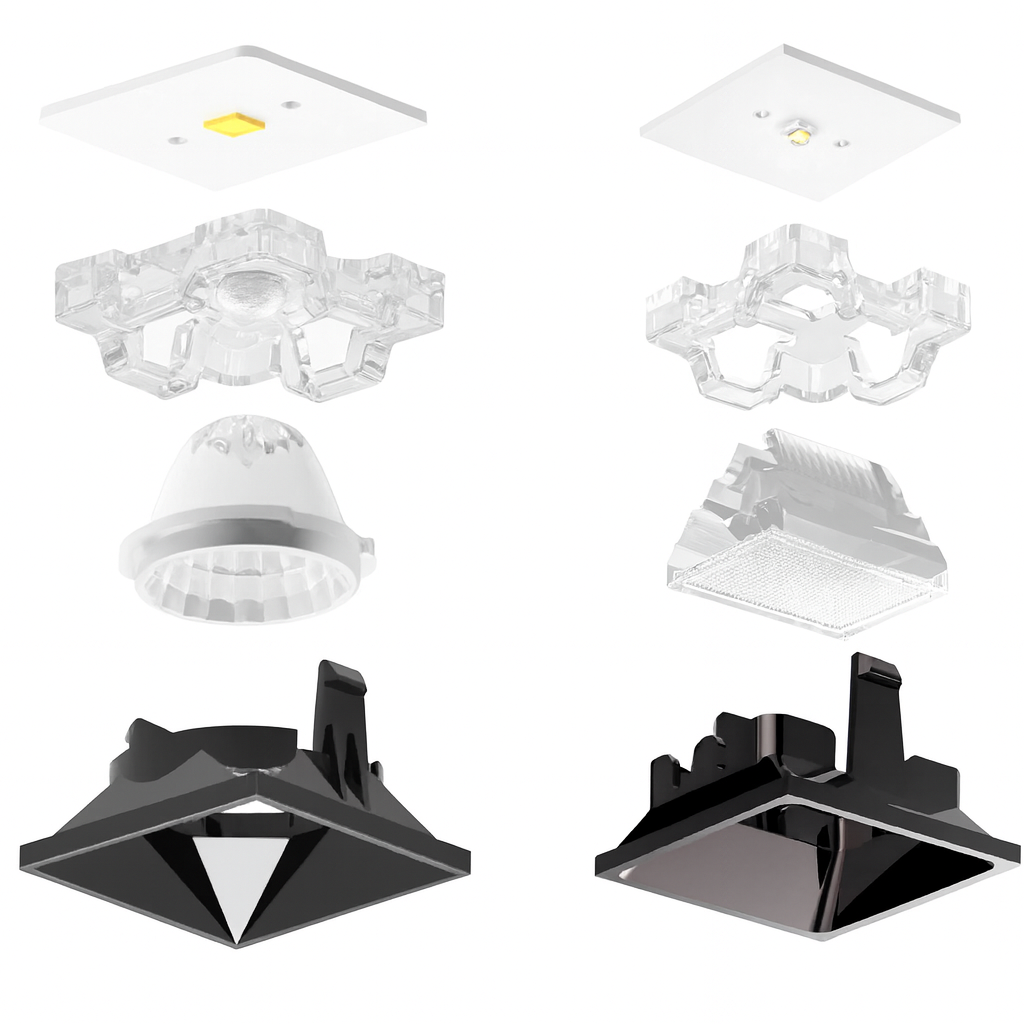

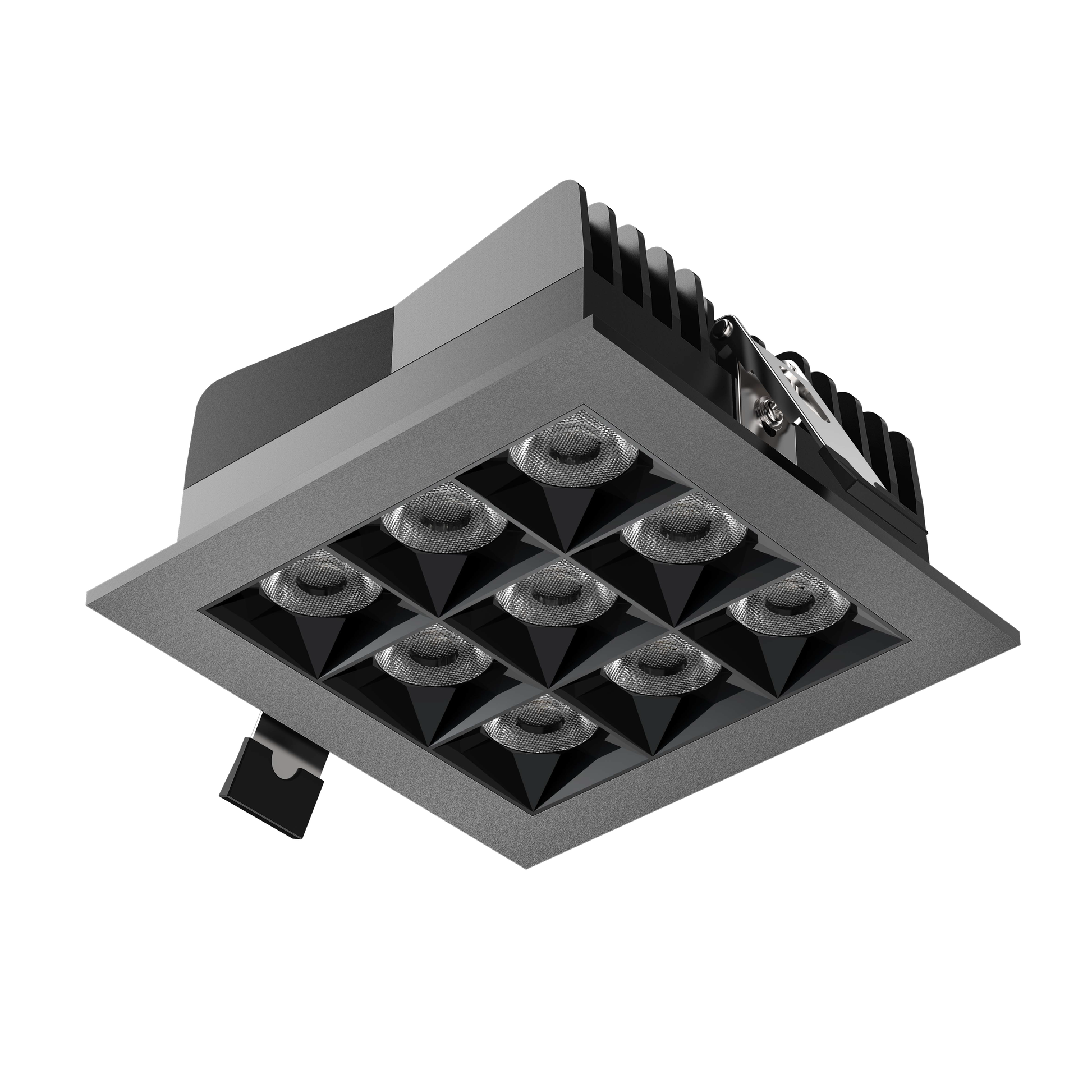

- Black, White, or Standard Gun Metal reflector options
- Junction box included
- Integrated dimmable remote driver
- IC rated
- Damp location rated
- 5-year warranty
Finish & Reflector Options
| Component | Available Options |
|---|---|
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
Specifications
| Product Type | Recessed LED Downlight |
|---|---|
| Series / Model | MR9L Micro Nugget |

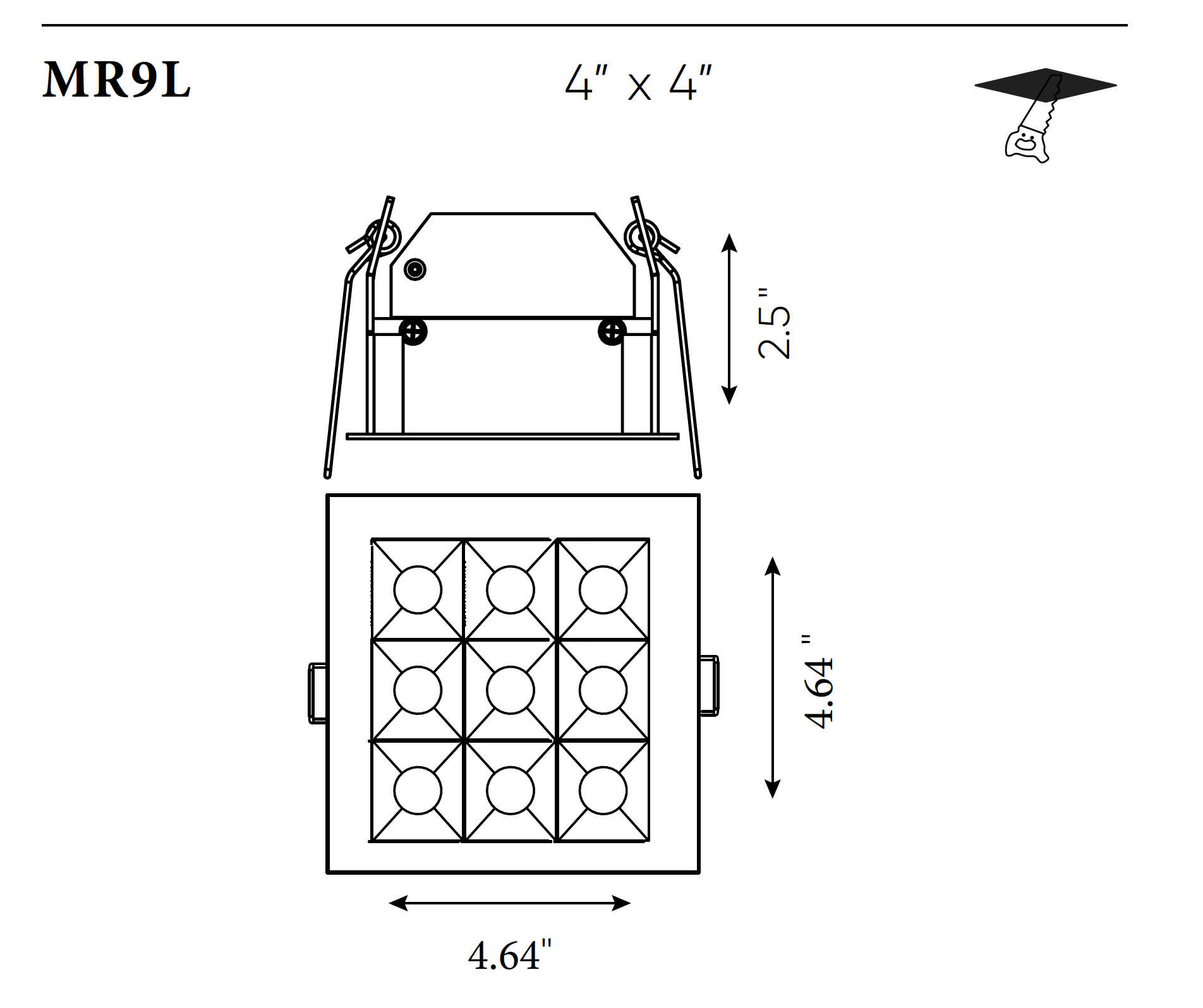

| Aperture Size | 4.64" (118 mm) |
| Power | 27W |
| Voltage | 120V |
| Color Temperature | 2700K–6500K |
| Dimming | Dimmable |
| Driver | Integrated Remote Driver |
| Junction Box | Included |
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
| IC Rating | IC Rated |
| Location Rating | Damp Location |
| Warranty | 5 Years |
Applications
- High-Output General Lighting
- Residential Interiors
- Commercial Interiors
- Office Lighting
- Retail Spaces
- Hospitality Environments
- Architectural Lighting
- Large Living Areas
- High-Impact Accent Lighting
Why Choose the MR9L Micro Nugget?
The MR9L Micro Nugget combines a compact 4.64" aperture with powerful 27W LED performance, making it an excellent solution for projects requiring substantial illumination without an oversized ceiling opening. Multiple trim, reflector, and color temperature options provide flexibility for coordinating the fixture with a variety of architectural interiors.
With an included junction box, integrated dimmable remote driver, IC rating, damp-location rating, and a 5-year warranty, the MR9L Micro Nugget provides a versatile high-performance recessed lighting solution for residential, commercial, retail, office, and hospitality applications.
