Diamond Brite LEDs
9W MR3L Micro Nugget Recessed Downlight Series
9W MR3L Micro Nugget Recessed Downlight Series
Couldn't load pickup availability

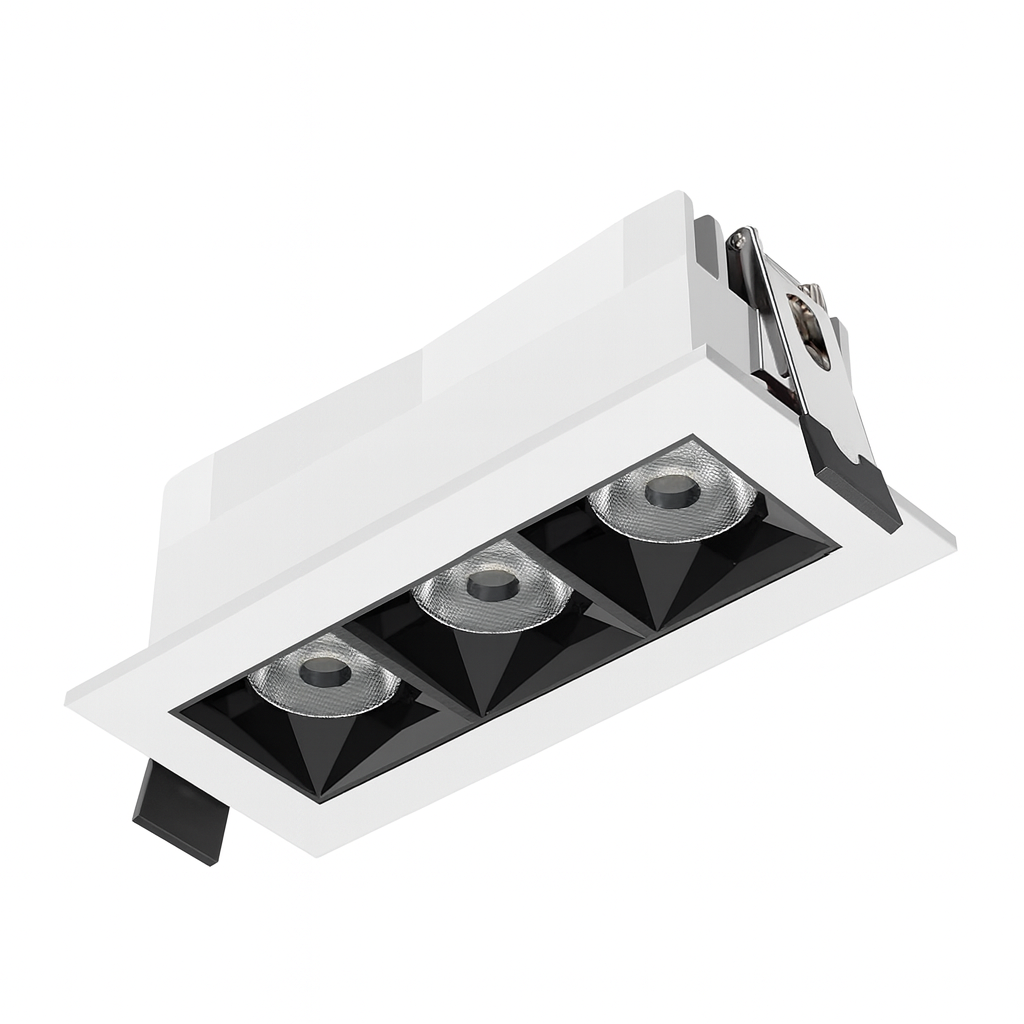

The 9W MR3L Micro Nugget Recessed Downlight Series is a designed for clean, modern architectural applications. With a 4.5" aperture and 9W power rating, it provides efficient illumination for accent and task lighting in residential and commercial environments.
Designed for 120V applications, the MR3L Micro Nugget is available in multiple color temperatures from 2700K to 6500K and offers customizable trim and reflector combinations. An included junction box with integrated dimmable remote driver provides a convenient solution for recessed lighting installations.
Features
- 4.5" recessed aperture
- 9W LED power
- 120V operation
- Color temperature options from 2700K–6500K
- Designed for architectural accent and task lighting
- Black or White fixture trim options

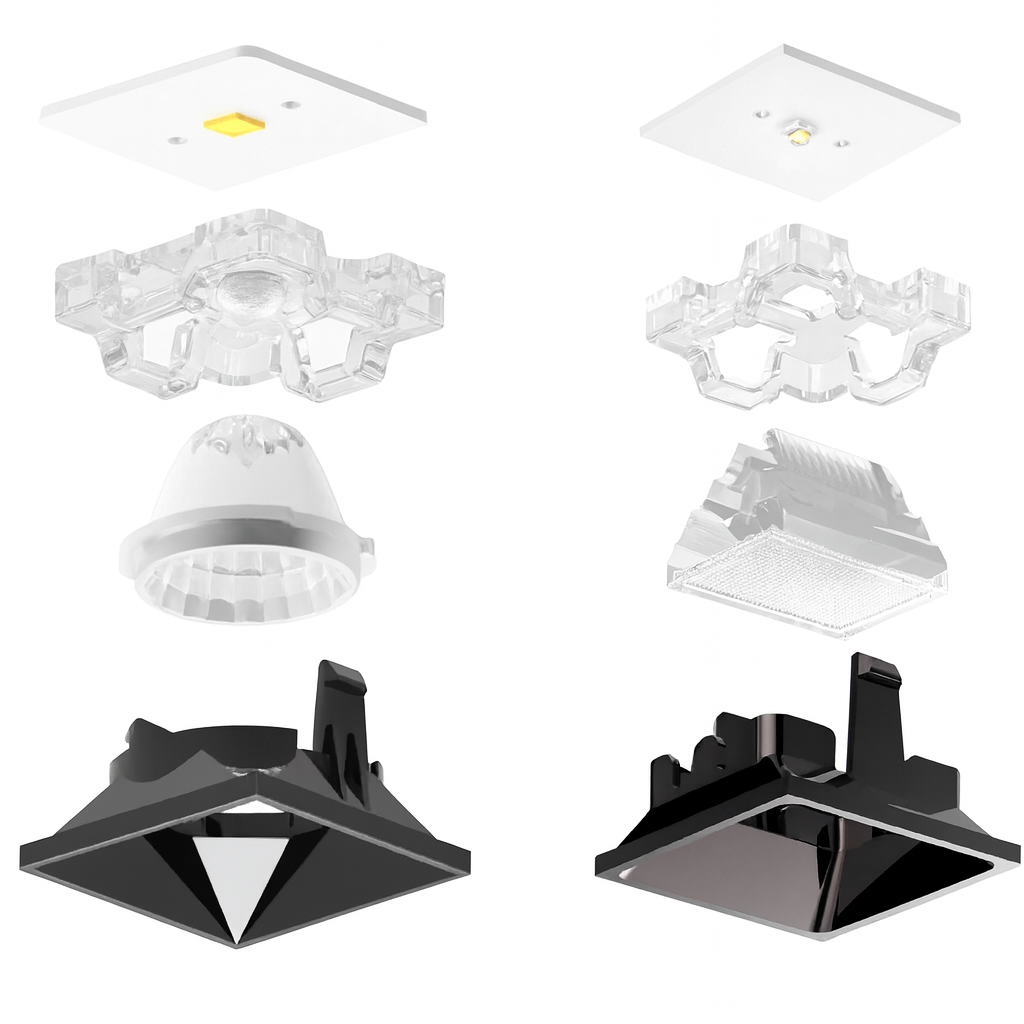

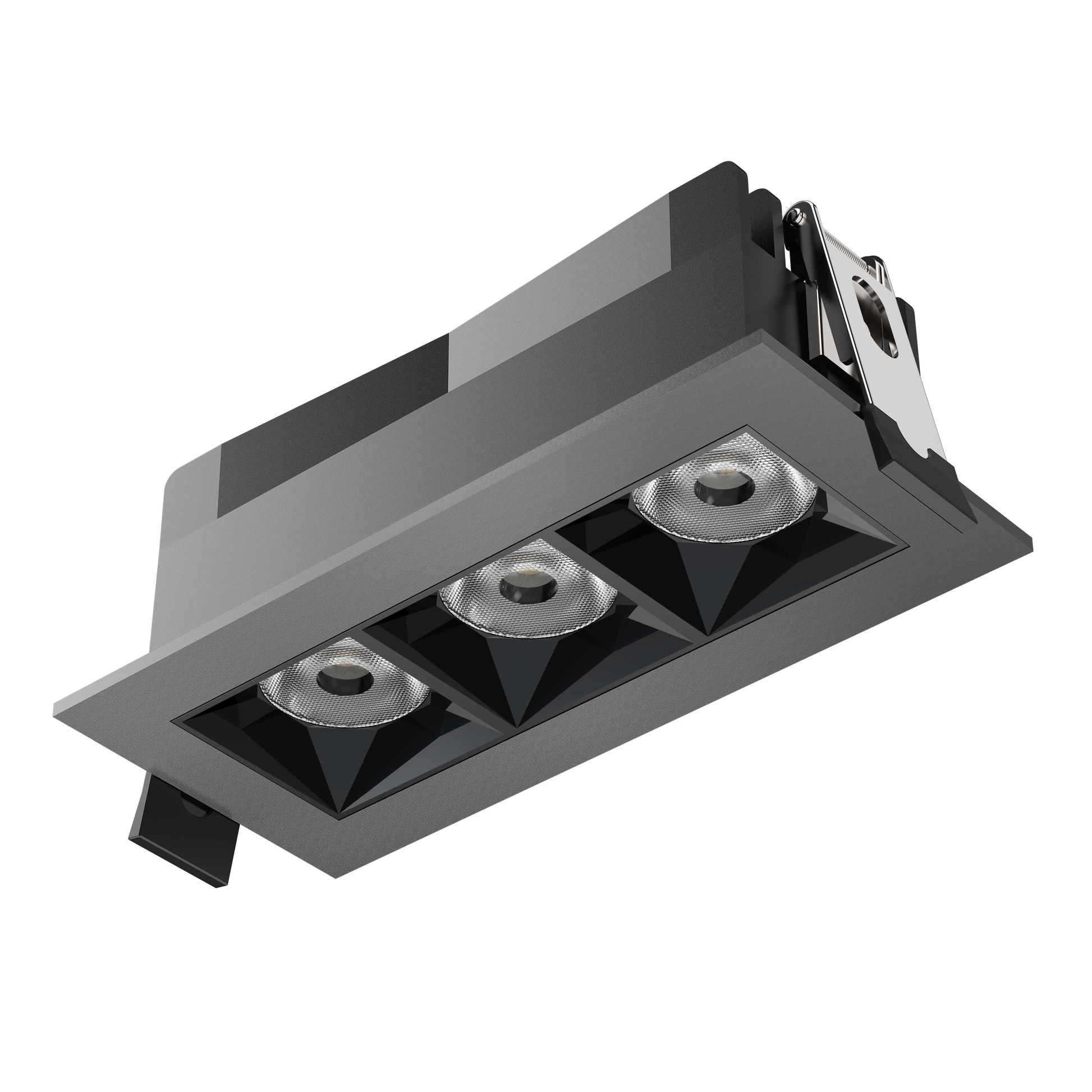

- Black, White, or Standard Gun Metal reflector options
- Junction box included
- Integrated dimmable remote driver
- IC rated
- Damp location rated
- 5-year warranty
Finish & Reflector Options
| Component | Available Options |
|---|---|
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
Specifications
| Product Type | Recessed LED Downlight |
|---|---|
| Series / Model | MR3L Micro Nugget |

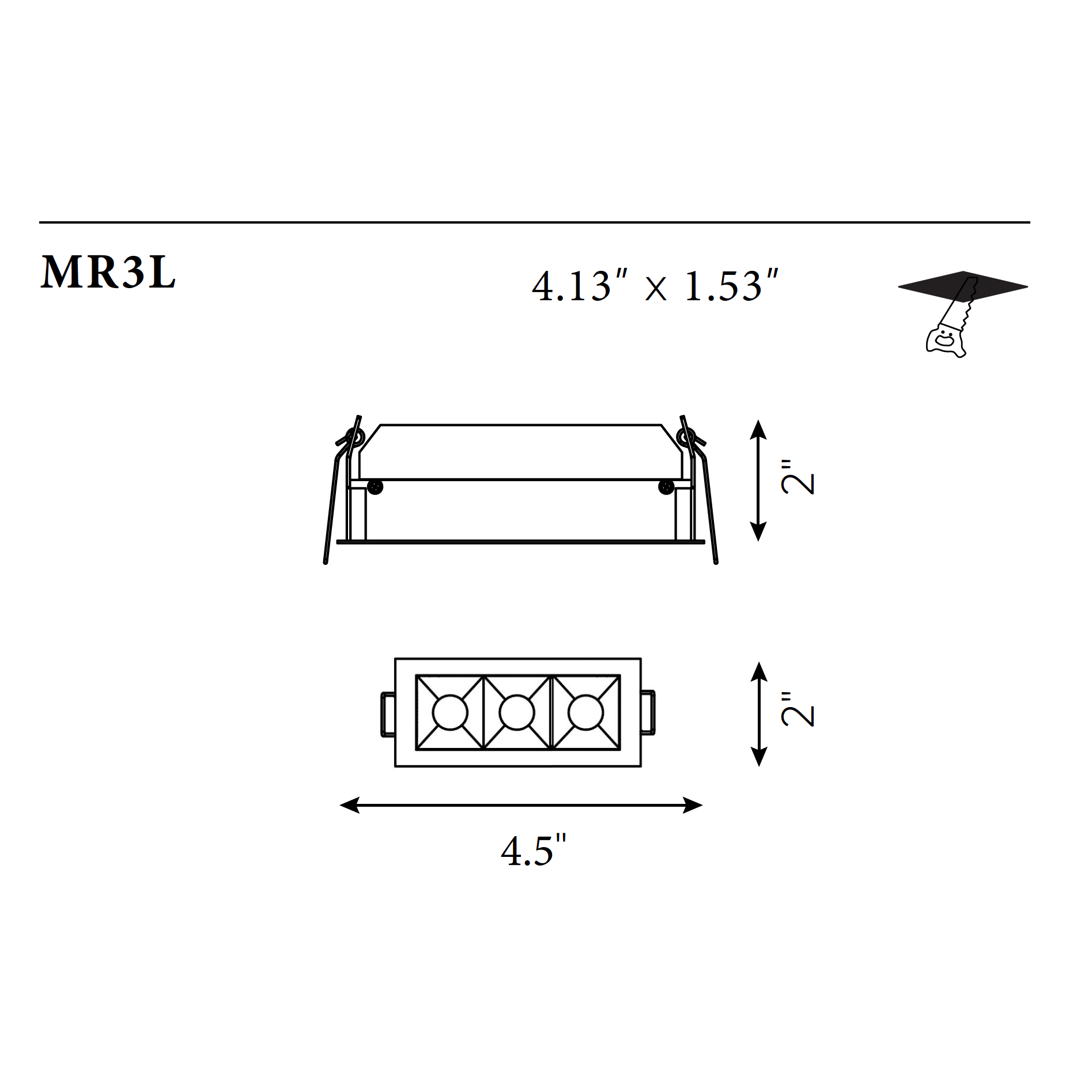

| Aperture Size | 4.5" (114 mm) |
| Power | 9W |
| Voltage | 120V |
| Color Temperature | 2700K–6500K |
| Dimming | Dimmable |
| Driver | Integrated Remote Driver |
| Junction Box | Included |
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
| IC Rating | IC Rated |
| Location Rating | Damp Location |
| Warranty | 5 Years |
Applications
- Architectural Accent Lighting
- Task Lighting
- Residential Interiors
- Commercial Interiors
- Retail Spaces
- Hospitality Environments
- Hallways and Corridors
- Offices
- Modern Ceiling Designs
Why Choose the MR3L Micro Nugget?
The MR3L Micro Nugget combines a versatile 4.5" aperture with efficient 9W LED performance, making it well suited for architectural accent and task lighting applications. Multiple trim, reflector, and color temperature options allow the fixture to integrate cleanly into a variety of residential and commercial interiors.
With an included junction box, integrated dimmable remote driver, IC rating, damp-location rating, and a 5-year warranty, the MR3L Micro Nugget provides a flexible recessed lighting solution for modern architectural environments.
