15W Trimlux Interlocking Downlight Series
15W Trimlux Interlocking Downlight Series
Couldn't load pickup availability
The 15W 4" Trimlux Interlocking Downlight Series delivers 1,000 lumens of high-quality illumination through a wider architectural aperture designed for larger residential and commercial spaces. Its trimless recessed format creates a clean, seamless ceiling appearance while providing broad, controlled illumination for modern interiors.
Featuring a 38° flood beam and CRI 90, the Trimlux provides accurate color rendering and consistent light distribution. Five selectable color temperatures, 120V TRIAC dimming, airtight construction, IC rating, and wet-location suitability provide flexibility for auditoriums, lobbies, galleries, showrooms, and open commercial environments.
Features
- 15W power consumption
- Produces 1,000 lumens
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI 90 for high-quality color rendering
- 38° flood beam
- 120V TRIAC dimmable

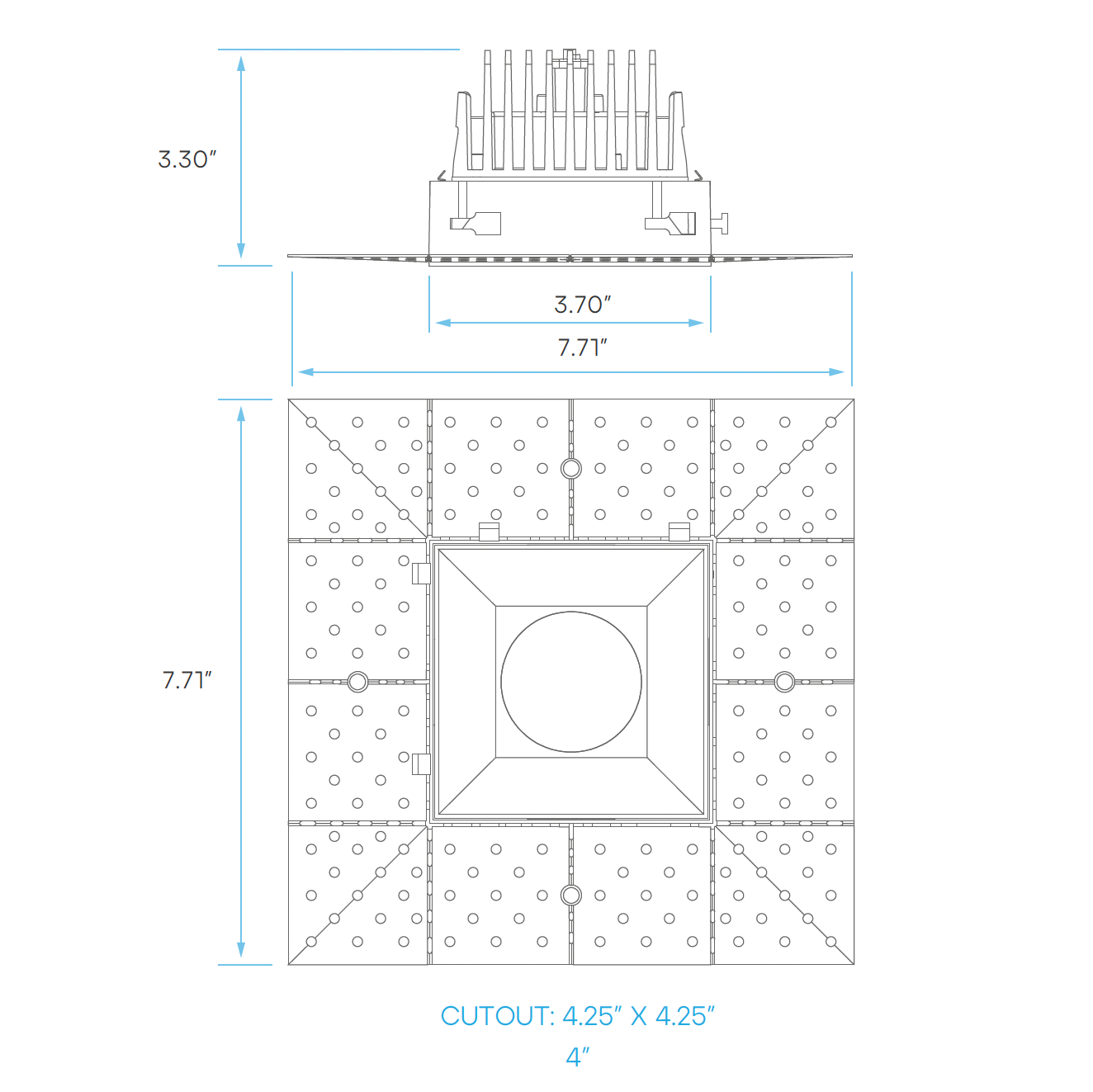

- 4.0-inch architectural aperture
- Trimless recessed design

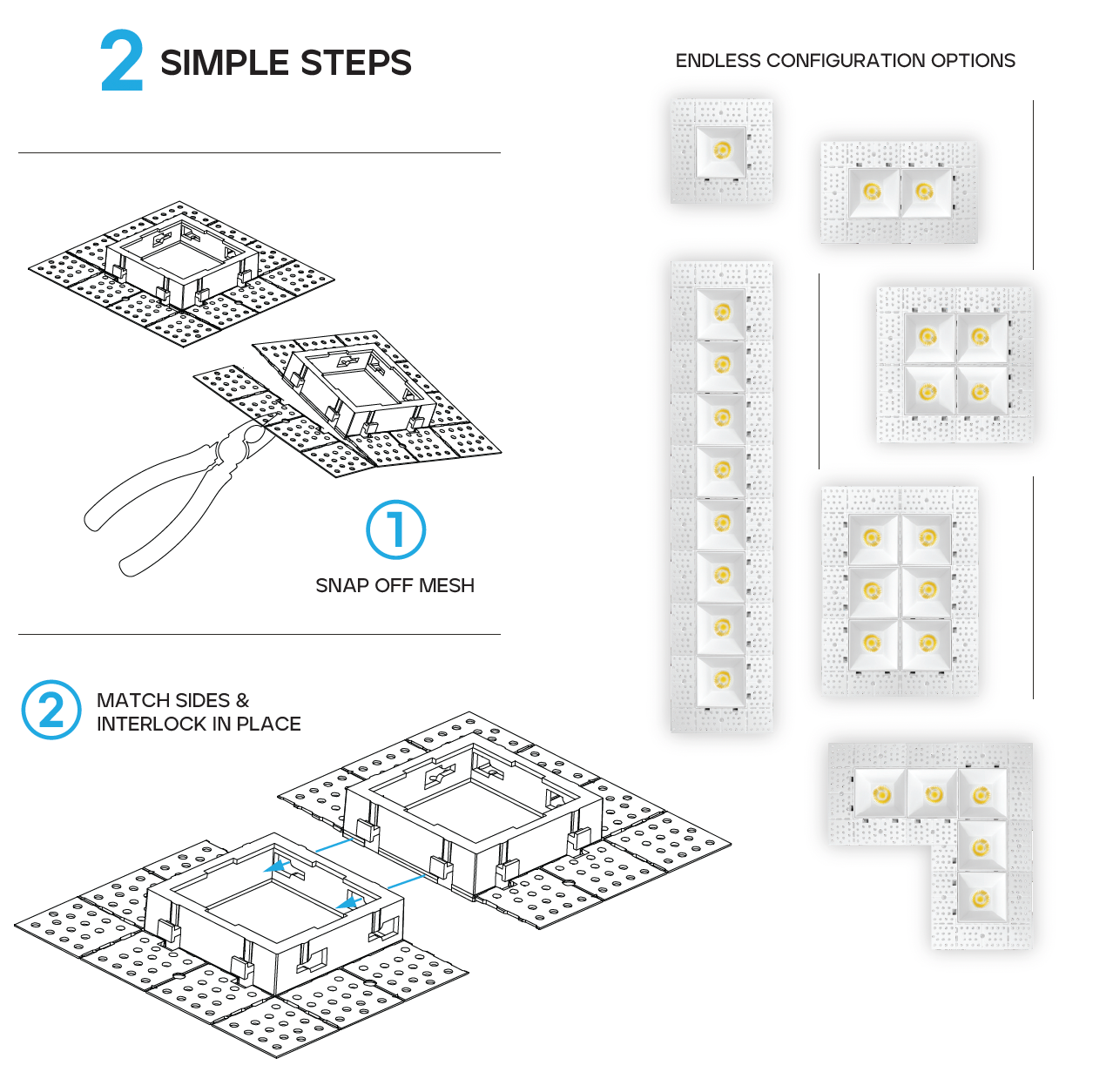

- Interlocking modular system
- Designed for seamless ceiling integration
- Airtight construction
- IC rated
- Wet-location rated
- Rated for approximately 50,000 hours
Selectable Color Temperature
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
Specifications
| Product Type | Trimless Recessed LED Downlight |
|---|---|
| Series | Trimlux Interlocking Downlight |
| Fixture Size | 4.0" |
| Power | 15W |
| Light Output | 1,000 lm |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 38° Flood |
| Input Voltage | 120V |
| Dimming | TRIAC Dimmable |
| Mounting | Trimless Recessed |
| Design | Interlocking Modular System |
| Construction Rating | Airtight / IC Rated |
| Location Rating | Wet Location |
| Rated Lifespan | Approximately 50,000 Hours |
Applications
- Auditoriums
- Lobbies & Reception Areas
- Galleries & Museums
- Showrooms
- Retail Spaces
- Open Commercial Spaces
- Hospitality Interiors
- Architectural Lighting
- Large Residential Interiors
Why Choose the Trimlux Interlocking Downlight?
The 15W 4.0-Inch Trimlux Interlocking Downlight delivers 1,000 lumens with a 38° flood beam and CRI 90, providing high-quality illumination through a wider architectural aperture. Its trimless interlocking design integrates seamlessly into the ceiling for a clean, minimal appearance suited to modern residential and commercial projects.
With five selectable color temperatures, 120V TRIAC dimming, airtight construction, IC rating, wet-location suitability, and an approximately 50,000-hour rated lifespan, the Trimlux provides a versatile recessed lighting solution for auditoriums, lobbies, galleries, showrooms, hospitality environments, and open commercial spaces.
