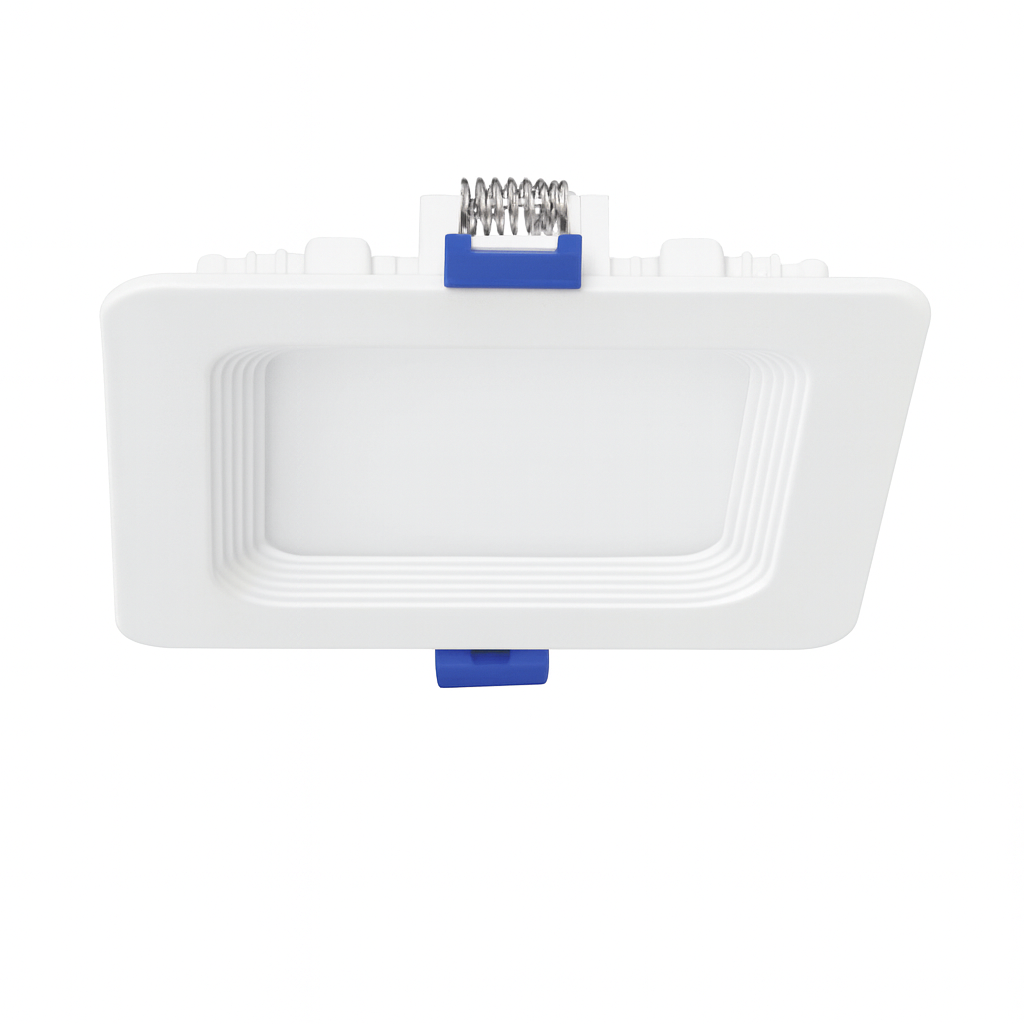

10W Panelite Square Baffle Downlight Series
10W Panelite Square Baffle Downlight Series
Couldn't load pickup availability
The 10W 4" Panelite Square Baffle Downlight Series delivers 650–850 lumens of efficient illumination for general lighting applications. Its square baffle design and wide 110° beam provide broad light distribution, making it a versatile recessed lighting solution for residential and commercial interiors.
Available in 2700K, 3000K, 4000K, and 5000K color temperature options, the fixture can accommodate a range of lighting environments from warm residential spaces to brighter commercial interiors. 120V dimming, Energy Star certification, ETL listing, and a rated lifespan of approximately 50,000 hours provide dependable performance for everyday lighting applications.
Features
- 10W power consumption
- Produces 650–850 lumens
- Available in 2700K / 3000K / 4000K / 5000K
- 110° wide beam angle
- CRI 82
- 120V dimmable
- 4.0-inch format
- Square baffle design
- Energy Star Certified
- ETL Listed
- Rated for approximately 50,000 hours
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 4000K | Natural White |
| 5000K | Daylight |
Specifications
| Product Type | Square Baffle LED Downlight |
|---|---|
| Series | Panelite Downlight |
| Fixture Size | 4.0" |
| Power | 10W |
| Light Output | 650–850 lm |
| Color Temperature | 2700K / 3000K / 4000K / 5000K |
| CRI | 82 |
| Beam Angle | 110° |
| Input Voltage | 120V |
| Dimming | Dimmable |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | Energy Star Certified / ETL Listed |
Applications
- Living Rooms
- Retail Spaces
- Offices
- Multi-Unit Housing
- Residential Interiors
- Commercial Interiors
- General Lighting
- Hallways & Common Areas
Why Choose the Square Baffle Panelite Downlight?
The 10W 4.0-Inch Square Baffle Panelite Downlight produces 650–850 lumens through a broad 110° beam angle, providing bright and evenly distributed illumination for general lighting applications. Its square baffle design provides a clean architectural appearance suitable for residential, retail, office, and multi-unit environments.
With four available color temperatures, 120V dimming, Energy Star certification, ETL listing, and an approximately 50,000-hour rated lifespan, the Panelite provides an efficient and versatile lighting solution for a wide range of residential and commercial interiors.
