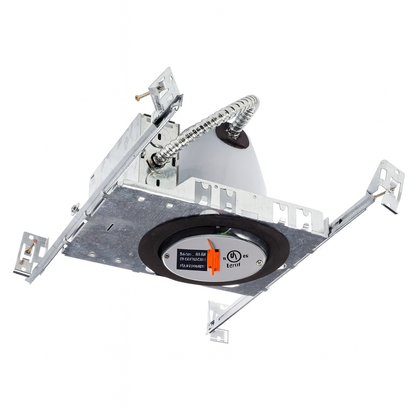

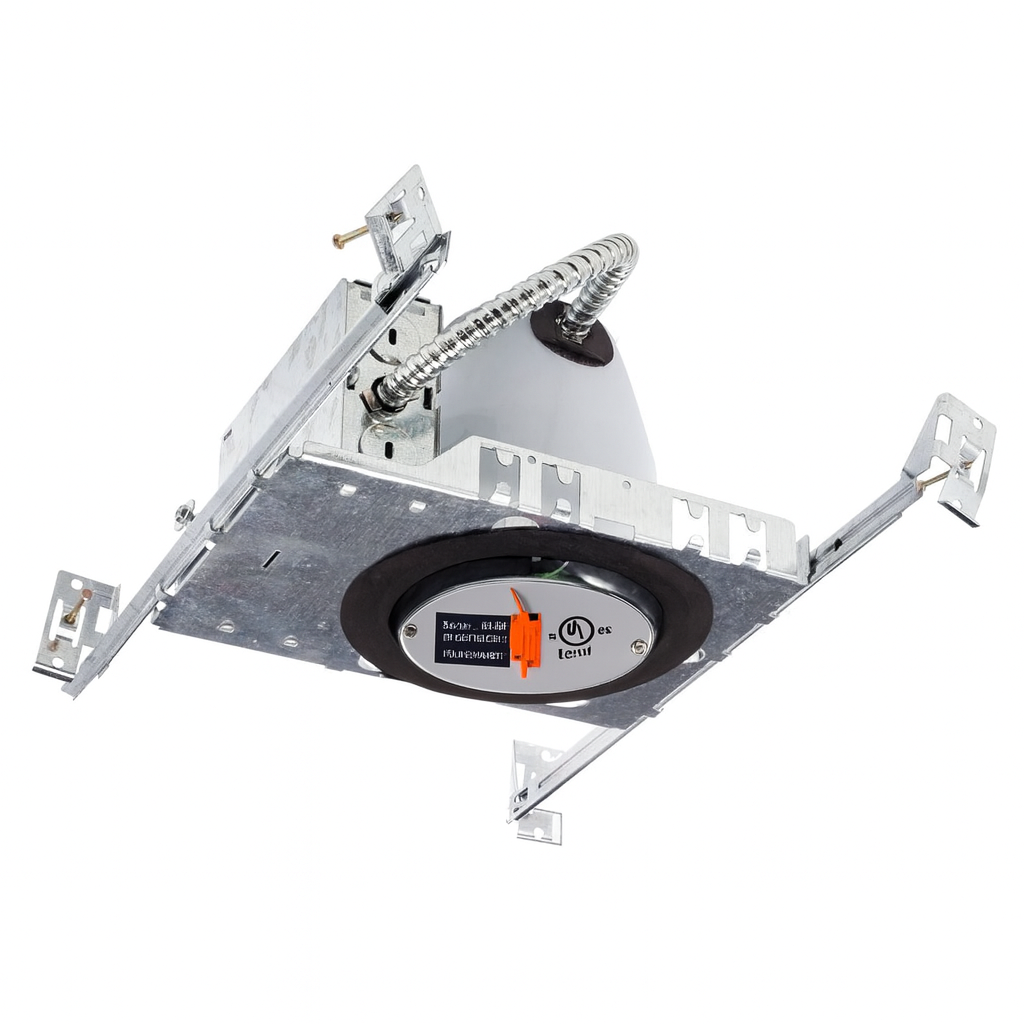

Air-Tight Line Voltage New Construction Recessed Housing
Air-Tight Line Voltage New Construction Recessed Housing
Couldn't load pickup availability
The 4" Air-Tight Line Voltage New Construction Housing is designed for professional recessed lighting installations in non-insulated ceilings. Built with a heavy-duty steel plaster frame and one-piece drawn steel housing, it provides a durable and reliable foundation for residential and commercial recessed lighting applications.
Factory-installed gaskets restrict airflow to less than 2 CFM to meet ASTM-283 Air-Tight requirements, while adjustable bar hangers, a pre-wired junction box, and Quick Connector Plug help simplify installation on new construction projects.
Features
- 4" line-voltage new construction housing
- Designed for non-insulated ceilings
- Air-Tight construction with factory-installed gaskets
- Restricts airflow to less than 2 CFM
- Meets ASTM-283 Air-Tight requirements
- Heavy-duty steel plaster frame
- One-piece drawn steel housing
- White baked enamel housing finish
- Adjustable for ceiling thicknesses from 5/8" to 1-3/8"
- Repositionable bar hangers for parallel or perpendicular installation
- Bar hangers adjust from 13-3/4" to 24-1/2"
- Quick Connector Plug included
- Pre-wired junction box
- UL-rated thermal protection
- cULus Listed for damp locations with feed-through wiring
- Wet-location compatible when used with specified trims
Specifications
| Product Type | Air-Tight Line Voltage New Construction Housing |
|---|---|
| Model | DN-4NC-QC |
| Housing Size | 4" |
| Installation Type | New Construction |
| Ceiling Type | Non-Insulated |
| Voltage Type | Line Voltage |
| Maximum Lamp Wattage | 50W |
| Air-Tight Rating | Less Than 2 CFM Airflow |
| Air-Tight Standard | ASTM-283 |
| Ceiling Thickness | 5/8"–1-3/8" |
| Bar Hanger Adjustment | 13-3/4"–24-1/2" |
| Housing Construction | One-Piece Drawn Steel |
| Plaster Frame | Heavy-Duty Steel |
| Housing Finish | White Baked Enamel |
| Junction Box | 25 cu. in. Galvanized Steel |
| Junction Box Features | Multiple Knockouts & Romex® Pryouts |
| Thermal Protection | UL-Rated Thermal Protector |
| Maximum Thermal Rating | 194°F (90°C) |
| Insulation Clearance | 3" Minimum |
| Adjacent Component Clearance | 1/2" Minimum |
| Location Rating | Damp Location / Wet Location with Specified Trim |
| Listing | cULus Listed |
Junction Box
- 25 cubic inch galvanized steel junction box
- Pre-wired for faster installation
- Multiple knockouts for wiring flexibility
- Romex® pryouts
- Feed-through wiring capability
- Quick Connector Plug included
Installation & Clearance Requirements
- Designed for non-insulated ceiling applications
- Maintain a minimum 3" clearance from insulation
- Maintain a minimum 1/2" clearance from adjacent components
- Accommodates ceiling thicknesses from 5/8" to 1-3/8"
- Adjustable bar hangers accommodate spans from 13-3/4" to 24-1/2"
- Bar hangers can be repositioned for parallel or perpendicular installation
Lamp and trim are ordered separately. Maximum lamp wattage and location rating may depend on the selected compatible trim and lamp.
Applications
- Residential New Construction
- Commercial New Construction
- Recessed Ceiling Lighting
- Living Areas
- Kitchens
- Hallways & Corridors
- Retail Spaces
- Office Interiors
- Hospitality Environments
Why Choose the DN-4NC-QC?
The DN-4NC-QC combines durable steel construction with an ASTM-283 Air-Tight design to provide a professional foundation for recessed lighting installations. Adjustable bar hangers, a pre-wired junction box, and Quick Connector Plug help streamline installation during new construction.
With thermal protection, flexible mounting options, damp-location listing, and compatibility with appropriate wet-location trims, this 4" housing provides a dependable solution for residential and commercial recessed lighting projects.
