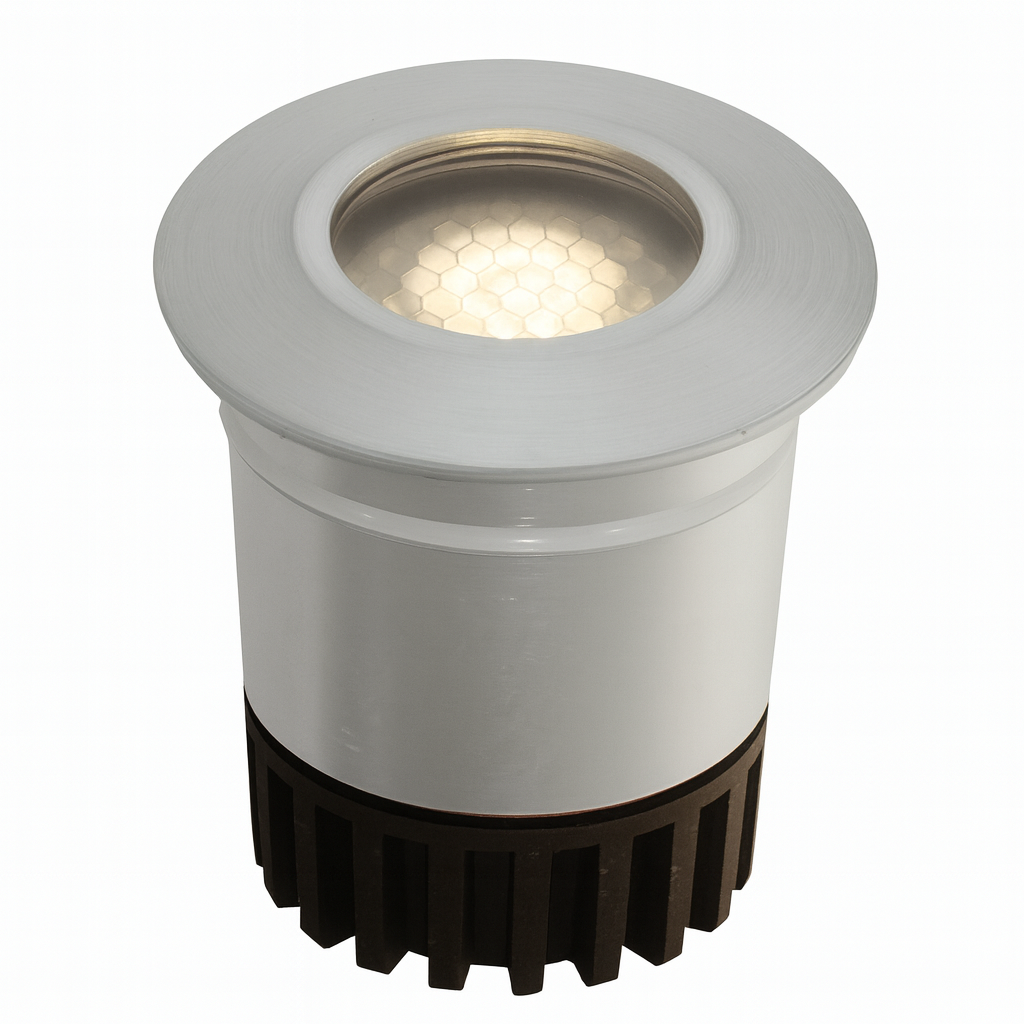

3W Port LED Round Wall/Floor Recessed Light
3W Port LED Round Wall/Floor Recessed Light
Couldn't load pickup availability
The 3W PORT LED Round Recessed Series is a durable architectural lighting solution designed for precise wall, floor, pathway, and landscape illumination. Featuring a compact recessed profile, 16° focused beam, tempered glass lens, and marine-grade aluminum trim, the PORT Series is suitable for both indoor and wet-location installations when used with the appropriate electrical box.
Operating at 12VAC, the fixture produces 95 lumens of warm white illumination with a rated life of approximately 50,000 hours. Its beveled-edge design and Satin Aluminum finish provide a clean architectural appearance for residential, hospitality, commercial, and landscape applications.
Features
- 3W LED power consumption
- 12VAC operation
- Produces 95 lumens
- 3029K Warm White color temperature
- CRI 80
- 16° beam angle for precise focused illumination
- Marine-grade aluminum beveled-edge trim
- Satin Aluminum finish
- Tempered glass lens
- Round or square beveled-edge trim options
- Suitable for wall or floor installations
- Wet-location compatible when installed with an appropriate wet-location electrical box
- Dimmable down to approximately 30% without flicker when used with a compatible transformer and dimmer
- Approximately 50,000-hour rated life at 70% lumen maintenance
- 5-year warranty
Specifications
| Product Type | Recessed Architectural LED Light |
|---|---|
| Series | PORT LED Series |
| Shape | Round |
| Power | 3W |
| Input Voltage | 12VAC |
| Light Output | 95 lm |
| Color Temperature | 3029K – Warm White |
| CRI | 80 |
| Beam Angle | 16° |
| Trim Material | Marine-Grade Aluminum |
| Finish | Satin Aluminum |
| Lens | Tempered Glass |
| Width | 2.25" |
| Depth | 4" |
| Trim Options | Round / Square Beveled Edge |
| Dimming | Down to 30% with Compatible Electronic or Magnetic Dimmer |

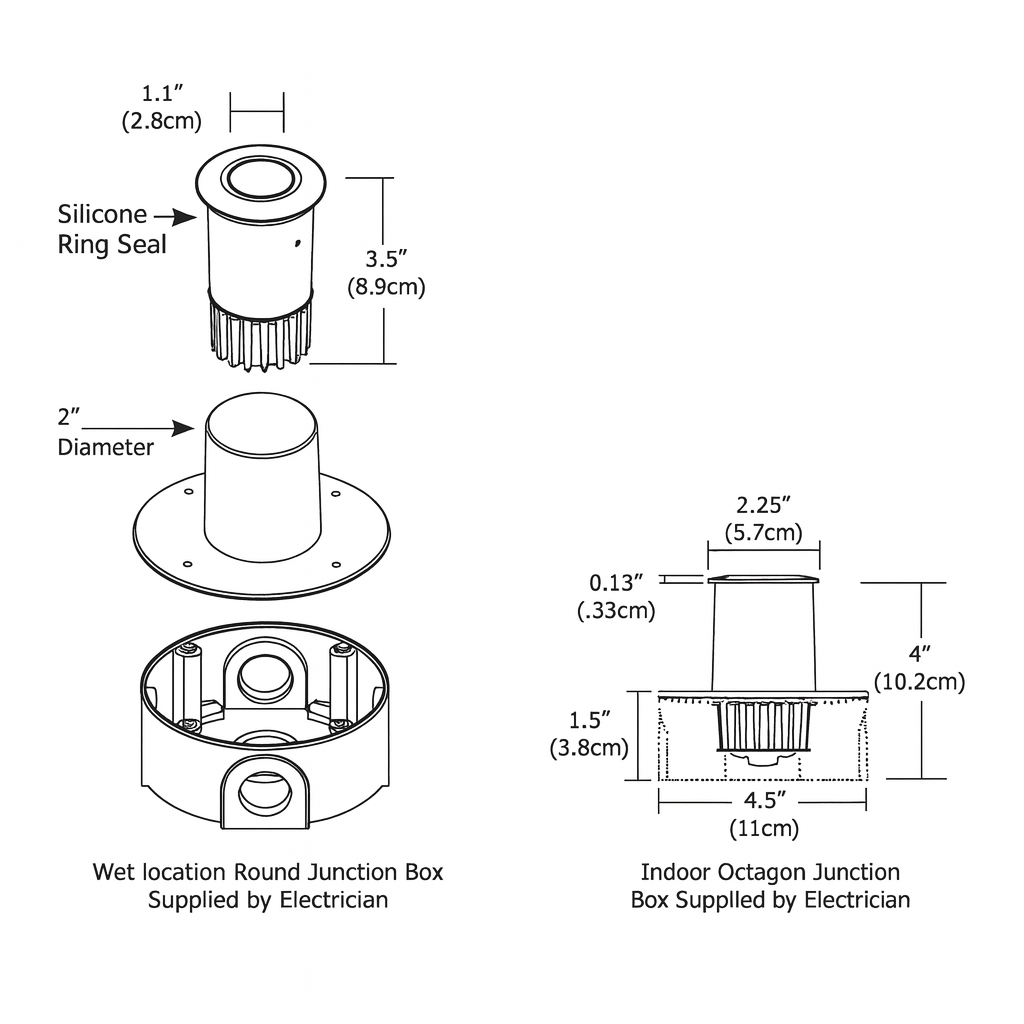

| Location Rating | Wet Location with Appropriate Wet-Location Electrical Box / Indoor with Standard Octagon Box |
| Rated Life | 50,000 Hours at 70% Lumen Maintenance |
| Warranty | 5 Years |
Compatible Power Supplies
| Model | Type |
|---|---|
| TE-60L-12 | Electronic Remote Power Supply |
| T-150-12 | Magnetic Remote Power Supply |
| T-300-12 | Magnetic Remote Power Supply |
Remote transformer is required and sold separately. Dimming performance depends on the selected transformer and compatible dimmer.
Accessories
- PORT-LL(H) accessory for use with dichroic color filters – sold separately
- Junction box cover – sold separately
- Wood spring clips – sold separately
- Remote transformer – sold separately
Applications
- Pathway Lighting
- Step & Stair Lighting
- Architectural Wall Lighting
- Wall Washing
- Landscape Lighting
- Patio & Outdoor Lighting
- Indoor Floor Lighting
- Wall Accent Lighting
- Hospitality Environments
- Residential & Commercial Architectural Lighting
Why Choose the PORT LED Series?
The PORT LED Series combines a compact recessed design with a precise 16° beam angle for controlled architectural illumination. Its marine-grade aluminum trim, tempered glass lens, and wet-location installation capability make it a versatile choice for both interior and exterior applications.
With a 50,000-hour rated life, dimming capability, interchangeable trim options, and compatibility with electronic or magnetic remote power supplies, the PORT Series provides a durable and flexible solution for pathway, step, wall, floor, landscape, and architectural accent lighting.
