Diamond Brite LEDs
36W QuadLamp C Series
36W QuadLamp C Series
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability

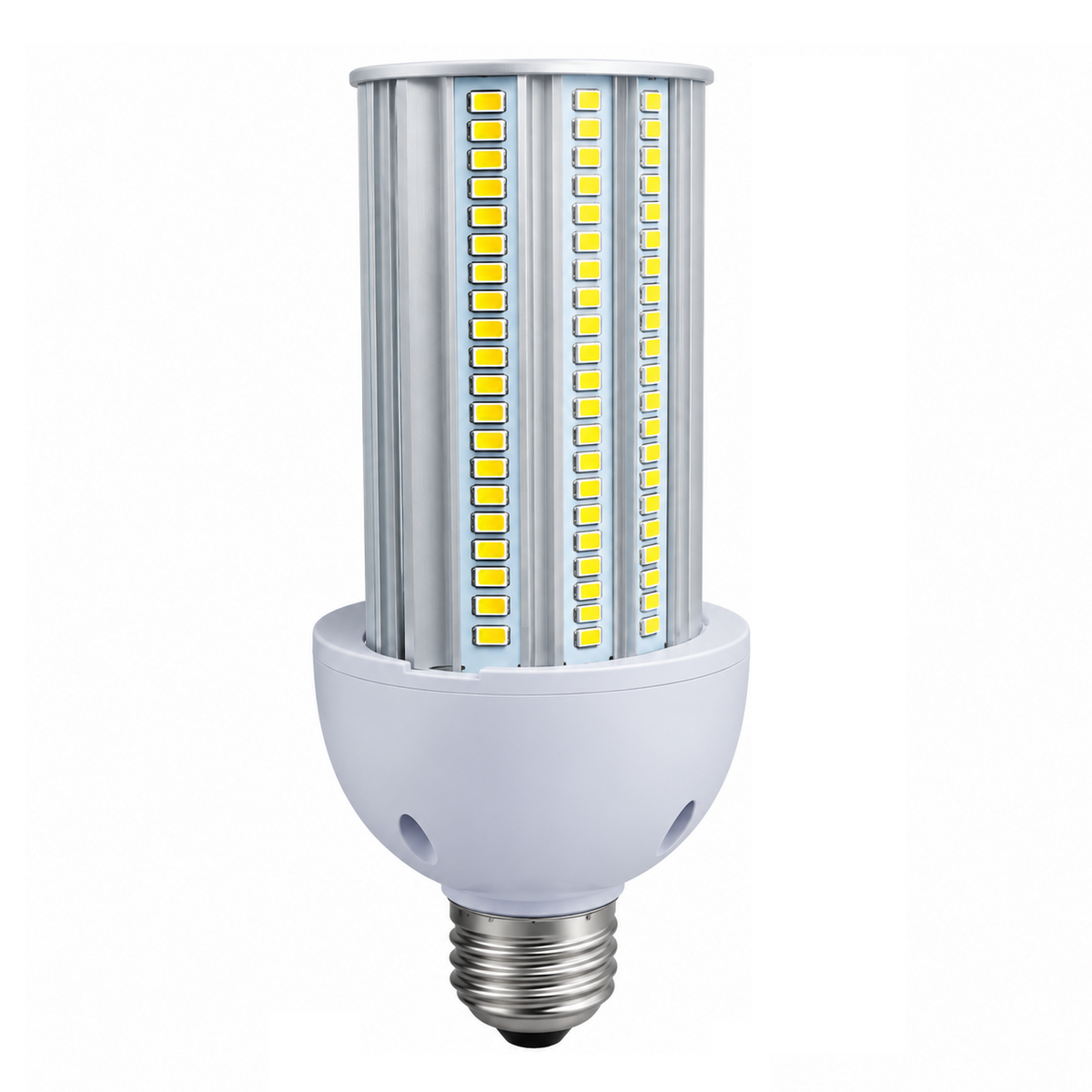

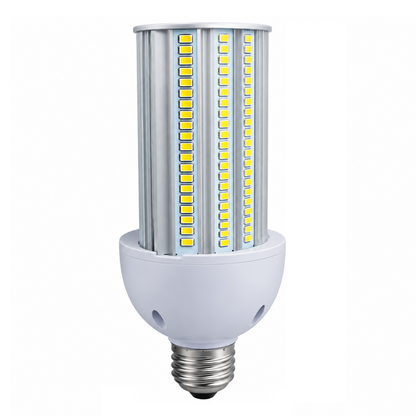

The 36W QuadLamp C Series delivers efficient, high-output illumination for commercial, industrial, street, and retrofit lighting applications. Producing 4,320 lumens, it provides an energy-efficient alternative to traditional CFL, metal halide, HPS, HID, and incandescent lamps.
Powered by 120 Samsung 2835 SMD LEDs, the QuadLamp C provides broad 180° light distribution with durable IP64 construction and an aluminum thermal management structure.
Features
- 36W LED power consumption
- Produces 4,320 lumens
- 120 Samsung 2835 SMD LEDs
- Up to 120 lm/W efficacy
- 180° beam angle
- CRI >83
- Power factor >0.95
- 85–305V AC operation
- E26 / E27 / E39 / E40 base options
- Clear or frosted lampshade options
- IP64 ingress protection
- 50,000-hour rated lifespan
- UL/cUL, CE & RoHS certified
- 2-year warranty
Color Temperature Options
- Amber 585nm
- 2700K
- 3000K
- 4000K
- 5000K
- 5700K
- 6500K
Specifications
| Product Type | LED Retrofit Lamp |
| Series | QuadLamp C Series |
| Power | 36W |
| Light Output | 4,320 lm |
| LED Source | Samsung 2835 SMD |
| LED Quantity | 120 LEDs |
| Input Voltage | 85–305V AC |
| Base Options | E26 / E27 / E39 / E40 |
| Lampshade | Clear or Frosted |
| CRI | >83 |
| Power Factor | >0.95 |
| Beam Angle | 180° |
| IP Rating | IP64 |
| E27 Dimensions | Ø3.5" × 8.3" (Ø90 × 210 mm) |

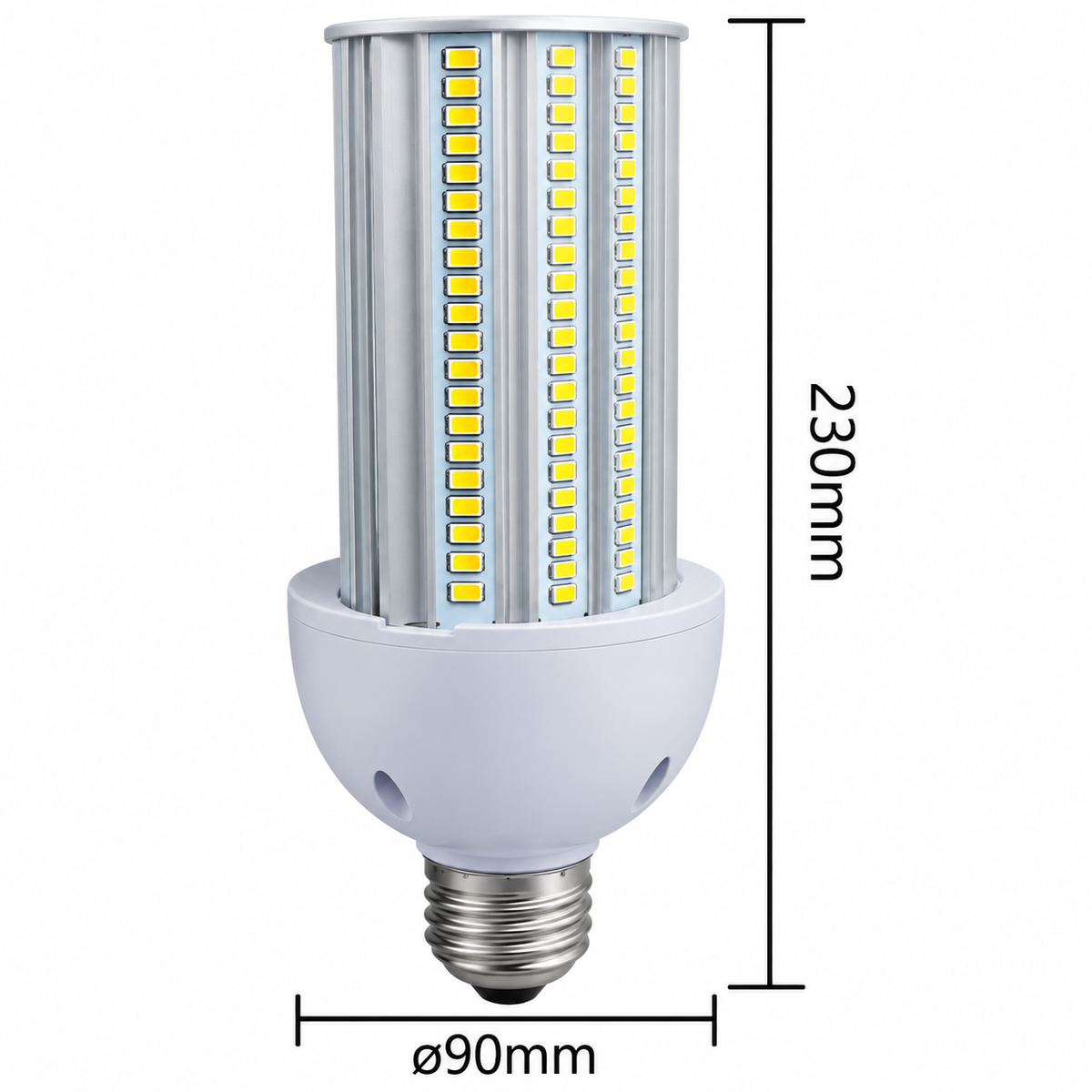

| E40 Dimensions | Ø3.5" × 9.1" (Ø90 × 230 mm) |
| Net Weight | 1.76 lbs (800 g) |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rated Life | 50,000 Hours |
| Warranty | 2 Years |
Traditional Lamp Replacement
- 75W CFL
- 120W Metal Halide / HPS / HID
- 300W Incandescent
Applications
- Street & Roadway Lighting
- Post-Top Fixtures
- Commercial Lighting
- Industrial Lighting
- Area Lighting
- Retrofit Applications
Why Choose the 36W QuadLamp C?
The 36W QuadLamp C Series produces 4,320 lumens with broad 180° illumination. Samsung LEDs, multiple base options, IP64 protection, and a 50,000-hour rated lifespan provide a durable solution for replacing traditional high-consumption lamps.
