Diamond Brite LEDs
30W Clima Corn Lamp Series
30W Clima Corn Lamp Series
Couldn't load pickup availability

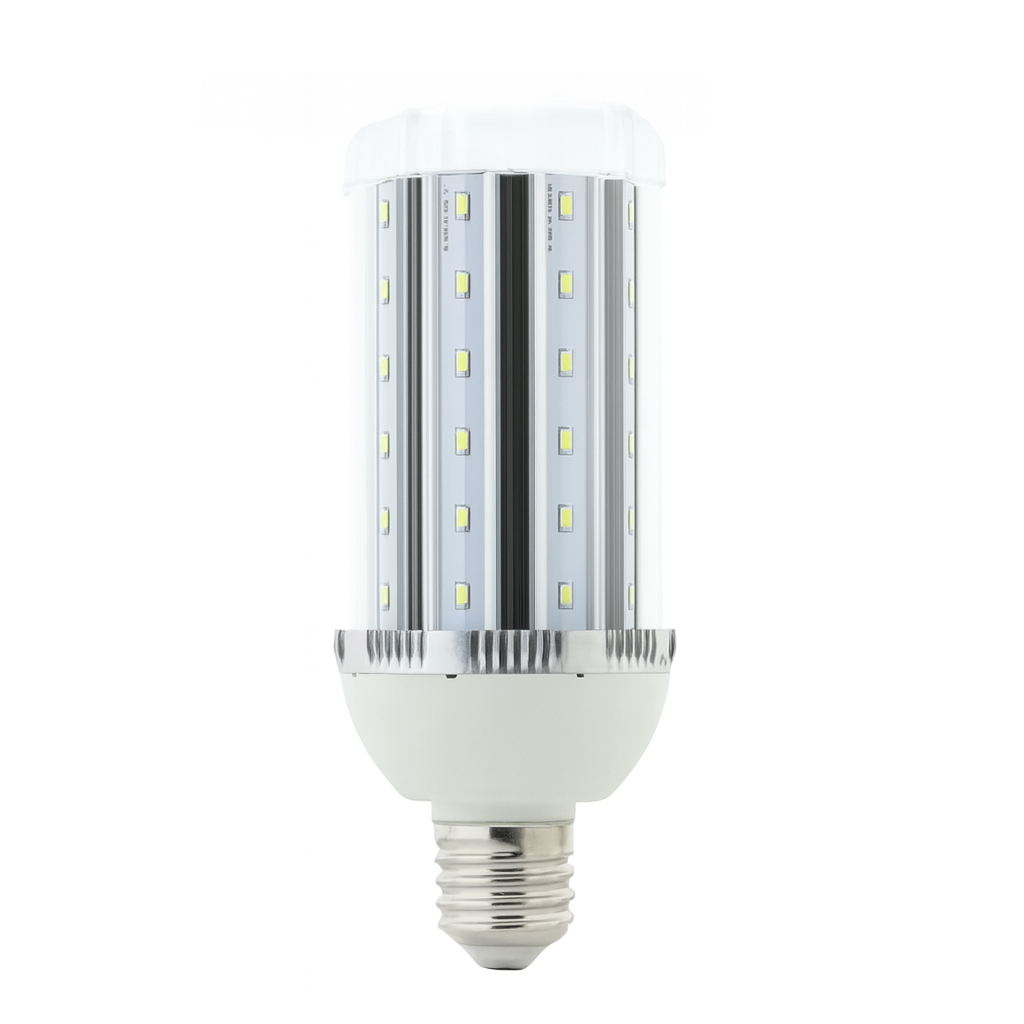

The 30W Clima Corn Lamp Series delivers powerful, energy-efficient illumination with full 360° light distribution. Producing 2,500 lumens while consuming only 30 watts, the Clima provides an efficient alternative to traditional 150W incandescent, halogen, HID, or CFL lighting.
Powered by 65 Epistar high-power LEDs and a built-in isolated driver, the Clima is engineered for reliable performance and efficient heat management. With multiple base options, three color temperatures, and an approximately 50,000-hour rated life, it provides a versatile solution for residential, commercial, and industrial lighting applications.
Features
- 30W LED replaces up to 150W incandescent, halogen, HID, or CFL lighting
- Produces 2,500 lumens
- 65 × Epistar high-power LEDs
- Built-in isolated driver
- 360° beam angle for full, even light distribution
- Available in 3000K, 4500K & 6500K
- E26/E27 medium or E39/E40 mogul base options
- Wide-range 100–240V AC, 50/60Hz operation
- CRI >80 for accurate color rendering
- Power factor >0.90
- Aluminum + PVC construction
- Approximately 50,000-hour rated life
- Non-dimmable
- IP40 rated
- UL, CE, RoHS & FCC certified
- 2-year warranty
Color Temperature & Lumen Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 2,500 lm |
| 4500K | Soft White | 2,500 lm |
| 6500K | Bright White | 2,500 lm |
Base Options
- E26 / E27 Medium Screw-In Base
- E39 / E40 Mogul Screw-In Base
Specifications
| Product Type | LED Corn Lamp |
|---|---|
| Series | Clima Corn Lamp Series |
| Model | CL-30W |
| Power | 30W |
| Equivalent Wattage | Up to 150W Incandescent / Halogen / HID / CFL |
| Light Output | 2,500 lm |
| Input Voltage | 100–240V AC, 50/60Hz |
| LED Source | 65 × Epistar High-Power LEDs |
| Driver | Built-In Isolated Driver |
| Base Options | E26 / E27 Medium or E39 / E40 Mogul |
| Color Temperatures | 3000K / 4500K / 6500K |
| CRI | >80 |
| Beam Angle | 360° |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable |
| Material | Aluminum + PVC |
| Diameter | 3.3" (85 mm) |
| Height | 9.8" (250 mm) |
| Weight | 0.65 lbs |
| IP Rating | IP40 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | Approximately 50,000 Hours |
| Certifications | UL / CE / RoHS / FCC |
| Warranty | 2 Years |
Outdoor Use
Important: The Clima Corn Lamp is rated IP40 and is not designed for direct exposure to rain or water. For outdoor applications, install only inside a suitable enclosed and weather-protected fixture.
Applications
- Recessed Can Fixtures
- Post Light Fixtures
- Street Lighting Fixtures
- Ceiling Fixtures
- Area Lighting
- Commercial Facilities
- Industrial Facilities
- Residential Lighting
- Enclosed & Weather-Protected Outdoor Fixtures
Why Choose the Clima Corn Lamp Series?
The Clima Corn Lamp Series produces 2,500 lumens using only 30W while providing full 360° light distribution. Its selectable E26/E27 and E39/E40 base options make it a versatile replacement for traditional high-wattage lamps across a variety of fixture types.
With 65 Epistar high-power LEDs, a built-in isolated driver, durable aluminum and PVC construction, three color temperature options, and an approximately 50,000-hour rated life, the Clima Series provides an efficient lighting solution for residential, commercial, industrial, and properly enclosed outdoor applications.
