Diamond Brite LEDs
15W TrimLux Interlocking Trimless Module Series - 3 Inch
15W TrimLux Interlocking Trimless Module Series - 3 Inch
Couldn't load pickup availability

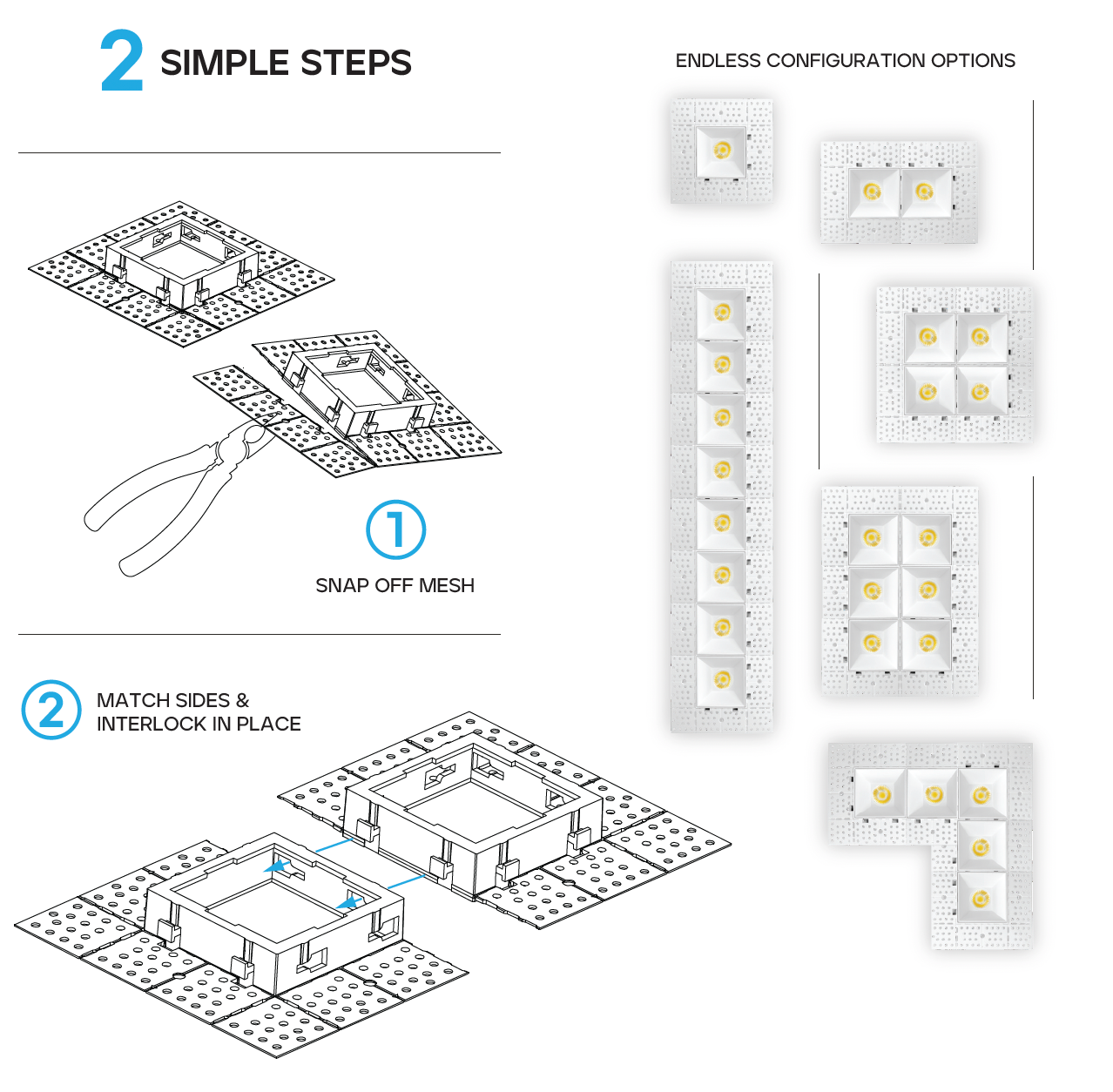

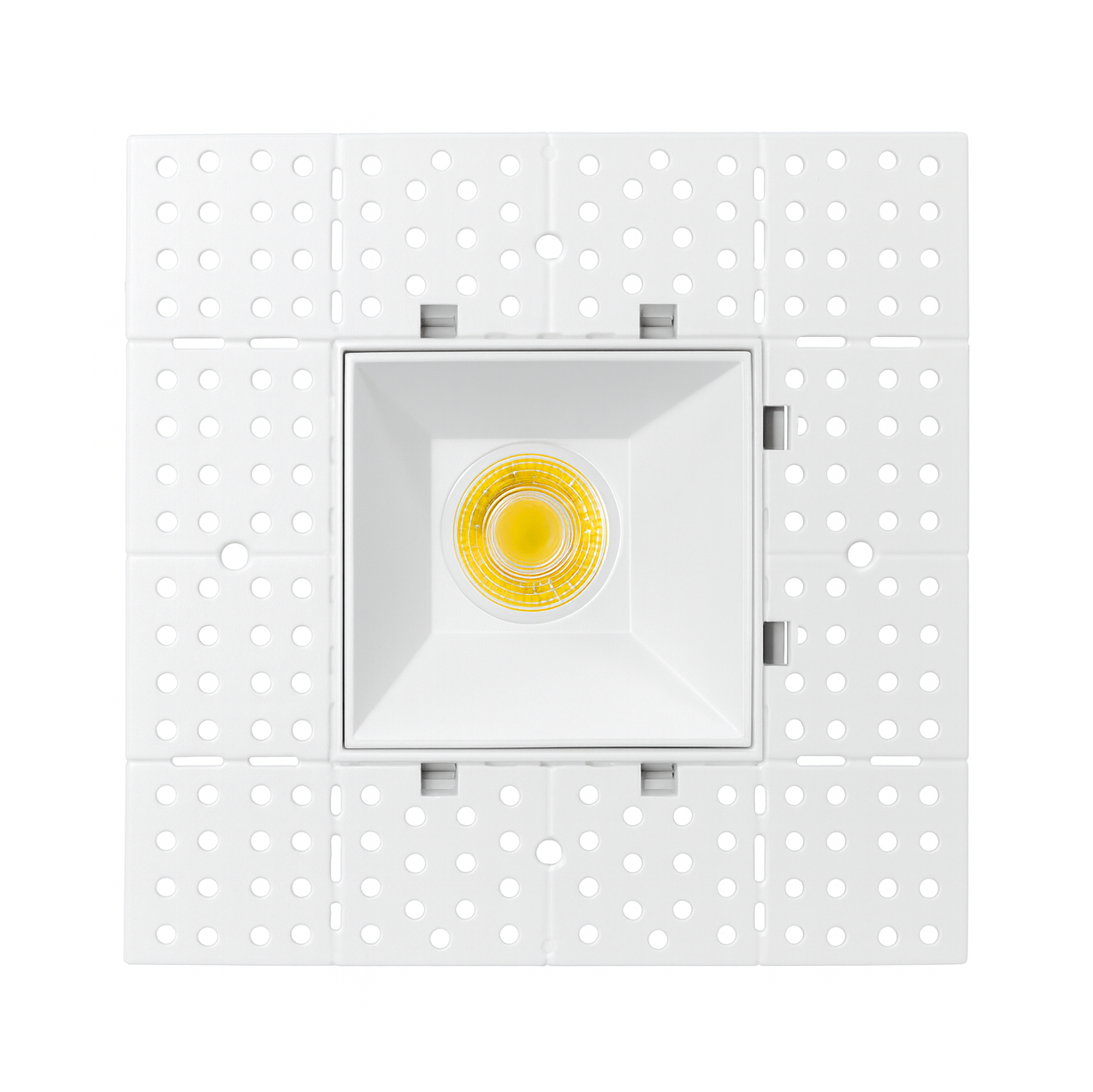

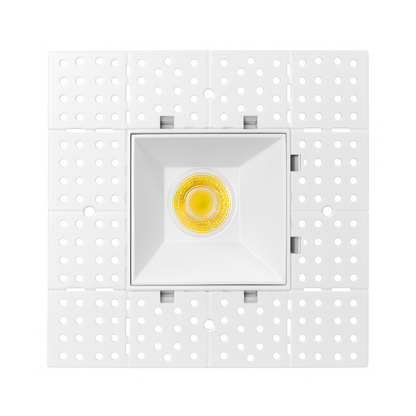

The 15W TrimLux Interlocking Trimless Module Series is a 3-inch canless architectural LED spotlight delivering 1,000 lumens from a clean, trimless square aperture. Its modular interlocking mesh design allows individual fixtures to connect together for customized architectural lighting arrangements.
With 5-CCT selectable technology, CRI 90 color rendering, a 38° flood beam, and 120V dimmable operation, the 3-inch TrimLux provides flexible illumination for residential, hospitality, retail, and commercial environments.
Features
- 15W LED power consumption
- Produces 1,000 lumens
- 3-inch trimless module
- 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI 90
- 38° flood beam
- 120V operation
- Dimmable
- IC rated
- Air tight
- Wet location rated
- Canless installation
- Interlocking trimless mesh system
- ETL Listed
- 50,000-hour rated life
- 5-year warranty
Color Temperature Options
| Setting | Description |
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
Specifications
| Product Type | Canless Trimless LED Spotlight |
| Series | TrimLux Interlocking Trimless Module Series |
| Model | LR25485 |
| Size | 3" |
| Power | 15W |
| Light Output | 1,000 lm |
| Efficacy | 67 lm/W |
| Input Voltage | 120V |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 38° Flood |
| Dimming | Dimmable |
| Location Rating | Wet Location Rated |
| IC Rating | IC Rated |
| Construction | Air Tight |

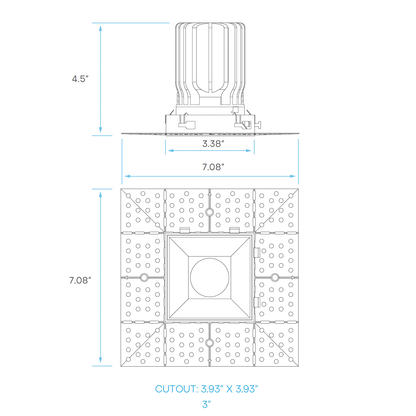

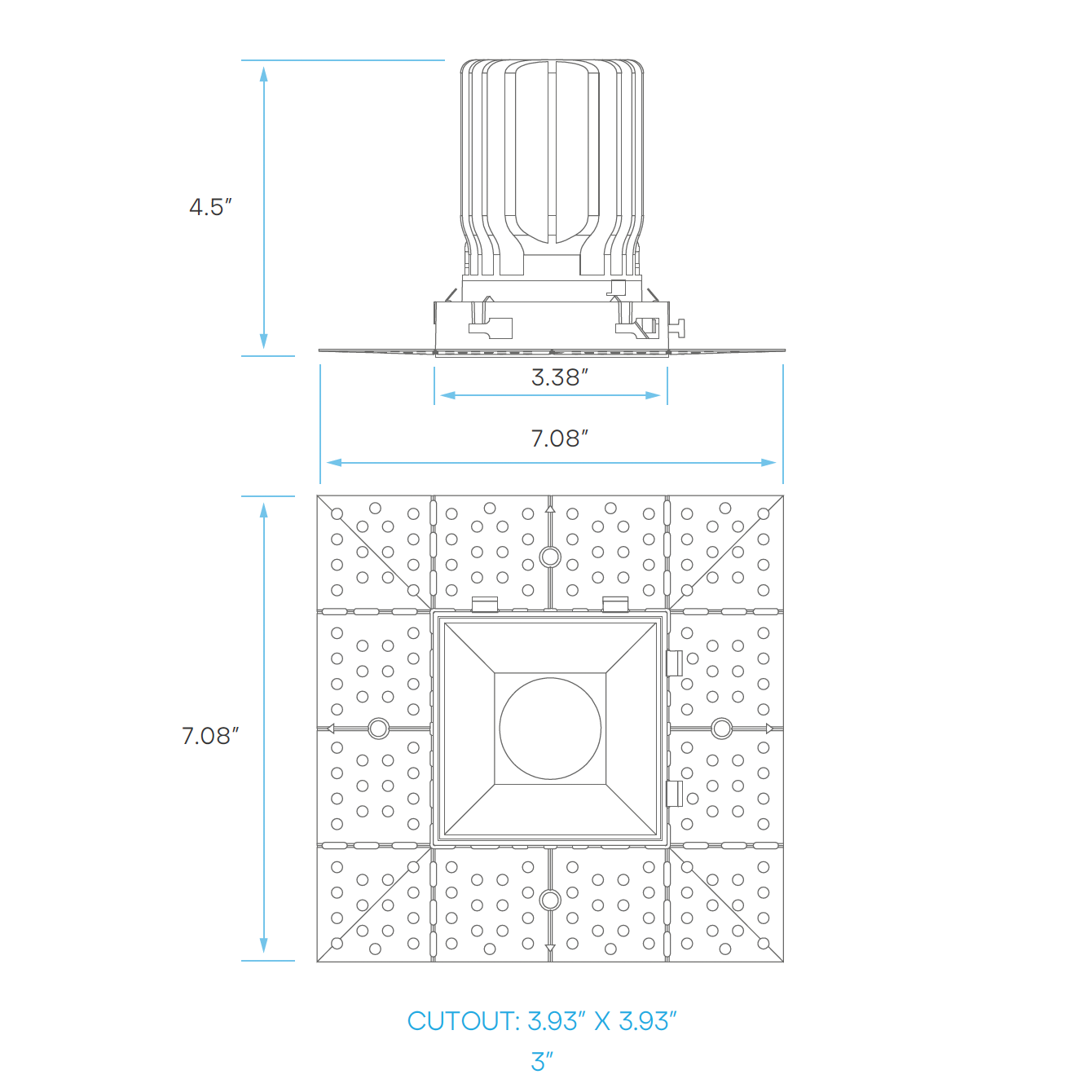

| Cutout | 3.93" × 3.93" |
| Rated Life | 50,000 Hours |
| Listing | ETL Listed |
| Warranty | 5 Years |
Applications
- Residential Interiors
- Commercial Interiors
- Retail Stores
- Restaurants
- Hotels
- Display Lighting
- Accent Lighting
- Architectural Lighting
Why Choose the 15W 3" TrimLux?
The 15W 3-inch TrimLux Interlocking Trimless Module provides 1,000 lumens of high-quality CRI 90 illumination with a clean architectural appearance. Its interlocking mesh construction allows multiple fixtures to be combined into custom lighting patterns while preserving a seamless trimless finish.
