Diamond Brite LEDs
Square Trimless Gimbal Trim – TS6733 Series
Square Trimless Gimbal Trim – TS6733 Series
Couldn't load pickup availability

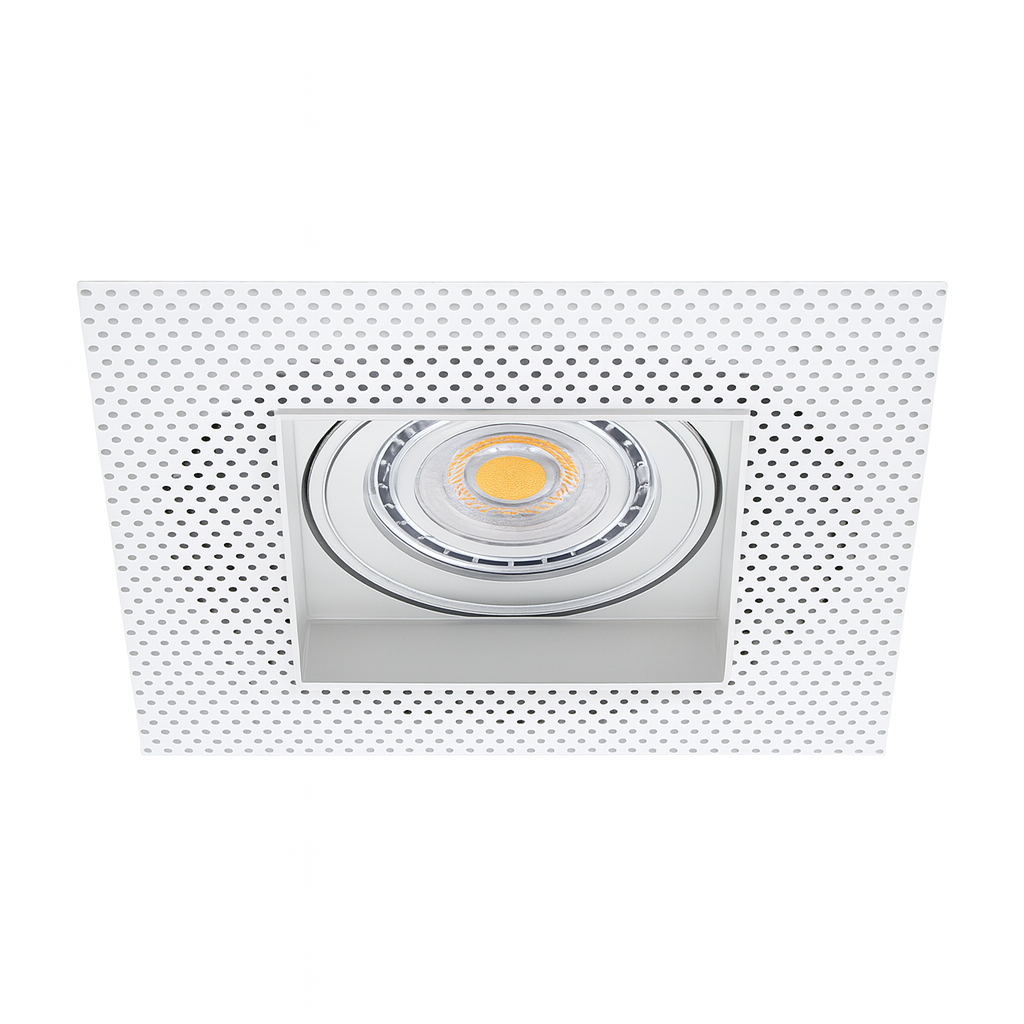

The TS6733 Series 3" Square Trimless Gimbal Trim offers a clean, modern architectural solution for precision accent and directional lighting. Designed specifically for compatible new construction GU-10 housings, its adjustable gimbal provides flexible aiming while maintaining a seamless trimless ceiling appearance.
Compatible with MR-16 and GU-10 lamps, the TS6733 Series allows convenient lamp access from below through a twist-and-lock mechanism. Available in Matte White or Matte Black, the powder-coated finish provides a refined appearance with added abrasion resistance.
Features
- 3" square trimless gimbal design
- Adjustable directional aiming
- Designed for new construction GU-10 housings
- Suitable for low-voltage and line-voltage applications
- Compatible with MR-16 or GU-10 lamps
- Twist-and-lock lamp access from below
- Clear lens included
- Steel mounting clips for secure housing attachment
- Powder-coated finish for abrasion resistance
- Available in Matte White or Matte Black
- Clean, seamless architectural ceiling integration
Finish Options
- Matte White
- Matte Black
Specifications
| Product Type | Trimless Gimbal Trim |
|---|---|
| Series | TS6733 Series |
| Fixture Size | 3" |
| Shape | Square |
| Installation | Recessed / Trimless |
| Application Voltage | Low Voltage & Line Voltage |
| Compatible Housing | New Construction GU-10 Housing |
| Lamp Compatibility | MR-16 / GU-10 |
| Lamp Access | Bottom Access / Twist-and-Lock |
| Lens | Clear Lens Included |
| Mounting | Steel Metal Clips |
| Finish | Matte White / Matte Black |
| Finish Type | Powder-Coated |

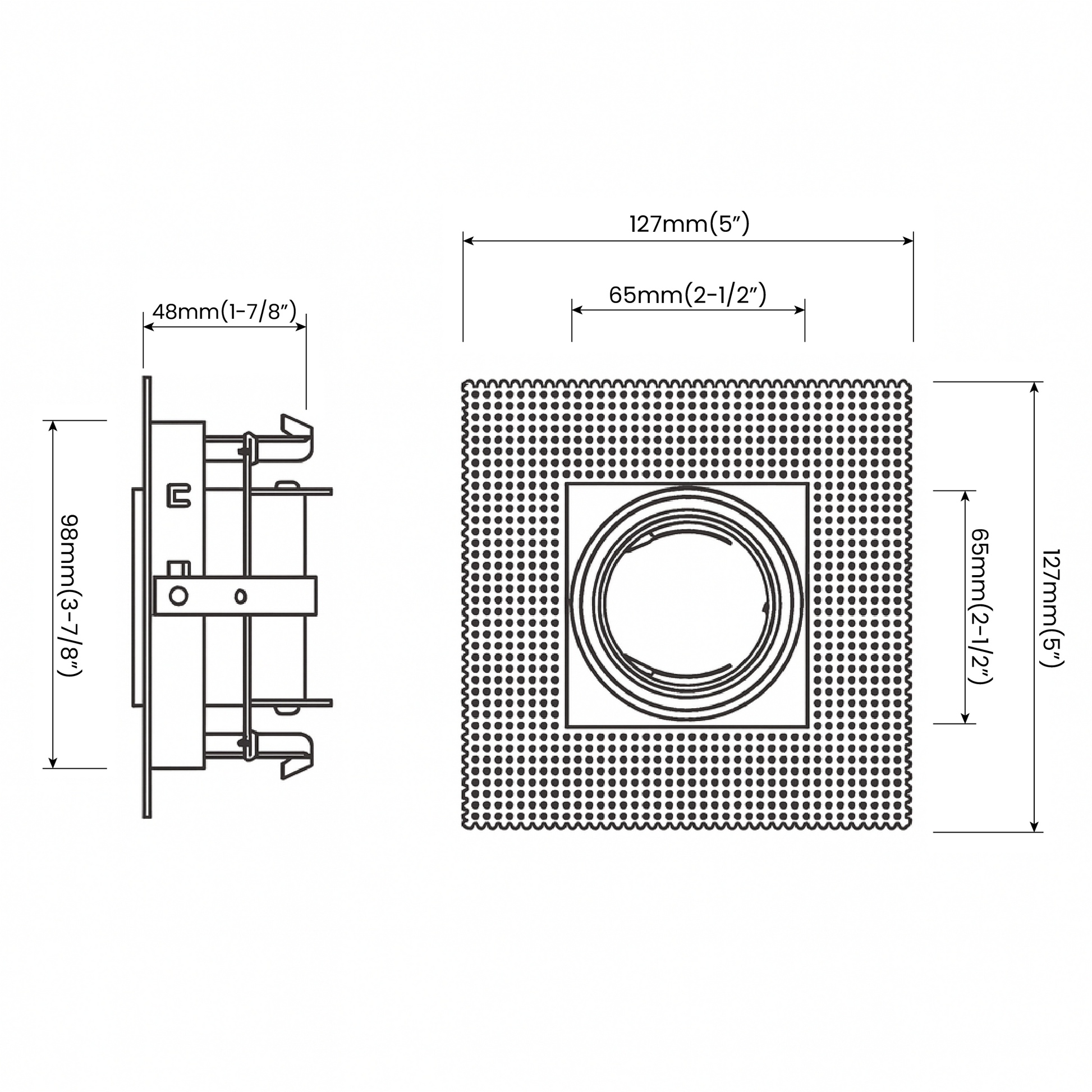

| Dimensions | 2.5" × 2.5" |
Recommended Housing
| Model | Type | Lamp / Base | Maximum Wattage |
|---|---|---|---|
| DN-04-ICAT | 4" Line Voltage IC Airtight New Construction Housing | GU-10 / GU5.3 | 50W Max |
Installation Note
For trimless installations, Durabond is recommended on the trimless portion to help provide a durable finished surface and reduce the possibility of cracking around the fixture after installation.
Applications
- Residential Accent Lighting
- Luxury Residential Interiors
- Retail Stores
- Display Lighting
- Jewelry Showrooms
- Hotels & Hospitality
- Gallery Lighting
- Artwork Lighting
- Restaurants & Lounges
- Architectural Accent Lighting
Why Choose the TS6733 Series?
The TS6733 Series combines a modern 3" square trimless profile with an adjustable gimbal design for precise directional illumination. Its compatibility with MR-16 and GU-10 lamps provides flexibility in selecting the appropriate lamp output, color temperature, and beam angle for each application.
With Matte White and Matte Black powder-coated finishes, a clear lens, secure steel mounting clips, and seamless trimless integration, the TS6733 Series provides a refined architectural solution for residential, retail, hospitality, gallery, and display lighting applications.
